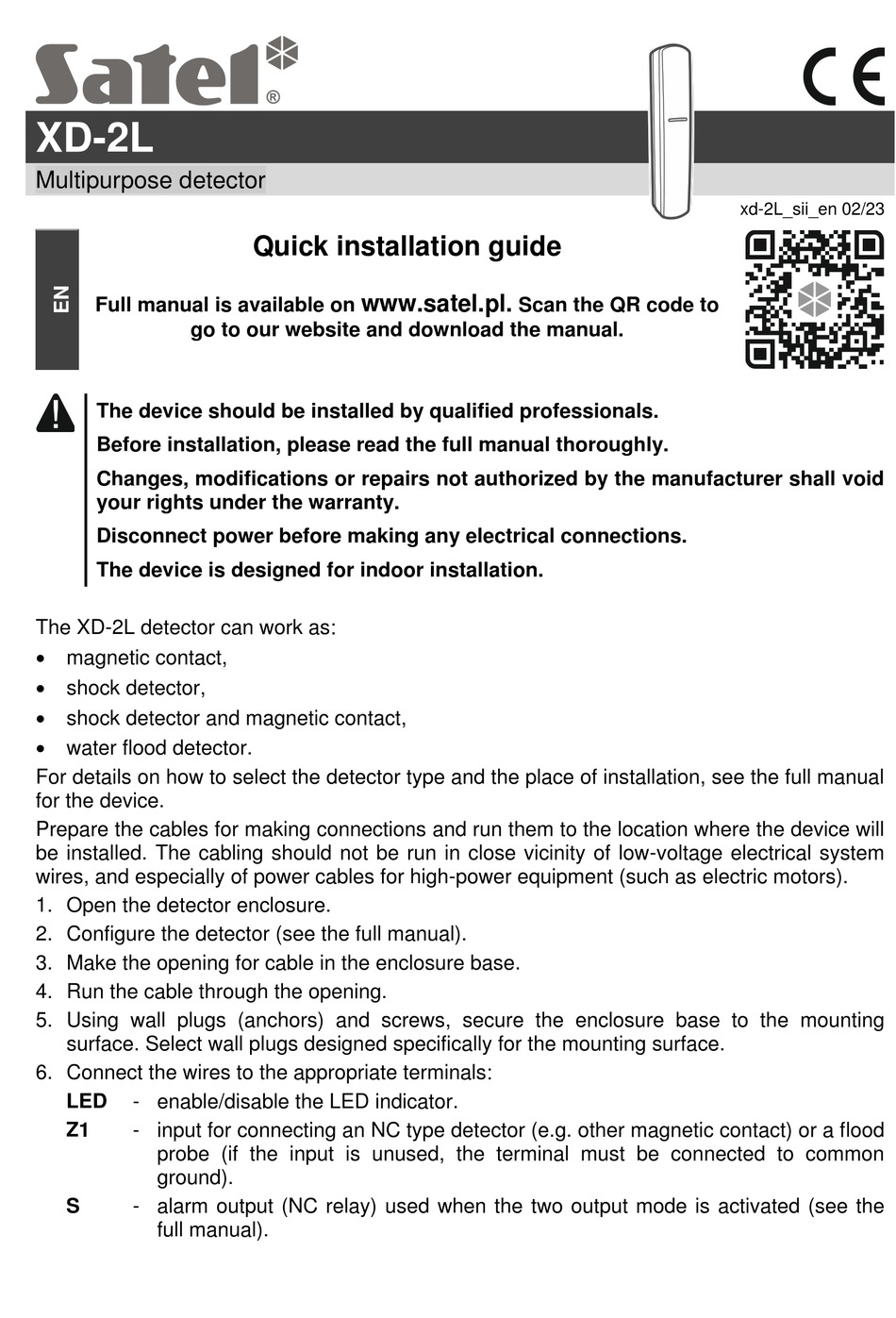

Satel XD-2L Quick Installation Manual

XD-2L
Multipurpose detector
Full manual is available on
go to our website and download the manual.
The device should be installed by qualified professionals.
Before installation, please read the full manual thoroughly.
Changes, modifications or repairs not authorized by the manufacturer shall void
your rights under the warranty.
Disconnect power before making any electrical connections.
The device is designed for indoor installation.
The XD-2L detector can work as:
 magnetic contact,
 shock detector,
 shock detector and magnetic contact,
 water flood detector.
For details on how to select the detector type and the place of installation, see the full manual
for the device.
Prepare the cables for making connections and run them to the location where the device will
be installed. The cabling should not be run in close vicinity of low-voltage electrical system
wires, and especially of power cables for high-power equipment (such as electric motors).
1. Open the detector enclosure.
2. Configure the detector (see the full manual).
3. Make the opening for cable in the enclosure base.
4. Run the cable through the opening.
5. Using wall plugs (anchors) and screws, secure the enclosure base to the mounting
surface. Select wall plugs designed specifically for the mounting surface.
6. Connect the wires to the appropriate terminals:
LED - enable/disable the LED indicator.
Z1 - input for connecting an NC type detector (e.g. other magnetic contact) or a flood
probe (if the input is unused, the terminal must be connected to common
ground).
S - alarm output (NC relay) used when the two output mode is activated (see the
full manual).
Quick installation guide
www.satel.pl.
Scan the QR code to
xd-2L_sii_en 02/23
