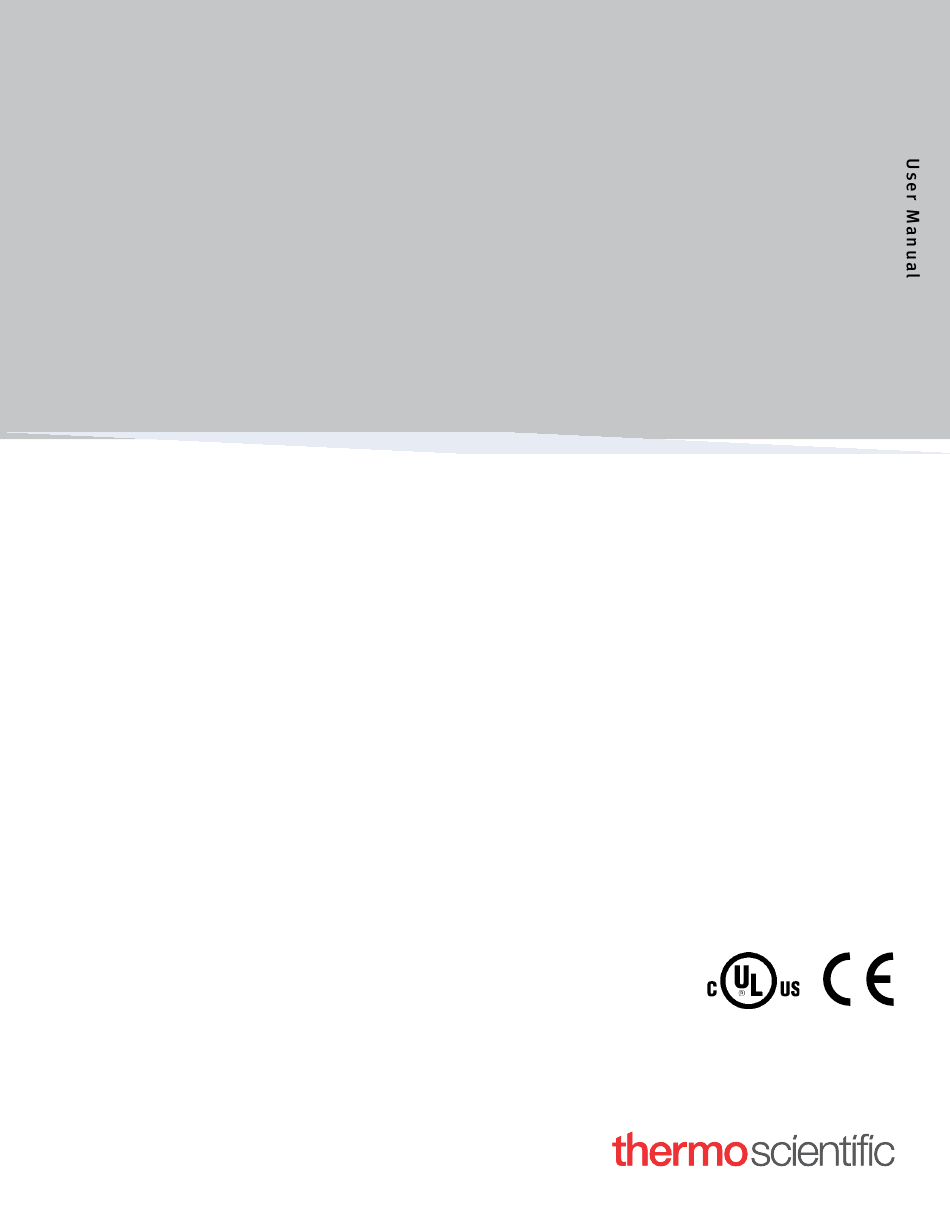

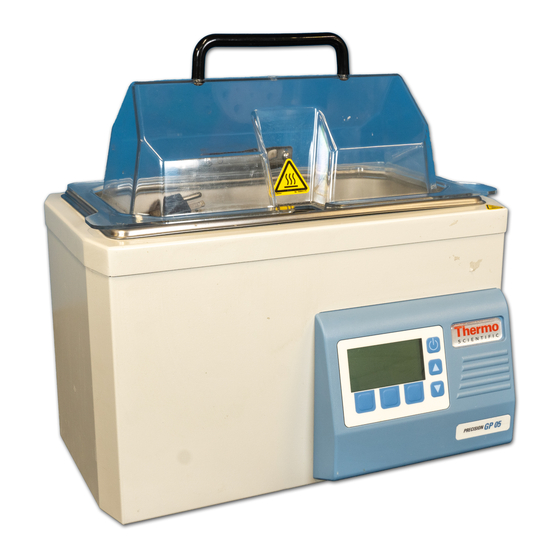

- Page 1 Precision Coliform Water Baths Manual Part Number U01368, September 07, 2021 Multilingual Quick Start Guides Multilingual Essential Safety Instructions Installation Operation Preventive Maintenance Troubleshooting...
-
Page 2: Table Of Contents
Changing a Real Time Adjustment ..............4-6 Chapter 5 Preventive Maintenance ..........5-1 Pump Inlet Filter ....................5-1 Cleaning ......................5-1 Electrical Power Cord ..................5-1 Chapter 6 Troubleshooting ............6-1 Error Displays ....................6-1 Checklist ......................6-2 Warranty Percision Thermo Scientific... - Page 3 Precision Thermo Scientific...
- Page 4 Precision Water Bath Quick Start Guide This quick start guide is intended for initial start up only. For all other procedures you must refer to the manual. Also, if any of these steps are not clear refer to the manual before proceeding.
- Page 5 Kurzanleitung zur Inbetriebnahme des Präzisionswasserbades Diese Kurzanleitung ist nur für die erste Inbetriebnahme vorgesehen. Für alle anderen Verfahren müssen Sie im Handbuch nachsehen. Auch wenn irgendwelche Schritte unklar sind, schaue Sie im Handbuch nach, bevor Sie fortfahren. Befüllung Stellen Sie sicher, dass der Ablauf des Behälters geschlossen ist und dass alle Anschlüsse sicher angeschlossen oder verschlossen sind. Achten Sie außerdem darauf, dass vor dem Befüllen des Behälters alle Rückstände gründlich entfernt wurden.
- Page 6 Guide de démarrage rapide - Bain de précision Ce guide de démarrage rapide est destiné à la mise en marche initiale uniquement. Pour toute autre procédure, merci de vous référer au manuel. De plus, si l’une de ses étapes ne vous paraît pas claire, téléchargez le manuel avant de commencer.
- Page 7 Guía de inicio rápido de bañeras de agua de precisión Esta guía de inicio rápido se ha creado únicamente para el arranque inicial. Para obtener información sobre el resto de procedimientos, debe consultar el manual. Asimismo, en caso de que tuviera dudas sobre alguno de estos pasos, consulte el manual antes de continuar.
- Page 8 Banho de água de precisão – Guia de início rápido Este guia de início rápido destina-se apenas ao arranque inicial. Para todos os outros procedimentos, consulte o manual. Além disso, se qualquer uma dessas etapas não estiver clara, consulte o manual antes de prosseguir. Preenchimento Certifique-se de que a porta de drenagem do reservatório esteja fechada e que todas as conexões do encanamento estejam firmemente sondadas ou tampadas.
- Page 9 Guida all'avvio del bagno di precisione Questa guida di avvio rapido riguarda esclusivamente l'avviamento iniziale. Fare riferimento al manuale per tutte le altre procedure. Inoltre, qualora alcuni di questi passaggi non siano chiari, fare riferimento al manuale prima di procedere. Riempimento (Vengono filtrati solo i liquidi approvati/Acqua distillata e deionizzata) Assicurarsi che eventuali porte di scarico del serbatoio siano chiuse e che tutte le connessioni delle tubazioni siano sicure o tappate.
-
Page 10: Preface
If the bath shows external or internal damage contact the transportation company and file a damage claim. Under ICC regulations, this is your responsibility. The bath does not have handles. Take into account its weight when unpacking and transporting. We recommend two people lift heavier baths from the bottom. Thermo Scientific Precision... -
Page 11: After-Sale Support
Monday through Friday (Eastern Time) Fax: (603) 436-8411 service.tc.us@thermofisher.com Feedback We appreciate any feedback you can give us on this manual. Please e-mail us at: tcmanuals@thermofisher.com Please include the manual part number and the revision date listed on the front cover. Precision Thermo Scientific... -
Page 12: Chapter 1 Safety
"dangerous voltage" within the bath's enclosure. The voltage magnitude is significant enough to constitute a risk of electrical shock. This label indicates the presence of hot surfaces. This label indicates read the manual. Observe all warning labels. Never remove warning labels. Thermo Scientific Precision... - Page 13 Transport the bath with care. Sudden jolts or drops can damage its components. Refer service and repairs to a qualified technician. Performance of installation, operation, or maintenance procedures other than the ones described in this manual may result in a hazardous situation and will void the manufacturer's warranty. Precision Thermo Scientific...
-
Page 38: Chapter 2 General Information
Chapter 2 Chapter 2 General Information Description All Thermo Scientific Precision Water Baths provide constant temperature to applications placed in the reservoir. All have digital displays, four programmable set point temperatures, acoustic and optical alarms, and offer adjustable high temperature protection. - Page 39 Heater output measured at mains supply of 120 VAC and 240 VAC. Thermo Fisher Scientific takes no responsibility for damages caused by the selection of an unapproved fluids. Thermo Fisher Scientific reserves the right to change specifications without notice. Precision Thermo Scientific...
-
Page 40: Regulatory Compliance
Our compliance is witnessed by written declaration from our suppliers and/or component testing. This confirms that any potential trace contamination levels of the substances listed above are below the maximum level set by the latest regulations or are exempt due to their application. Thermo Scientific Precision... - Page 41 Additional Regulations & Markings European Union The European voltages of this product meets all the applicable requirements of the European Directives, and display the CE Marking. An EC declaration of conformity may be obtained from the manufacturer. Precision Thermo Scientific...
- Page 42 EU Member State, and this product should be disposed of or recycled through them. Further information on our compliance with these Directives, the recyclers in your country, and information on Thermo Scientific products which may assist the detection of substances subject to the RoHS Directive are available at www.thermofisher.com/...
- Page 43 Chapter 2 General Information Precision Thermo Scientific...
-
Page 44: Chapter 3 Installation
The bath is designed for continuous operation and for indoor use. Never place the bath in a location where excessive heat, moisture or corrosive CAUTION materials are present. Ventilation No special ventilation clearances are required. Cover Installation Figure 3-1 – Bath Cover Installation Precision | 3-1 Thermo Scientific... -
Page 45: Electrical Requirements
The following plug types are available: Bath Volts /Hertz/Phase Plug Type COL 19 100-115/50-60/1 N5-15 200-230/50-60/1 Country Specific COL 35 100-115/50-60/1 N5-20 200-230/50-60/1 Country Specific 1. Volts ± 10% 20 Amp Outlet 15 Amp Outlet 3-2 | Precision Thermo Scientific... -
Page 46: Approved Fluids
Draining and replacing “used” water is the best preventative maintenance for the cooling/heating equipment. Biological organisms will develop in water that is not replaced or treated regularly. A mild treatment using an algaecide can help extend the useful life of water. Precision | 3-3 Thermo Scientific... - Page 47 Biocides are corrosive and can cause irreversible eye damage and skin burns. WARNING They are harmful if inhaled, swallowed or absorbed through the skin. Refer to the manufacturer's most current SDS. 3-4 | Precision Thermo Scientific...
- Page 48 Tap water is not normally recommended because the total ionized solids level may be too high. As an example, tap water in the United States averages 171 ppm (of NaCl). The recommended level for use in a water system is between 0.5 to 5.0 ppm (of NaCl). Precision | 3-5 Thermo Scientific...
-
Page 49: Filling Requirements
Note Monitor the fluid level whenever heating the fluid. To conserve energy, reduce evaporation, and increase temperature control accuracy, use the supplied gable cover. Do not use aluminum foil as a cover, as it may cause corrosion due to an electrochemical reaction. 3-6 | Precision Thermo Scientific... -
Page 50: Draining
• When the reservoir is completely empty, press the button on the quick disconnect to release the drain hose and pull free from the unit. • Wipe the reservoir clean. Coupler Quick Disconnect Neoprene Hose (3/8ID x 5/8OD) Figure 3-2 – Drain Kit Accessory Precision | 3-7 Thermo Scientific... - Page 51 Section 3 | Installation 3-8 | Precision Thermo Scientific...
-
Page 52: Chapter 4 Operation
Chapter 4 Operation Chapter 4 Operation Controller The Thermo Scientific Precision Water Baths have digital controllers that display the bath’s reservoir fluid temperature, shaker speed and other bath features. Once the circuit protector on the back of the bath is on, press to start/stop the bath. -
Page 53: Start Up
29.9°C 35.0°C Note Coliform bath set points are fixed and cannot be changed. The four set points are 35.0°C, 41.5°C, 44.5°C and 45.5°C (95.0°F, 106.7°F, 112.1°F and 113.9°F). Precision Thermo Scientific... -
Page 54: Selecting A Preset Set Point
For bath shut down place the circuit protector located on the rear of the bath to the O position. • • To disconnect the bath remove the electrical plug from its power source. Thermo Scientific Precision... -
Page 55: Changing A Setting
. See Chapter 6. Press, and hold, an arrow key to change the temperature. Once the desired value is displayed press to save the change or 95. °C not save the change. Press to return to the home screen. Precision Thermo Scientific... - Page 56 Once the desired contrast is displayed press to return to the home screen. These icons are used to select the desired temperature scale, °C or °F. Press to toggle °C between °C and °F. Press to return to the home screen. °F Thermo Scientific Precision...
-
Page 57: Changing A Real Time Adjustment
Once the desired value is displayed press RTA1 0. °C Press to return to the home screen. The changed RTA will not be displayed on the home screen until that preset is selected using the Selecting a Preset Setpoint procedure. Precision Thermo Scientific... -
Page 58: Chapter 5 Preventive Maintenance
If corrosion (e.g., small rust marks) occur in spite of this, cleaning with stainless steel caustic agents has proved to be suitable. Apply these substances according to the manufacturer's recommendations. Electrical Power Cord Ensure any replacement cord is properly rated. Thermo Scientific Precision... - Page 59 Chapter 5 Preventive Maintenance Precision Thermo Scientific...
-
Page 60: Chapter 6 Troubleshooting
HTC fault cannot be cleared, the bath must be serviced by an authorized Thermo Scientific Temperature Control Service Technician. High Temp Fault adjustable high temp fault protection limit exceeded... -
Page 61: Checklist
Ensure bath installation complies with the site requirements in Chapter 3. • Make sure supply voltage matches bath's nameplate rating ±10%. Please contact Thermo Fisher Scientific Sales Service and Customer Support if you need any additional information, see inside cover for contact instructions. Precision Thermo Scientific... -
Page 62: Warranty
The buyer shall be responsible for any evaluation or warranty service call (including labor charges) if no defects are found with the Thermo Scientific product. This warranty does not cover any bath that has been subject to misuse, neglect, or accident. This warranty does... - Page 63 Rev 3 thermoscientific.com © 2021 Thermo Fisher Scientific Inc. All rights reserved. All trademarks are the property of Thermo Fisher Scientific Inc. and its subsidiaries. Specifications, terms and pricing are subject to change. Not all products are available in all countries. Please consult your local sales representative for details. Thermo Fisher Scientific 81 Wyman Street Waltham, MA 02451...
