GS 61
10 - 30 V
DC
10 kHz

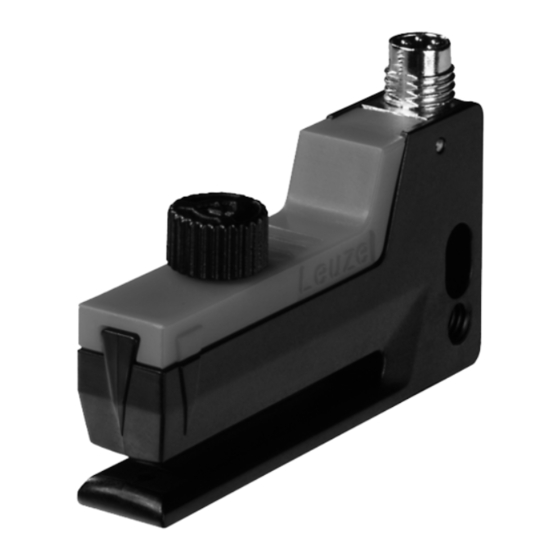

Optical forked photoelectric sensor with
3mm mouth width for exact detection of
labels on base material
Simple sensitivity adjustment via multiturn
potentiometer or optionally via teach-in
function
NEW
– slim-line design (reduced fork
height) for installation directly on the
dispensing edge
NEW
– Removable operating head for easy
parameter adjustment without tools
NEW
– Smallest dimensions of all industrial
forked photoelectric sensors with an
excellent price / performance ratio
NEW
– Easy adjustment via lockable teach
button or teach input
U L
C
LISTED
IP 65
Accessories:
(available separately)
Mounting device BT-GS6X
(Part No. 50110803)
Mounting device BT-GS6X.L
(Part No. 50112215)
Leuze electronic GmbH + Co. KG
info@leuze.de • www.leuze.com
Dimensioned drawing
3mm
A
B
C
D
E
F
G
H
Electrical connection
US
Connector, 4-pin
UL approval applied for
Cable
In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
Label centre position
Control element
Knurled knob (removable)
D1: horizontal connector, D2: vertical connector, D3: cable
Mounting device BT-GS6X; BT-GS6X.L
Optical axis
Indicator diodes
Teach button
/
/
– 1 –
Forked photoelectric sensor
This LED has no function on the GS 61 with potentiometer
Connector, 3-pin
Connector, 5-pin
/
GS 61... - 04
Advertisement
Table of Contents
Related Manuals for Leuze electronic GS 61
Summary of Contents for Leuze electronic GS 61
- Page 1 10 kHz Optical forked photoelectric sensor with 3mm mouth width for exact detection of labels on base material This LED has no function on the GS 61 with potentiometer Simple sensitivity adjustment via multiturn potentiometer or optionally via teach-in function –...
-
Page 2: Specifications
Diagrams Green LED, flashing teach-in activated Yellow LED switching signal in the label gap Repeatability as a function Red LED (GS 61/… .2… only) teach error / function error of the conveyor speed Mechanical data ±50 ±45 Housing base PC plastic, black RAL 9005 ±40... - Page 3 (GS 61/6…). For device versions with switching signal on the label (GS 61/6D…), the LED indi- cators are inverted. Preparation: Remove one or more labels from the base material and advance this blank area into the sensor.
- Page 4 GS 61 Short instructions for sensor adjustment via teach button for GS 61/… (with Teach) Standard function Normal operation after switch-on ON LED - green = ready OUT LED - yellow = switching output WARN LED - red = warning...
- Page 5 LEDs flash rapidly. For error acknowledgment, briefly press the teach button and repeat the teach event. If the error cannot be rectified, the label material cannot be detected with the GS 61/… .2… Manual teach if the label tape cannot be advanced (static) Preparation: Remove one or more labels from the base material and advance this blank area into the sensor.
- Page 6 GS 61 Sensor adjustment (Teach-In) via teach input for GS 61/… (with Teach) The following description applies to PNP switching logic! not connected Internal pull-down resistor pulls Teach button can be operated; Teach the input down to zero all functions adjustable ≤...
-
Page 7: Locking The Teach Button Via The Teach Input
Output signal is dynamic again Teach faulty Output signal is dynamic again - repeat teach event if necessary Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 GS 61… - 04 info@leuze.de • www.leuze.com... -
Page 8: Maintenance Information
Maintenance information The GS 61 forked photoelectric sensor is largely maintenance free. Depending on the environmental conditions and the used materials, it may be necessary from time to time to clean the transparent parts in the lower and upper fork of the forked photo- electric sensor.
