Leuze electronic ODSL 96B Manual

Leuze electronic ODSL 96B Manual

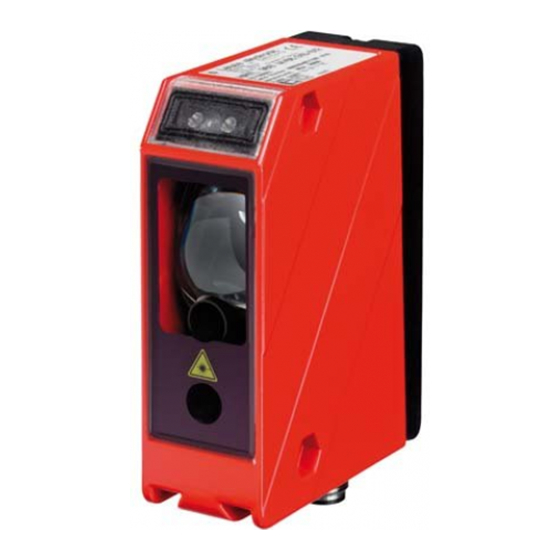

Optical laser distance sensors

Advertisement

Quick Links

ODSL 96B
18 - 30 V
DC
 Measurement range up to 10000mm at
90% diffuse reflection
 Reflection-independent distance informa-
tion up to 6000mm
 Highly insensitive to extraneous light
 Analog current or voltage output
 PC/OLED display and membrane keyboard
for configuration
 Measurement value is indicated in mm on
OLED display
 Measurement range and mode adjustable
IEC 60947...
IEC 60947...
Accessories:
(available separately)
 Mounting systems
 Cable with M12 connector
(K-D ...)
 Configuration software
Leuze electronic GmbH + Co. KG
info@leuze.com • www.leuze.com

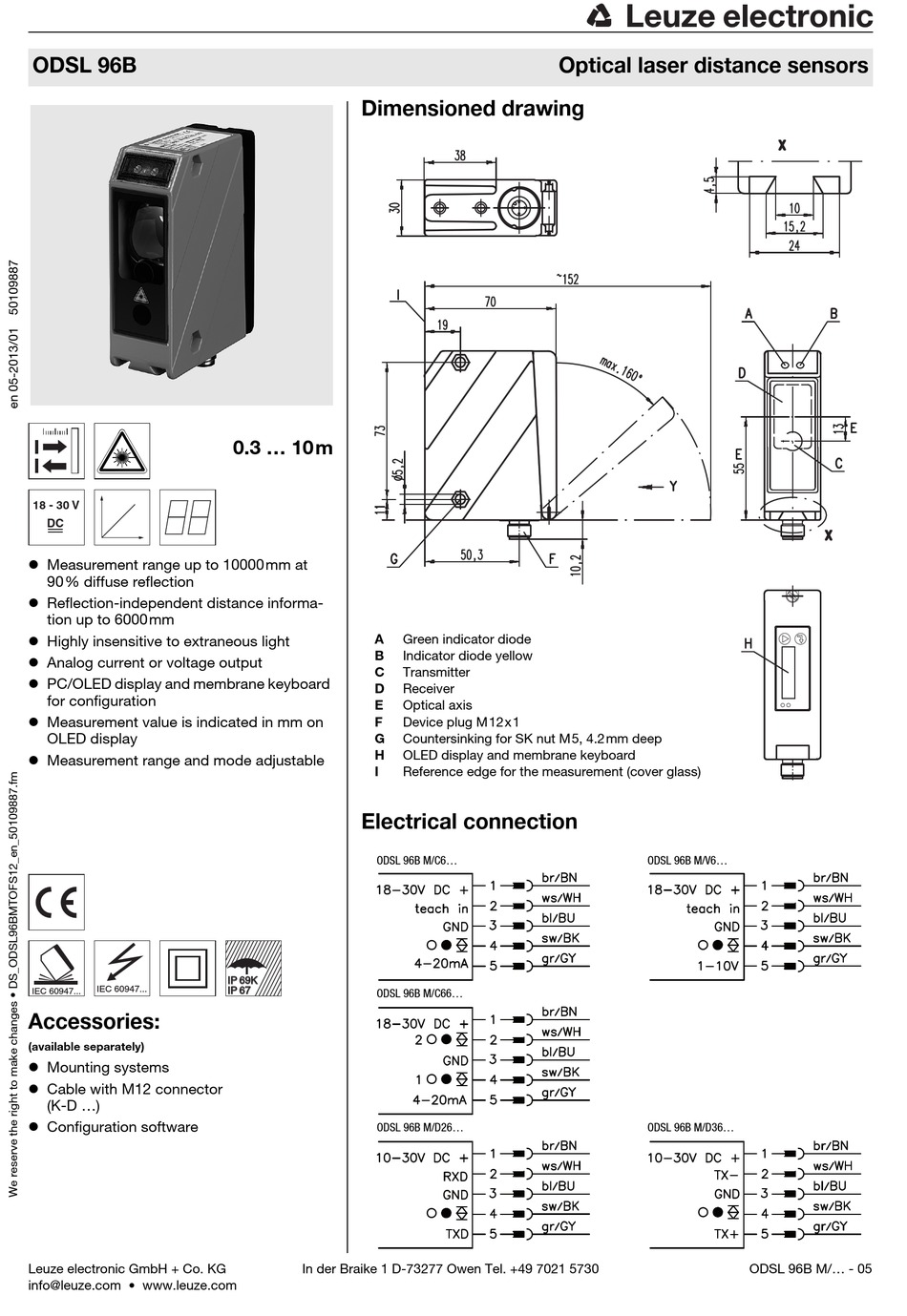

Dimensioned drawing
0.3 ... 10m
A
B
C
D
E
F
G
H
I
Electrical connection
ODSL 96B M/C6...
IP IP 69K
69K
IP IP 67
67
ODSL 96B M/C66...
ODSL 96B M/D26...
In der Braike 1 D-73277 Owen Tel. +49 7021 5730
Optical laser distance sensors
Green indicator diode
Indicator diode yellow
Transmitter
Receiver
Optical axis
Device plug M12x1
Countersinking for SK nut M5, 4.2mm deep
OLED display and membrane keyboard
Reference edge for the measurement (cover glass)
ODSL 96B M/V6...
ODSL 96B M/D36...
ODSL 96B M/... - 05

Advertisement

loading
Need help?

Need help?

Do you have a question about the ODSL 96B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Leuze electronic ODSL 96B

  • Page 1  Cable with M12 connector (K-D …)  Configuration software ODSL 96B M/D26… ODSL 96B M/D36… Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 7021 5730 ODSL 96B M/… - 05 info@leuze.com • www.leuze.com...
  • Page 2 Analogue voltage output Voltage output, teach input, 1 push/pull output ODSL 96B M/V6-S12 50109291 Serial digital output RS 232, 1 push/pull output ODSL 96B M/D26-S12 50109292 RS 485, 1 push/pull output ODSL 96B M/D36-S12 50109293 ODSL 96B M/… - 05 2013/01...
  • Page 3  Measurement mode Precision. Reset to factory settings  Press the button while switching on the device to reset the configuration of the ODSL 96B to the state upon delivery from the factory.  Press the button again to reset all parameters to the factory settings. All settings made FactorySettings previously are permanently lost.
  • Page 4 Attention Laser Radiation! The optical distance sensors ODSL 96B operate with a red light laser of class 2 acc. to EN 60825-1. If you look into the beam path over a longer time period, the retina of your eye may be damaged!

This manual is also suitable for:

Odsl 96b m/d26-s12Odsl 96b m/c66-s12Odsl 96b m/d36-s12Odsl 96b m/c6-s12Odsl 96b m/v6-s1250109292 ... Show all
