Leuze electronic LES Series Technical Description

Line edge sensor. light section sensors

Hide thumbs

Quick Links

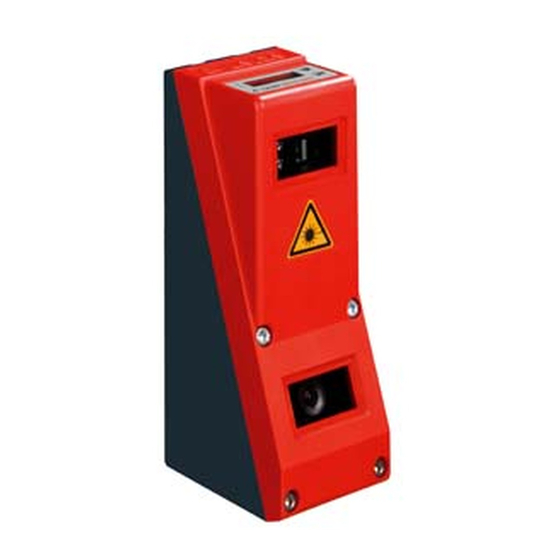

LES - Line Edge Sensor

Light Section Sensors

T E C H N I C A L D E S C R I P T I O N

Table of Contents

Need help?

Do you have a question about the LES Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Leuze electronic LES Series

Page 1 LES - Line Edge Sensor Light Section Sensors T E C H N I C A L D E S C R I P T I O N...
Page 2 © 2013 Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen / Germany Phone: +49 7021 573-0 Fax: +49 7021 573-199 http://www.leuze.com info@leuze.de Technical description LES Leuze electronic...
Page 3: Table Of Contents
Functional principle of object and edge detection with the LES ......25 Leuze electronic...
Page 4: Table Of Contents
Connection X4 - PROFIBUS DP (only LES 36/PB) ......50 Technical description LES Leuze electronic...
Page 5: Table Of Contents
Apply Settings ..............76 Leuze electronic...
Page 6: Table Of Contents
Scan number ............99 Technical description LES Leuze electronic...
Page 7: Table Of Contents
Measurement value 1 in Edge Analysis Window EAW1........121 Leuze electronic...
Page 8: Table Of Contents
Connectors..............136 Technical description LES Leuze electronic...
Page 9: Table Of Contents
Index..........145 Leuze electronic...
Page 10 Edit Analysis Windows ..........78 Figure 9.5: ’Edge Analysis Window Combination Tables’ window ..... 81 Technical description LES Leuze electronic...
Page 11: Table Of Contents
Revision History - Configuration software......143 Leuze electronic Technical description LES...
Page 12: General Information
Attention Laser! This symbol warns of possible danger caused by hazardous laser radiation. The light section sensors of the LES series use a class 2M laser: Viewing the laser output with certain optical instruments, e.g. magnifying glasses, microscopes or binoculars, may result in eye damage.
Page 13: Safety Notices
The protection of personnel and the device cannot be guaranteed if the device is operated in a manner not complying with its intended use. The light section sensors of the LES series are laser distance sensors for presence detection of dimensions of objects using their edges.
Page 14: Working Safely
Adjustments: Do not attempt any adjustments to or alterations of this product. Do not open the protective housing of the light section sensor. There are no user-serviceable parts inside. The glass optics cover is the only aperture through which laser light may be observed on this product. Leuze electronic Technical description LES...
Page 15 OPTICAL INSTRUMENTS Maximum Output: 8,7mW Pulse duration: 3,0ms Wavelength: 658nm CLASS 2M LASER PRODUCT IEC 60825-1:2007 Complies with 21 CFR 1040.10 Aperture label Name plate Laser warning signs supplied Figure 2.1: Name plate and warning notices Technical description LES Leuze electronic...
Page 16 If the signs would be concealed as a result of the mounting situation of the device, attach the signs in the vicinity of the light section sensor such that reading the signs cannot lead to looking into the laser beam! Leuze electronic Technical description LES...
Page 17: Operating Principle
Depending on the distance of the object the laser line is projected to a different position on the CMOS planar detector as shown in figure 3.1. By means of this position the distance of the object can be calculated. Technical description LES Leuze electronic...
Page 18: Limits Of Light Section Sensors
Figure 3.2: Occlusion Leuze electronic Technical description LES...
Page 19: Possible Measure Against Laser Occlusion
In this situation the second sensor is then cas- caded. See "Cascading" on page 24. Technical description LES Leuze electronic...
Page 20: Resolution
The output resolution of the measurement values on the process interface is 1/10mm with Standard-Connect, 1/100mm with HI-Connect (only with LES 36HI/VC6). Object distance in Z direction [mm] Figure 3.4: Typical minimum object size LES 36HI… Leuze electronic Technical description LES...
Page 21: Device Description
• Measurement value display in mm on OLED display as an alignment aid • Up to 16 inspection tasks • Compact construction • Robust design and easy operation • Activation input, trigger input, cascading output Technical description LES Leuze electronic...
Page 22: Line Edge Sensor - Les
PROFIBUS Typical areas of application • Edge and height measurement of web material products and paper rolls • Width and height measurement of cartons • Edge and height measurement of stackable materials (e.g. chipboards) Leuze electronic Technical description LES...
Page 23: Operating The Sensor
Pin 2 at X1 Output approx. 14ms 10ms between 2 consecutive between laser pulse and laser pulses in "Free Running" Axes: p = level, t = time associated data output mode Figure 4.2: Activation input signal sequence Technical description LES Leuze electronic...
Page 24: Triggering - Free Running
Trigger input Pin 5 at X1 Laser Activation input Pin 2 at X1 Output (Ethernet) Data packets, approx. 1ms approx. 14ms Axes: p = level, t = time Figure 4.3: Trigger input signal sequence Leuze electronic Technical description LES...
Page 25: Profibus Trigger
Sensor 1, or the master, can be operated in this case both triggered as well as continuously. All other sensors must be operated triggered. Cascading settings For all sensors except the last slave, the cascading output must be enabled via configuration software: Cascading Output: Enable. Technical description LES Leuze electronic...
Page 26: Measurement Functions: Les
"Sequent Hits" parameter was introduced. The minimum number of measurement points set there must occur in succession in the EAW to detect a valid edge. Outliers or missing measurement points reset the counter. Leuze electronic Technical description LES...
Page 27: Inspection Task
("rightmost" RX, RZ) are determined in each EAW. • EAWs usually have an absolute position. If the object position varies, an EAW can also be positioned relative to a found edge position in the previous EAW and thus tracked. Technical description LES Leuze electronic...
Page 28: Definition Of Eaws And Their Analysis Results
If there are not enough successive measurement points in an EAW, no edge detection and no object measurement is possible within this EAW. Configuration of the edge detection in EAWs is performed with LESsoft (Edit Analysis Windows -> Edge Detection Definitions). Leuze electronic Technical description LES...
Page 29 • Width of objects: W (calculated from the distance of RX and LX in the X direction). • Height difference of left and right edge: H (calculated from the distance of RZ and LZ in the Z-direction). Technical description LES Leuze electronic...
Page 30 Measurement points Left edge Right edge (coordinates LX, LZ) (coordinates RX, RZ) No object detection due to shadowing in the measure- Object ment range EAW01 Conveyor path x axis Figure 4.8: Edge detection with EAWs Leuze electronic Technical description LES...
Page 31: Relative Window Positioning
EAW01. This window now tracks all position changes of the object edge to be measured, both in the X-direction and Z-direc- tion. Notice! The evaluation functions are defined using LESsoft (see chapter 9.4). Technical description LES Leuze electronic...
Page 32: Object Detection
X direction has nearly twice as many hit points as it does at a far distance (e.g, 600mm). If the object distance is the same, the number of hit points remains nearly constant. Leuze electronic Technical description LES...
Page 33: Application Examples For Eaws
Figure 4.10: Application example: web-edge measurement In the example shown above, the edge position of web material is to be determined. Analysis is performed in Edge Analysis Window EAW01. The edge coordinates for edge LX, LZ are determined in EAW01. Technical description LES Leuze electronic...
Page 34: Application Example: Height And Width Measurement Of A Cubic Object
The object is on a transport system. The width is measured in edge analysis window EAW0; the height is measured in EAW03. The following measurement values are obtained: • in EAW01: Object Width W = LX1 - RX1 • in EAW03: Object Height H = RZ3 - LZ3 Leuze electronic Technical description LES...
Page 35: Analysis Window (Aw)
X direction has nearly twice as many hit points as it does at a far distance (e.g, 600mm). If the object distance is the same, the number of hit points remains nearly constant. Technical description LES Leuze electronic...
Page 36: Installation And Mounting
 Save the original packaging for later storage or shipping. If you have any questions concerning your shipment, please contact your supplier or your local Leuze electronic sales office.  Observe the local regulations regarding disposal of packaging material. Leuze electronic...
Page 37: Mounting The Les
• Using a BT 56 mounting device on the two fastening grooves. • Using a BT 59 mounting device on the two fastening grooves. Dovetail fastening grooves M4 Tapped holes Figure 5.2: Fastening options Figure 5.3: Mounting example LES Technical description LES Leuze electronic...
Page 38: Bt 56 Mounting Device
Clamp profile for mounting to round or oval pipes Ø 16 … 20mm All dimensions in mm A Rod holder, turnable by 360° B Rods Ø 16 … 20mm Figure 5.4: BT 56 mounting device Leuze electronic Technical description LES...
Page 39: Bt 59 Mounting Device
All dimensions in mm A Holder, turnable 360° B ITEM joint, angle adjustable ±90° C M8x16 screwable cylinder, M8 serrated washer, M8 sliding block, connector for ITEM profile (2x) Figure 5.5: BT 59 mounting device Technical description LES Leuze electronic...
Page 40: Device Arrangement
The general principle is that the light section sensor should be aligned so that the back of the sensor is aligned parallel to the conveying belt or measuring plane. Rotation along the Y-axis is not desirable. The figure 5.6 illustrates the problem: Leuze electronic Technical description LES...
Page 41: Attach Laser Warning Sign
In doing so, avoid leaving fingerprints on the optics cover of the LES. Attention! Do not use aggressive cleaning agents such as thinner or acetone for cleaning the device. Technical description LES Leuze electronic...
Page 42: Electrical Connection
An overview of the available types may be found in chapter 15.1 Figure 6.2: Connections of the LES The pin assignment of X1 and X2 is identical for all light section sensors; X3 and X4 differ depending on device type. Leuze electronic Technical description LES...
Page 43 Protection class IP 67 is achieved only if the connectors and caps are screwed into place! The connectors used must be equipped with O-ring seals. Therefore, preferably, please use the ready-made cables by Leuze electronic. Technical description LES Leuze electronic...
Page 44: Shielding And Line Lengths
Lay the cables for the power components (motor cables, lifting magnets, frequency inverters, …) as far from the sensor cables as possible (distance > 30cm). Avoid laying power and sensor cables parallel to one another. Cable crossings should be laid as perpendicular as possible. Leuze electronic Technical description LES...
Page 45: General Shielding Information
Carefully ground all parts of the machine and of the switch cabinet using copper strips, ground rails or grounding cables with large cross section. Below, the EMC-compliant connection of the light section sensors LES is described in practical use with images. Technical description LES Leuze electronic...
Page 46: Connect The Ground Potential To The Light Section Sensors
• Galvanized mounting sheet steel Comment: Depicted shield components from Wago, series 790 ...: - 790-108 Shield clamping bracket 11 mm - 790-300 Busbar holder for TS35 Figure 6.4: Connecting the cable shield in the switch cabinet Leuze electronic Technical description LES...
Page 47: Connecting The Cable Shield To The Plc
• Mounting rails must be well grounded Comment: Depicted shield components from Wago, series 790 ...: - 790-108 Shield clamping bracket 11 mm - 790-112 Carrier with grounding foot for TS35 Figure 6.5: Connecting the cable shield to the PLC Technical description LES Leuze electronic...
Page 48: Connecting
The trigger input is used for synchronizing the measurement with the process and for synchronizing cascaded sensors. Detailed information on this topic can be found in chapter 4.2.3 and chapter 4.2.4. The internal equivalent circuit is shown in figure 6.6. Leuze electronic Technical description LES...
Page 49: Cascading Output Outcas
Notice for connecting the Ethernet interface! Ensure adequate shielding. The entire connection cable must be shielded and earthed. The Rx+/Rx- and Tx+/Tx- wires must be stranded in pairs. Use CAT 5 cables for the connection. Technical description LES Leuze electronic...
Page 50: Connection X3 - Switching Inputs/Outputs (Only Les 36/Vc6 And Les 36Hi/Vc6)
"000" stands for Inspection Task 0, "001" for Inspection Task 1, etc. The switching time between 2 inspection tasks is < 100ms Notice! The Inspection Tasks 8-15 can be switched via PROFIBUS or Ethernet. The setting via Ethernet overwrites the inspection task set via input InSel1-3. Leuze electronic Technical description LES...
Page 51: Connection X4 - Profibus Dp (Only Les 36/Pb)
(termination) is then connected to this. The 5V-supply for the termination is connected to X4. Notice! For the connection, we recommend our ready-made PROFIBUS cables (see chapter 15.2 "Accessories") For the bus termination, we recommend our PROFIBUS terminating resistor (see chapter 15.2 "Accessories") Technical description LES Leuze electronic...
Page 52: Connection X4 - Voltage/Current Output (Les 36/Vc, Les 36Hi/Vc6)
(the minimum adjustment range is 10mm). The characteristic output curve can be configured as rising or falling. For this purpose, both distance values Position Min. Val. and Position Max. Val. for the minimum and maximum analog output value are set accordingly, see figure 6.8. Leuze electronic Technical description LES...
Page 53 +200 … +800mm +200 … +800mm Height difference 0 … 600mm 0 … 400mm Width 0 … 600mm 0 … 140mm Notice! Valid Z-values are output 10mm above and beyond the max. measurement range: 190 … 810mm. Technical description LES Leuze electronic...
Page 54: Display And Control Panel
Ethernet connection established Flashing Ethernet data transmission active No Ethernet connection Table 7.1: LED function indicator 7.1.2 Control buttons  The LES is operated using the  and buttons, which are located next to the OLED display. Leuze electronic Technical description LES...
Page 55: Displays
• Z 500 means that the Z-coordinate of the left-most measurement point is at position +500mm. • W 230 means that the width of the object is 230mm. • H 059 means that the height of the object is 59mm. Technical description LES Leuze electronic...
Page 56: Command Mode
OLED display has one line. Command Mode appears on the first line of the display. Command Mode Notice! If errors occur during operation, these are shown on the display. Notices can be found in chapter 12.3. Leuze electronic Technical description LES...
Page 57: Menu Description
Attention: the value is permanently  set to 1 and cannot be changed. Ethernet  Ethernet Factory Settings  Here you can set the IP address of the  IP Address   LES. 192.168.060.003 Table 7.2: Menu structure Technical description LES Leuze electronic...
Page 58  Slave Address  address of the LES (0 … 126). With  address 126 (default), automatic  Slave Address address assignment by the commis-  sioning master is supported.  Table 7.2: Menu structure Leuze electronic Technical description LES...
Page 59 If no button is pressed for three minutes, the LES exits menu mode and switches to measure mode. The OLED display again displays the alignment aid and the sensor status display. Notice! After changing the PROFIBUS slave address, a power-on reset must be performed in order to permanently accept the address. Technical description LES Leuze electronic...
Page 60: Operation/Navigation
(in this example, the factory setting 192.168.060.003 remains saved). Editing selection parameters  displays the next option for Display (Off). Display  returns to the next-higher menu level and retains On. Leuze electronic Technical description LES...
Page 61: Reset To Factory Settings
2s; the LES then returns to measure mode. You can select the resetting to factory settings also via LESsoft.  In the Configuration menu select the entry Reset to Factory Settings. Technical description LES Leuze electronic...
Page 62: Commissioning And Configuration
The value in Net Mask Addr. specifies which digits of the IP address of the PC and LES must match so that they can communicate with each other. Address of the LES Net mask Address of the PC 192.168.060.003 255.255.255.0 192.168.060.xxx 192.168.060.003 255.255.0.0 192.168.xxx.xxx Table 8.1: Address allocation in the Ethernet Leuze electronic Technical description LES...
Page 63: Setting An Alternative Ip Address On The Pc
The PC can now communicate with the LES. Information about configuring with the LESsoft can be found in chapter 9. Technical description LES Leuze electronic...
Page 64: Commissioning
If several sensors are to be activated, all sensors as well as the control must receive different IP addresses on the same subnet. For all sensors different ports must be configured in the Sensor area as well as in the Client/PC area. Leuze electronic Technical description LES...
Page 65: Lessoft Configuration Software
You will need LPSsoft for configuring light section sensors of the LPS series. You will need LRSsoft for configuring light section sensors of the LRS series. You will need LESsoft for configuring light section sensors of the LES series. ...
Page 66 LESsoft configuration software  Therefore keep in the Choose Setup Language window the selection English and click on OK. Leuze electronic Technical description LES...
Page 67 Depending on the configuration of your Windows system, the dialog shown below may then appear (missing component VCREDIST_X86).  Click on Install. Two additional installation windows will appear, which do not require any further entry. Technical description LES Leuze electronic...
Page 68 After some time (up to several minutes depending on the system configuration) the start screen of the MCR installer will appear.  Click on Next. The window for entering user data appears.  Enter your name and the company name and then click on Next. Leuze electronic Technical description LES...
Page 69 The installation will start and a status window will be displayed. This can again take several minutes. Following successful MCR installation, the InstallShield Wizard Completed window appears.  Click on Finish to end the MCR-installation. Technical description LES Leuze electronic...
Page 70 Keep the default folder in this case as well and click on Next. Upon completion of the installation process, the window shown above appears. The installation routine added a new Leuze electronic program group in your Start menu that contains the installed programs LESsoft/LPSsoft/LRSsoft.
Page 71: Possible Error Message
Then click on OK and close also all further windows using OK.  Shut Windows down, restart Windows and then start LESsoft by double-clicking on it. Now the start screen of LESsoft appears, as described in chapter 9.3. Technical description LES Leuze electronic...
Page 72: Starting Lessoft/Communication Tab
As a result LESsoft establishes a connection and displays the currently measured 2D profile. In the status line at the bottom left of the display you will now find Online highlighted in green instead of Offline highlighted in red. Leuze electronic Technical description LES...
Page 73 • Encoder value dependent on the sensor type (Encoder Value) • Connected sensor type • Analog output status (Analog Output) Notice! Once the LESsoft has established a connection to the LES, the laser beam flashes. Technical description LES Leuze electronic...
Page 74: Profibus Settings (Only Les 36/Pb)
After changing the PROFIBUS slave address via the display or LESsoft, a power-on reset must be performed in order to permanently accept the address. For the changed settings to take effect, they must be transferred to the sensor! Leuze electronic Technical description LES...
Page 75: Parameter Settings/Parameters Tab
Analysis Functions panel and define analysis windows (EAWs, AWs) for edge and object detection. Finally, save these settings as an Inspection Task by clicking on Apply Settings or Transmit to Sensor. The analog output is configured in the Analog Output tab (chapter 9.4.5). Technical description LES Leuze electronic...
Page 76: Standard Tab - Task Parameters Panel
"Ethernet Trigger" (chapter 10.3.4) or PROFIBUS Trigger (chapter 11.5) commands is being used. Detailed information on this topic can be found in chapter 4.2.3. Leuze electronic Technical description LES...
Page 77: Activation
The Apply Settings button temporarily transmits the settings for the current inspection task to the sensor. When switched off, the data/settings are lost. Notice! If an inspection task was changed, permanent storage in the sensor should be performed with Configuration -> Transmit to Sensor. Technical description LES Leuze electronic...
Page 78: Leuze Electronic Technical Description Les
How evaluation of the measurements functions with EAWs and AWs is described in chapter 4.3 and chapter 4.4. Click the Edit Analysis Windows button to open the table for defining the analysis windows. Leuze electronic Technical description LES...
Page 79: Using The Mouse
The font of the Accept Analysis Window Rectangle button turns black after size and/ or position of the analysis window have been changed using the mouse. You have to click the button in order to accept the values in the 2D representation. Technical description LES Leuze electronic...
Page 80: Keyboard Input
Status column is red (not ok). If the EAW is not activated, the status is gray. If not enough measurement points occurred in succession in an EAW, edge detection and object measurement within this EAW is not possible. Leuze electronic Technical description LES...
Page 81: Analysis Window Definitions
The further processing and combination of results from object detection occurs by pressing the Edit Logical Combinations button. Notice! The changed settings must be transferred to the sensor with Apply Settings. Technical description LES Leuze electronic...
Page 82: Edit Logical Combinations
• Red state = edge detection and object detection not ok Notice! For sensors with analog output, a valid measurement value transmission for edges only occurs at the analog output if the Edge State is ok. Leuze electronic Technical description LES...
Page 83: Object Point/Eaw State (Result Of Edge Detection)
If the check box is selected, the left edge position is displayed in the 2D view with a green coordinate cross, the right edge position with a blue coordinate cross. Figure 9.6: Display of the edge positions (green and blue) in the 2D display Technical description LES Leuze electronic...
Page 84: X, Width (X), Z, Height (Z)
EAW via the PROFIBUS. In the Profibus Inputs 1 and Profibus Inputs 2 fields, you can configure which measurement values these are for up to four edge analyses. Notice! The changed settings must be transferred to the sensor with Apply Settings. Leuze electronic Technical description LES...
Page 85: Application Example 1: Web Edge Measurement
The ascertained position of the right edge is -9.6mm (column Edge1 -> Right Most -> line X). The distance from the edge to the sensor is 366.6mm (column Edge1 -> Right Most ->line Z). Figure 9.7: Application example 1: web edge measurement Technical description LES Leuze electronic...
Page 86: Application Example 2: Height And Width Monitoring Of Cubic Objects
49.6mm (column Edge2 -> line Height (Z)). All measurement results are displayed in the window to the right of the 2D view. Figure 9.8: Application example 2: height and width monitoring of cubic objects Leuze electronic Technical description LES...
Page 87: Additional Object Detection With Les Sensors
= 3 -> response time 3 x 10ms = 30ms). Interfering signals of individual scans are suppressed. If an analysis depth = 1 (factory stetting beginning with firmware version 01.25) is selected, the response time is 10ms. Technical description LES Leuze electronic...
Page 88: Aw Logic Analysis Depth (Result Of Object Detection)
• Green state = ok • Red state = not ok Notice! A display appears only if object detection was activated in an EAW/AW. Notice! The changed settings must be transferred to the sensor with Apply Settings. Leuze electronic Technical description LES...
Page 89 Tables window, the additional object detection is activated by selecting + under EAW1. All results are green (ok). The ascertained width of the carton is 49.2mm (column Edge1 -> line Width (X)). Figure 9.9: Application example 3.1: width monitoring of cubic objects with object detection Technical description LES Leuze electronic...
Page 90: Figure 9.10: Application Example 3.2: Width Monitoring Of Cubic Objects With Object Detection
Edge Status is ok (see page 81). In the case of sensors with digital switching outputs at X3 (LES 36/VC6, LES 36 HI/VC6), the status of Edge 1 to 4 is signaled at outputs Out1 to Out4 (HIGH active). Leuze electronic Technical description LES...
Page 91: Standard Tab - Single Shot Mode Panel
Selection to configure whether or not the inspection tasks 0 … 15 can be selected via PROFIBUS. Notice! If Enable External Inspection Task Selection is ticked, the inspection task can only be selected via PROFIBUS. In this case, the drop-down menu under Inspection Task Selection has no function. Technical description LES Leuze electronic...
Page 92: Analog Output Tab - Configuring The Analog Output (Only Les 36/Vc)
- LX = Left edge X-coordinate - LZ = Left edge Z-coordinate - RX = Right edge X-coordinate - RZ = Right edge Z-coordinate • Width of objects: W • Height difference of left and right edge: H Leuze electronic Technical description LES...
Page 93: Mm For Min. Val.
Measurement value in mm for the upper range limit of the voltage or current output (10V/20mA). Notice! The minimum adjustable range between the upper and lower range limit of the analog output is 10mm. Notice! The changed settings must be transferred to the sensor with Apply Settings. Technical description LES Leuze electronic...
Page 94: Menu Commands
• Transmit to Sensor permanently stores all parameter settings of all defined inspection tasks from the configuration software in the LES. • Reset to factory settings resets the LES to factory settings. Leuze electronic Technical description LES...
Page 95: Zoom And Pan/Toolbar
Fetch the configuration from the sensor via Load from Sensor or load it from the data carrier with Open. Remove the tick at Enable Selection Inputs. Use Inspection Task Selection to select the inspection task to be modified. Technical description LES Leuze electronic...
Page 96 Permanently transfer the configuration including all inspection tasks to the sensor with Transmit to Sensor. Where applicable: save the configuration to data carrier with Save As… Finally, disconnect the connection to the sensor: click on the button Disconnect from sensor: Leuze electronic Technical description LES...
Page 97: Integrating The Les In The Process Control
LES there is then also 0x4E43 (byte sequence 0x43, 0x4E). The LES sends data as "little endian", i.e., first the low byte and then the high byte. The possible values of individual bytes and their meaning are described below. Technical description LES Leuze electronic...
Page 98: Protocol Structure
The packet number serves internal maintenance purposes of the manufacturer. 10.2.3 Transaction number In measure mode, 0x0000 is always displayed here. In command mode, the command acknowledgment of the sensor contains the command number of the command that is answered. Leuze electronic Technical description LES...
Page 99: Status
The 4 bytes in Encoder High and Encoder Low specify the encoder counter value for light section sensors with encoder interface. The maximum value is 0xFFFF FFFF. Beyond that an overflow to 0x0000 0000 occurs. Technical description LES Leuze electronic...
Page 100: Scan Number
Left edge X-value LX in EAW1 65…66 Left edge Z-value LZ in EAW1 67…68 Right edge X-value RX in EAW1 69…70 Right edge Z-value RZ in EAW1 71…72 Width W in EAW1 73…74 Height H in EAW1 Leuze electronic Technical description LES...
Page 101: Commands
The response of the LES also corresponds to the "little-endian" standard. For further information, see the notice in chapter 10.2. All other commands are acknowledged with 'Not Ack'=0x414E; the command is not processed. Additional commands are available in command mode. Technical description LES Leuze electronic...
Page 102: Elementary Commands
Detailed info on possible sensor states see chapter 10.2.4 "Status". You can determine whether the sensor is in menu mode with a quick glance at the display. Menu mode can be ended with the Exit menu item. Leuze electronic Technical description LES...
Page 103: Commands In Command Mode
X- and Z-coordinates by means of command number 0x0059 when using parameter ID 0x07D4. The sensor can also be reset to factory settings via the keyboard and display, but all other sensor settings are lost as well. Technical description LES Leuze electronic...
Page 104: User Data In Command Mode (Command Parameters)
The LES responds to sensor control command 0x0049 with 0x004A and one word of user data: Byte High-Byte LSB MSB Low-Byte LSB Meaning of the bits 31…32 - N4 N3 N2 N1 Number of the configured inspection task (0 = Task0 … 15 = Task 15) Leuze electronic Technical description LES...
Page 105: Set Scan Number
0xFFFF 0xFFFF 0x0000 0x006D 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0010 0x0003- 0x000E Byte High-Byte LSB MSB Low-Byte LSB Meaning of the bits 31…32 SF = SaveFlag 33…34 Parameter ID for parameter selection 35…58 Parameter value[s] dependent on parameter ID Technical description LES Leuze electronic...
Page 106 LES 36/VC, LES 36/VC6, LES 36/PB: 1900…8100 (unit in 1/10mm) Sensor response: Command number Meaning User data words 0x4141 "Ack": the command has been successfully executed. 0x414E "Not Ack": the command has not been executed. Leuze electronic Technical description LES...
Page 107: Get Single Inspection Task Parameter (Beginning With Firmware V01.40!)
Name of an inspection task 0x0BBA Operating mode 0x0BBB Enabling of activation 0x0BBC Enabling of the cascading output 0x0BBD Exposure duration of the laser 0x0BBE Manual adjusting of the exposure duration 0x0BBF X-coordinate detection range 0x0BC0 Z-coordinate detection range Technical description LES Leuze electronic...
Page 108: Set Single User Parameter (Beginning With Firmware V01.20!)
If SF=0 then the output of X-coordinates is changed only temporarily. If SF=1 then the output of X-coordinates is retained even after a restart of the LES. If OF=0, then X- and Z-coordinates are transmitted. If OF=1, then only Z-coordinates are transmitted (X-coordinates are deactivated). Leuze electronic Technical description LES...
Page 109: Set Single User Parameter (Beginning With Firmware V01.40!)
0xFFFF 0xFFFF 0x0000 0x005B 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0010 0x0001 When using sensor control command 0x005B with parameter ID 0x07D4, one word of user data is transmitted to the sensor: Technical description LES Leuze electronic...
Page 110 When using parameter ID 0x07DB, sensor control command 0x005B can be used to check whether the median filter is activated. Command syntax: 0xFFFF 0xFFFF 0x0000 0x005B 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0010 0x0001 Leuze electronic Technical description LES...
Page 111: Commands In Measure Mode
Prerequisite is that the LES be configured with LESsoft under Operation Mode to Input Triggered. A connection to the sensor must exist before the Ethernet Trigger command can be used. Table 10.4: Commands in measure mode Technical description LES Leuze electronic...
Page 112: Working With The Protocol
0xFFFF 0xFFFF 0x0000 0x004B 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0002 0x000F 0x0001 LES to PC (command executed): 0xFFFF 0xFFFF 0x0000 0x4141 0x0000 0x0000 0x0000 0x004B 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 Leuze electronic Technical description LES...
Page 113: Operation With Lxs_Lib.dll
Internet at www.leuze.com. 10.6 Additional support when integrating sensors Additional tools (e.g. MatLab example, function modules S7, protocol plain-text decoding, UDP terminal) are available. Please contact your Leuze distributor or service organization to acquire these. Technical description LES Leuze electronic...
Page 114: Integration Of The Les 36/Pb In The Profibus
• Output of the state of the edge detection AND object detection (logical AND combination). • Transmission of scan number, sensor state and of the current inspection task. • Selection of up to 16 inspection tasks. • Activation and trigger via PROFIBUS. Leuze electronic Technical description LES...
Page 115: Profibus Address Assignment
57. The set address can also be queried by the user with no additional tools. Notice! After changing the PROFIBUS slave address via LESsoft or with the display/key pad, a power-on reset must be performed in order to permanently accept the address. Technical description LES Leuze electronic...
Page 116: General Information About The Gsd File
If these values are not changed by the user, the device operates with the default setting set by Leuze electronic on delivery. Please refer to the following module descriptions for the default settings of the device.
Page 117: Overview Of The Gsd Files
Activation (=1) or deactivation (=0) of the sensor uInspTask IT_b3 IT_b2 IT_b1 IT_b0 0 … 15 Inspection task of PROFIBUS master and save flag (B7) Table 11.1: PROFIBUS - Overview of output data (from viewing position of control) Technical description LES Leuze electronic...
Page 118: Input Data (From Viewing Position Of Control)
OP_b3 OP_b2 OP_b1 OP_b0 wEdgeAW4Data2 (HighByte) sign OP_b14 OP_b13 OP_b12 OP_b11 OP_b10 OP_b9 OP_b8 -32768… Signed measurement value 2 +32767 in Edge Analysis Window EAW4 wEdgeAW4Data2 (LowByte) OP_b7 OP_b6 OP_b5 OP_b4 OP_b3 OP_b2 OP_b1 OP_b0 Leuze electronic Technical description LES...
Page 119: Output Data Description
After configuring, the check box for this parameter must be selected again before the configuration is transmitted to the sensor by means of Transmit Configuration To Sensor. Otherwise, inspection tasks can no longer be selected via PROFIBUS! Technical description LES Leuze electronic...
Page 120: Input Data Description
State of the edge detection (Edge State) in EAW1: 0 = not ok (red), 1 = ok (green) IT_b3 IT_b2 Number of the currently set inspection task. Value range 0 … 15 IT_b1 IT_b0 Table 11.2: Input data byte uSensorInfo Leuze electronic Technical description LES...
Page 121: Sensor State
State of the object detection for EAW2: 0 = not detected or not activated, 1 = detected EAW1 State of the object detection for EAW1: 0 = not detected or not activated, 1 = detected Table 11.5: Input data byte uResultAWs Technical description LES Leuze electronic...
Page 122: Measurement Value 1 In Edge Analysis Window Eaw1
These are signed, 16-bit measurement values (for information on configuration, see "Profibus Inputs 1 , Profibus Inputs 2" on page 83). Notice! Description see "Measurement value 1 in Edge Analysis Window EAW1" on page 121. Leuze electronic Technical description LES...
Page 123: Module M3
These are signed, 16-bit measurement values (for information on configuration, see "Profibus Inputs 1 , Profibus Inputs 2" on page 83). Notice! Description see "Measurement value 1 in Edge Analysis Window EAW1" on page 121. Technical description LES Leuze electronic...
Page 124: Diagnostics And Troubleshooting
Check settings of the Ethernet interface. Connect sensor to control. Sensor not activated Activate sensor via PIN 2 on X1. Switch off activation input. See "Activation" on page 76. Table 12.1: General causes of errors Leuze electronic Technical description LES...
Page 125: Interface Error
Using ping command check whether the sensor LES / control responds. If so, check port assignment to LES and control. The set ports must match. Firewall blocks ports Switch off firewall temporarily and repeat connection test. Table 12.2: Interface error Technical description LES Leuze electronic...
Page 126: Error Messages In Display (Starting From Firmware V01.40)
During this time, the sensor is not ready - this can be seen at: X1 pin 4: Out Ready and Ethernet protocol: "Status". The sensor starts automatically and is then ready again. An Ethernet connection must be re-established. Leuze electronic Technical description LES...
Page 127 Have the following information ready for the service department: - File: LESsoft.log (located in the installation directory of LESsoft) Leuze Service fax number: +49 7021 573 - 199 Leuze Service e-mail for the LOS product unit: service.detect@leuze.de Technical description LES Leuze electronic...
Page 128: Maintenance
Contact your Leuze distributor or service organization should repairs be required. The addresses can be found on the inside of the cover and on the back. Notice! When sending light section sensors to Leuze electronic for repair, please provide an accurate description of the error. 13.3...
Page 129: Specifications
3 (selection of inspection task) on X3 (LES 36/VC6 and LES 36HI/VC6)  (U Signal voltage high/low -2V)/ 2V Analog output (LES 36/VC, LES 36HI/VC6)  2k Analog output voltage 1 … 10V, R  500 current 4 … 20mA, R Technical description LES Leuze electronic...
Page 130 Number of detection fields: up to 16 with logic operation option Number of inspection tasks: up to 16 (8 of these can be activated via inputs) 1=transient protection, 2=polarity reversal protection, 3=short circuit protection for all outputs, requires external protective circuit for inductive loads Leuze electronic Technical description LES...
Page 131: Typical Measurement Range
14.2 Typical measurement range -300 X = Line length -225 -150 Measurement range +150 +225 +300 Figure 14.1: Typical measurement range LES 36 -100 Measurement range z-axis +100 Figure 14.2: Typical measurement range LES 36HI Technical description LES Leuze electronic...
Page 132: Dimensioned Drawing
M4 thread, 4.5 deep Holder for mounting system BT 56 / BT 59 Zero point and orientation of the coordinate system for measurement data 4mm bore hole in transmitter axis Figure 14.3: Dimensioned drawing LES Leuze electronic Technical description LES...
Page 133: Type Overview And Accessories
200 … 800mm, line length 600mm, Ethernet interface, analog current or voltage output LES 36/PB Line profile sensor for product detection (also multi-track), 50111327 detection range 200 … 800mm, line length 600mm, Ethernet interface, PROFIBUS DP Table 15.3: Type overview LES Technical description LES Leuze electronic...
Page 134: Accessories
Contact assignment for connection cable X1 Connection cable X1 (8-pin socket, A-coded) Name Core color InAct InAct OutReady OutReady InTrig OutCas InTrig OutCas Do not connect! Do not connect! M12 socket (A-coded) Table 15.5: K-D M12A-8P… cable assignments Leuze electronic Technical description LES...
Page 135: Order Codes Of The Cables For Voltage Supply
KB ET - 10000 - SA Cable length 10m 50106741 KB ET - 15000 - SA Cable length 15m 50106742 KB ET - 30000 - SA Cable length 30m 50106746 Table 15.8: Ethernet connection cables featuring M12 plug/open cable end Technical description LES Leuze electronic...
Page 136: Ready-Made Cables With M12 Plug/Rj-45 Plug
KB ET - 10000 - SSA Cable length 10m 50106901 KB ET - 15000 - SSA Cable length 15m 50106902 KB ET - 30000 - SSA Cable length 30m 50106905 Table 15.12: Ethernet connection cables featuring M12 plug/M12 plug Leuze electronic Technical description LES...
Page 137: Connectors
M12 plug for X3, axial connector, open cable end, shielded up to 10m KB M12/8-2000-SA Cable length 2m 50110179 KB M12/8-5000-SA Cable length 5m 50110180 KB M12/8-10000-SA Cable length 10m 50110181 Table 15.15: X3 cables for the LES 36…/VC6 Technical description LES Leuze electronic...
Page 138: Connection Accessories / Ready-Made Cables For X4 (Only Les 36/Pb)
Terminator plug for PROFIBUS bus termination TS 02-4-SA M12 terminating resistor for PROFIBUS 50038539 PROFIBUS T-connector KDS BUS OUT M12-T-5P M12 T-connector for BUS OUT 50109834 Table 15.17: PROFIBUS connection accessories for the LES 36/PB Leuze electronic Technical description LES...
Page 139: Order Code Of Profibus Connection Cables For X4
M12 connector + M12 socket for PROFIBUS, axial connectors, 50104098 cable length 5m KB PB-10000-SBA M12 connector + M12 socket for PROFIBUS, axial connectors, 50104099 cable length 10m Table 15.18: PROFIBUS cables for LES 36/PB Technical description LES Leuze electronic...
Page 140: Contact Assignment For X4 Connection Cables
M12 plug for X4, axial connector, open cable end, shielded, UL, 5m cable length 50102969 KB 008-10000 A-S M12 plug for X4, axial connector, open cable end, shielded, UL, 10m cable length 50102971 Table 15.20: Connection cables for LES 36/VC, LES 36/VC6, LES 36HI/VC6 Leuze electronic Technical description LES...
Page 141: Configuration Software
CD TD LES 36 CD with configuration software for light section sensors 50111933 Table 15.21: Configuration software for the LES Notice! The current version of the configuration software can be found on the Leuze website. Technical description LES Leuze electronic...
Page 142: Appendix
Triggered series connection of several sensors. A master sensor takes over the control (synchronization) of up to 9 slaves. Measurement time Time between two individual measurements. Object Medium to be detected by sensor. Offline LESsoft is operated without sensor. Online LESsoft is operated with sensor. Leuze electronic Technical description LES...
Page 143: Revision History / Feature List
Beginning Supports Additional device types LES 36/PB LxSsoft V1.40 (LPSsoft V1.33, with V01.30 LES 36 with PROFIBUS and LES 36/VC with LESsoft V1.10, LRSsoft V1.20) analog output Table 16.1: Revision History - Firmware Technical description LES Leuze electronic...
Page 144 LES 36/VC with analog output LxSsoft V1.41 (LPSsoft V1.33, Installer for Windows 7 Software runs with the 32 and 64 bit LESsoft V1.10, LRSsoft V1.20) version of Windows 7 Table 16.2: Revision History - Configuration software Leuze electronic Technical description LES...
Page 145 Edge Analysis Windows can be posi- tioned relatively and can thus track object movement. LxSsoft V2.31 (LPSsoft V2.31, Also supports LES 36/VC6 LESsoft V2.31, LRSsoft V2.31) device type Documentation updated Table 16.2: Revision History - Configuration software Technical description LES Leuze electronic...
Page 146: Index
Mounting location Electrical connection Mutual interference Electrical data Encoder count Environment variable Name plate Environmental data Error limits Error message Ethernet cable assignment Occlusion Ethernet connection OLED display Ethernet interface Optical data Exposure duration Exposure setting Leuze electronic Technical description LES...
Page 147 Measurement frequency 119 Module Output data Outputs Parameter Slave Receiver occlusion Receiving optics Repair Resolution Rod installation Safety standard Servicing Shielding System requirements System variable Termination Timing Triangulation principle Trigger input Trigger time Troubleshooting Type overview Technical description LES Leuze electronic...

This manual is also suitable for:

Les 36/vc6 Les 36/vc Les 36/pb Les 36hi/vc6
