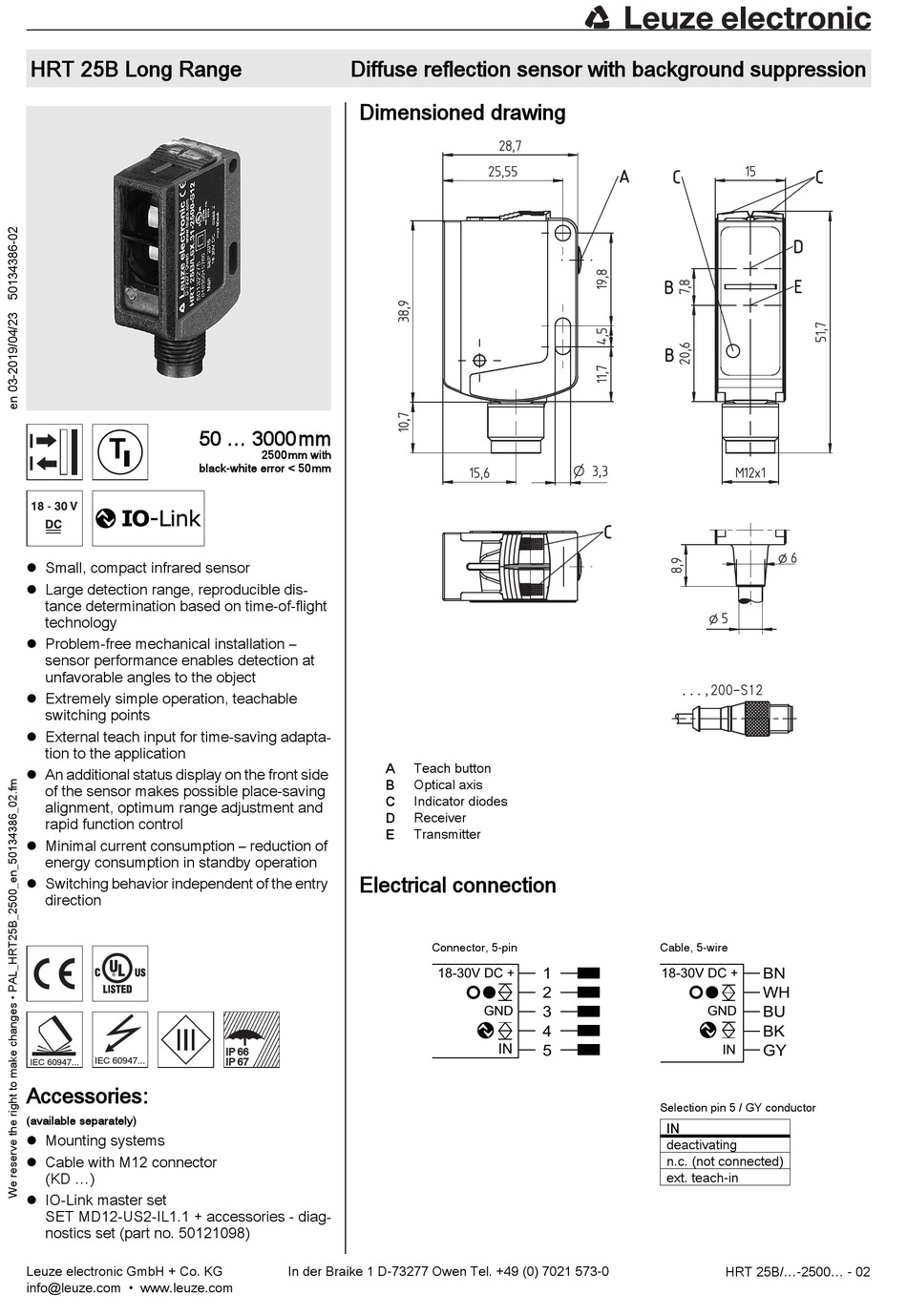

Leuze electronic HRT 25B Long Range Quick Start Manual

Technical data and description

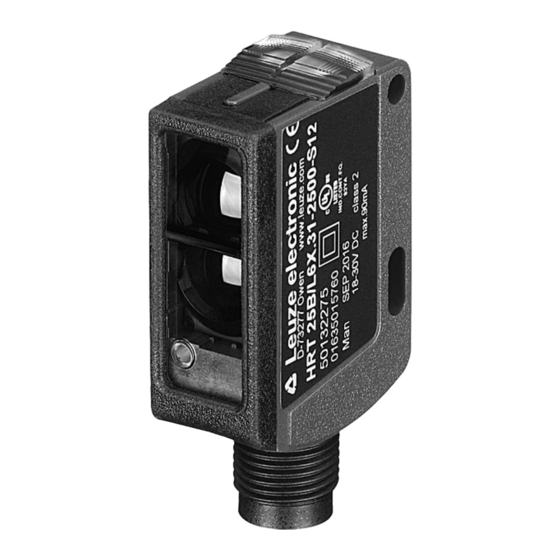

HRT 25B Long Range
 Small, compact infrared sensor
 Large detection range, reproducible dis-
tance determination based on time-of-flight
technology
 Problem-free mechanical installation –
sensor performance enables detection at
unfavorable angles to the object
 Extremely simple operation, teachable
switching points
 External teach input for time-saving adapta-
tion to the application
 An additional status display on the front side
of the sensor makes possible place-saving
alignment, optimum range adjustment and
rapid function control
 Minimal current consumption – reduction of
energy consumption in standby operation
 Switching behavior independent of the entry
direction
IEC 60947...
IEC 60947...
Accessories:
(available separately)
 Mounting systems
 Cable with M12 connector
(KD ...)
 IO-Link master set
SET MD12-US2-IL1.1 + accessories - diag-
nostics set (part no. 50121098)
Leuze electronic GmbH + Co. KG
info@leuze.com • www.leuze.com
Diffuse reflection sensor with background suppression
Dimensioned drawing
50 ... 3000mm
2500mm with
black-white error < 50mm
Electrical connection
IP IP 66 66
IP IP 67 67
In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
A Teach button
B Optical axis
C Indicator diodes
D Receiver
E Transmitter
Connector, 5-pin
1
18-30V DC +
2
GND 3
4
IN
5
Cable, 5-wire
BN
18-30V DC +
WH
GND BU
BK
GY
IN
Selection pin 5 / GY conductor
IN
deactivating
n.c. (not connected)
ext. teach-in
HRT 25B/...-2500... - 02
