Laser-Ausrichthilfen
LA-78M / LA-78M-UDC
Red-light laser, Laser class 2
Sturdy aluminum housing
Battery-operated
Suitable for safety sensor MLD
IP 45
IP 45
Accessories:
2x1.5V AAA batteries (built-in)
Leuze electronic GmbH + Co. KG
info@leuze.com • www.leuze.com

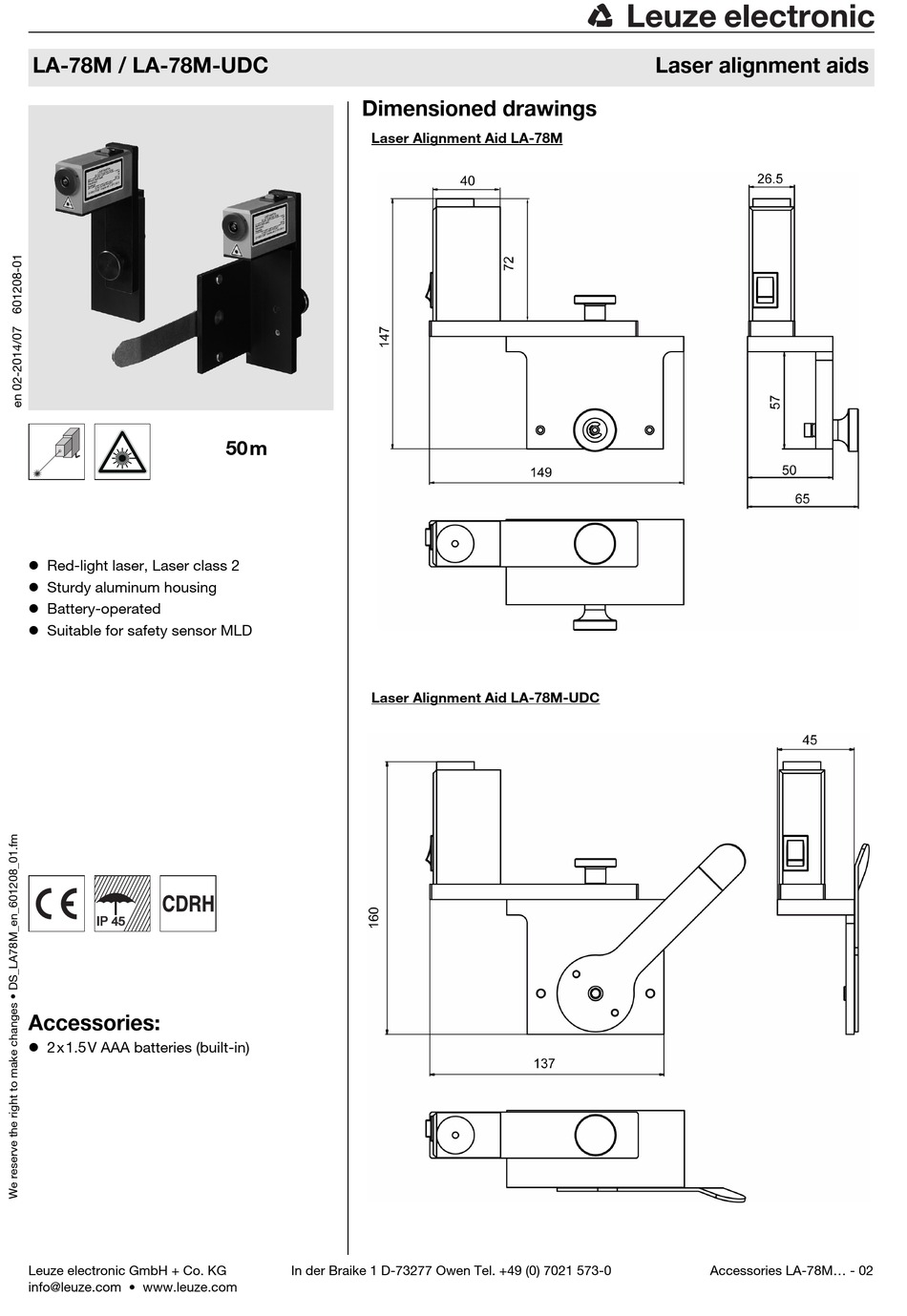

Dimensioned drawings
Laser Alignment Aid LA-78M
50m
Laser Alignment Aid LA-78M-UDC
In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
Laser alignment aids
Accessories LA-78M... - 02
Advertisement
Related Manuals for Leuze electronic LA-78M
Summary of Contents for Leuze electronic LA-78M
- Page 1 Suitable for safety sensor MLD Laser Alignment Aid LA-78M-UDC IP 45 IP 45 Accessories: 2x1.5V AAA batteries (built-in) Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 Accessories LA-78M… - 02 info@leuze.com • www.leuze.com...
- Page 2 Mirrors or with large Environmental data operating ranges. Ambient temp. (operation/storage) -20°C … +55°C/-30°C … +70°C The LA-78M Laser Align- Protection class IP 45 Standards applied EN 60825-1, 21 CFR 1040.10 ment Aid is in-tended for direct mounting on the MLD safety sensor.
- Page 3 The device must not be tampered with and must not be changed in any way. There are no user-serviceable parts inside the device. Repairs must only be performed by Leuze electronic GmbH + Co. KG. NOTICE Affix laser information and warning signs! ...
- Page 4 Step 3 Step 2: Securing the Laser Alignment Aid Set the guide pins of the LA-78M or the LA-78M-UDC Laser Alignment Aid late- rally into the guide notch of the MLD safety sensor. Align the Laser Alignment Aid in such a way that the upper edge of the mounting bracket locks flush with the disc edge (D).
