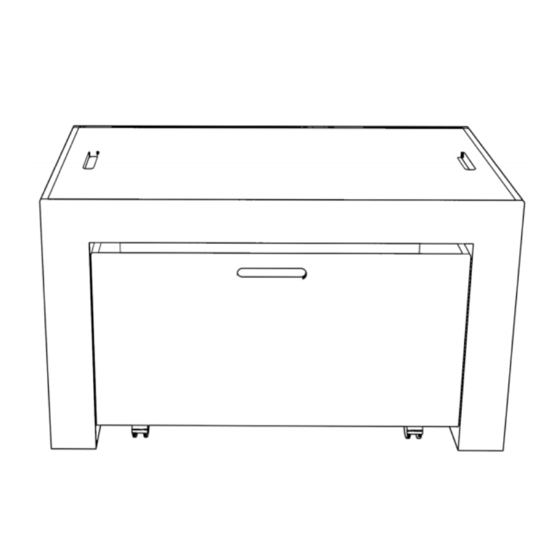

- Page 1 ANDREA ACTIVITY TABLE WITH DRAWER WHITE/NATURAL SLANDRATWNA...
- Page 3 COMPONENTS Hardware A (x26) B (x16) C (x16) D (x4)
- Page 4 ASSEMBLY Step 1: To create the drawer, first attach parts 10 and 11 to part 9 using x4 sets of A. Step 2: Slide part 13 onto the assembly made in step 1.
- Page 5 Step 3: Attach part 12 onto parts 10 and 11 using x4 B screws. This creates the drawer assembly. Step 4: Flip the drawer assembly upside down. Secure the D wheels onto part 13 using x4 C screws each. Secure part 13 to the drawer assembly using x4 B screws. This drawer is now complete.
- Page 6 Step 5: To assemble the activity table, first secure one of parts 6, 7 and 8 together using x2 sets of A. Repeat this process with the remaining parts 6, 7 and 8. This will create two side assemblies. Step 6: Secure part 3 to the two side assemblies using x4 sets of A and x4 B screws.
- Page 7 Step 7: Install parts labelled 5 onto part 3 using x4 B screws. Step 8: Slide part 2 onto the assembly made in the previous step.
- Page 8 Step 9: Secure part 4 onto the assembly using x14 sets of A. Step 10: Place part 1 on top of the assembly.
- Page 9 Assembly complete.
- Page 10 NOTES...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
