Service Manual
Series T90 Axial Piston Pumps

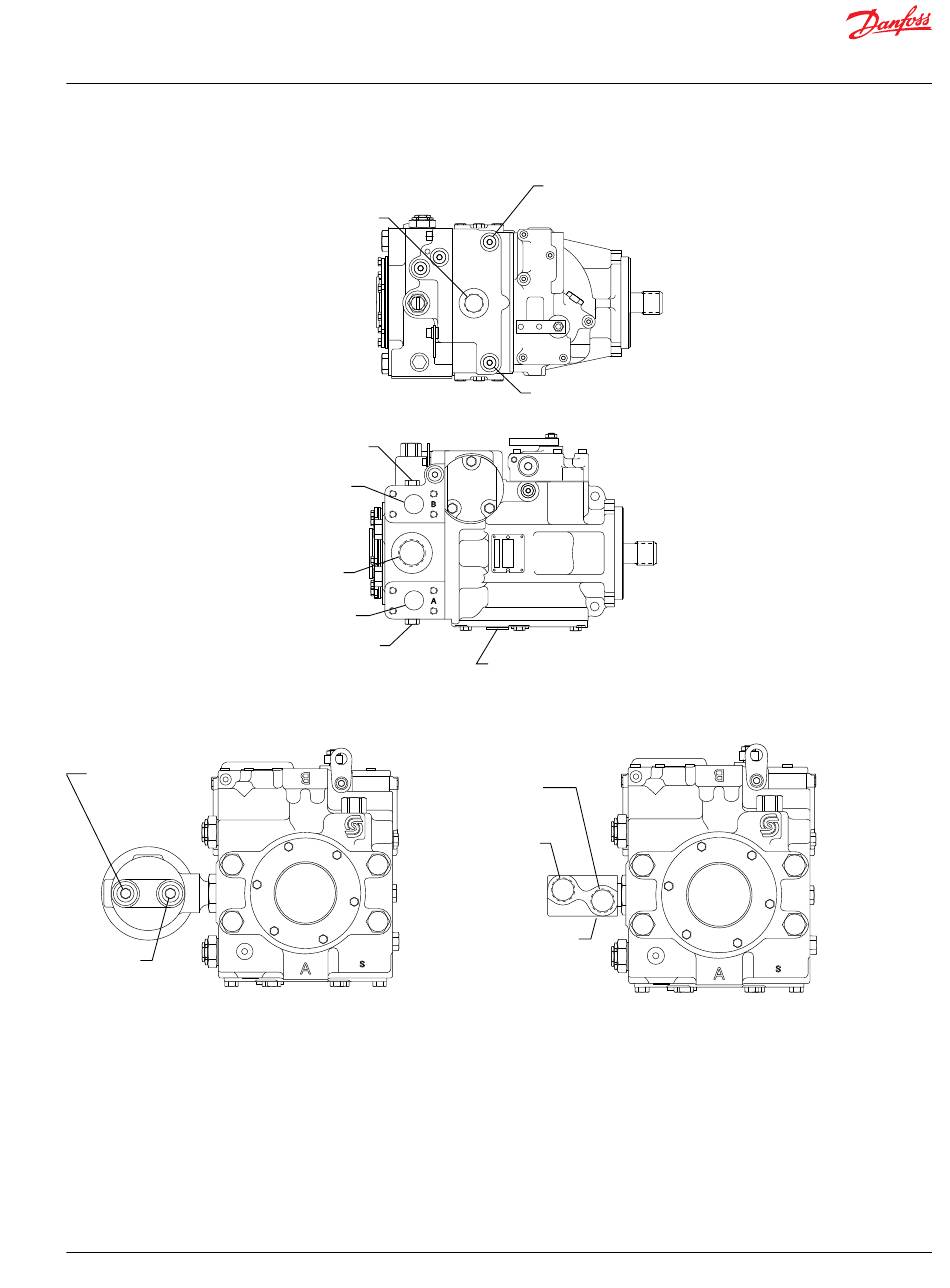

Pressure measurement
Pump with side port end cap and remote pressure filtration / Pump with side port end cap and integral pressure filtration
Charge pressure
gauge port M6
(before the filter)
Charge pressure
gauge port M3
(after the filter)
© Danfoss | March 2020
Pump with twin port end cap and manual displacement control
Case drain
port L1
System pressure
gauge port M2
System pressure
port B
Charge pump inlet
port S
System pressure
port A
System pressure
gauge port M1
Servo / displacement
cylinder pressure
gauge port M4
Servo / displacement
cylinder pressure
gauge port M5
Case drain port L2
P106 160E
Port E
(from filter)
Port D
(to filter)
Charge pressure
gauge port M3
(back side-after
the filter)
P106 163E
