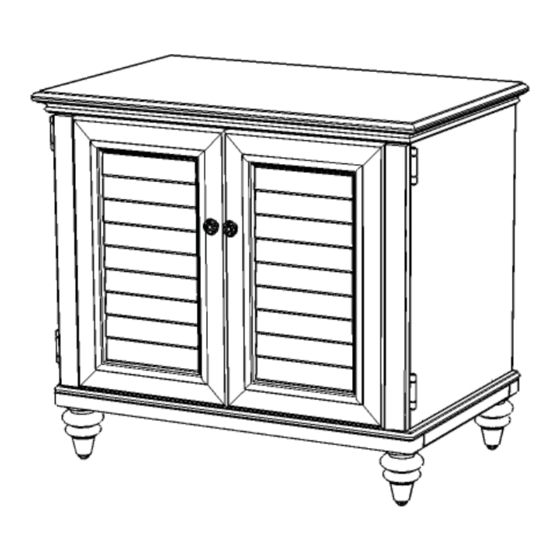

Home Styles Bermuda 88 5542 19 Quick Start Manual

Computer cabinet
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
88 5542 19
Bermuda
Computer Cabinet
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

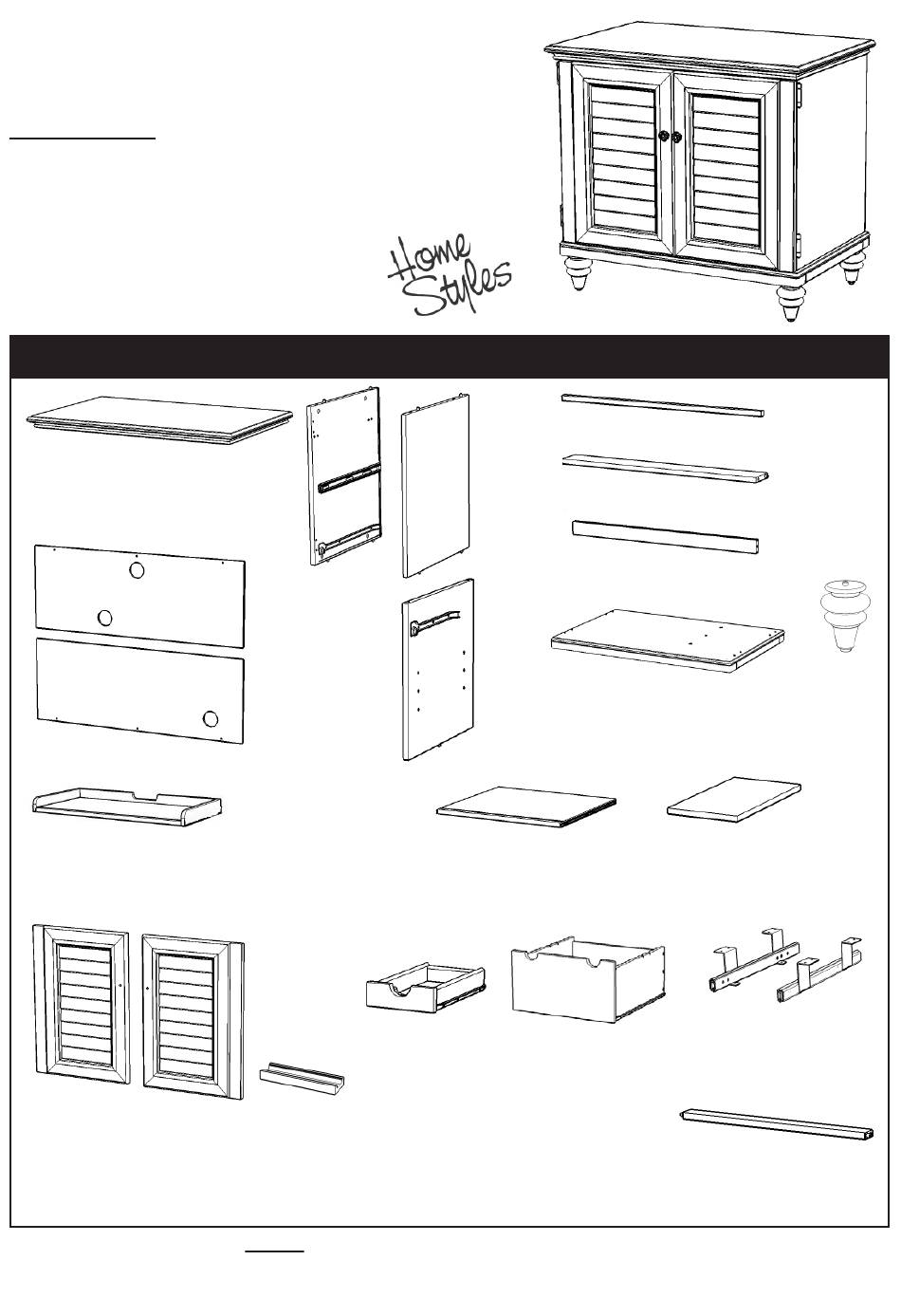

Part List
A.
Top
1 Pc.
(Knock-Down Construction, please refer to page No. 6/8
of these instructions for steps to assembly keyboard tray.)
N.
O.
Door
Door
1 Pc.
1 Pc.
Tools required for assembly : Phillips screwdriver
B.
Side Panel
1 Pc.
F.
Back Panel
1 Pc.
G.
Back Panel
1 Pc.
K.
Keyboard Tray
1 Pc.
P.
Pencil Tray
1 Pc.
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
C.
Side Panel
1 Pc.
H.
Middle Panel
1 Pc.
L.
Printer Tray
1 Pc.
Q.
R.
Drawer
Drawer
1 Pc.
1 Pc.
(Knock-Down Construction, please refer to
the last pages of these instructions for drawer
assembly steps.)
I.
Base
1 Pc.
S.
Keyboard
Runner
1 Pc.
U.
Front Rail
1 Pc.
Tools recommended for assembly : Level
A1.
Wood Support
2 Pcs.
D.
Stretcher
2 Pcs.
E.
Stretcher
1 Pc.
J.
Leg
4 Pcs.
M.
Shelf
1 Pc.
T.
Keyboard
Runner
1 Pc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bermuda 88 5542 19 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Home Styles Bermuda 88 5542 19

Summary of Contents for Home Styles Bermuda 88 5542 19

  • Page 1 Door Door Pencil Tray Front Rail 1 Pc. 1 Pc. 1 Pc. 1 Pc. Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...

  • Page 2: Important Note

    28 Pcs. (+1 extra) 4 Pcs. (+1 extra) Adjustable Pin Pull Machine Screw 4 Pcs. (+1 extra) Handle 2 Pcs. 2 Pcs. Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 3 Assembly Instructions 3 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * Use a soft cloth between these parts and the fl oor. * After assembly, item must be level to work properly. Use the included adjustable levelers to level.
  • Page 4 Assembly Instructions 4 STEP 2 Attach Stretchers (D) and (E) and Front Rail (U) to Side Panel (B) with Cam Locks. (see Figure 4) Cam Lock Figure 4 Cam Lock Screw STEP 3 Slide Back Panels (F) and (G) into the unit. Attach Side Panel (C) to unit with Cam Locks.
  • Page 5 Assembly Instructions 5 Flat Washer STEP 4 Wood Screw for Base Attach Middle Panel (H) and Base (I) to unit with Cam Locks, Wood Screws for Base and Flat Washers. Attach Legs (J) into the pre-drilled holes of Base (I) and tighten. 5/8”...
  • Page 6 Assembly Instructions 6 Figure 5 Figure 6 STEP 6 Insert Adjustable Pins into side panel and middle panel at the desired level. (see Figure 5) Place Shelf (M) into position. Figure 7 Attach Doors (N) and (O) to the hinges with Wood Screws for Hinge. (see Figure 6) Assemble Pull Handles to Doors with Machine Screws.

  • Page 7: Parts List

    Assembly Instructions 7 Kerboard Tray (K) STEP 1 Attach K3 to K4, using a Phillips screwdriver and long wood screws (4X). (see Figure 1) Figure 1 STEP 2 Attach K1 to K2, using a Phillips screwdriver and long wood screws (8X).
  • Page 8 Assembly Instructions 8 Drawer (Q) STEP 1 Attach Q1 to Q3 and Q4, using a Phillips screw driver and long wood Figure 1 screws (4X), tighten halfway. Attach Q2 to Q3 and Q4 using long wood screws (4X), tighten halfway. (see Figure 1) MAKE SURE ROLLER IS ON THE BACK...
  • Page 9 Assembly Instructions 9 Drawer (R) STEP 1 Attach R1 to R3 and R4, using a Phillips screw driver and long wood screws (6X), tighten halfway. Figure 1 Attach R2 to R3 and R4 using long wood screws (6X), tighten halfway. MAKE SURE ROLLER (see Figure 1) STEP 2...
