88 5520 51

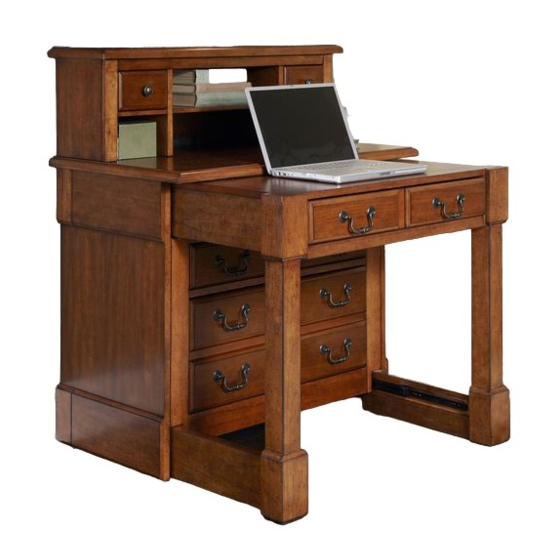

The Aspen
Front Slide-out Desk
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

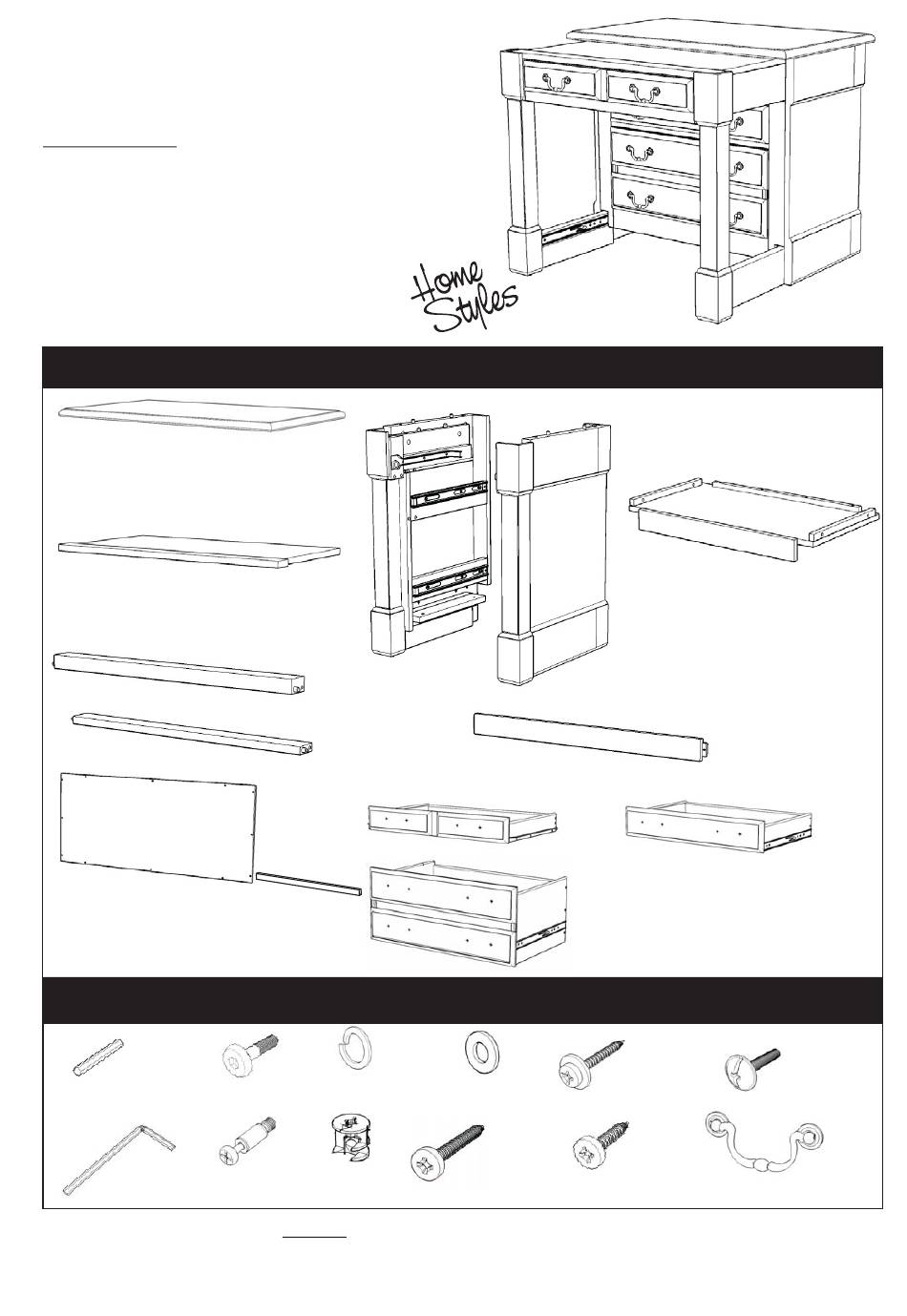

Part List
A.
Top
1 pc.
B.
Top
1 pc.
I.
Back Panel
2 pcs.
Hardware List
Small Hex Wrench
Head Cap Bolt
1 pc.
8 pcs. (+1 extra)
Hex Wrench
Cam Lock Screw
1 pc.
14 pcs.(+1 extra)
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
C.
Side Panel
1 pc
.
F.
Front Rail
1 pc.
G.
Front Rail
2 pcs.
J.
Metal Strip
2 pcs.
Spring Washer
4 pcs. (+1 extra )
Cam Lock
14 pcs.(+4 extra)
K.
Drawer
1 pc.
M.
Drawer
1 pc.
Wood Screw
Flat Washer
for Back Panel
4 pcs. (+1 extra )
26 pcs.(+1 extra)
Wood Screw (long)
Wood Screw (short)
28 pcs.(+1 extra)
18 pcs.(+1 extra)
Tools recommended for assembly : Level
D.
Side Panel
1 pc.
H.
Back Stretcher
1 pc.
(Knock-Down Construction,
please refer to the last page
of these instructions for
drawer assembly steps)
Machine Screw
16 pcs.(+1 extra)
E.
Base
1 pc.
L.
Drawer
1 pc.
Pull Handle
8 pcs.
Advertisement
Table of Contents
Related Manuals for Home Styles The Aspen 88 5520 51
Summary of Contents for Home Styles The Aspen 88 5520 51
- Page 1 Wood Screw (short) Pull Handle 1 pc. 14 pcs.(+1 extra) 14 pcs.(+4 extra) 28 pcs.(+1 extra) 18 pcs.(+1 extra) 8 pcs. Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
-
Page 2: Figure 1
Assembly Instructions 2/7 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Use a soft cloth between these parts and the floor. -
Page 3: Figure 3
Assembly Instructions 3/7 Flat Washer Spring Washer Head Cap Bolt STEP 3 Insert Head Cap Bolts, Spring Washers and Flat Washers into the-drilled holes of Base (E). (See Figure 3) Flat Washer Spring Washer Head Cap Bolt Figure 3 STEP 4 Turn unit to its’... -
Page 4: Step 5
Assembly Instructions 4/7 STEP 5 Slide Drawers (K), (L) and (M) into position. STEP 6 Place Metal Strips (J) into position. Adjust the Metal Strip for letter size or legal size files as shown. STEP 7 To level the unit, adjust the adjustable levelers on the bottom of unit. -
Page 5: Table Of Contents
Assembly Instructions 5/7 Drawer (K) STEP 1 Attach K1 to K3 and K4, using a Phillips screwdriver long wood screws (4X) tighten halfway. Figure 1 Attach K2 to K3 and K4 using MAKE SURE ROLLER IS ON THE BACK long wood screws (4X) tighten halfway. -
Page 6: Using A Phillips Screwdriver
Assembly Instructions 6/7 Drawer (L) STEP 1 Attach L1 to L3 and L4, using a Phillips screwdriver long wood screws (4X) tighten halfway. Figure 1 Attach L2 to L3 and L4 using MAKE SURE ROLLER IS ON THE BACK long wood screws (4X) tighten halfway. - Page 7 Assembly Instructions 7/7 Drawer (M) STEP 1 Attach M1 to M3 and M4 using a Phillips screwdriver long wood screws (6X) tighten halfway. Figure 1 Attach M2 to M3 and M4 using long wood screws (6X) tighten halfway. (see Figure 1) STEP 2 Slide M5 into the grooves in M3 and M4.
