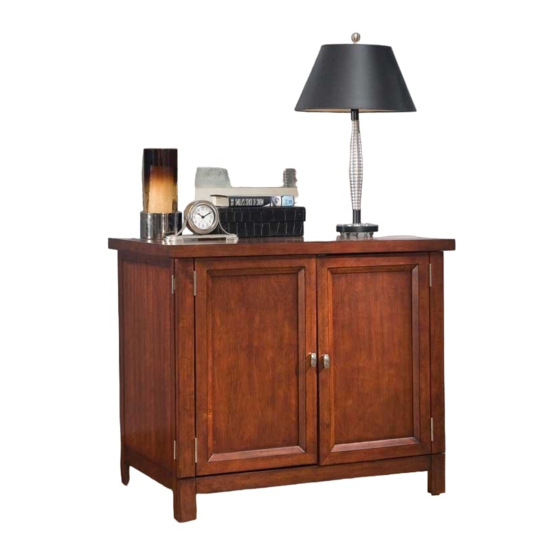

88 5532 19
Hanover
Computer Cabinet
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

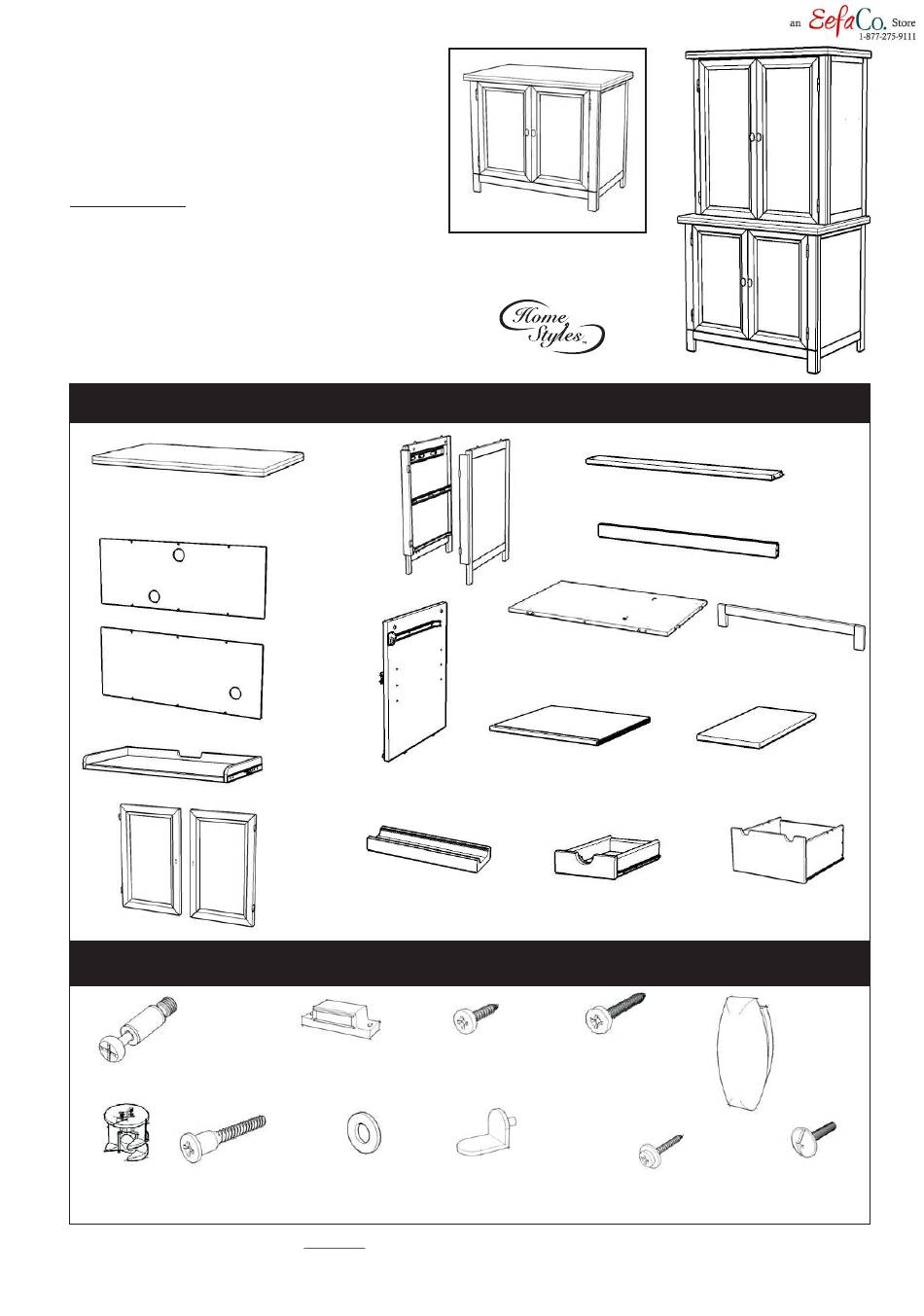

A.
Top
1 pc.
N.
Door
1 pc.

Hardware List

Cam Lock Screw
19 pcs.(+1 extra)
Wood Screw
Cam Lock
for Base
19 pcs.(+1 extra)
2 pcs.(+1 extra)
Tools required for assembly : Phillips screwdriver
B.
Side Panel
1 pc.
F.
Back Panel
1 pc.
G.
Back Panel
1 pc.
K.
Keyboard Tray
1 pc.
(Knock-Down
Construction, please refer
to page No. 6/8 of these
instructions for steps to
assemble keyboard tray)
O.
P.
Door
Pencil Tray
1 pc.
1 pc.
Wood Screw
Magnet
for Magnet and
2 pcs.
Key board tray
14 pcs.(+1 extra)
Flat Washer
2 pcs. (+1 extra )
Base Unit
C.
Side Panel
1 pc.
H.
I.
Middle Panel
Base
1 pc.
1 pc.
L.
Printer Tray
1 pc.
Q.
Drawer
1 pc.
(Knock-Down Construction, please refer to
the page No. 7/8 and 8/8 of these instructions for steps to assemble drawers)
Wood Screw (long)
for Drawer Side Part
24 pcs. (+1 extra)
Wood Screw
Adjustable Pin
for Back Panel and Drawer Base Part
4 pcs.(+1 extra)
20 pcs.(+1 extra)
D.
Stretcher
2 pcs.
E.
Stretcher
1 pc.
J.
Plinth
1 pc.
M.
Shelf
1 pc.
R.
Drawer
1 pc.
Pull Handle
2 pcs.
Machine Screw
4 pcs.(+1 extra)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hanover 88 5532 19 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Home Styles Hanover 88 5532 19

Summary of Contents for Home Styles Hanover 88 5532 19

  • Page 1 88 5532 19 Hanover Computer Cabinet IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches Base Unit or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
  • Page 2 Assembly Instructions 2/8 IMPORTANT Do not tighten up all the screws until each part is properly assembled. Wood Screw Magnet STEP 1 Attach 2X Magnets to pre-drilled holes of Top (A) with Wood Screws. Insert Cam Lock Screws into the pre-drilled holes of Top (A), Side Panel (B) and (C), Stretchers (D) and Plinth (J).
  • Page 3 Assembly Instructions 3/8 Figure 1 STEP 2 Cam Lock Attach Stretchers (D) and (E) onto Side Panel (B) Cam Lock Screw with Cam Locks (see Figure 1). STEP 3 Attach Middle Panel (H) to Base (I) with Wood Screws and Flat Washer. Attach Plinth (J) to Base (I) with Cam Locks.
  • Page 4 Assembly Instructions 4/8 Cam Lock STEP 4 Attach base unit in Step 3 to side unit in Step 2 by, using Cam Locks. Slide Back Panel (F) and (G) into the unit. Attach Side Panel (C) to the unit with Cam Locks. FRONT VIEW FRONT VIEW BACK VIEW...
  • Page 5 Assembly Instructions 5/8 Adjustable Pin Cam Lock Figure 2 Figure 3 Machine Screw Figure 4 STEP 5 Place Top (A) onto the unit, using Cam Locks. Slide Keyboard Tray (K), Printer Tray (L), Drawer (P) and (Q) into position. Insert Adjustable Pins into side panel and middle panel at the desired level (See figure 2), then place Shelf (M) into position.
  • Page 6 Assembly Instructions 6/8 Keyboard Tray (K) STEP 1 Attack K3 to K4, using a Phillips screw driver long wood screws (4X) STEP 2 Attack K1 and K2 to the unit, using a Phillips screw driver short wood screws (10X). Part List Side Part Side Part Back Part...
  • Page 7 Assembly Instructions 7/8 Drawer (Q) STEP 1 Attach Q1 to Q3 and Q4, using Phillips screw driver Figure 1 long wood screws (4X) tighten halfway. Attach Q2 to Q3 and Q4 using long wood screws (4X) MAKE SURE ROLLER tighten halfway. (see Figure 1) IS ON THE BACK STEP 2 Slide Q5 into the grooves in Q3 and Q4.
  • Page 8 Assembly Instructions 8/8 Drawer (R) STEP 1 Attach R1 to R3 and R4, using Phillips screw driver long wood screws (6X) tighten halfway. Figure 1 Attach R2 to R3 and R4 using long wood screws (6X) MAKE SURE ROLLER tighten halfway. (see Figure 1) IS ON THE BACK STEP 2 Slide R5 into the grooves in R3...
