Home Styles Bermuda 88 5542 942 Assembly Instruction Manual

Kitchen island
Hide thumbs

Advertisement

Quick Links

Download this manual
88 5542 942
Bermuda
Kitchen Island
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

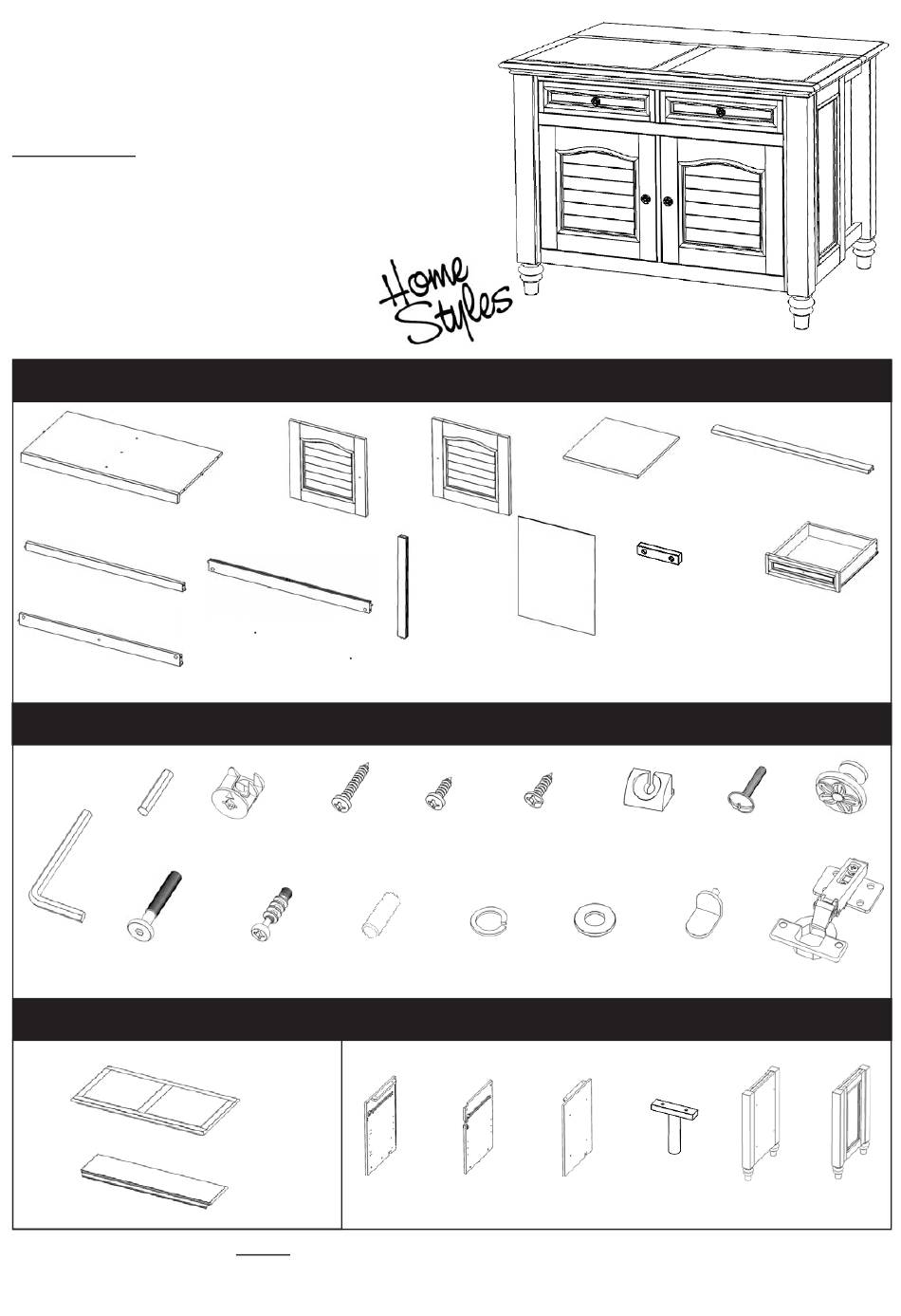

Part List
B.
Bottom
1 pc.
J.
Front Rail
1 pc.
K.
Back Rail
1 pc.
Hardware List
Small
Hex Wrench
1 pc.
Hex Wrench
1 pc.
Head Cap Bolt
18 pcs. (+1 extra)
For assembly also need the following :
88 5542 941 Bermuda Kitchen Island
Tools required for assembly : Phillips screwdriver
F.
Door
1 pc.
L.
Back Rail
1 pc.
Wood Screw
Cam Lock
(long)
19 pcs. (+4 extra)
16 pc. (+1 extra)
Cam Lock Screw
Wood Dowel
19 pcs. (+1 extra)
2 pcs. (+1 extra)
Carton quatity: 1
88 5542 943 Bermuda Kitchen Island
A1.
Top
1 pc.
A2.
C.
Leaf Top
Side Panel
1 pc.
1 pc.
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
H.
Shelf
2 pcs.
G.
Door
1 pc.
M.
Back Piece
N.
1 pc.
Back Panel
2 pcs.
Flat Head
Wood Screw
Wood Screw
(short)
40 pcs. (+2 extra)
12 pcs. (+1 extra)
Flat Washer
Spring Washer
18 pcs. (+1 extra)
18 pcs. (+1 extra)
88 5542 941, 88 5542 943
E.
D.
Side Panel
Middle Panel
1 pc.
1 pc.
Patent 8,584,600 B2
I.
Front Rail
1 pc.
P.
Q.
Wood Support
Drawer
1 pc.
2 pcs.
(Knock-Down Construction
refer of the last page
of instruction for steps to
complete drawer assembly)
Plastic Insert
Machine Screw
4 pcs. (+1 extra)
4 pcs.
Adjustable Pin
8 pcs. (+1 extra)
O.
Post
R.
2 pcs.
Side Frame
1 pc.
Tools recommended for assembly : Leve
Pull Handle
4 pcs.
Hinge
4 pcs.
Carton quatity: 1
S.
Side Frame
1 pc.
l

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bermuda 88 5542 942 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Home Styles Bermuda 88 5542 942

Summary of Contents for Home Styles Bermuda 88 5542 942

  • Page 1 Side Panel Middle Panel 1 pc. Side Frame Side Frame 1 pc. 1 pc. 1 pc. 1 pc. 1 pc. Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Leve Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...

  • Page 2: Assembly Instruction

    Assembly Instruction 2 / 8 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Use a soft cloth between these parts and the fl...
  • Page 3 Assembly Instruction 3 / 8 STEP 3 Attach Front Rail (I), (J), Bottom (B) and Back Rail (K) to Middle Panel (D) using Cam Locks. (see Figure 2) Attach Back Piece (M) and Back Rail (L) to unit using Cam Locks. Slide Back Panel (N) into the grooves in Back Rail (K), (L) and Back Piece (M).
  • Page 4 Assembly Instruction 4 / 8 STEP 6 Turn the unit over to its’ upright position. To level the unit, adjust the adjustable levelers on the stationary frame legs and the posts. Note : Unit must be level to work properly. Flat Head Wood Screw Plastic Insert Figure 4...
  • Page 5 Assembly Instruction 5 / 8 Machine Screw Hinge Flat Head Wood Screw Pull Handle STEP 8 EP 8 Attach Hinges, Pull Handles to Doors (F), (G) with Flat Head Wood Screws and Machine Screws into the pre-drilled holes. (see Figure 5), (see Figure 6) Figure 5 Figure 6 Figure 7...
  • Page 6 Assembly Instruction 6 / 8 Wood Dowel Wood Dowel Flat Washer Spring Washer Head Cap Bolt Wood Screw for Hinge Adjustable Pin STEP 10 Insert Wood Dowels into the unit. Place top unit onto unit and attach with Flat Washers, Spring Washers and Head Cap Bolts. (see Figure 8) Attach Door (F), (G) to unit with Wood Screws for Hinge into the pre-drilled holes.
  • Page 7 Assembly Instruction 7 / 8 TOP EXTENSION INSTRUCTIONS STEP 1 Lift up the Leaf Top. STEP 2 Holding the Leaf Top up, pull out a back leg from the unit; then pull out the other back leg. Note : Unit must be level in order for the back legs to be pulled out.

  • Page 8: Part List

    Assembly Instruction 8 / 8 Drawer (Q) Figure 1 STEP 1 Attach Q1 to Q2 and Q4, using MAKE SURE ROLLER a Phillips screwdriver and IS ON THE BACK long wood screws (4X), tighten halfway. Attach Q2 to Q3 and Q4 using Figure 2 Figure 2 long wood screws (4X), tighten...

  • Page 9: Very Important

    THEN BUFF WITH A DRY CLEAN CLOTH. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If this product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
  • Page 10 Part List Side Panel Middle Panel Side Panel 1 pc. 1 pc. 1 pc. Post 2 pcs. Side Frame Side Frame 1 pc. 1 pc. For assembly see instructions in carton 88 5542-942 Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 11 Patent 8,584,600 B2 Part List 1 pc. Leaf Top 1 pc. For assembly see instructions in carton 88 5542-942 Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 12 HOW TO UNPACK THE GRANITE TOP IMPORTANT * Please follow these step to unpack the granite top. STEP 1 Wood Crate Open carton. Remove wood crate and place it on the floor. Wood Frame STEP 2 Wood Frame Wood Frame Use a hammer to knock out the wood framing.
