Bermuda

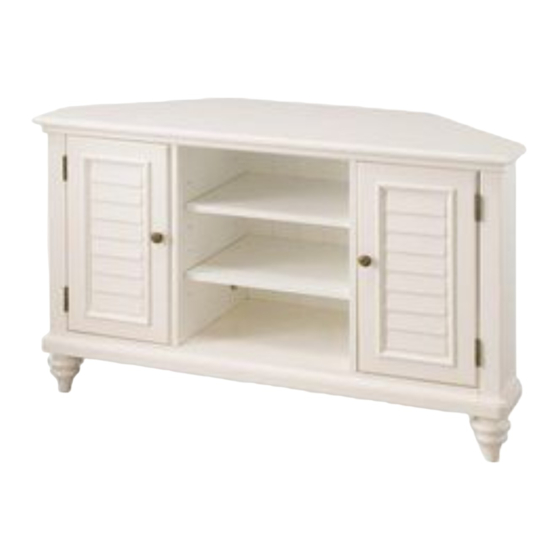

Corner TV Stand
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 pc.
E.
Base
1 pc
.
I.
Back Panel
1 pc
J.
Back Panel
1 pc
Hardware List
Cam Lock Screw
24 pcs.(+2 extra)
Cam Lock
24 pcs.(+6 extra)
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
Side Panel
1 pc
F.
Back Panel
1 pc
.
.
.
K.
L.
Shelf
Shelf
2 pcs.
4 pcs.
Wood Screw
for Base and
Back Panel
13 pcs.(+1 extra)
Flat Washer
for Wood Screw
13 pcs. (+1 extra )
servicedesk@homestyles-furniture.com
Middle Panel
B.
C.
Side Panel
.
1 pc.
G.
Back Panel
1 pc
.
M.
Door
1 pc.
Adjustable Pin
24 pcs.(+1 extra)
Tools recommended for assembly :Level
D1.
1 pc
.
H.
Plinth
1 pc.
N.
O.
Door
Leg
1 pc.
4 pcs.
Magnet
2 pcs.
Wood Screw
for Magnet
4 pcs.(+1 extra)
D2.
Middle Panel
1 pc
.
Pull Handle
2 pcs.
Machine Screw
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 5543 07
Summary of Contents for Home Styles 88 5543 07
- Page 1 Wood Screw 24 pcs.(+1 extra) for Magnet 2 pcs. 24 pcs.(+6 extra) 13 pcs. (+1 extra ) 4 pcs.(+1 extra) Tools required for assembly : Phillips screwdriver Tools recommended for assembly :Level Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
- Page 2 Assembly Instructions 2/4 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * After assembly , item must be level to work properly. Use the included adjustable levelers to level. Wood Screw Magnet Cam Lock Screw STEP 1 Attach 2X Magnets to Top (A) by using Wood Screws in the pre-drilled holes.
- Page 3 Assembly Instructions 3/4 STEP 2 Attach Middle Panel (D1) and (D2) to Base (E) using Flat Washers and Wood Screws. Flat Washer Wood Screw Cam Lock STEP 3 Attach Plinth (H) to Base (E) with Cam Locks. Attach Back Panel (F) and (G) Figure 1 to unit with Cam Locks.
- Page 4 Assembly Instructions 4/4 STEP 5 Attach Back Panel (I) and (J) to the unit with Flat Washers and Wood Screws. Flat Washer Wood Screw Adjustable Pin Figure 2 Figure 3 Figure 4 Figure 5 STEP 6 Adjustable Pin Insert Adjustable Pins into side panels and middle panels at the desired level (see Figure 2), then place Shelves (K) and (L) into position.
