88 5549 652

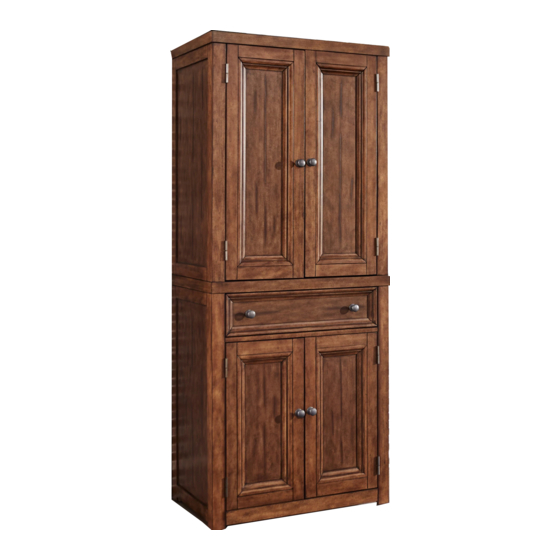

Pantry
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
D.
Back Stretcher
2 Pcs.
E.
Back Stretcher
2 Pcs.
F.
Back Panel
2 Pcs.
S.
Leg
1 Pc.
For assembly also need the parts and hardware from carton 88 5549 651
Tools required for assembly : Phillips screwdriver
A.
Top
1 Pc.
T.
U.
Leg
Leg
1 Pc.
1 Pc.
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
J.
Middle Panel
1 Pc.
N.
Base
1 Pc.
O.
Back Panel
2 Pcs.
R.
Drawer
1 Pc.
V.
Leg
1 Pc.
G.
Shelf
4 Pcs.
M.
Front Stretcher
1 Pc.
(Please refer to the last page of these
instructions for drawer assembly steps.)
Tools recommended for assembly : Level
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles Pantry 88 5549 652
Summary of Contents for Home Styles Pantry 88 5549 652
- Page 1 1 Pc. 1 Pc. 1 Pc. For assembly also need the parts and hardware from carton 88 5549 651 Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 3 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the Head Cap Bolts until each part is properly assembled. * Use a soft cloth between these parts and the fl...
- Page 3 Assembly Instructions 4 Head Cap Bolt (long) Spring Washer Flat Washer STEP 3 Place Base (N) upside down on a soft cloth. Attach Legs (S), (T), (U) and (V) to Base (N) with Flat Washers, Spring Washers and Head Cap Bolts (long). (See Figure 3) Figure 3 Cam Lock...
- Page 4 Assembly Instructions 5 STEP 5 Attach Back Stretchers (D) to Side Panel (B) with Cam Locks. Attach Back Stretcher (E) to unit. Slide Back Panels (F) into position. Attach Side Panel (C) to unit with Cam Locks. Attach Top (A) to the unit with Cam Lock Cam Locks.
- Page 5 Assembly Instructions 6 STEP 7 Insert Adjustable Pins into the side panels at the desired level. Place Shelves (G) into position. Slide Drawer (R) into position. Adjustable Pin STEP 8 Level the unit by adjusting the adjustable levelers on the bottom of the legs. (See Figure 8) Insert Wood Screws (short) into pre-drilled holes in the back panel.
- Page 6 Assembly Instructions 7 Drawer (R) STEP 1 Attach R1, R2 and R3 using a Phillips screwdriver and long Wood Screws (4X), tighten halfway. Figure 1 Attach R1, R2 and R4 using long Wood MAKE SURE ROLLER Screws (4X), tighten halfway. IS ON THE BACK STEP 2 (See Figure 1)
