88 5534 101
Ponderosa
Entertainment Credenza
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

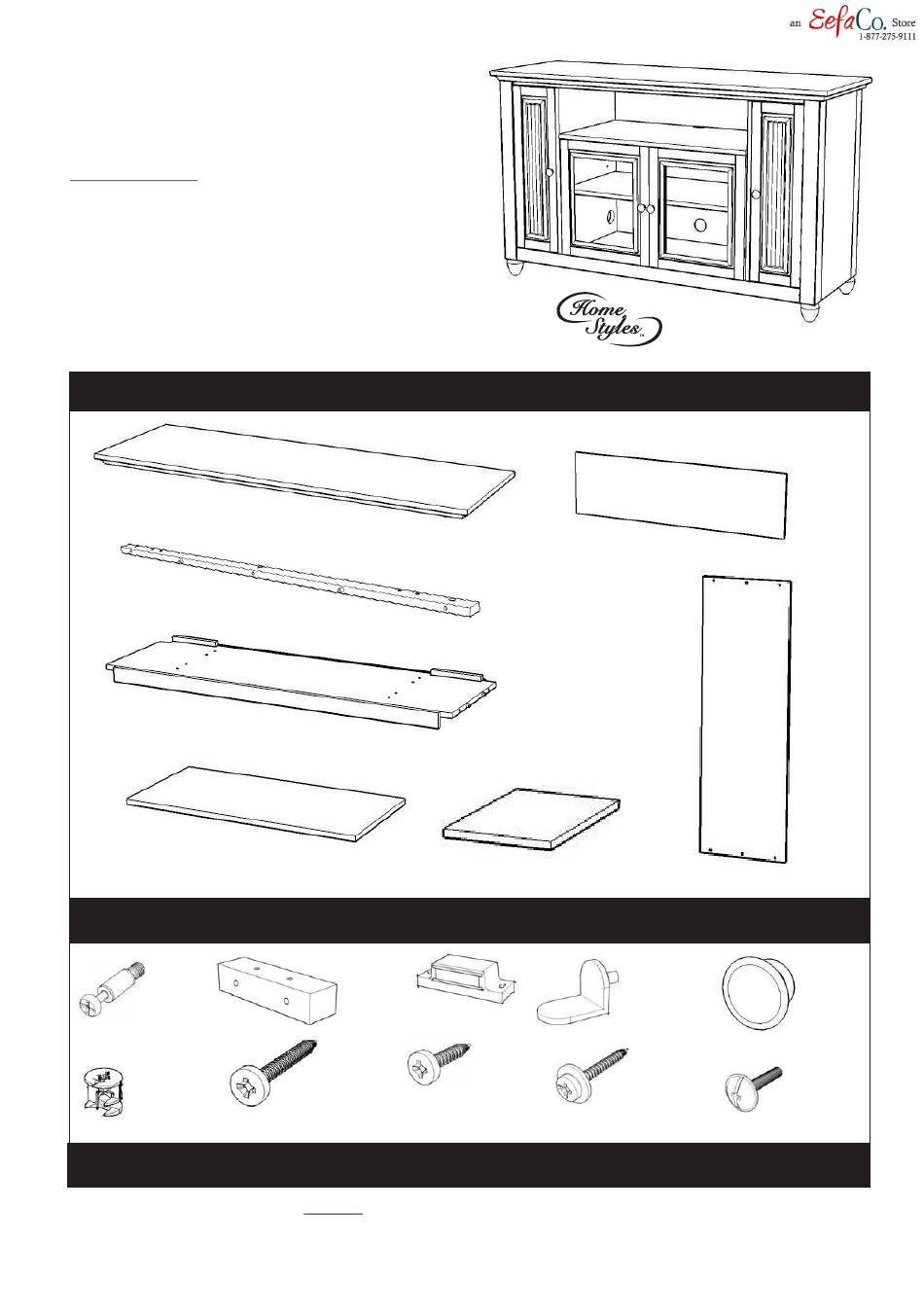

Part List

A.
Top
1 pc.
H.
Front Rail
1 pc.
I.
Base
1 pc.
L.
Shelf
1 pc.

Hardware List

Cam Lock Screw
23 pcs.(+1 extra)
Cam Lock
23 pcs.(+1 extra)
For assembly see instructions in carton 88 5534 102
Tools required for assembly : Phillips screwdriver
Wood Block
2 pcs.
Magnet
4 pcs.
Wood Screw
Wood Screw
for Wood Block
for Magnet
4 pcs.(+1 extra)
8 pcs.(+1 extra)
Casual Attire For Today's Home
J.
Back Panel
1 pc.
K.
Back Panel
2 pcs.
M.
Shelf
2 pcs.
Adjustable Pin
20 pcs.(+1 extra)
Wood Screw
for Back Panel
12 pcs.(+1 extra)
Pull Handle
4 pcs.
Machine Screw
4 pcs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ponderosa 88 5534 101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles Ponderosa 88 5534 101

  • Page 1 88 5534 101 Ponderosa Entertainment Credenza IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
  • Page 2 88 5534 102 Ponderosa Entertainment Credenza IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
  • Page 3 Assembly Instructions 2/5 STEP 1 Attach 2X Magnets to the both Wood Blocks by using Wood Screw Wood Screws (short) in the pre-drilled holes. (short) Wood Block Cam Lock Cam Lock Screw Wood Screw (long) Wood Block with Magnet STEP 2 Attach 2X Wood Block with Magnets to Front Rail (H) by using Wood Screws (long) in the...
  • Page 4 Assembly Instructions 3/5 STEP 3 Insert Cam Lock Screws into the pre-drilled holes of Side Panel (B) and (C), Middle Panel (D) and (E), Base (I). Cam Lock Screw Cam Lock Magnet STEP 4 Attach 2X Magnets to Fixed Shelf (F) by using Wood Screws (short) in the pre-drilled holes.
  • Page 5 Assembly Instructions 4/5 Cam Lock STEP 5 Attach Base (I) to the unit with Cam Locks. Attach Side Panel (B) and (C) to the unit with Cam Locks. Tighten up Legs (R) and (S) in the pre-drilled holes of unit as shown. Adjustable Pin Cam Lock (Figure 3)
  • Page 6 Assembly Instructions 5/5 (Figure 4) (Figure 5) STEP 7 Attach Doors (N), (O), (P) and (Q) by sliding the door lift hinges into the side panels lift hinges. (See figure 4) Assemble Pull Handles to Doors with Machine Screws. (See figure 5) (Figure 6) STEP 8 Insert 12X Wood Screws from the back of the unit,...
