Enwork EMERSON Installation Manual page 5

3) Seated Height Table Assembly Steps

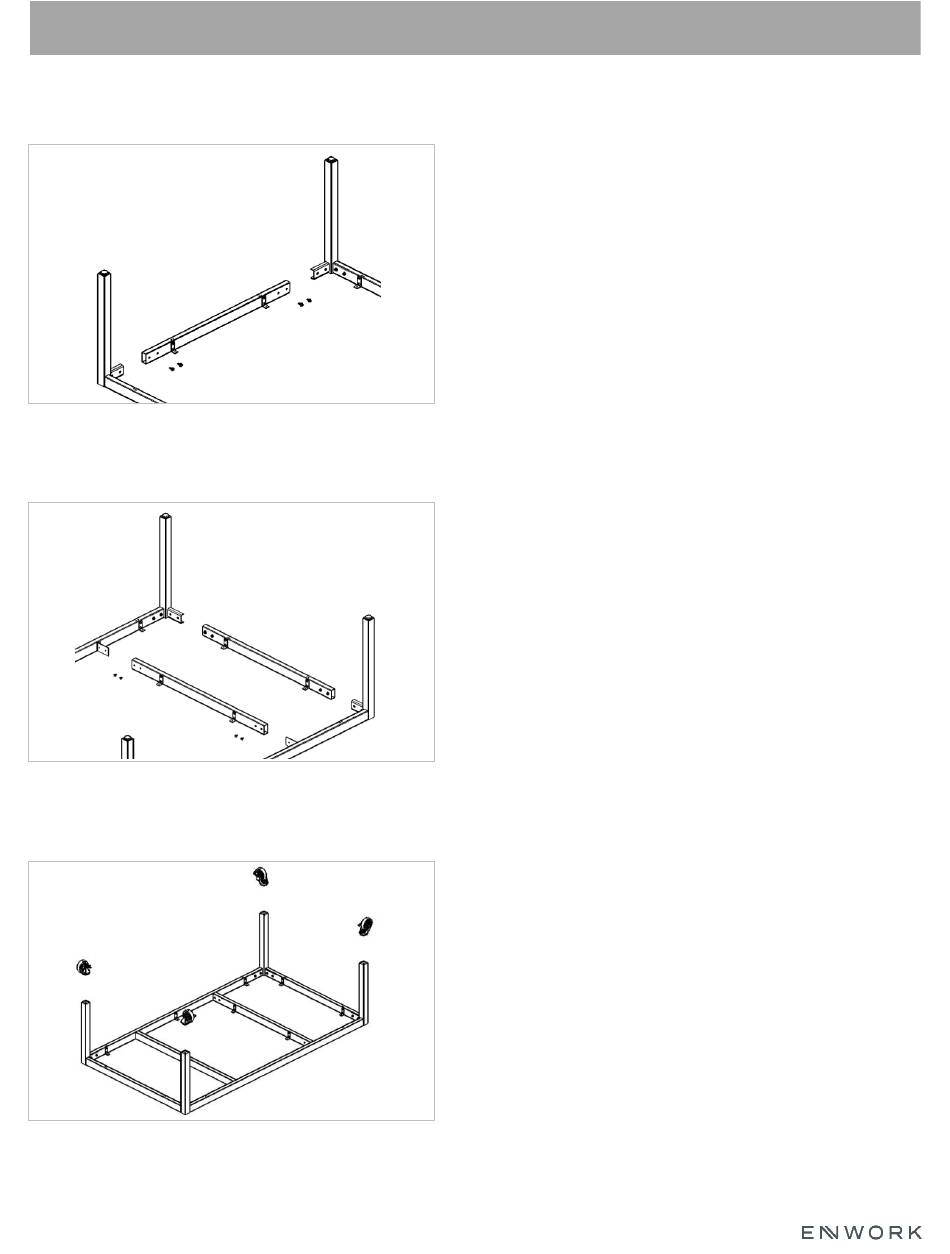

Fig 3.4
Fig 3.5
Fig 3.6
T I 0 0 6 9
Emerson Table Installation Guide REV A
For 18-36"D Tables:
3.6) Take the (2) shorter crossbar tubes and
connect the 2 corner leg subassemblies using (8)
5/16-18 x .75" Serrated hex head bolts as seen in
Fig 3.4
3.7) Confirm that the holes in the narrow side of
the crossbar tube are facing up
For 42-60"D Tables:
3.8) While completing the above steps, connect
the (2) interior support tubes to the support tube
attachment brackets using (8) ¼-20 x .50" thread
cutting screws as seen in Fig 3.5
3.9) For tables with casters, install them into the
Corner Legs at this time.
DATE:(7/29/2022)
