3) Seated Height Table Assembly Steps
2X

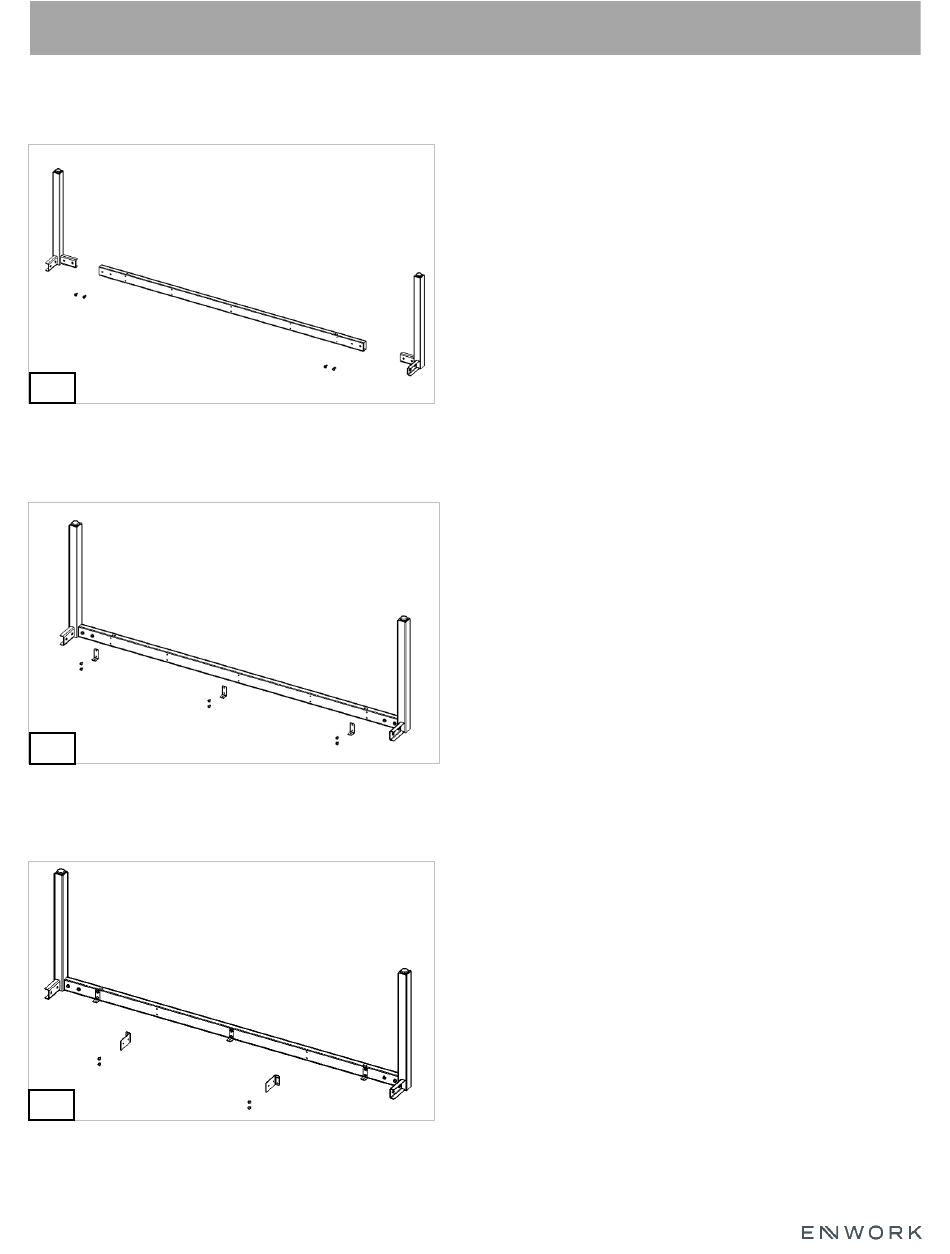

Fig 3.1
2X
Fig 3.2
2X
Fig 3.3
T I 0 0 6 9
Emerson Table Installation Guide REV A
3.1) Take (2) Corner Legs and insert them into the
ends of (1) Crossbar tube. Confirm that the holes
on the narrow side of the crossbar tube are facing
up
3.2) Attach them using (4) 5/16-18 x .75" Serrated
Hex Head Bolts
**Complete the above steps 2 times, with the
longer set of crossbar tubes provided**
For 18-60"D x 72-96" tables:
3.3) Install (3) work surface attachment brackets to
the crossbar tube using (6) ½-20 x .50" thread
cutting screws as seen in Fig. 3.2
For 18-36"D x 108-120"L tables:
3.4) Install (2) additional work surface attachment
brackets to the crossbar tube using (4) ½-20 x .50"
thread cutting screws
**Repeat these steps with the 2
crossbar sub assemblies**
For 42-60"D x 72-120"L tables:
3.5) Install (2) support tube attachment brackets
using (4) ¼-20 x 50 thread cutting screws. Orient
the brackets towards each other as seen in Fig 3.3
**Repeat these steps with the 2
crossbar sub assemblies**
