XX
PRODUCT DETAILS:
Part Number:
ECU Number:
Tail Harness Length Required:
TBM/Lug Part Number:
Wiring Part No.
FITTING DETAILS:
Towbar Installation Time:
Wiring Installation Time:
Total Installation Time:
Bumper Cut Required:
49-75 Pacific Drive Keysborough, VIC 3173
Phone: 1800 812 017
Email: info@haymanreese.com.au
Rev:
B
03280RW
Maximum Towing Braked:
WLE70010
Maximum Towing Unbraked:
1200 mm
Maximum Static Ball Load:
21325
WLL90010
80 Mins.
Hayman Reese SmartCODE Solution Required:
45 Mins.
RPA Disable/Other:
125 Mins.
Note:
Yes
Page

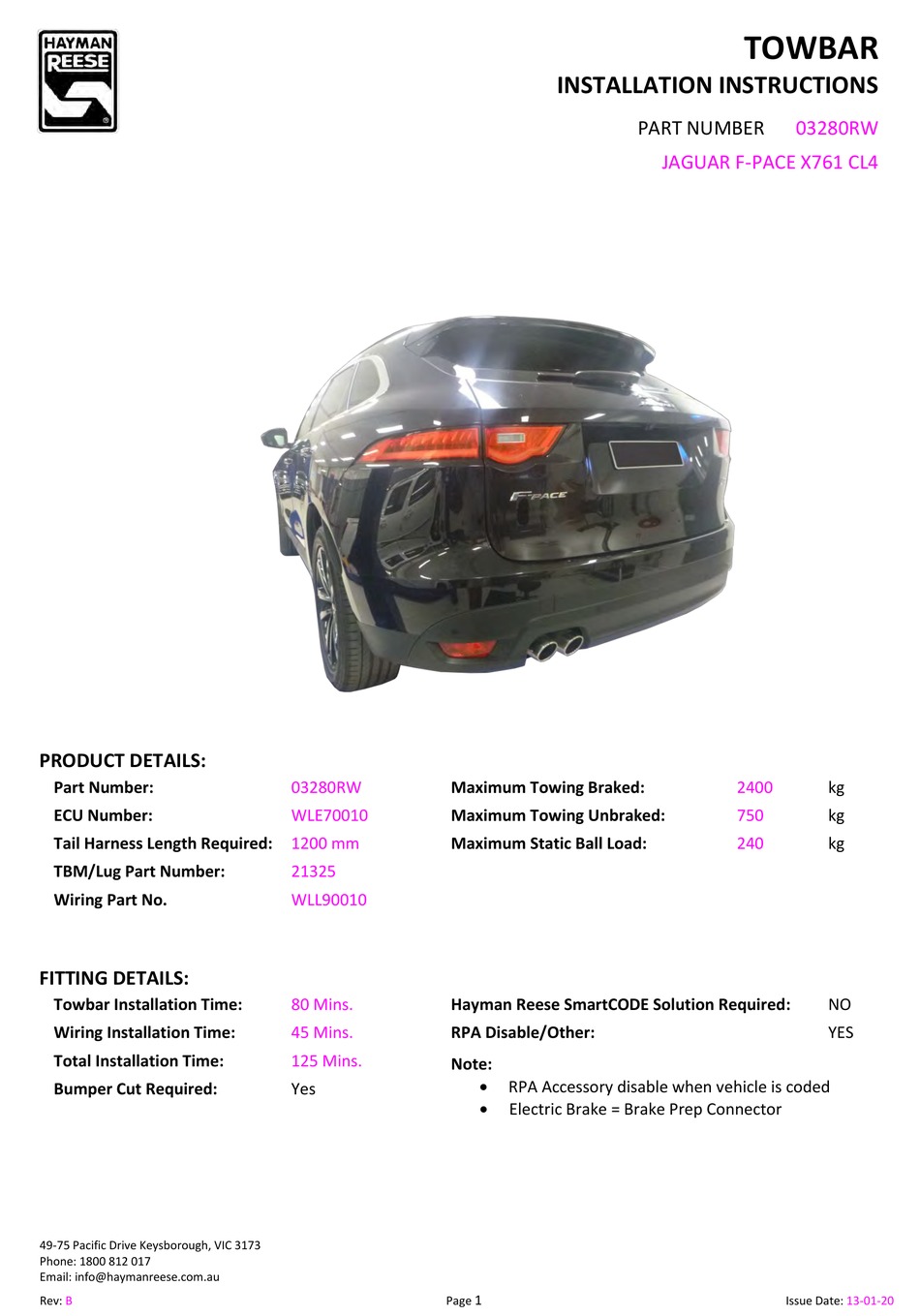

INSTALLATION INSTRUCTIONS
PART NUMBER
RPA Accessory disable when vehicle is coded
Electric Brake = Brake Prep Connector
1

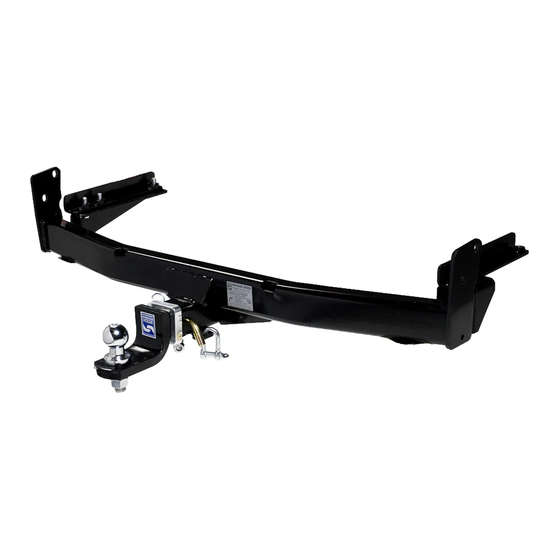

TOWBAR
03280RW
JAGUAR F-PACE X761 CL4
2400
kg
750
kg
240
kg
NO
YES
Issue Date:
13-01-20
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hayman Reese 03280RW
Summary of Contents for Hayman Reese 03280RW
- Page 1 Maximum Static Ball Load: TBM/Lug Part Number: 21325 Wiring Part No. WLL90010 FITTING DETAILS: Towbar Installation Time: 80 Mins. Hayman Reese SmartCODE Solution Required: Wiring Installation Time: 45 Mins. RPA Disable/Other: Total Installation Time: 125 Mins. Note: RPA Accessory disable when vehicle is coded Bumper Cut Required: ...
-
Page 2: Installation Instructions
1. 2. Do not, drill, cut, weld or otherwise modify the towbar. FOR TOWING PURPOSES ONLY - This towbar is designed and tested by Hayman Reese to adhere to ADR 62/02 which provides only for the expected load demands of towing. - Page 3 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 TOWBAR ASSEMBLY DIAGRAM ITEM DESCRIPTION ITEM DESCRIPTION JAGUAR F-PACE WELDED ASSY PLUG BRACKET SIDE ARM ASSY LH NUT NYLON LOCK HEX HD M4X0.7P SIDE ARM ASSY RH WIRING LOOM SPACER 10mm "D"...
- Page 4 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 WIRING ASSEMBLY DIAGRAM 49-75 Pacific Drive Keysborough, VIC 3173 Phone: 1800 812 017 Email: info@haymanreese.com.au Rev: Page Issue Date: 13-01-20...
- Page 5 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 ITEM DESCRIPTION Trailer patch harness Trailer module –> WLE70010 Brake controller plug pin - small Brake controller plug pin - large Brake controller 2-pin housing 300mm Cable tie 150mm Cable tie...
- Page 6 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 2. Open tailgate and remove plastic trim cover. (arrows indicate approximate clip positions) Repeat for other side. 3. Remove the exposed 1 x bolt and 1 x plastic screw on the bumper.
- Page 7 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 4. In wheel arch remove 2 x screws. 5. Peel back the wheel arch trim and remove exposed 2 x torx screws and 4 x screws. 6. Under vehicle remove lower garnish secured with 4 x screws and 3 x bolts.
- Page 8 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 8. Remove the 3 x exhaust rubber mounts to lower the rear muffler. Support rear muffler with straps if required. 9. Remove the exhaust heat shield secured with bolts. Repeat for other side if vehicle has a dual exhaust system.
- Page 9 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 12. Lift crosstube up to vehicle and loosely secure to the vehicle rear panel with 8 x M14 x 40 Bolts complete with 1 x washer per bolt. (4 per side) 13.
- Page 10 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 IMPORTANT Due to possible vehicle variations, always confirm any noted vehicle colour wires with a multi-meter to ensure the correct function is identified before soldering or scotch locking. For vehicle wires denoted with two colours (example;...
- Page 11 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 29. Remove the 3x scrivet and remove the LHS trim. 30. Remove the spare wheel. 31. Remove the blanking grommet on the RHS of the rear and drill the hole out to ø30mm.
- Page 12 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 35. Route the trailer harness to the socket plate and fix the trailer harness with enclosed tie straps. Mount the trailer socket. 36. Plug the ECU item (2) into the trailer patch item (1) location (C).
- Page 13 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 39. Locate the 8-way trailer break out connector and remove the blanking plug on the LHS rear. 40. Route the trailer patch harness towards the LHS along the vehicle main harness.
- Page 14 TOWBAR INSTALLATION INSTRUCTIONS PART NUMBER 03280RW JAGUAR F-PACE X761 CL4 44. A trailer bulb out condition is indicated with an increased indicator frequency as well as a display on the dash. 46. Refit all removed parts, excluding the impact beam.
-
Page 15: Customer Information
TOWBAR MAINTENANCE AND CARE: 1. Hayman Reese recommend that the towbar LUG or TBM (tow ball Mount) Pull Pin and R-clip are removed and stored when not in use. Removal of LUG or TBM (tow ball mount) is advisable when not in use to assist with any of the following. - Page 16 VEHICLE’S GLOVEBOX AFTER INSTALLATION HAYMAN REESE SMART PIN Your Hayman Reese towbar is equipped with Smart Pin technology to help reduce towbar tongue rattle in most driving conditions. Please ensure below instructions are understood and routine maintenance is carried out to ensure best towing experience.
