Step 1: Installing the XDS510-PC in Your PC
1.2 Step 1: Installing the XDS510-PC in Your PC
This section contains the hardware installation information for the XDS510-PC
emulator.
Preparing the XDS510-PC for installation
Before you install the XDS510-PC, you must be sure that the board's switches
are set to correctly identify the I/O space that the board can use.The emulator
uses 32 bytes of the PC I/O space; two switches on the board identify this
space.
Figure 1–1 shows where these switches are on the XDS510-PC and identifies
the switch numbers.
Switches are shipped in the default settings shown here and are listed in
Table 1–1. If you use an I/O space that differs from the default, change the
switch settings. Table 1–1 also shows alternate settings.
In most cases, you can leave the switch settings in the default position.
However, you must ensure that the emulator I/O space does not conflict with
other bus settings. For example, if you've installed a bus mouse in your sys-
tem, you may not be able to use the default switch settings for the I/O address
space—the mouse might use this space. Refer to your PC technical reference
manual and your other hardware-board manuals to see if there are any I/O
space conflicts. If you find a conflict, use one of the alternate settings shown
in Table 1–1 .

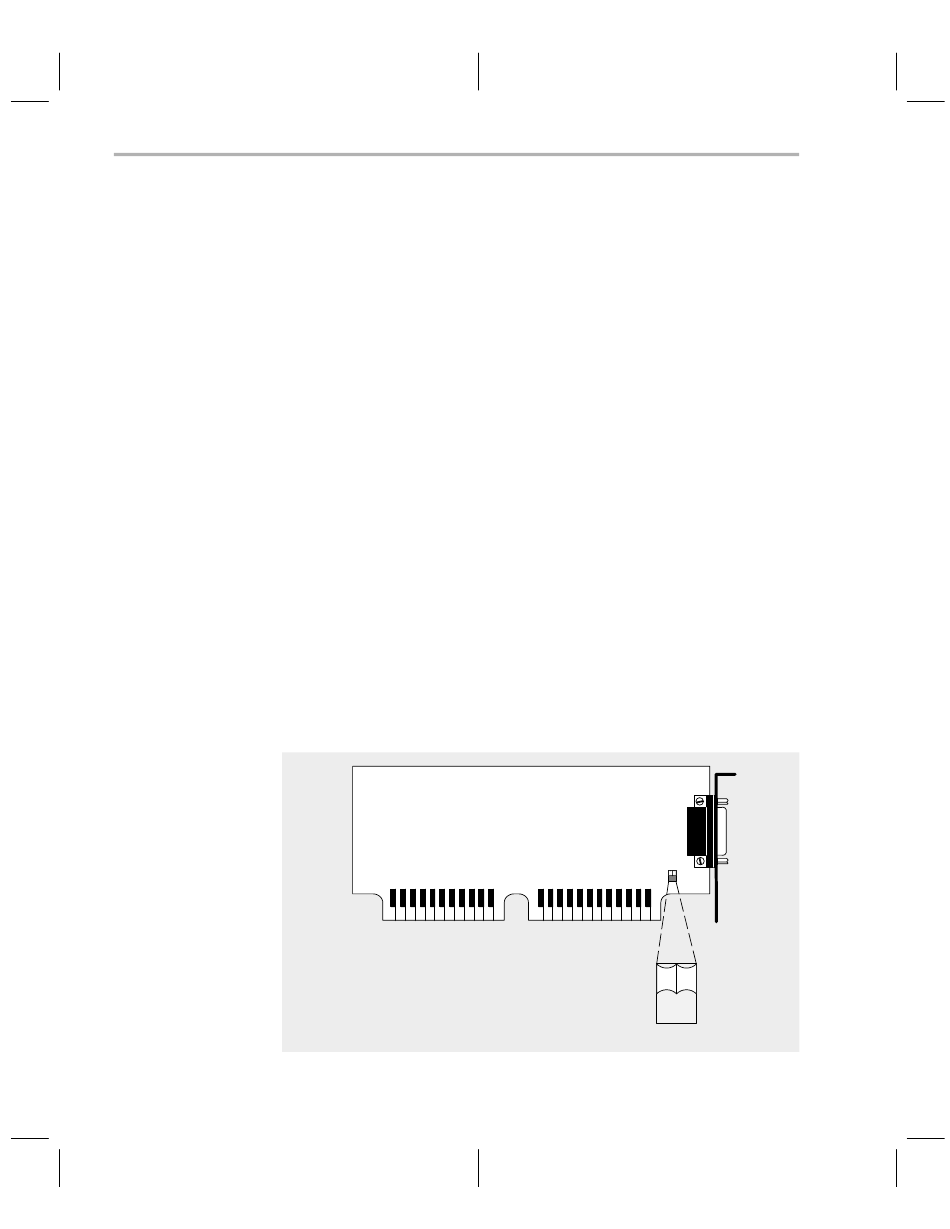

Figure 1–1. XDS510-PC I/O Switches
1-4
XDS510-PC
default switch settings
on
off
1 2
