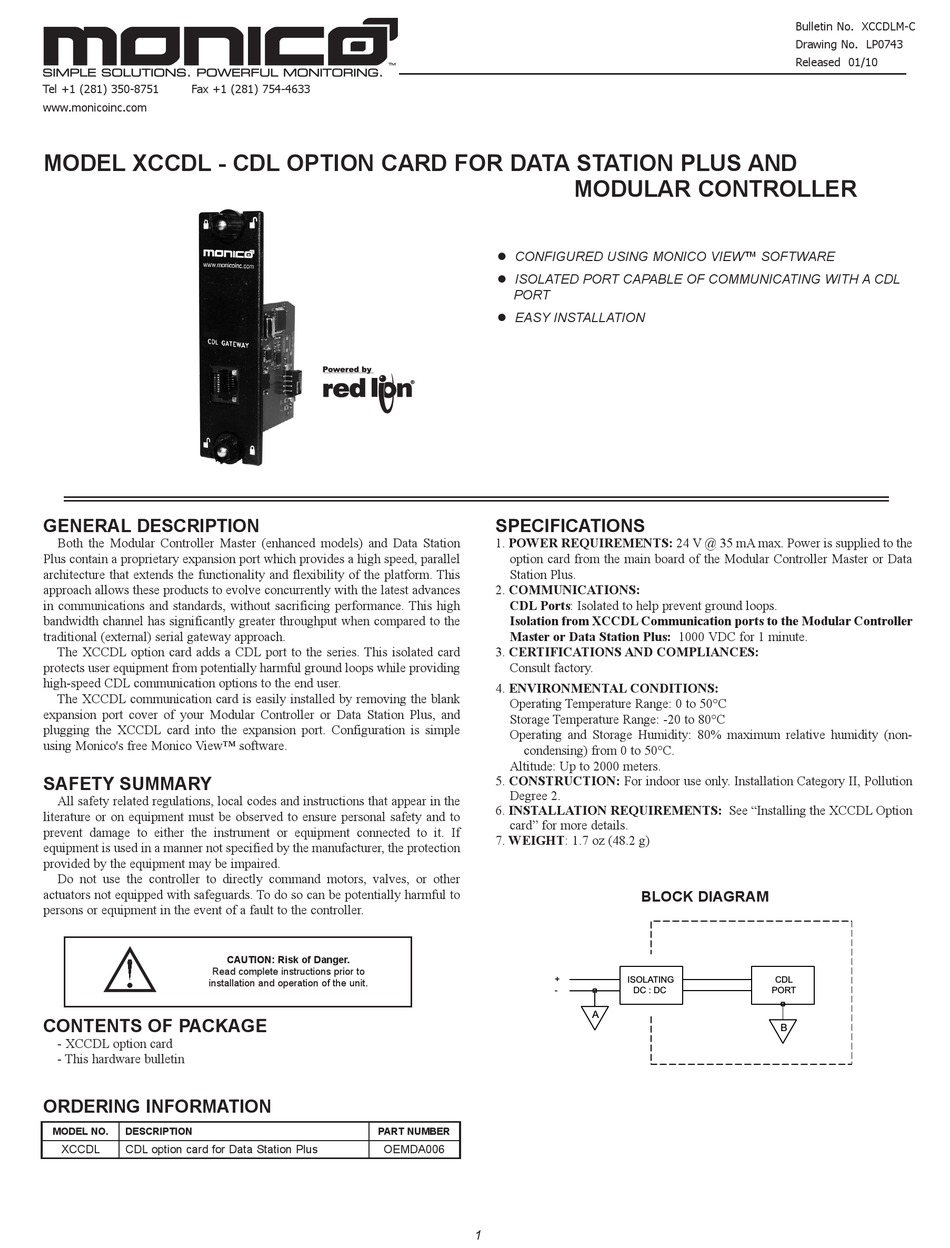

MODEL XCCDL - CDL OPTION CARD FOR DATA STATION PLUS AND
GENERAL DESCRIPTION
Both the Modular Controller Master (enhanced models) and Data Station
Plus contain a proprietary expansion port which provides a high speed, parallel
architecture that extends the functionality and flexibility of the platform. This
approach allows these products to evolve concurrently with the latest advances
in communications and standards, without sacrificing performance. This high
bandwidth channel has significantly greater throughput when compared to the
traditional (external) serial gateway approach.
The XCCDL option card adds a CDL port to the series. This isolated card
protects user equipment from potentially harmful ground loops while providing
high-speed CDL communication options to the end user.
The XCCDL communication card is easily installed by removing the blank
expansion port cover of your Modular Controller or Data Station Plus, and
plugging the XCCDL card into the expansion port. Configuration is simple
using Monico's free Monico View™ software.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
Read complete instructions prior to
installation and operation of the unit.
CONTENTS OF PACKAGE
- XCCDL option card
- This hardware bulletin
ORDERING INFORMATION
MODEL NO. DESCRIPTION
XCCDL CDL option card for Data Station Plus
Powered by
CAUTION: Risk of Danger.
PART NUMBER
OEMDA006
MODULAR CONTROLLER
 CONFIGURED USING MONICO VIEW™ SOFTWARE
 ISOLATED PORT CAPABLE OF COMMUNICATING WITH A CDL
PORT
 EASY INSTALLATION
SPECIFICATIONS
1. POWER REQUIREMENTS: 24 V @ 35 mA max. Power is supplied to the
option card from the main board of the Modular Controller Master or Data
Station Plus.
2. COMMUNICATIONS:
CDL Ports: Isolated to help prevent ground loops.
Isolation from XCCDL Communication ports to the Modular Controller
Master or Data Station Plus: 1000 VDC for 1 minute.
3. CERTIFICATIONS AND COMPLIANCES:
Consult factory.
4. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: 0 to 50°C
Storage Temperature Range: -20 to 80°C
Operating and Storage Humidity: 80% maximum relative humidity (non-
condensing) from 0 to 50°C.
Altitude: Up to 2000 meters.
5. CONSTRUCTION: For indoor use only. Installation Category II, Pollution
Degree 2.
6. INSTALLATION REQUIREMENTS: See "Installing the XCCDL Option
card" for more details.
7. WEIGHT: 1.7 oz (48.2 g)
BLOCK DIAGRAM
+
ISOLATING
-
DC : DC
A
1
Bulletin No. XCCDLM-C
Drawing No. LP0743
Released 01/10
CDL
PORT
B
