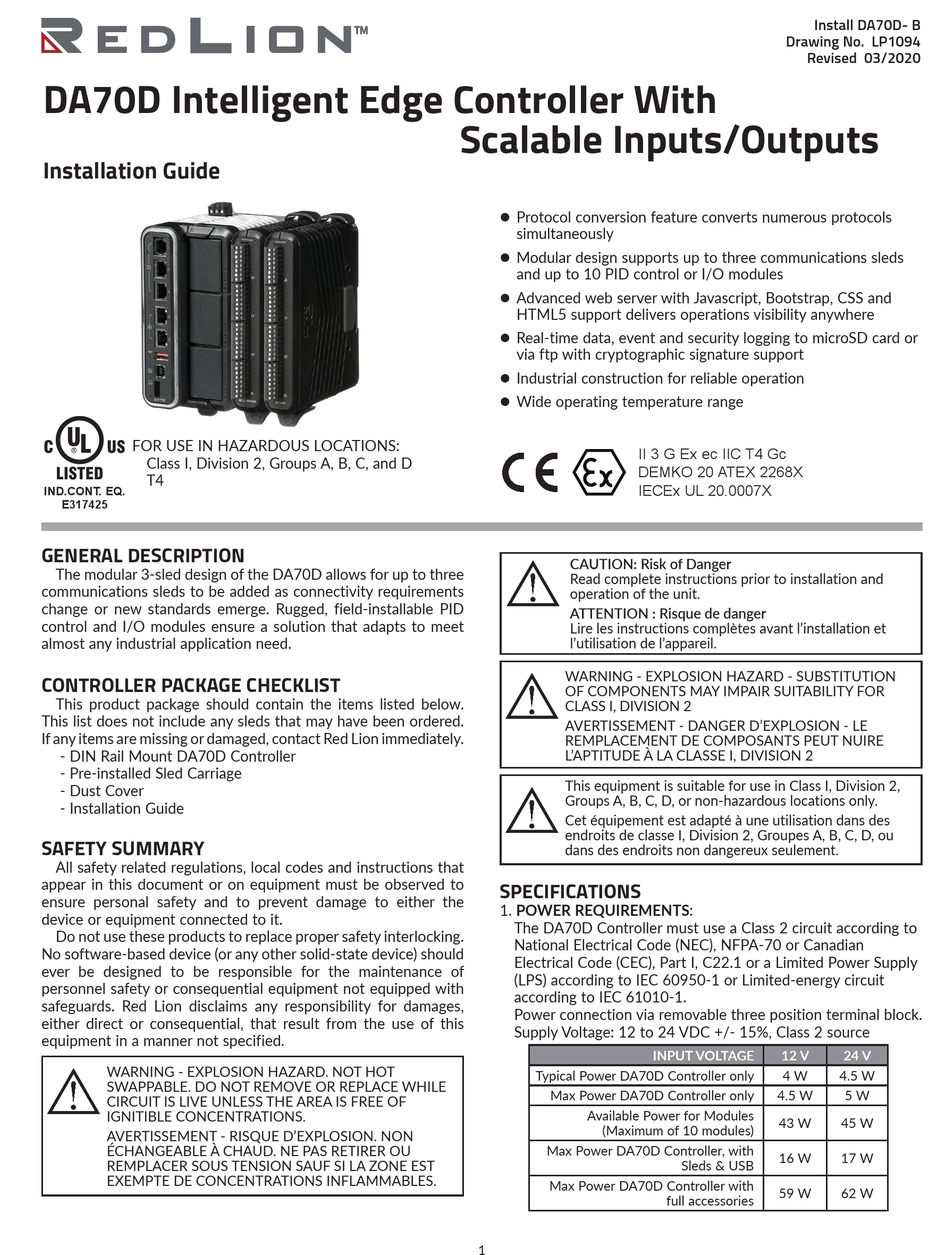

red lion DA70D Installation Manual

DA70D Intelligent Edge Controller With
Installation Guide
U L
FOR USE IN HAZARDOUS LOCATIONS:
C US
R
Class I, Division 2, Groups A, B, C, and D
LISTED
T4
IND.CONT. EQ.
E317425
GENERAL DESCRIPTION
The modular 3-sled design of the DA70D allows for up to three
communications sleds to be added as connectivity requirements
change or new standards emerge. Rugged, field-installable PID
control and I/O modules ensure a solution that adapts to meet
almost any industrial application need.
CONTROLLER PACKAGE CHECKLIST
This product package should contain the items listed below.
This list does not include any sleds that may have been ordered.
If any items are missing or damaged, contact Red Lion immediately.
- DIN Rail Mount DA70D Controller
- Pre-installed Sled Carriage
- Dust Cover
- Installation Guide
SAFETY SUMMARY
All safety related regulations, local codes and instructions that
appear in this document or on equipment must be observed to
ensure personal safety and to prevent damage to either the
device or equipment connected to it.
Do not use these products to replace proper safety interlocking.
No software-based device (or any other solid-state device) should
ever be designed to be responsible for the maintenance of
personnel safety or consequential equipment not equipped with
safeguards. Red Lion disclaims any responsibility for damages,
either direct or consequential, that result from the use of this
equipment in a manner not specified.
WARNING - EXPLOSION HAZARD. NOT HOT
SWAPPABLE. DO NOT REMOVE OR REPLACE WHILE
CIRCUIT IS LIVE UNLESS THE AREA IS FREE OF
IGNITIBLE CONCENTRATIONS.
AVERTISSEMENT - RISQUE D'EXPLOSION. NON
ÉCHANGEABLE À CHAUD. NE PAS RETIRER OU
REMPLACER SOUS TENSION SAUF SI LA ZONE EST
EXEMPTE DE CONCENTRATIONS INFLAMMABLES.
Scalable Inputs/Outputs
z Protocol conversion feature converts numerous protocols
simultaneously
z Modular design supports up to three communications sleds
and up to 10 PID control or I/O modules
z Advanced web server with Javascript, Bootstrap, CSS and
HTML5 support delivers operations visibility anywhere
z Real-time data, event and security logging to microSD card or
via ftp with cryptographic signature support
z Industrial construction for reliable operation
z Wide operating temperature range
II 3 G Ex ec IIC T4 Gc
DEMKO 20 ATEX 2268X
IECEx UL 20.0007X
CAUTION: Risk of Danger
Read complete instructions prior to installation and
operation of the unit.
ATTENTION : Risque de danger
Lire les instructions complètes avant l'installation et
l'utilisation de l'appareil.
WARNING - EXPLOSION HAZARD - SUBSTITUTION
OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 2
AVERTISSEMENT - DANGER D'EXPLOSION - LE
REMPLACEMENT DE COMPOSANTS PEUT NUIRE
L'APTITUDE À LA CLASSE I, DIVISION 2
This equipment is suitable for use in Class I, Division 2,
Groups A, B, C, D, or non-hazardous locations only.
Cet équipement est adapté à une utilisation dans des
endroits de classe I, Division 2, Groupes A, B, C, D, ou
dans des endroits non dangereux seulement.
SPECIFICATIONS
1. POWER REQUIREMENTS:
The DA70D Controller must use a Class 2 circuit according to
National Electrical Code (NEC), NFPA-70 or Canadian
Electrical Code (CEC), Part I, C22.1 or a Limited Power Supply
(LPS) according to IEC 60950-1 or Limited-energy circuit
according to IEC 61010-1.
Power connection via removable three position terminal block.
Supply Voltage: 12 to 24 VDC +/- 15%, Class 2 source
Typical Power DA70D Controller only
Max Power DA70D Controller only
Available Power for Modules
(Maximum of 10 modules)
Max Power DA70D Controller, with
Max Power DA70D Controller with
1
Install DA70D- B
Drawing No. LP1094
Revised 03/2020
INPUT VOLTAGE 12 V
4 W
4.5 W
43 W
16 W
Sleds & USB
59 W
full accessories
24 V
4.5 W
5 W
45 W
17 W
62 W
