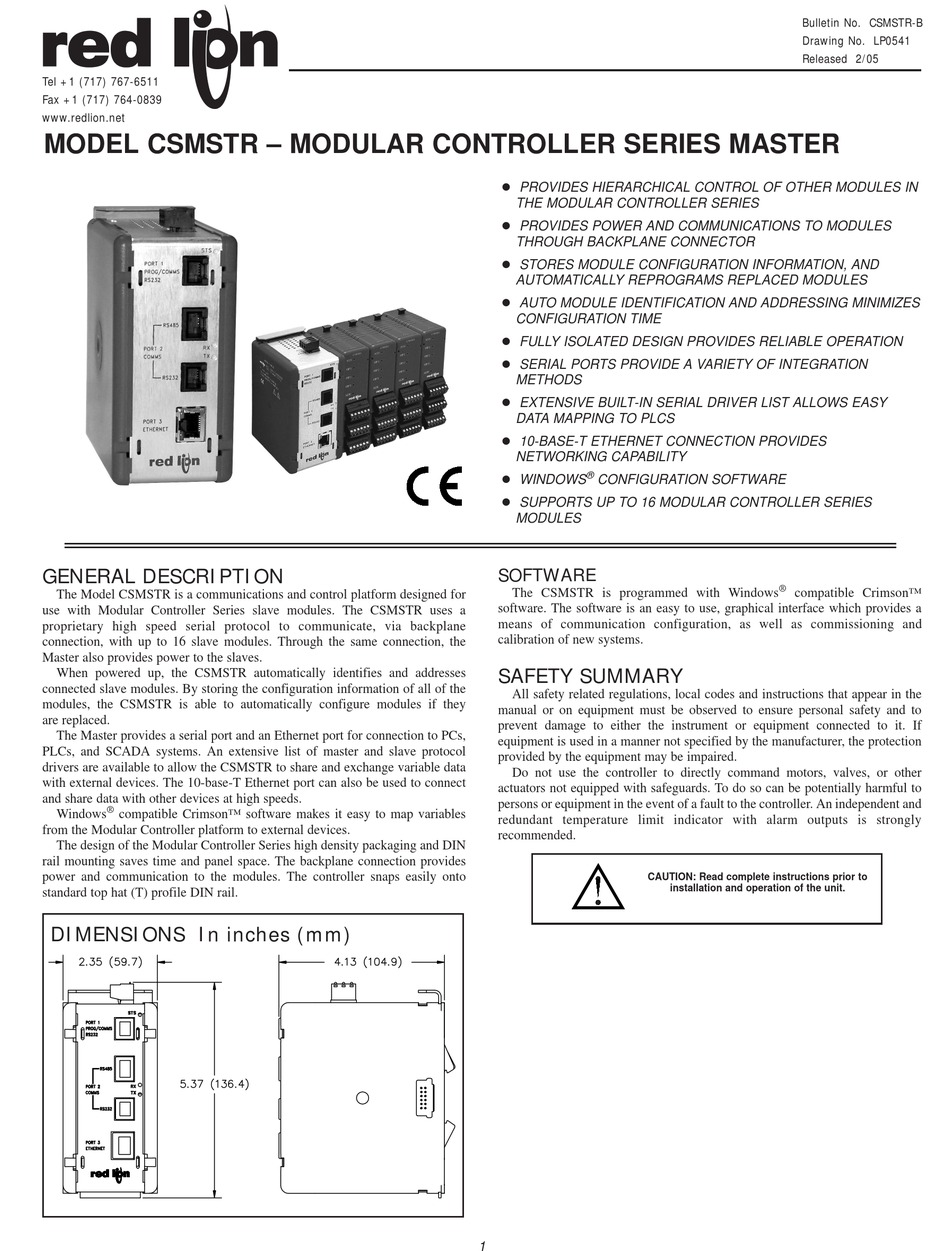

MODEL CSMSTR – MODULAR CONTROLLER SERIES MASTER
GENERAL DESCRIPTION

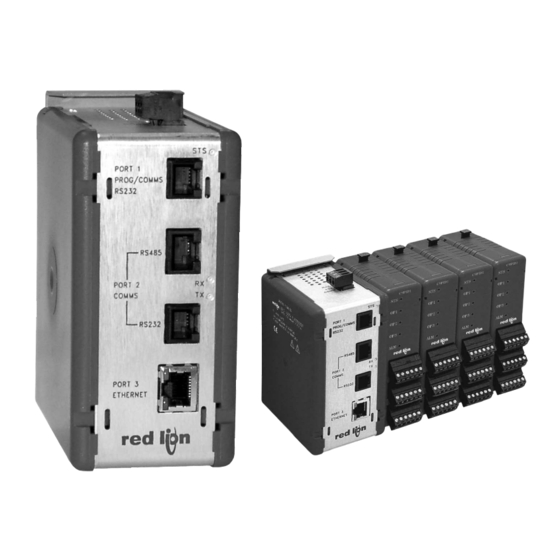

The Model CSMSTR is a communications and control platform designed for
use with Modular Controller Series slave modules. The CSMSTR uses a
proprietary high speed serial protocol to communicate, via backplane
connection, with up to 16 slave modules. Through the same connection, the
Master also provides power to the slaves.
When powered up, the CSMSTR automatically identifies and addresses
connected slave modules. By storing the configuration information of all of the
modules, the CSMSTR is able to automatically configure modules if they
are replaced.
The Master provides a serial port and an Ethernet port for connection to PCs,
PLCs, and SCADA systems. An extensive list of master and slave protocol
drivers are available to allow the CSMSTR to share and exchange variable data
with external devices. The 10-base-T Ethernet port can also be used to connect
and share data with other devices at high speeds.
®
Windows compatible Crimson™ software makes it easy to map variables
from the Modular Controller platform to external devices.
The design of the Modular Controller Series high density packaging and DIN
rail mounting saves time and panel space. The backplane connection provides
power and communication to the modules. The controller snaps easily onto
standard top hat (T) profile DIN rail.
DIMENSIONS In inches (mm)
! PROVIDES HIERARCHICAL CONTROL OF OTHER MODULES IN
THE MODULAR CONTROLLER SERIES
! PROVIDES POWER AND COMMUNICATIONS TO MODULES
THROUGH BACKPLANE CONNECTOR
! STORES MODULE CONFIGURATION INFORMATION, AND
AUTOMATICALLY REPROGRAMS REPLACED MODULES
! AUTO MODULE IDENTIFICATION AND ADDRESSING MINIMIZES
CONFIGURATION TIME
! FULLY ISOLATED DESIGN PROVIDES RELIABLE OPERATION
! SERIAL PORTS PROVIDE A VARIETY OF INTEGRATION
METHODS
! EXTENSIVE BUILT-IN SERIAL DRIVER LIST ALLOWS EASY
DATA MAPPING TO PLCS
! 10-BASE-T ETHERNET CONNECTION PROVIDES
NETWORKING CAPABILITY
! WINDOWS ®
CONFIGURATION SOFTWARE
! SUPPORTS UP TO 16 MODULAR CONTROLLER SERIES
MODULES
SOFTWARE
The CSMSTR is programmed with Windows
software. The software is an easy to use, graphical interface which provides a
means of communication configuration, as well as commissioning and
calibration of new systems.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller. An independent and
redundant temperature limit indicator with alarm outputs is strongly
recommended.
CAUTION: Read complete instructions prior to
1
Bulletin No. CSMSTR-B
Drawing No. LP0541
Released 2/05
®
compatible Crimson™
installation and operation of the unit.
