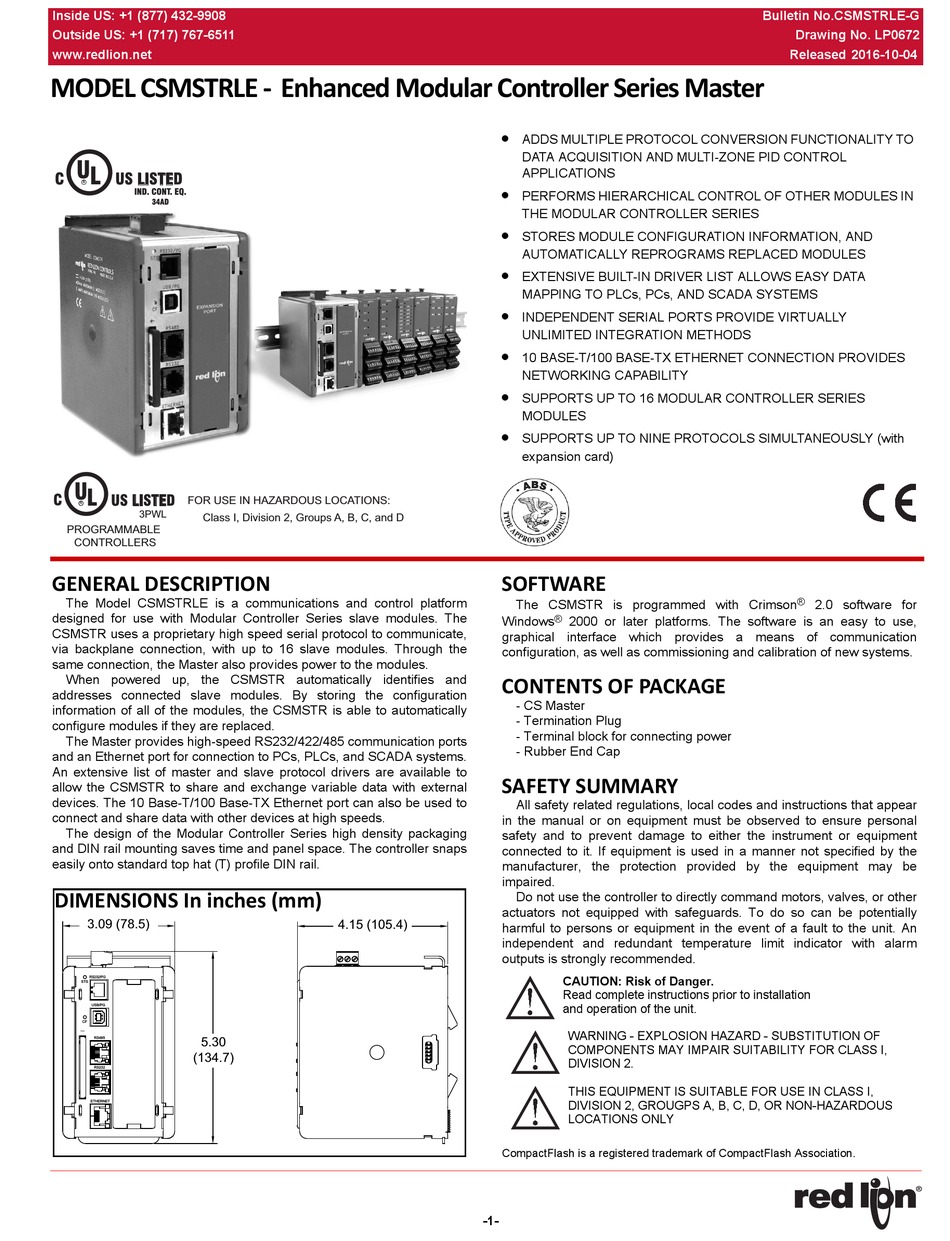

MODEL CSMSTRLE ‐ Enhanced Modular Controller Series Master
U L
C US LISTED
IND. CONT. EQ.
34AD
U L
C US LISTED
FOR USE IN HAZARDOUS LOCATIONS:
3PWL
Class I, Division 2, Groups A, B, C, and D
PROGRAMMABLE
CONTROLLERS
GENERAL DESCRIPTION

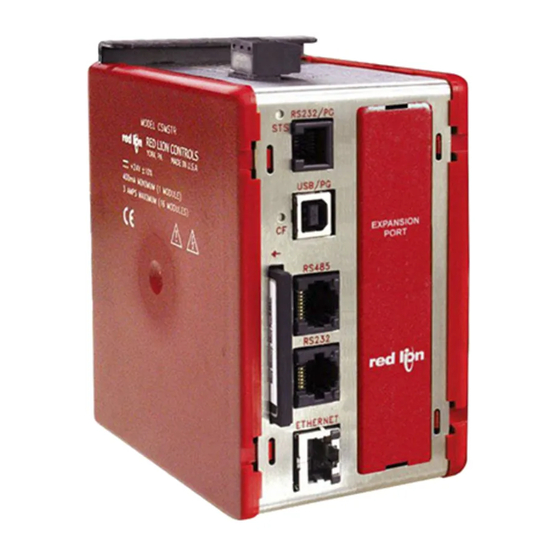

The Model CSMSTRLE is a communications and control platform
designed for use with Modular Controller Series slave modules. The
CSMSTR uses a proprietary high speed serial protocol to communicate,
via backplane connection, with up to 16 slave modules. Through the
same connection, the Master also provides power to the modules.
When powered up, the CSMSTR automatically identifies and
addresses connected slave modules. By storing the configuration
information of all of the modules, the CSMSTR is able to automatically
configure modules if they are replaced.
The Master provides high-speed RS232/422/485 communication ports
and an Ethernet port for connection to PCs, PLCs, and SCADA systems.
An extensive list of master and slave protocol drivers are available to
allow the CSMSTR to share and exchange variable data with external
devices. The 10 Base-T/100 Base-TX Ethernet port can also be used to
connect and share data with other devices at high speeds.
The design of the Modular Controller Series high density packaging
and DIN rail mounting saves time and panel space. The controller snaps
easily onto standard top hat (T) profile DIN rail.
DIMENSIONS In inches (mm)
3.09 (78.5)
RS232/PG
STS
USB/PG
CF
RS485 5.30
(134.7)
RS232
ETHERNET
•
•
•
•
•
•
•
•
SOFTWARE
The CSMSTR is programmed with Crimson
Windows
graphical interface which provides a means of communication
configuration, as well as commissioning and calibration of new systems.
CONTENTS OF PACKAGE
- CS Master
- Termination Plug
- Terminal block for connecting power
- Rubber End Cap
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear
in the manual or on equipment must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment
connected to it. If equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially
4.15 (105.4)
harmful to persons or equipment in the event of a fault to the unit. An
independent and redundant temperature limit indicator with alarm
outputs is strongly recommended.
CompactFlash is a registered trademark of CompactFlash Association.
-1-
ADDS MULTIPLE PROTOCOL CONVERSION FUNCTIONALITY TO
DATA ACQUISITION AND MULTI-ZONE PID CONTROL
APPLICATIONS
PERFORMS HIERARCHICAL CONTROL OF OTHER MODULES IN
THE MODULAR CONTROLLER SERIES
STORES MODULE CONFIGURATION INFORMATION, AND
AUTOMATICALLY REPROGRAMS REPLACED MODULES
EXTENSIVE BUILT-IN DRIVER LIST ALLOWS EASY DATA
MAPPING TO PLCs, PCs, AND SCADA SYSTEMS
INDEPENDENT SERIAL PORTS PROVIDE VIRTUALLY
UNLIMITED INTEGRATION METHODS
10 BASE-T/100 BASE-TX ETHERNET CONNECTION PROVIDES
NETWORKING CAPABILITY
SUPPORTS UP TO 16 MODULAR CONTROLLER SERIES
MODULES
SUPPORTS UP TO NINE PROTOCOLS SIMULTANEOUSLY (with
expansion card)
®
2000 or later platforms. The software is an easy to use,
CAUTION: Risk of Danger. WARNING - EXPLOSION HAZARD - DO NOT D
Read complete instructions prior to installation EQUIPMENT UNLESS POWER HAS BEEN SW
and operation of the unit. OR AREA IS KNOWN TO BE NON-HAZARDOU
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2.
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,
DIVISION 2, GROUGPS A, B, C, D, OR NON-HAZARDOUS
LOCATIONS ONLY
Bulletin No.CSMSTRLE-G
Drawing No. LP0672
Released 2016-10-04
®
2.0 software for
