Summary of Contents for red lion Sixnet ST-IPm-8460

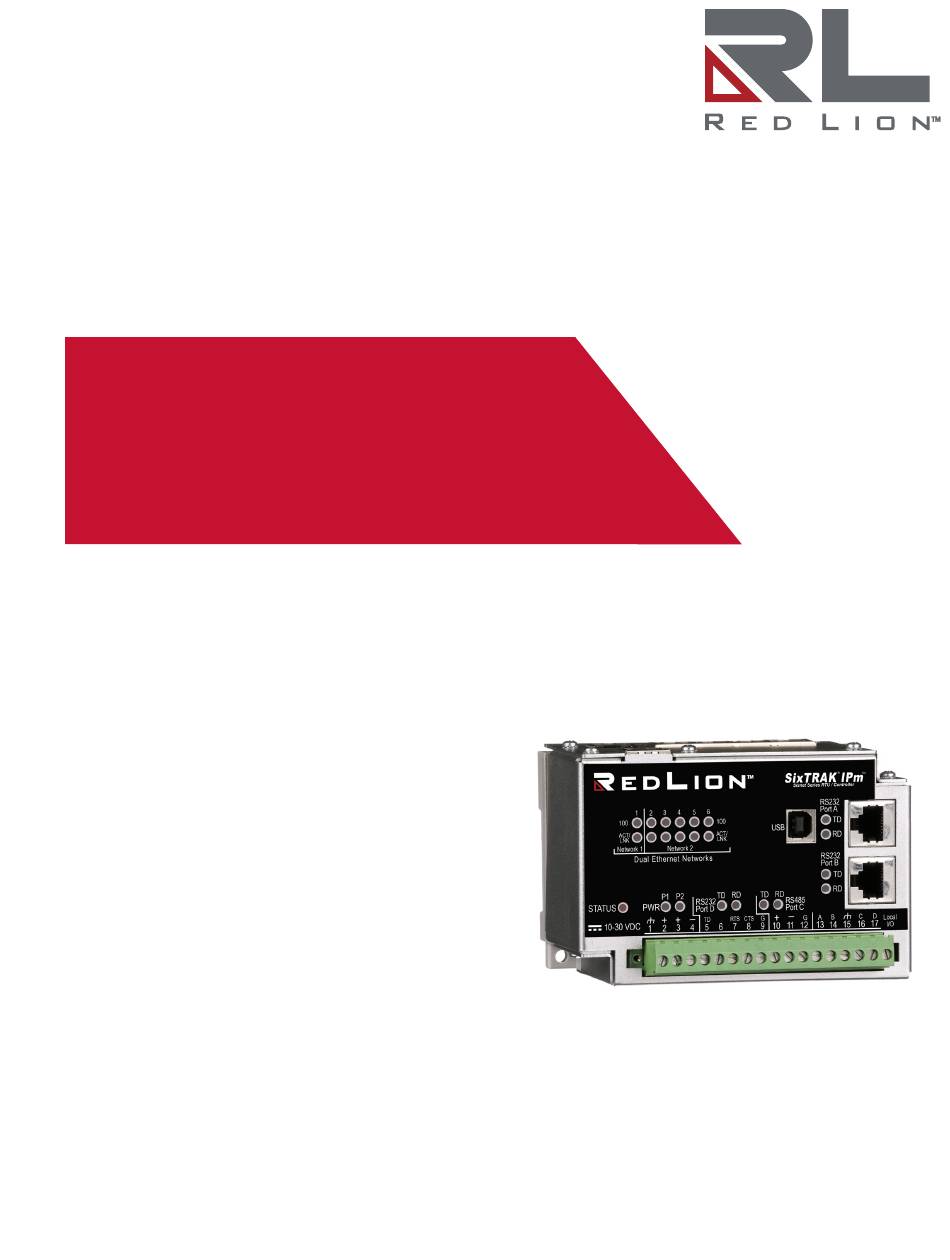

- Page 1 Sixnet Series ® ST-IPm-8460 SixTRAK IPm RTU/Controller ® Hardware Guide | April 2020 LP1106 | Revision B...
- Page 2 COPYRIGHT ©2015-2020 Red Lion Controls, Inc. All rights reserved. Red Lion and the Red Lion logo are registered trademarks of Red Lion Controls, Inc. All other company and product names are trademarks of their respective owners. Red Lion Controls, Inc.
- Page 3 Getting Started Installing Red Lion Hardware...
-
Page 4: Table Of Contents
Chapter 6 Red Lion Windows Software... - Page 5 While every effort has been made to ensure that this document is complete and accurate at the time of release, the information that it contains is subject to change. Red Lion Controls, Inc is not responsible for any additions to or alterations of the original document.
- Page 6 Documentation Notes and/or Product Bulletins will be provided as needed between major releases to describe any new information or document changes. The latest online version of this document and all product updates can be accessed through the Red Lion website at: http:/ /www.redlion.net/support/documentation.
- Page 7 Warnings and Cautions General Safety Cautions and Warnings CAUTION: If the Sixnet series equipment is used in the manner not specified by Red Lion, the protection provided by the equipment may be impaired. ATTENTION: Si l’ Sixnet série équipement est utilisé d’une manière non spécifiée par Red Lion, la protection fournie par l’équipement peut être compromise.
- Page 8 Overvoltage category: II (Per IEC 61010-1) Safety Standards This unit meets the standards listed below, plus others. Note: Some ratings may be pending on newer models. Contact Red Lion for the latest information. Electrical safety: CE per Low Voltage Directive and IEC 61010-1 UL recognition per UL508 CSA per C22.2/142...
- Page 9 WEEE compliance: These devices comply with the WEEE directive. Do not throw away these devices in the standard trash. Contact Red Lion regarding proper disposal. RoHS compliance: These devices comply with the RoHS directive and are consider lead and other hazardous substance free.
- Page 10 Preface Drawing No. LP1106 Safety Information Revision B ST-IPm-8460 SixTRAK IPm RTU/Controller ®...
- Page 11 Electronic help System accessible from within the Sixnet I/O Tool Kit software and the virtual helpdesk on www.redlion.net. A typical Red Lion station consists of an AC to DC power supply, a Red Lion HMI, Sixnet Series RTU/Controller, and EtherTRAK -2 I/O modules.
- Page 12 Program Memory (Flash): 512 MB (272 MB for application data and programs) Data Logging Memory (RAM): 8 MB (Battery backed) Data Logging: Sixnet SixLog or Red Lion Workbench IEC 61131 Programming: Red Lion Workbench (Sixnet ISaGRAF is supported for backward compatibility) Power Input Input Voltage: 10-30 VDC Steady Input Current: 150 mA @ 24 V (6.2 W max.)
- Page 13 Drawing No. LP1106 Chapter 1 Introduction and Specifications Revision B Ordering Information Certification & Compliance Hazardous Locations: ISA12.12.01, CSA C22.2/213, Class 1, Division 2 Groups A, B, C, D Electrical Safety: UL 508, CSA C22.2/142, IEC61010-1, CE EMI Emissions: FCC part 15, ICES-003, Class A, EN61000-6-4, CE EMC Immunity: EN61000-6-2, CE Flammability: UL 94V-0 materials ATEX (Zone 2)
- Page 14 Chapter 1 Introduction and Specifications Drawing No. LP1106 Ordering Information Revision B ST-IPm-8460 SixTRAK IPm RTU/Controller ®...
- Page 15 I/O Tool Kit for details. (refer to “Red Lion Software”) 8. Test the Hardware: Use the Test I/O window in the I/O Tool Kit program to verify proper I/O operation of all Red Lion stations.
- Page 16 Chapter 2 Installation and Assembly Drawing No. LP1106 DIN Rail Mounting and Removal Revision B DIN Rail Mounting and Removal The Sixnet Series ST-IPm-8460 units can be snapped onto a standard DIN rail (EN50022) or screwed directly to a flat panel.
- Page 17 Panel Assembly Most Red Lion components snap onto DIN rail strips fastened to a sub panel. The figure below (Figure 2.2) shows a sample panel with DIN rail strips and wire duct attached. Recommended DIN rail spacing is 8 inches. This spacing allows room for wire duct to be installed without obstructing field wiring installation.
- Page 18 Chapter 2 Installation and Assembly Drawing No. LP1106 Panel Assembly Revision B Figure 2.3 SixTRAK IPm RTU/Controller Dimensions: 4.47" [11.35 cm] 4.27" [10.83 cm] 2.92" 0.25" [7.42 cm] [0.64 cm] SixTRAK IPm DIN EN 2.92" 50022 [7.42 cm] Front View (not included) 3.17"...
- Page 19 Chapter 3 Power and ST-Bus Wiring Power Requirements Red Lion SixTRAK IPm RTU/Controller accepts a user DC power source of 10 to 30 VDC or a 24 VDC power from a Red Lion power supply. Although not required, Red Lion has the following power supplies: •...
-
Page 20: St-Bus Wiring Guidelines
Chapter 3 Power and ST-Bus Wiring Drawing No. LP1106 ST-Bus Wiring Guidelines Revision B SixTRAK IPm Power Connections Figure 3.1. Power Connections ST-Bus Wiring Guidelines ST-Bus wiring connects the legacy SixTRAK I/O modules and expanders to the SixTRAK IPm RTU/Controller. Follow the upcoming guidelines for reliable performance. -
Page 21: Network Topology
These topologies are ring, passthru and star. They are defined below. Ring Topology Connect a ring of I/O modules to the SixTRAK IPm RTU/Controller using a Red Lion Sixnet Monitored and Managed Series switches. The Ring network creates a reliable redundant ring capable of recovering very quickly. Multiple Rings may be connected to the SixTRAK IPm RTU/Controller through switches and can be connected to either Network 1 or Network 2. -
Page 22: Star Topology
Figure 3.2. Star Topology Recommended Switches The SixTRAK IPm RTU/Controller and EtherTRAK-2 I/O modules will work with all 802.3 switches. For applications using the Ring topology, Red Lion Sixnet Monitored and Managed switches are recommended. • SLX-6RS-x • SLX-xMS-x ST-IPm-8460... -
Page 23: Chapter 4 Communications Connections
RJ45 male to RJ45 male straight-thru wired patch cable (not included) to make a connection between a com port on your PC (DB9 male) and either Port A or B (RJ45 female). Refer to the Red Lion Electronic catalog for more information on connecting to other equipment. -
Page 24: Rs232 Port D
Note: The primary Ethernet port is not internally tied to the internal Ethernet switch or the second Ethernet port. The first and second Ethernet ports act independently from each other. Refer to the Red Lion Electronic Help system for more details and usage tips. -
Page 25: Chapter 5 Operation And Maintenance
ON: The SixTRAK IPm RTU/Controller is operating properly. OFF: There is no power to the SixTRAK IPm RTU/Controller or service is required. Contact Red Lion technical support. Fast blink: This may occur when then the SixTRAK IPm RTU/Controller is being reset, or firmware is to be downloaded from the I/O Tool Kit software. - Page 26 Chapter 5 Operation and Maintenance Drawing No. LP1106 SixTRAK IPm RTU/Controller Memory Revision B ST-IPm-8460 SixTRAK IPm RTU/Controller ®...
-
Page 27: Chapter 6 Red Lion Windows Software
Drawing No. LP1106 Chapter 6 Red Lion Windows Software Revision B Red Lion Software Chapter 6 Red Lion Windows Software Red Lion Software Below is a quick overview on using the Sixnet I/O Tool Kit. It may be downloaded from www.redlion.net... - Page 28 Chapter 6 Red Lion Windows Software Drawing No. LP1106 Red Lion Software Revision B ST-IPm-8460 SixTRAK IPm RTU/Controller ®...
-
Page 29: Service And Support
Service Information We sincerely hope that you never experience a problem with any Red Lion product. If you do need service, call Red Lion at 1-877-432-9908 for Technical Support. A trained specialist will help you quickly determine the source of the problem. -
Page 30: Limited Warranty
LIMITED WARRANTY (a) Red Lion Controls Inc. (the “Company”) warrants that all Products shall be free from defects in material and workmanship under normal use for the period of time provided in “Statement of Warranty Periods” (available at www.redlion.net) current at the time of shipment of the Products (the “Warranty Period”).
