red lion LNXC1 Manual

• ACCEPTS INPUT COUNT RATE UP TO 2500CPS
• AVAILABLE IN AC OR DC VERSIONS
• FRONT PANEL PROGRAMMABLE DECIMAL POINT
I :I 0 C C
U.0 U
P2
0 PS 0 Pl
0 0
E (=) (=I R Aw
••••
2.2 (55.9)
T24(6.1)
I
( I
.125"
L
(3.18)
DIA.
2 HOLES
1
1
I 2.47
(62.8)
- J
5.60 (142.2)
(49.6)
1.97
(50)
..,_ _1.97"(50)
2.85"(72.4)
BULLETIN NO. LNXC-D
REVISED 2/89
ARI RED LION CONTROLS
•
INTERNATIONAL HEADQUARTERS
20 Willow Springs
Circle,
York, Pa. 17402 (717) 767-6511
TWX: 510 657 4214
RLC
YRK FAX: (717) 764-0839
EUROPEAN HEADQUARTERS
Cranford Lane, Heston, Hounslow, Middlesex TW59N0
ENGLAND 01-759-0694 TWX: 24178 FAIRHO G

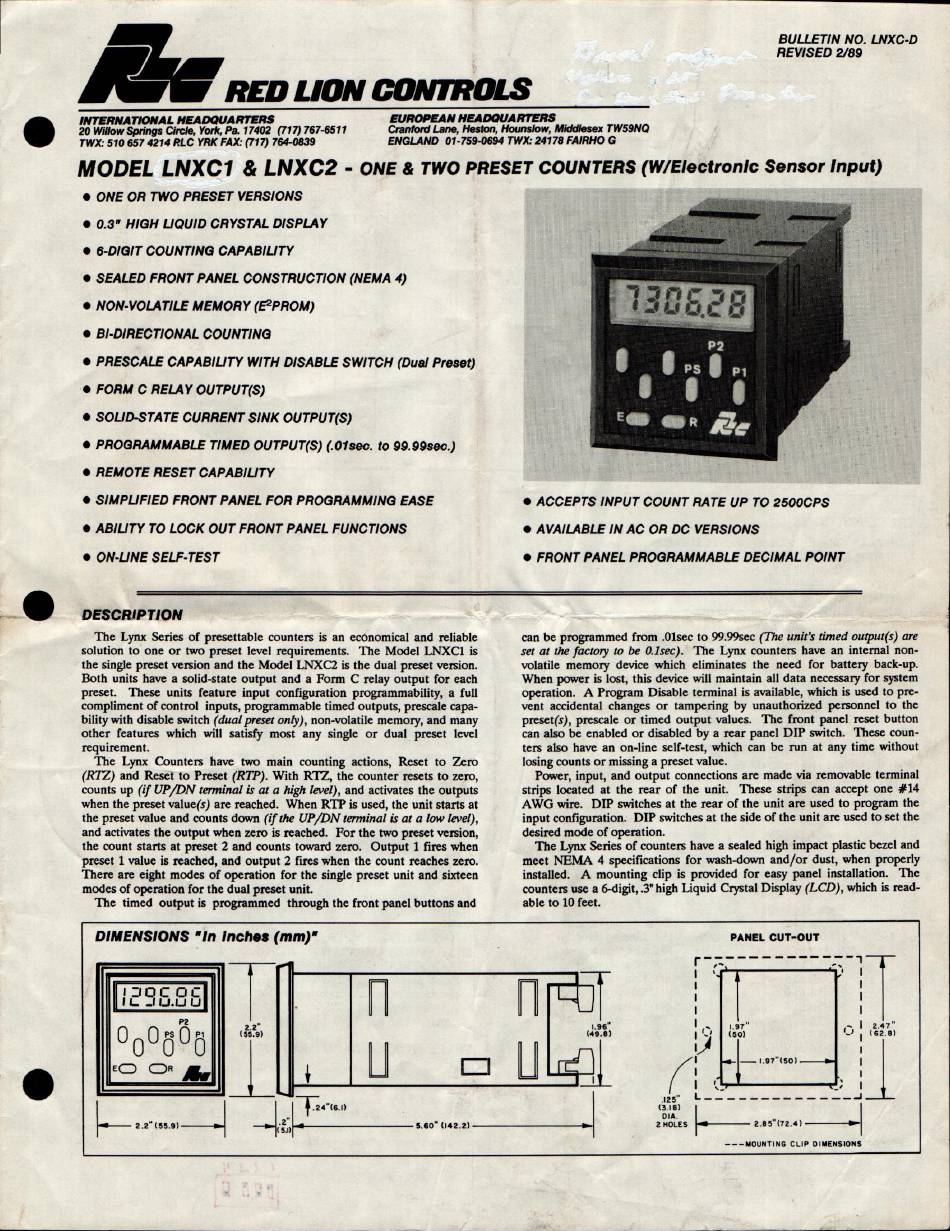

MODEL LNXC1 & LNXC2 - ONE & TWO PRESET COUNTERS (W/Electronic Sensor Input)
• ONE OR TWO PRESET VERSIONS
• 0.3" HIGH LIQUID CRYSTAL DISPLAY
• 6-DIGIT COUNTING CAPABILITY
• SEALED FRONT PANEL CONSTRUCTION (NEMA 4)
• NON-VOLATILE MEMORY (E2PROM)
• BI-DIRECTIONAL COUNTING
• PRESCALE CAPABILITY WITH DISABLE SWITCH (Dual Preset)
• FORM C RELAY OUTPUT(S)
• SOLID-STATE CURRENT SINK OUTPUT(S)
• PROGRAMMABLE TIMED OUTPUT(S) (.01sec. to 99.99sec.)
• REMOTE RESET CAPABILITY
• SIMPLIFIED FRONT PANEL FOR PROGRAMMING EASE
• ABILITY TO LOCK OUT FRONT PANEL FUNCTIONS
• ON-LINE SELF-TEST
•
DESCRIPTION
The Lynx Series of presettable counters is an economical and reliable
solution to one or two preset level requirements. The Model LNXC1 is
the single preset version and the Model LNXC2 is the dual preset version.
Both units have a solid-state output and a Form C relay output for each
preset. These units feature input configuration programmability, a full
compliment of control inputs, programmable timed outputs, prescale capa-
bility with disable switch
(dual preset only),
non-volatile memory, and many
other features which will satisfy most any single or dual preset level
requirement.
The Lynx Counters have two main counting actions, Reset to Zero
(RTZ) and Reset to Preset
(RTP).
With RTZ, the counter resets to zero,
counts up
(if UP/DN terminal is at a high level),
and activates the outputs
when the preset value(s) are reached. When RTP is used, the unit starts at
the preset value and counts down
(if the UP/DN terminal is at a low level),
and activates the output when zero is reached. For the two preset version,
the count starts at preset 2 and counts toward zero. Output 1 fires when
preset 1 value is reached, and output 2 fires when the count reaches zero.
There are eight modes of operation for the single preset unit and sixteen
modes of operation for the dual preset unit.
The timed output is programmed through the front panel buttons and
can be programmed from .Olsec to 99.99sec
(The unit's timed output(s) are
set at the factory to be 0.1sec).
The Lynx counters have an internal non-
volatile memory device which eliminates the need for battery back-up.
When power is lost, this device will maintain all data necessary for system
operation. A Program Disable terminal is available, which is used to pre-
vent accidental changes or tampering by unauthorized personnel to the
preset(s), prescale or timed output values. The front panel reset button
can also be enabled or disabled by a rear panel DIP switch. These coun-
ters also have an on-line self-test, which can be run at any time without
losing counts or missing a preset value.
Power, input, and output connections are made via removable terminal
strips located at the rear of the unit. These strips can accept one #14
AWG wire. DIP switches at the rear of the unit are used to program the
input configuration. DIP switches at the side of the unit are used to set the
desired mode of operation.
The Lynx Series of counters have a sealed high impact plastic bezel and
meet NEMA 4 specifications for wash-down and/or dust, when properly
installed. A mounting clip is provided for easy panel installation. The
counters use a 6-digit, .3" high Liquid Crystal Display
(LCD),
which is read-
able to 10 feet.
DIMENSIONS "In inches (mm)"
PANEL CUT-OUT
---MOUNTING CLIP DIMENSIONS
•
