EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide
Installing the SDP Board Drivers
After the AD7606 evaluation board software installation is
complete, the ADI SDP Drivers Setup wizard window opens
for the installation of the EVAL-SDP-CB1Z SDP
1. The ADI SDP Drivers Setup Wizard opens. Click Next to
begin the driver installation process.

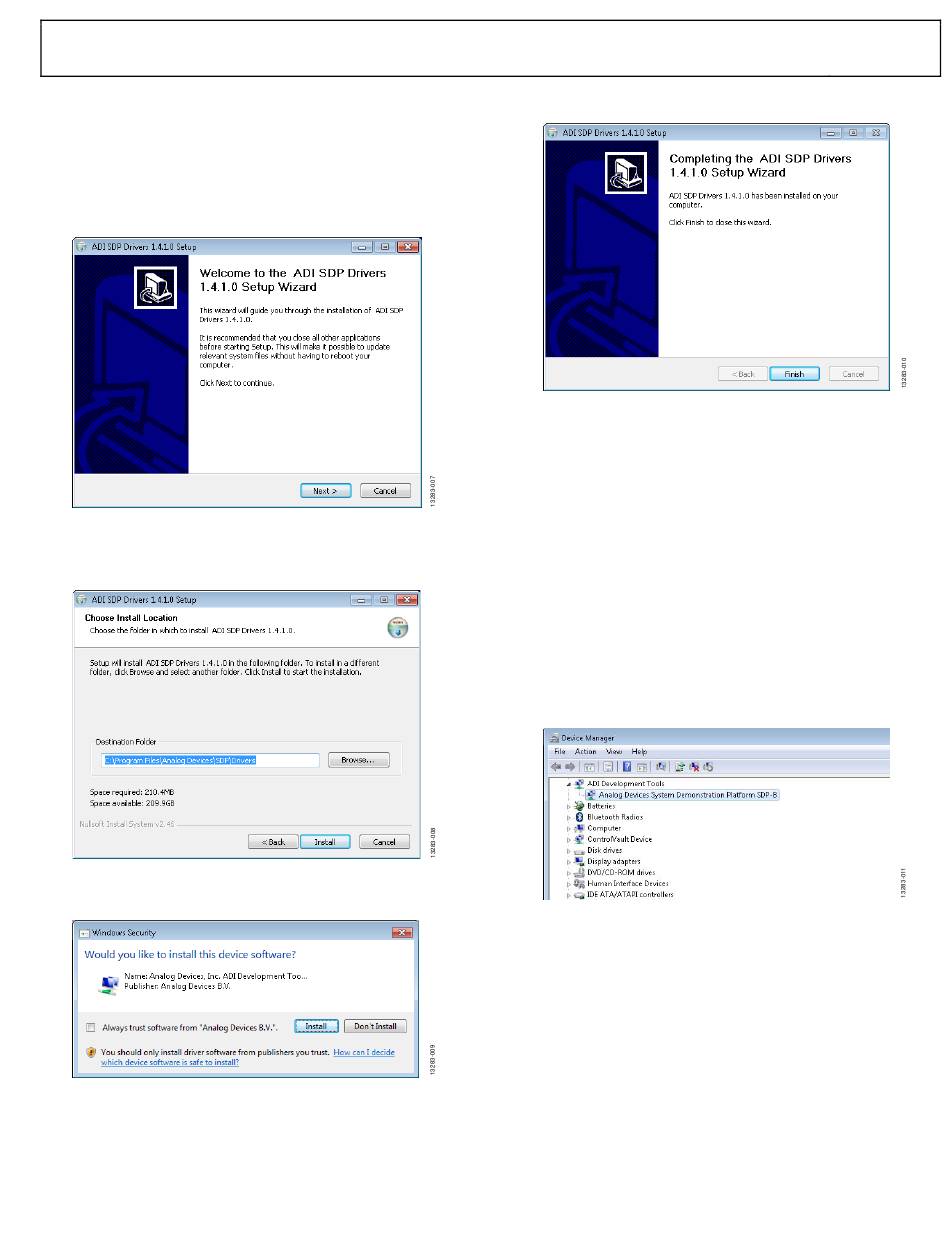

Figure 7. EVAL-SDP-CB1Z Drivers Installation—Setup Wizard
2. Select a destination folder for the
Install.
Figure 8. EVAL-SDP-CB1Z Drivers Installation—Choose Install Location
3. Click Install to proceed with the installation.
Figure 9. EVAL-SDP-CB1Z Drivers Installation—Windows Security
board drivers.
SDP drivers, and click
Rev. 0 | Page 7 of 15
4. The SDP drivers installation completes. Click Finish.
Figure 10. EVAL-SDP-CB1Z
After the evaluation software installation is complete, connect the
EVAL-AD7606SDZ/EVAL-AD7606-6SDZ/EVAL-AD7606-4SDZ/
EVAL-AD7607SDZ/EVAL-AD7608SDZ
EVAL-SDP-CB1Z SDP board as described in the Evaluation
Board Hardware section.
When you first plug in the EVAL-SDP-CB1Z SDP
the USB cable provided, allow the Found Hardware Wizard
to run. After the drivers are installed, check that the board is
connected correctly by looking at the Device Manager of the
PC. The Device Manager can be found by right-clicking
My Computer > Manage > Device Manager from the list
of System Tools.
The EVAL-SDP-CB1Z SDP board appears under ADI
Development Tools, as shown in Figure 11.
Figure 11. Device Manager
UG-851
Drivers Installation—Complete
evaluation board to the
board via
