Summary of Contents for OpenVox DGW-100XR
- Page 1 DGW-100XR User Manual VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 2 DGW-100XR User Manual Version1.0 (2015-03-26) Full text The overall layout adjustment OpenVox Communication Co.Ltd VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.
-
Page 4: Table Of Contents
DGW-100XR User Manual Table of Contents Overview ..........................1 What is DGW-100XR? Sample Application Product Appearance Main Features Physical Information Software 2. System ........................... 5 Status Time Login Settings General Language Settings Scheduled Reboot Tools and Information Reboot Tools Update Firmware... - Page 5 DGW-100XR User Manual Save to Other Ports 4. SIP ............................18 SIP Endpoints Main Endpoint Settings Advanced: Registration Options Call Settings Advanced: Timer Settings Advanced SIP Settings Networking Advanced: NAT Settings Advanced: RTP Settings Parsing and Compatibility Security Media Codec Settings 5.
-
Page 6: Overview
G.729A, G.722, G.723 and GSM. It supports PRI protocol. OpenVox T1/E1 Gateway has good processing ability and stability and we provides 1/2/4 T1/E1 interface for your choice. The DGW-100XR series gateways will be 100% compatible with all kind of SIP servers, such as Asterisk, Elastix, trixbox, 3CX, FreeSWITCH and other VoIP operating platforms. -
Page 7: Product Appearance

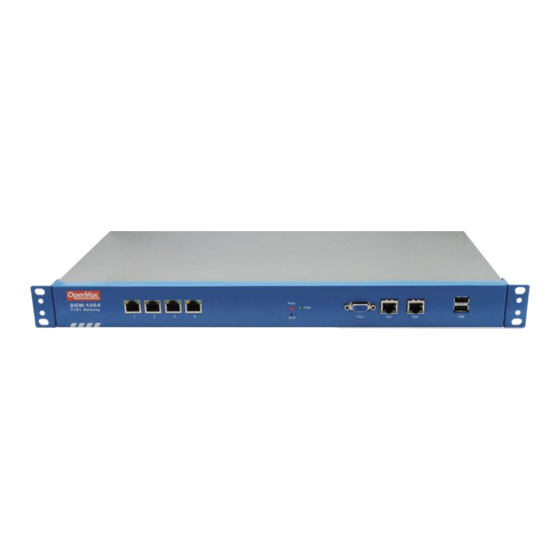

DGW-100XR User Manual Product Appearance The picture below is appearance of DGW-1004. Figure 1-3-1 Product Appearance Figure 1-3-2 Front Panel OpenVox Communication Co.Ltd VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... -
Page 8: Main Features
Network interface 7 Eth0 Network interface 8 USB USB interface Figure 1-3-2 Backup Panel The OpenVox DGW-100X series gateways support one or two power supply, one power named DGW-100X and two power named DGW-100XR. Main Features ○ Based on Asterisk ... -
Page 9: Physical Information
DGW-100XR User Manual Wide selection of codecs and signaling protocol Support unlimited routing rules and flexible routing settings Stable performance, flexible dialing, friendly GUI Codecs support: G.711A, G.711U, G.729A, G.723.1, G.722, GSM Support ports group management ... -
Page 10: System
DGW-100XR User Manual 2. System Status On the “Status” page, you will find all GSM, SIP, Routing, Network information and status. Figure 2-1-1 System Status Table 2-1-1 Description of System Status Options Definition OpenVox Communication Co.Ltd VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... -
Page 11: Time
DGW-100XR User Manual Show the status of port, include "RED" and "OK". "RED" means no trunk Interface Status line connected; "OK" means the trunk line of port is available. Show the signaling status of port, include "Down" and "UP". "Down"... -
Page 12: Login Settings
DGW-100XR User Manual You can set your gateway time Sync from NTP or Sync from Client by pressing different buttons. Login Settings Your gateway doesn't have administration role. All you can do here is to reset what new username and password to manage your gateway. And it has all privileges to operate your gateway. You can modify “Web Login Settings”... -
Page 13: General
DGW-100XR User Manual Notice: Whenever you do some changes, do not forget to save your configuration. General Language Settings You can choose different languages for your system. If you want to change language, you can switch “Advanced” on, then “Download” your current language package. After that, you can modify the package with the language you need. -
Page 14: Scheduled Reboot
DGW-100XR User Manual Scheduled Reboot If switch it on, you can manage your gateway to reboot automatically as you like. There are four reboot types for you to choose, “By Day, By Week, By Month and By Running Time”. Figure 2-4-2 Reboot Types If use your system frequently, you can set this enable, it can helps system work more efficient. -
Page 15: Update Firmware
DGW-100XR User Manual This will turn off your gateway and then turn it back on. This will drop all System Reboot current calls. Asterisk Reboot This will restart Asterisk and drop all current calls. Update Firmware We offer 2 kinds of update types for you, you can choose System Update or System Online Update. -
Page 16: Information
DGW-100XR User Manual Information On the “Information” page, there shows some basic information about the GSM gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-5-5 System Information 3. T1/E1 General Figure 3-1-1 General Settings... -
Page 17: Ports
DGW-100XR User Manual ON: Disable clock recovery from the T1/E1 spans. All spans use internal Use Internal timing. OFF: Enable clock recovery from the T1/E1 spans. Default is OFF. Timing And you can see the following figure 2-2. Figure 3-1-2 Clock Recovery... -
Page 18: Interface
DGW-100XR User Manual Interface Figure 3-2-2 Interface Settings Table 3-2-1 Definition of Interface Settings Options Definition Interface Type Choose a line type for this interface. Description An optional description of this interface to be used for reference only. Framing Framing method for this interface. -
Page 19: Signaling
DGW-100XR User Manual Options Definition Echo Whether or not to enable echo cancellation on this line. Cancellation RX Gain Adjust the gain for audio received on this interface. TX Gain Adjust the gain for audio sent on this interface. Signaling... - Page 20 DGW-100XR User Manual Table 3-2-4 Definition of Advanced Signaling Options Definition Sets logical or physical channel mapping. In logical channel mapping, Q.SIG Channel channels are mapped to 1-30. In physical channel mapping, channels are Mapping mapped to 1-15, 17-31, skipping the number used for the data channel.
- Page 21 DGW-100XR User Manual Prefixes for international, national, private, local, and unknown numbers, for use with dynamic dialing plans. The prefixes specified will be used to dynamically select how the ISDN Type Of Number bits are set. In the case of the international prefix, if the international prefix matches the beginning digits of the calling number (if your "PRI Dial Plan for Dialing...
-
Page 22: Isdn Timer
DGW-100XR User Manual Block Outbound Enable if you need to hide the name and not the number for legacy PPBX Caller ID Name use. Only applies to PRI channels. Wait for Caller ID Support Caller ID on call waiting. Name... -
Page 23: Save To Other Ports
DGW-100XR User Manual Save to Other Ports Save all of the above configuration to other ports selected. Figure 3-2-6 Save to Other Ports 4. SIP SIP Endpoints This page shows everything about your SIP, you can see status of each SIP. - Page 24 DGW-100XR User Manual Figure 4-1-2 None Registration For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-3 Endpoint Register with Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except name and password.
- Page 25 DGW-100XR User Manual Figure 4-1-4 This Gateway Register with the Endpoint Table 4-1-1 Definition of SIP Options Options Definition Name Display name. Username Register name in your SIP server. Password Authenticating with the gateway and characters are allowed. None---Not registering;...
-
Page 26: Advanced: Registration Options
DGW-100XR User Manual This sets the possible transport types for outgoing. Order of usage, when the respective transport protocols are enabled, is UDP, TCP, TLS. The first Transport enabled transport type is only used for outbound messages until a Registration takes place. During the peer Registration the transport type may change to another supported type if the peer requests so. -
Page 27: Advanced: Timer Settings
DGW-100XR User Manual Options Definition Set default DTMF Mode for sending DTMF. Default: rfc2833. DTMF Mode Other options: 'info', SIP INFO message (application/dtmf-relay); 'Inband', Inband audio (require 64kbit codec -alaw, ulaw). Trust Whether or not the Remote-Party-ID header should be trusted. -
Page 28: Advanced Sip Settings
DGW-100XR User Manual Advanced SIP Settings Networking Table 4-2-1 Definition of Networking Options Options Definition UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no). TCP Bind Port Choose a port on which to listen for TCP traffic. -
Page 29: Advanced: Rtp Settings
DGW-100XR User Manual Format:192.168.0.0/255.255.0.0 or 172.16.0.0./12. A list of IP address or IP ranges which are located inside a NATed network. This gateway will Local Network replace the internal IP address in SIP and SDP messages with the external IP address when a NAT exists between the gateway and other endpoints. -
Page 30: Parsing And Compatibility
DGW-100XR User Manual Start of RTP Port Start of range of port numbers to be used for RTP. Range End of RTP port End of range of port numbers to be used for RTP. Range Parsing and Compatibility Table 4-2-4 Instruction of Parsing and Compatibility... -
Page 31: Security
DGW-100XR User Manual Security Table 4-2-5 Instruction of Security Options Definition Match Auth If available, match user entry using the 'username' field from the Username authentication line instead of the 'from' field. Realm Realm for digest authentication. Realms MUST be globally unique according to RFC 3261. -
Page 32: Codec Settings
DGW-100XR User Manual Some ISDN links send empty media frames before the call is in ringing or progress state. The SIP channel will then send 183 indicating early media which will be empty - thus users get no ring signal. Setting this to "yes" will... -
Page 33: Call Routing Rule
DGW-100XR User Manual You are allowed to set up new routing rule by , and after setting routing rules, move rules’ order by pulling up and down, click button to edit the routing and delete it. Finally click the button to save what you set. - Page 34 DGW-100XR User Manual Options Definition A Dial Pattern is a unique set of digits that will select this route and send the call to the designated trunks. If a dialed pattern matches this route, no subsequent routes will be tried. If Time Groups are enabled, subsequent routes will be checked for matches outside of the designated time(s).
-
Page 35: Groups
DGW-100XR User Manual You can create various time routes and use these time conditions to limit some specific calls. Figure 5-1-3Time Patterns that will use this Route If you configure like this, then from January to March, from the first day to the last day of these months, from Monday to Thursday, from 00:00 to 02:00, during this time (meet all above time conditions), all calls will follow this route. -
Page 36: Mnp Settings
DGW-100XR User Manual MNP Settings Mobile Number Portability allows switching between mobile phone operators without changing the mobile number. Sounds simple, but there are loads of tasks performed behind the scene at the operator end. The URL is shown in the password string way. So please type the url in other place such a txt file, check it, then copy it to the gateway. -
Page 37: Wan/Lan Settings
DGW-100XR User Manual WAN/LAN Settings There are three types of WAN/LAN port IP, Factory, Static and DHCP. Factory is the default type, and it is 172.16.99.1. When you Choose LAN IPv4 type is “Factory”, this page is not editable. Figure 6-1-1 WAN/LAN Settings Interface... -
Page 38: Ddns Settings
DGW-100XR User Manual Figure 6-1-2 DNS Interface DNS Servers: A list of DNS IP address. Basically this info is from your local network service provider. DDNS Settings You can enable or disable DDNS (dynamic domain name server). Figure 6-2-1 DDNS Interface... -
Page 39: Toolkit
DGW-100XR User Manual Toolkit It is used to check network connectivity. Support Ping command on web GUI. Figure 6-3-1 Network Connectivity Checking 7. Advanced Asterisk API When you make “Enable” switch to “ON”, this page is available. Figure 7-1-1 API Interface OpenVox Communication Co.Ltd... - Page 40 DGW-100XR User Manual Table 7-1-1 Definition of Asterisk API Options Definition Port Network port number Manager Name Name of the manager without space Password for the manager. Manager secret Characters: Allowed characters “-_+.<>&0-9a-zA-Z”. Length:4-32 characters. If you want to deny many hosts or networks, use char & as Deny separator.
-
Page 41: Asterisk Cli
DGW-100XR User Manual Asterisk CLI In this page, you are allowed to run Asterisk commands. Figure 7-2-1 Asterisk Command Interface Table 7-2-1 Definition of Asterisk API Options Definition Type your Asterisk CLI commands here to check or debug your Command gateway. -
Page 42: Logs
DGW-100XR User Manual Figure 7-3-1 Configuration Files List Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk. 8. Logs On the “Log Settings” page, you should set the related logs on to scan the responding logs page. - Page 43 DGW-100XR User Manual Figure 8-1-1 Logs Settings Figure 8-1-2 System Logs Output Table 8-1-1 Definition of Logs Options Definition OpenVox Communication Co.Ltd VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 44 DGW-100XR User Manual switch on : when the size of log file reaches the max size, the system will cut a half of the file. New logs will be Auto clean: retained.<br> (System Logs) switch off : logs will remain, and the file size will increase gradually.
