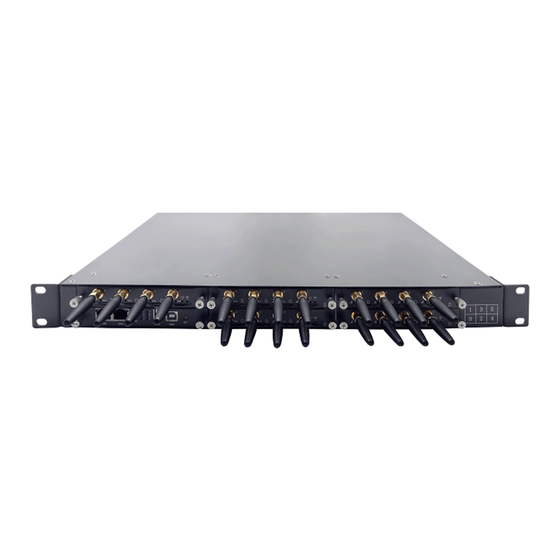

OpenVox VS-GW1202 User Manual

3g gateway
Hide thumbs Also See for VS-GW1202:
Table of Contents

Advertisement

Quick Links

http://arttel.ru

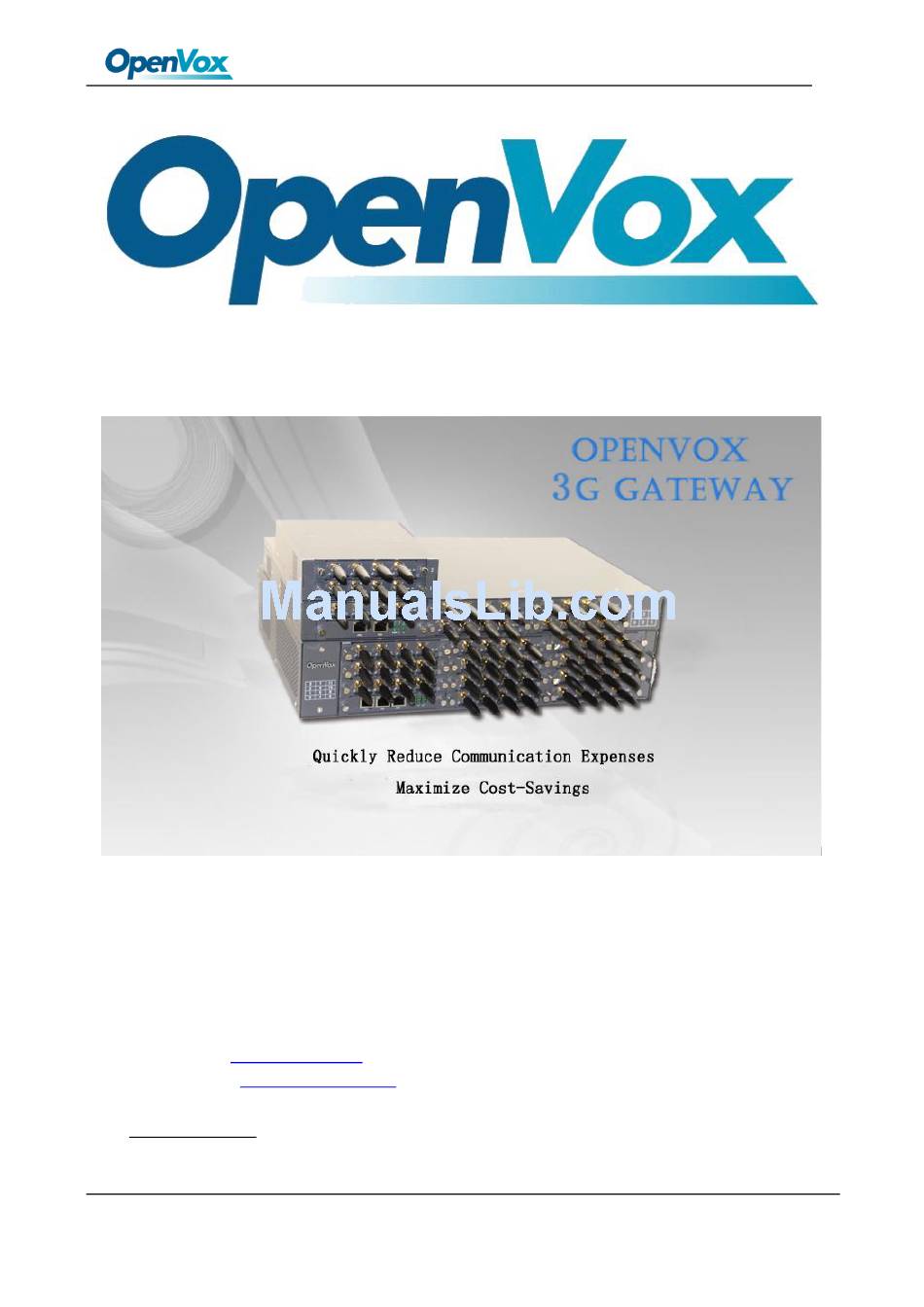

Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District,
Shenzhen, Guangdong,China 518109
Tel: +86-755-82535461, 82535095, 82535362
Fax: +86-755-83823074
Business Contact:
Technical Support:
Business Hours: 09:00-18:00(GMT+8) from Monday to Friday
URL: www.openvox.cn
OpenVox Communication Co.Ltd
https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w
3G Gateway User Manual
sales@openvox.cn
support@openvox.cn
3G UMTS Us er Ma nual
URL:www.openvox.cn

Advertisement

Table of Contents
loading

Related Manuals for OpenVox VS-GW1202

Summary of Contents for OpenVox VS-GW1202

  • Page 1 Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel: +86-755-82535461, 82535095, 82535362 Fax: +86-755-83823074 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 2 3G UMTS User Manual Version1.0 (2015-11-10) Full text The overall layout adjustment OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.

  • Page 4: Table Of Contents

    Tools and Information Reboot Tools Information 3. MODULE............................15 Module Settings IMEI Modification Call Duration Limit Settings Call Forwarding Call Waiting DTMF Toolkit 4. VOIP ............................... 27 VOIP Endpoints Advanced: Registration Options Call Settings Advanced: Signaling Settings OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 5 General Sender Options SMS to E-mail SMS Control HTTP to SMS SMS to HTTP SMS Sender SMS Inbox 7. Network ............................54 LAN Settings DDNS Settings Toolkit 8. Advanced ............................58 Asterisk API Asterisk CLI OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 6 3G UMTS User Manual Asterisk File Editor 9. Logs ..............................62 Appendix Feature List........................67 Application Diagrams ........................70 OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 7: Overview

    Gateway. Also secondary development can be completed through AMI (Asterisk Management Interface). There are three models with VoxStack series of 3G Gateway, the VS-GW1202, VS-GW1600 and VS- GW2120. The Modular Design of 3G Gateways are ranging from 4 up to 44 3G/UMTS channels, it is designed for multiple frequency bands Including 3G/UMTS 850/900/1900/2100 MHz, and it can support a wide selection of codecs, including G.711A, G.711U, G.729, G.722, G.726.

  • Page 8: Product Appearance

    ○ Network Data Switch Board: ETH1, ETH2. ETH1: Access Board 1 only, provide proxy access to other boards with different port numbers which can avoid IP conflict. ETH2: Access different Boards with different IP address. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 9 Red and Flash No SIM Card ⑥Signal Status LED Red and No-flash Worst Signal Quality Yellow and No-flash Medium Signal Quality Green and No-flash Best Signal Quality Flash (0.25s) Communicating ⑦Call Status LED Blind Normal OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 10: Main Features

    SIM cards and modules are all hot-swap  Stable performance, flexible dialing, friendly GUI Physical Information Table 1-5-1Description of Physical Information Weight 6144g(VS-GW2120-28w) Size 44cm*34cm*9cm Frequency GSM 850/900/1800/1900MHz Temperature -40~85°C (Storage) -40~85°C (Operation) Operation humidity 10%~90% non-condensing Max power LAN port OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 11: Software

    Board 1 only, then access to other boards with different port numbers but the same IP address, this will help to avoid IP conflict. If you choose ETH2, you can access different Boards with different IP addresses. Notice: Log in Figure 1-6-1 LOG IN Interface OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 12: System

    On the “Status” page, you will find all GSM, SIP, Routing, Network information and status. Figure 2-1-1 System Status Table 2-1-1 Description of System Status Options Definition Port Number of GSM ports. Signal Display the signal strength of in each channels of GSM. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 13: Time

    Time Zone the closest as your city. POSIX TZ String Posix timezone strings. NTP Server 1 Time server domain or hostname. For example, [time.asia.apple.com]. NTP Server 2 The first reserved NTP server. For example, [time.windows.com]. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 14: Login Settings

    “Web Login Settings” and “SSH Login Settings”. If you have changed these settings, you don’t need to log out, just rewriting your new user name and password will be OK. Also you can specify the web server port number. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 15: Login Settings

    Length: 4-32 characters. Confirm Please input the same password as 'Password' above. Password Port Specify the web server port number. Figure 2-3-1 Login Settings Notice: Whenever you do some changes, do not forget to save your configuration. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 16: General And Cluster

    “By Day, By Week, By Month and By Running Time”. Figure 2-4-2 Reboot Types If use your system frequently, you can set this enable, it can helps system work more efficient. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 17: Working Mode

    3G UMTS User Manual Working Mode OpenVox 3G Gateway offers you two ways to cluster your gateway: Automatic Cluster or Manual Cluster. When you first time log in your gateway, you will only see 4 ports of one module. Then you can...

  • Page 18: Tools And Information

    IP is inward IP. Up to four slaves. Tools and Information On the “Tools” pages, there are reboot, update, upload, downloadand reset toolkits. Reboot Tools You can choose system reboot and Asterisk reboot separately. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 19 Figure 2-5-2Prompt Information If you want to update your system and remain your previous configuration, you can first backup configuration, then you can upload configuration directly. That will be very convenient for you. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 20: Information

    Figure 2-5-4 Factory Reset Information On the “Information” page, there shows some basic information about the 3G gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-5-5 System Information OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 21: Module

    You can see much information about your SIM cards on this page. Module Settings Figure 3-1-1 Module Settings On this page, you can see your 3G module status and click action button to configure the port. Figure 3-1-2 Port Configure OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 22: Imei Modification

    You can log in your gateway and modify IP address as follows. Input web site below on your browser. http://your gatewaIp/cgi-bin/php/gsm-autoimei.php. Then you will see the following picture. Don’t forget to switch “Enable” to “ON”, or you can’t change your IMEI numbers. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 23 “Save”. Then “Current IMEI” will change. That means Autogeneration. If you want to set a certain number as your IMEI, you can press “Manual”. Then you will be required to input a OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 24 Caller ID restriction, this function is used to hidden caller ID of SIM card CLIR number. The gateway will add ‘#31#’ in front of mobile number. This function must support by Operator. GSM Module You can click “Modify” button and automatically modify it. IMEI OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 25: Call Duration Limit Settings

    This will limit your total calling time of this port. Figure 3-1-13 Call Duration Limitation Settings The same algorithm with single time limitation, the total calling time of this port can’t beyond the product of “Step” and “Call Duration Limitation”. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 26 Web GUI, you can set whether to check. Notice: When you do some changes, you need to Save and Apply, then “Remain Time” will show as you set. Your calling status will show on the main interface. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 27 Number from gateway. Remain Time This value is multiplied by to step length is a rest call time. Enable Auto Reset Automatic restore remaining talk time, that is, get total call minutes of GSM channel. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 28: Call Forwarding

    Call Forwarding. You can choose Call Forwarding Unconditional, Call Forwarding No Reply, Call Forwarding Busy or Call Forwarding on Not Reachable. If want to cancel your call forwarding settings, you can choose Cancel All. Figure 3-2-1Call Forwarding OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 29: Call Waiting

    Call Waiting is a feature that alerts you to an incoming call while you're on another call. It also lets you switch between the calls. It's automatically included with all Verizon Wireless plans. Figure 3-2-1Call Forwarding OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 30: Dtmf

     DTMF Hits Begin: Sampling matching value. You can choose 2 or 3.  DTMF Misses End: The time interval between the two digits you input. Adjust the speed of input. The smaller value represents the shorter intervals. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 31: Toolkit

    Enter a specific USSD number (For example,*142# to check your SIM card's balance. This USSD number is might be different from different carriers) to Get USSD get the USSD information. The gateway will try to get by AT commands. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 32 “a” and “A”. If you want to send AT command, first you should input your command, then select certain ports and choose “Copy to Selected”, finally choose “Execute”. Figure 3-4-2 AT Command Example OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 33: Voip

    If you set up a SIP endpoint by registration “None” to a server, then you can’t register other SIP endpoints to this server. (If you add other SIP endpoints, this will cause Out-band Routes and Trunks confused.) Figure 4-1-2 Anonymous Registration OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 34 Figure 4-1-3 Register to Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except name and password. Figure 4-1-4 Register to Server Table 4-1-1 Definition of SIP Options OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 35: Advanced: Registration Options

    A username to identify the gateway to this endpoint. From Domain A domain to identify the gateway to this endpoint. Remote Secret A password which is only used if the gateway registers to the remote side. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 36: Call Settings

    Remote Party ID How to set the Remote-Party-ID header: from Remote-Party-ID or from P- Format Asserted-Identity. Caller ID Whether or not to display Caller ID. Presentation Advanced: Signaling Settings Table 4-1-4 Definition of Signaling Options Options Definition OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 37: Advanced: Timer Settings

    "hairpin" call. Max Forwards Setting for the SIP Max-Forwards header (loop prevention). Send TRYING on Send a 100 Trying when the endpoint registers. REGISTER Advanced: Timer Settings Table 4-1-5 Definition of Timer Options Options Definition OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 38: Advanced Sip Settings

    Choose a port on which to listen for TCP traffic. The maximum number of seconds a client has to authenticate. If the client TCP Authentication does not authenticate before this timeout expires, the client will be Timeout disconnected.(default value is: 30 seconds). OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 39: Advanced: Nat Settings

    This gateway will replace the internal IP address in SIP and SDP messages with the external IP address when a NAT exists between the gateway and other endpoints. Local Network List Local IP address list that you added. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 40 Beware, you might suffer from service disruption when the name server resolution fails. Table 4-2-2 Definition of RTP S ettings Start of RTP Port Start of range of port numbers to be used for RTP. Range OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 41: Parsing And Compatibility

    By default this option is Maximum Maximum allowed time of incoming registrations and subscriptions Registration Expiry (seconds). OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 42: Security

    SIP usernames. This option is set to 'yes' by default. Authenticate Enabling this option will authenticate OPTIONS requests just like INVITE Options Requests requests are. By default this option is disabled. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 43: Media

    Definition TOS for SIP Sets type of service for SIP packets Packets TOS for RTP Sets type of service for RTP packets Packets Codec Settings Select codecs from the list below. Figure 4-2-1 Codec Settings OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 44: Advanced Iax2 Settings

    You may specify a global default language for users. This can be specified also on a per-user basis. If omitted, will fallback to English(en) Account Code You may specify a default account for Call Detail Records (CDRs) in addition to specifying on a per-user basis. Table 4-3-2Instruction of Music On Hold OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 45 Max Jitter The maximum number of interpolation frames the jitterbuffer should return in a row. Since Interps some clients do not send CNG/DTX frames to indicate silence, the jitterbuffer will assume OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 46 For use cases, see the call token user guide. This option’s default value of 8192 should be sufficient in most cases. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 47: Routing

    “Advanced Routing Rule” are ineffective, and just “CallerID” option is available. Table 5-1-1 Definition of Routing Options Options Definition The name of this route. Should be used to describe what types of calls this Routing Name route matches (for example, 'SIP2GSM' or 'GSM2SIP'). OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 48: Disa Settings

    DISA Timeout Select the timeout range of 1 to 10 seconds Max Password Restrict the max length of password Digits Password Click the button to edit Authenticated Password Advance Routing Rule Figure 5-1-3 Advance Routing Rule OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 49 NOT their Outbound CID. The above special matching sequences can be used for CallerID matching similar to other num ber matches. Time Patterns that Time Patterns that will use this Route help. will use this Route OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 50 You set your caller ID name and caller number as you like before sending the call to the endpoint. You can also configure forward number when you have a transfer call. Figure 5-1-5Change Rules You can add one or more “Failover Call Through Numbers”. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 51: Groups

    The outgoing number in the url should be replaced by the variables ${num}. Here is an example of the MNP url: https://s1.bichara.com.br:8181/chkporta.php?user=832700&pwd=sdsfdg&tn=8388166902 The 8388166902 is the outgoing phone number, when config the MNP url, should replce it with OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 52 3G UMTS User Manual ${num}. Then it turns to https://s1.bichara.com.br:8181/chkporta.php?user=832700&pwd=sdsfdg&tn=${num }. Figure 5-3-1 MNP Settings OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 53: Sms

    Table 6-1-1 Description of Sender Options Options Definition Resend Failed The times that you will attempt to resend your failed message. Message Repeat Same The times that you will resend the same message. Message Verbose Verbose level of sending message OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 54: Sms To E-Mail

    Figure 6-1-3 SMS to E-mail Options Table 6-1-2 Types of E-mail Box SMTP Security E-mail Box Type SMTP Server SMTP Port Connectivity Gmail smtp.gmail.com √ HotMail smtp.live.com √ Yahoo! smtp.mail.yahoo.co.in × OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 55 The second email address to receive the inbox message. Email Address2 Destination The third email address to receive the inbox message. Email Address3 Available variable: $PHONENUMBR:SMS sender number Title $PORT: SMS from which port. $TIME: SMS received time. $MESSAGE: SMS content. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 56: Sms Control

    IP information. Table 6-1-4 Definition of SMS Control Options Definition Enable ON(enable), OFF(disable) Password The password to confirm that SMS makes the gateway rebooted, shut down, restored configuration files and get info on this gateway. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 57: Http To Sms

    New record will be retained. switch off: SMS record will remain, and the file size will increase gradually. default on, max size = 20 MB HTTP to SMS Figure 6-1-5 HTTP to SMS SMS to HTTP OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 58: Sms Sender

    SMS Inbox On this page, you are allowed to scan, delete, clean up, and export each port’s received SMS. Also you are allowed to check messages by port, phone number, time order and message keywords. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 59 3G UMTS User Manual Figure 6-3-1 SMS Information OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 60: Network

    172.16.99.1. When you Choose LAN IPv4 type is “Factory”, this page is not editable. A reserved IP address to access in case your gateway IP is not available. Remember to set a similar network segment with the following address of your local PC. Figure 7-1-1LAN Settings Interface OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 61 The reserved IP address for this gateway. Reserved Netmask The subnet mask of the reserved IP address. Basically this info is from your local network service provider, and you can fill in four DNS servers. Figure 7-1-2 DNS Interface OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 62: Ddns Settings

    Your DDNS account’s login name. Password Your DDNS account’s password. Your domain The domain to which your web server will belong. Toolkit It is used to check network connectivity. Support Ping command on web GUI. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 63 3G UMTS User Manual Figure 7-3-1 Network Connectivity Checking OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 64: Advanced

    3G UMTS User Manual 8. Advanced Asterisk API When you make “Enable” switch to “ON”, this page is available. Figure 8-1-1 API Interface OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 65 Output of cdr, manager, if loaded. Read-only. Dialplan Receive NewExten and Varset events. Read-only. Originate Permission to originate new calls. Write-only. Select all or deselect all. Once you set like the above figure, the host 172.16.123.123/255.255.0.0 is allowed to access the OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 66: Asterisk Cli

    API. Please refer to the following figure to access the gateway API by putty. 172.16.123.123 is the gateway’s IP, and 5038 is its API port. Figure 8-1-2 Putty Access Asterisk CLI In this page, you are allowed to run Asterisk commands. Figure 8-2-1 Asterisk Command Interface OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 67: Asterisk File Editor

    On this page, you are allowed to edit and create configuration files. Click the file to edit. Figure 8-3-1 Configuration Files List Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 68 For example, set “System Logs” on like the following, then you can turn to “System” page for system logs, otherwise, system logs is unavailable. And the same with other log pages. Figure 9-1-1System Logs Control OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 69 3G UMTS User Manual Figure 9-1-2 System Logs Output You can choose one specific board to see it related logs. Figure 9-1-3 Choose One Board OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 70 3G UMTS User Manual Figure 9-1-4 AT Commands Figure 9-1-5 CDR Output Recently we have made our LOGS display richer, you can see your GSM Outbound of every port clearly. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 71 New logs will be retained. switch off : logs will remain, and the file size will increase gradually. default on, default size =100KB. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 72 New logs will be retained.<br> switch off : logs will remain, and the file size will increase gradually. default on, default size =20MB. OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 73: Appendix Feature List

     Support protocols：SIP, IAX（easily expand other protocols that Asterisk supports）, TCP, UDP, RTP, TELNET, HTTP, SMTP, POP3 Routingand Number Conversion  Support routing before number changed  Support routing after number changed  Support GSM—>IP routing OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 74: System Features

    ① ETH1：access Board1 only, provide proxy access to other boards with different port numbers which can avoid IP conflict ② ETH2: access different Boards with different IP addresses  Network type：Static IP, Dynamic, PPPoE  Support modify username and password for web login OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
  • Page 75  Support gateway boards and SIM hot plug  Reboot settings（According to the running time, specific time）  Update Firmware：HTTP  Support multiple detailed LOG output  Support Restore the factory settings  One YearWarranty OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...

  • Page 76: Application Diagrams

    3G UMTS User Manual Application Diagrams Thank You for Choosing OpenVox Products! OpenVox Communication Co.Ltd URL:www.openvox.cn https://arttel.ru/shop/3g-shlyuzy/openvox-vs-gw1202-4w...
