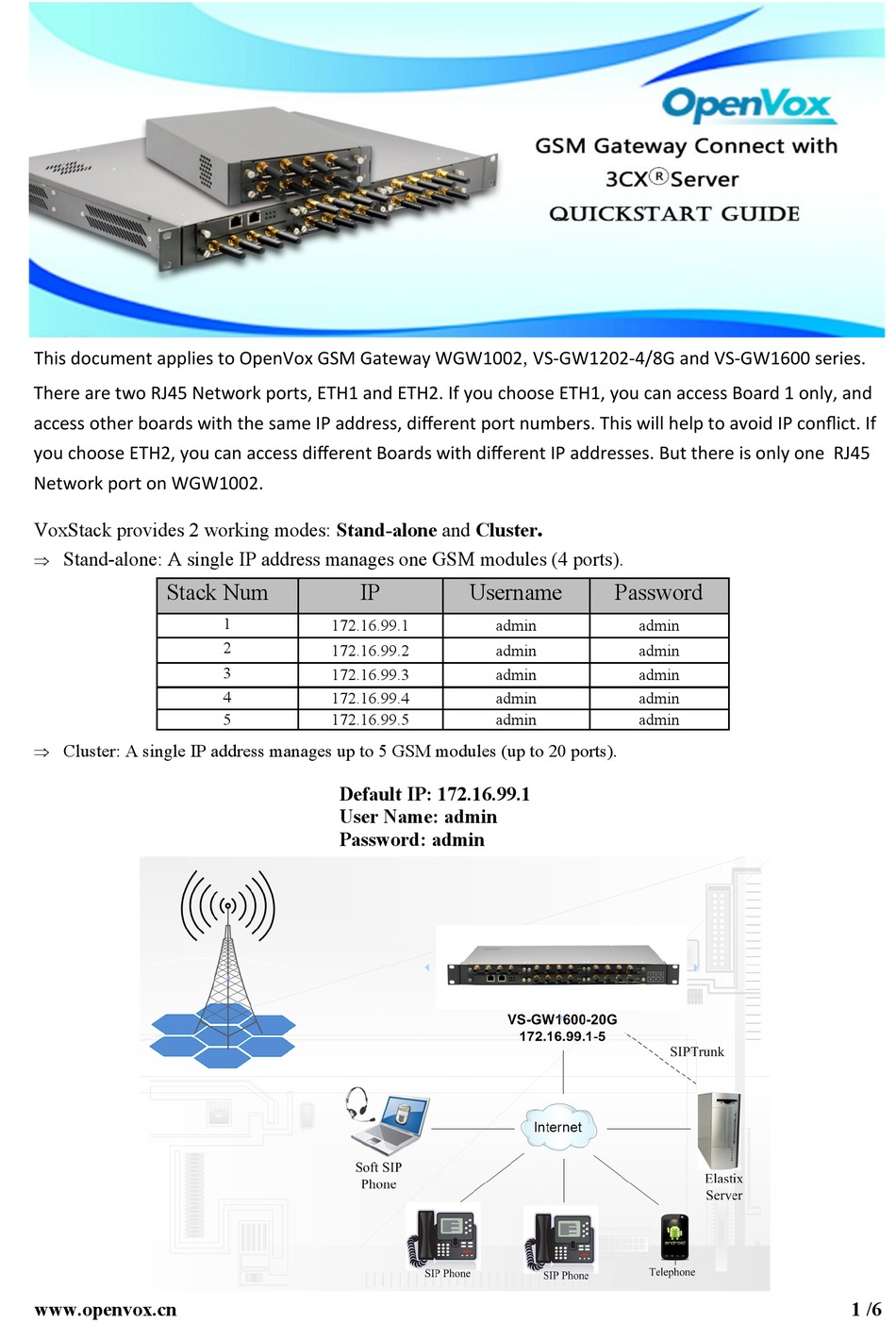

This document applies to OpenVox GSM Gateway WGW1002,VS-GW1202-4/8G and VS-GW1600 series.
There are two RJ45 Network ports, ETH1 and ETH2. If you choose ETH1, you can access Board 1 only, and
access other boards with the same IP address, different port numbers. This will help to avoid IP conflict. If
you choose ETH2, you can access different Boards with different IP addresses. But there is only one RJ45
Network port on WGW1002.
VoxStack provides 2 working modes: Stand-alone and Cluster
Stand-alone: A single IP address manages one GSM modules (4 ports).
Stack Num
Cluster: A single IP address manages up to 5 GSM modules (up to 20 ports).
www.openvox.cn
IP
1
172.16.99.1
2
172.16.99.2
3
172.16.99.3
4
172.16.99.4
5
172.16.99.5
Default IP: 172.16.99.1
User Name: admin
Password: admin
.
Username
Password
admin
admin
admin
admin
admin
admin
admin
admin
admin
admin
1 /6
Advertisement
Related Manuals for OpenVox WGW1002
Summary of Contents for OpenVox WGW1002
- Page 1 This document applies to OpenVox GSM Gateway WGW1002,VS-GW1202-4/8G and VS-GW1600 series. There are two RJ45 Network ports, ETH1 and ETH2. If you choose ETH1, you can access Board 1 only, and access other boards with the same IP address, different port numbers. This will help to avoid IP conflict. If you choose ETH2, you can access different Boards with different IP addresses.
- Page 2 Please select “SIP—>SIP Endpoints—>Add New SIP Endpoint” to set SIP trunk. The following figure shows detail information about how to set it. About other parameters in SIP, please set by your requirements for there is no need to set them in simple calls. www.openvox.cn 2 /6...
- Page 3 Please save all your changes to make effect. Step4. Create a SIP Trunk in 3CX web Please select “VOIP/PSTN Gateways—> Add Gateway” to create a SIP trunk: www.openvox.cn 3 /6...
- Page 4 After that, please click the next button to the following page : About other options, you can set or skip by your requirements until go to the following web which means SIP trunk is registered. www.openvox.cn 4 /6...
- Page 5 Step 5. Dial rules in 3CX web Click Inbound Rules—>Add DID to set inbound rules Click Outbound Rules—>Add Outbound to set outbound rules www.openvox.cn 5 /6...
-
Page 6: Front Panel
Green and No-flash Best Signal Quality Flash (0.25s) Communicating ○ Call Status LED Blind Normal Green and Flash(0.5s) Work Normally ○ Running Status LED Always Green Supply Power ○ Power Indicator During reset, all LED indicators flash. www.openvox.cn 6 /6...
