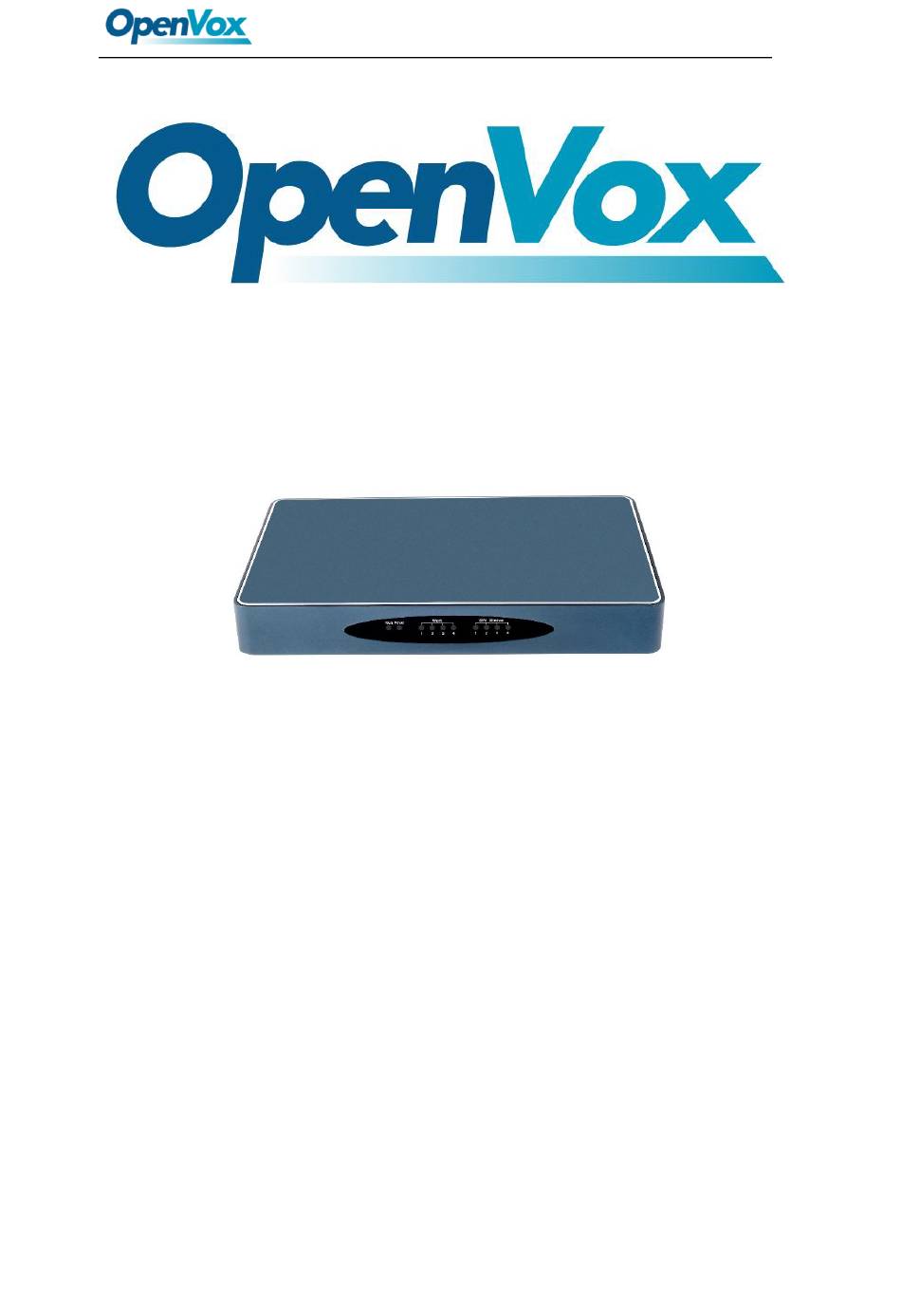

SWG-M20X Series Wireless Gateways User Manual
OpenVox Communication Co Ltd
SWG-M20X Series Wireless Gateways
User Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWG-M20X Series and is the answer not in the manual?

Questions and answers

Related Manuals for OpenVox SWG-M20X Series

Summary of Contents for OpenVox SWG-M20X Series

  • Page 1 SWG-M20X Series Wireless Gateways User Manual OpenVox Communication Co Ltd SWG-M20X Series Wireless Gateways User Manual Version 1.0...
  • Page 2 SWG-M20X Series Wireless Gateways User Manual OpenVox Communication Co.,Ltd Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel: +86-755-66630978, 82535461, 82535362 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn...
  • Page 3 SWG-M20X Series Wireless Gateways User Manual Copyright © Copyright 2019 OpenVox Inc. All rights reserved. No part of this document may be reproduced without prior written permission. Confidentiality Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Inc.
  • Page 4 SWG-M20X Series Wireless Gateways User Manual Revision History Version Date Detail 2019/10/15 Initial...

  • Page 5: Table Of Contents

    SWG-M20X Series Wireless Gateways User Manual Contents 1. Overview ........................4 1.1 What is SWG-M20X Series Wireless Gateways？ ..........4 1.2 Product Introduction ..................4 1.3 Main Features ....................5 1.4 Physical Information..................7 1.5 Software ......................7 2. System ........................9 2.1 Status........................
  • Page 6 SWG-M20X Series Wireless Gateways User Manual 4.1.2 Add New IAX2 Endpoint ..............44 4.2 Batch SIP Endpoints ..................49 4.3 Advanced SIP Settings ..................51 4.4 Advanced IAX2 Settings ................. 59 4.5 SIP Account Security ..................65 5. Routing ........................67 5.1 Call Routing Rules ...................
  • Page 7 SWG-M20X Series Wireless Gateways User Manual 8.2 Asterisk CLI ..................... 92 8.3 Asterisk File Editor ..................93 8.4 Internet ......................93 8.5 Cloud Management ..................94 8.6 Balance ......................95 8.7 Phone Number ....................96 9. Logs .......................... 97...

  • Page 8: Overview

    1. Overview 1.1 What is SWG-M20X Series Wireless Gateways？ OpenVox SWG-20X series wireless gateways include SWG-202 G/W/L and SWG-204 G/W/L. They can bring you excellent HD voice service with multiple codecs, including G.711U, G.711A, GSM, G.722, G.726, G.729, and also flexible SMS service with multiple SMS API.

  • Page 9: Main Features

    SWG-M20X Series Wireless Gateways User Manual UMTS: 850/2100MHz GSM: 850/900/1800/1900MHz China/India LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B8 SWG-202L TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz Europe/Middle East/Africa/Korea/Thailand LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 SWG-204L Australia/New Zealand/Taiwan/Brazil...
  • Page 10 SWG-M20X Series Wireless Gateways User Manual  DTMF Mode: RFC2833/Inband/SIP Info  Multiple SIP/IAX2 Registrations modes  Abundant Codecs: G.711A, G.711U, G.729, G.722, G.726, GSM Network  IPv4，UDP/TCP，DHCP，TELNET，HTTP/HTTPS，TFTP  PPTP VPN  HTTP/SSH（Optical Telnet）  Ping & Traceroute Command on the Web ...

  • Page 11: Physical Information

    SWG-M20X Series Wireless Gateways User Manual  Support DISA  SMSC/SMS/USSD  PIN Identification  Optional Voice Codec  Ports Group Management  SMS Remotely Controlling Gateway  SMS Bulk Transceiver, Sent to Email and Automatically Resend  SMS Coding/Detecting Automatically Identification ...
  • Page 12 SWG-M20X Series Wireless Gateways User Manual  Username: admin  Password: admin For the first time, you can access SWG-20X by using default IP 172.16.98.1; if you use the default login name and password, you will be prompted to change the password each time you log in.

  • Page 13: System

    SWG-M20X Series Wireless Gateways User Manual 2. System 2.1 Status On the “Status” page, you will find the information of all Modules, SIP, IAX2, Routing and the Network. Figure 2-1-1 System Status Table 2-1-1 Description of System Status Option Definition Number of each ports.
  • Page 14 SWG-M20X Series Wireless Gateways User Manual Band GSM/ LTE Bit Error Rate. Carrier Display the network carrier of current SIM card. Registration Indicates the registration status of current module. Status Post Dial Delay (PDD) is the time from the point at which the final dialed digit is sent until they hear a ringtone or other in-band message.

  • Page 15: Time

    SWG-M20X Series Wireless Gateways User Manual 2.2 Time Table 2-2-1 Definition of Time Settings Options Definition System Time Your gateway system time. The world time zone: Please select the one which is the Time Zone same or the closest as your city.

  • Page 16: Login Settings

    SWG-M20X Series Wireless Gateways User Manual For example, you can configure like this: Figure 2-2-1 Time Setting You can synchronize the gateway time in different ways: Sync from NTP or Sync from Client by pressing different buttons. 2.3 Login Settings The new gateway has no administration privileges, all you can do is reset a username and password to manage your gateway.

  • Page 17: General

    SWG-M20X Series Wireless Gateways User Manual characters "-_+. < >&0-9a-zA-Z". Length: 1-32 characters. Confirm Please input the same password as 'Password' above. Password http and https: You can access gateway via link: Login http://gatewayIP or https://gatewayIP Mode https: You can only access gateway via link: https://gatewayIP Port Specify the web server port number.

  • Page 18: Tools And Information

    SWG-M20X Series Wireless Gateways User Manual Figure 2-4-1 Language Settings If you switch it on, you can manage your gateway to reboot automatically as you like. There are four reboot types for you to choose, “By Day, By Week, By Month or By Running Time.
  • Page 19 SWG-M20X Series Wireless Gateways User Manual Update Firmware We offer 2 kinds of update types for you, you can choose System Update or System Online Update. Figure 2-5-2 Update Firmware Upload and Backup Configuration If you want to update your system and remain your previous configuration, you can backup configuration first.
  • Page 20 SWG-M20X Series Wireless Gateways User Manual gateway will be reset to the factory status. Figure 2-5-5 Restore Configuration System Information On the “Information” page, there shows some basic information about the gateway. You can see software and hardware version, storage usage, memory usage and some other useful information.

  • Page 21: Setting Wizard

    SWG-M20X Series Wireless Gateways User Manual 2.6 Setting Wizard According to the boot, you can change the password, set the time, network, and create SIP terminals and routes quickly. Figure 2-6-1 Setting Wizard...

  • Page 22: Module

    SWG-M20X Series Wireless Gateways User Manual 3. Module You can see the information of SIM card on this page. 3.1 Module Settings Figure 3-1-1 Module Settings On this page, you can see the information of the module status, click the button to configure the port.
  • Page 23 If you want to hide your number when you call out, you can just switch CLIR “ON” (Of course you need your operator’s support). Figure 3-1-5 CLIR Application OpenVox GSM/3G Gateway supports optional GSM voice codec. For more details, you can see the picture below： Figure 3-1-6 GSM Voice Codec...
  • Page 24 SWG-M20X Series Wireless Gateways User Manual IMEI Modification We also provide IMEI automatically modified performance. Figure 3-1-7 Automatic IMEI modification If you want to modify the IMEI number, log in to the gateway to modify the IP address as follows. Input http://gatewayIP/cgi-bin/php/gsm-autoimei.php in your browser.
  • Page 25 SWG-M20X Series Wireless Gateways User Manual As you can see, each port is set to any number. "X" means any number from 0-9. All you have to do is fill in all the lines and click "Set All". Click "Save", the current IMEI will change, this is automatically generated.
  • Page 26 SWG-M20X Series Wireless Gateways User Manual Personal identification numbers of SIM card. PIN code can PIN Code be modified to prevent SIM card from being stolen. Custom AT Use “|” to split AT command when user use custom AT commands when commands to start system.

  • Page 27: Call Forwarding

    SWG-M20X Series Wireless Gateways User Manual Save settings to other ports: Figure 3-1-12 Save to port Your call status will be displayed on the main screen. Figure 3-1-13 Module Information 3.2 Call Forwarding Sometimes it's not convenient for you to answer the call. If you don't want to lose some important calls, you can choose call forwarding.

  • Page 28: Call Waiting

    SWG-M20X Series Wireless Gateways User Manual Figure 3-2-1 Call Forwarding 3.3 Call Waiting You can switch the Call Waiting Function of the SIM card on/off in the port on this page. Figure 3-3-1 Call Waiting Table 3-3-1 Definition of Call Waiting...

  • Page 29: Simbank

    SWG-M20X Series Wireless Gateways User Manual click the "Settings" button. Choose the port you want to set, switch to "Off" and Switch off call waiting click the "Settings" button. Status It will display the results of your execution. Settings Used to switch the call waiting function on or off.

  • Page 30: Dtmf

    SWG-M20X Series Wireless Gateways User Manual Serial Number Serial number, unique. Network mode, Normal for local connection, OPlink for external Net Mode network. Simbank Simbank IP. Server IP After the above settings are completed, the gateway is successfully registered, and Simbank will assign the SIM card to it remotely.

  • Page 31: Bcch

    SWG-M20X Series Wireless Gateways User Manual The smaller the value, the easier the detection. If you lost DTMF Relative Peak some numbers, you can try to put the value down. The adjustment range is 0.02 at a time. The smaller the value, the easier the detection. If you lost DTMF Relative Peak some numbers, you can try to put the value down.

  • Page 32: Toolkit

    SWG-M20X Series Wireless Gateways User Manual 3.7 Toolkit You can get USSD information, send AT command or check the number of this module. The AT command is very helpful for you when debugging a module. Figure 3-7-1 Function Options Table 3-7-1 Description of Definition of Functions...

  • Page 33: Module Update

    SWG-M20X Series Wireless Gateways User Manual telephone charge during this procedure. If you want to send an AT command, enter the command, select a port first and then select “Copy to selected", and finally click “Execute". Figure 3-7-2 AT Command Example 3.8 Module Update...

  • Page 34: Call And Sms Limit

    SWG-M20X Series Wireless Gateways User Manual 3.9 Call and SMS Limit Click the edit button to set call restrictions, lock cards, and SMS restrictions. You can also view statistics on call/sms sent here. Figure 3-9-1 Call and SMS Limit Call Limit You can limit the number of daily calls, number of days connected, and number of hours of calls for the selected channel.
  • Page 35 SWG-M20X Series Wireless Gateways User Manual Call Limit Time Now we offer you two types of call duration limit, you can choose “Single Call Duration Limit” or “Call Duration Limitation” to control your calling time. This will limit the time of each call. First you need to switch “Enable” on, then you can set “Step”...
  • Page 36 SWG-M20X Series Wireless Gateways User Manual port reaches the set value, the gateway will send alarm info to the designated phone. You can also turn on enable auto reset, which can be selected from one day, one week or one month. After the automatic reset time is reached, the remaining call duration is reset to the set total call duration.
  • Page 37 SWG-M20X Series Wireless Gateways User Manual Alarm Phone User will received alarm message from the gateway when Number receiving alarm phone number. Alarm The alarm port information description sends the alarm Description information to the user's phone. Remaining call Multiplying this value by the step size is the remaining call duration duration.
  • Page 38 SWG-M20X Series Wireless Gateways User Manual Table 3-9-3 Description of Lock Card Options Definition Call Failed Mark The number of consecutive calls failed to reach the number Count of settings, making the port. Lock the port after the number of successive call failures...
  • Page 39 SWG-M20X Series Wireless Gateways User Manual Table 3-9-4 Definition of SMS Limit Options Definition When closed, no matter whether the message is sent SMS Limit Success successfully or not, the number of messages is counted； Flag When opened, the number of messages is counted when the message is sent successfully.

  • Page 40: Voip

    SWG-M20X Series Wireless Gateways User Manual 4. VOIP 4.1 VOIP Endpoints This page shows everything about your SIP&IAX2, you can see the status of each SIP&IAX2. Figure 4-1 SIP&IAX2 Endpoints 4.1.1 Add New SIP Endpoint Main SIP Endpoint Settings: You can click...
  • Page 41 SWG-M20X Series Wireless Gateways User Manual For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-2 Server Registration Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except the name and the password.
  • Page 42 SWG-M20X Series Wireless Gateways User Manual None --- Not registering; Server --- When register as this type, it means the gateway acts as a SIP server, and SIP endpoints register to the gateway; Client --- When register as this type, it means the gateway acts as a client, and the endpoint should be register to a SIP server;...
  • Page 43 SWG-M20X Series Wireless Gateways User Manual Advanced: Registration Options Figure 4-1-4 Advanced Registration Options Table 4-1-2 Definition of Registration Options Options Definition Authentication Just a username used when registering. User When Gateway registers as a SIP user agent to a SIP proxy...
  • Page 44 SWG-M20X Series Wireless Gateways User Manual Qualify Whether to check the link status of the peer. Qualify How often, in seconds, to check the endpoint's connection Frequency status. A proxy to which the gateway will send all outbound signaling Outbound Proxy instead of sending signaling directly to endpoints.
  • Page 45 SWG-M20X Series Wireless Gateways User Manual Table 4-1-3 Description of DTMF Detection Settings Options Definition Set default DTMF Mode for sending DTMF. Default: rfc2833. Other options: 'info', SIP INFO message DTMF Mode (application/dtmf-relay); 'Inband',Inband audio(require 64kbit codec -alaw,ulaw). Trust Whether or not the Remote-Party-ID header should be Remote-Party-ID trusted.
  • Page 46 SWG-M20X Series Wireless Gateways User Manual Table 4-1-4 Definition of Signaling Options Options Definition Whether the tone is ringing. Never：Indicates that the incoming calls are never applied. Progress Inband Option values: yes, no, never. Default: never. Append Whether or not to add‘user=phone’to URIs that contain a user=phone to valid phone number.
  • Page 47 SWG-M20X Series Wireless Gateways User Manual Default is enabled. Whether or not to allow 302 or REDIR to non-local SIP Allow address. Promiscuous Notice： Redirecting the local system causes a loop call, which Redirects is not supported by asterisk. Max Forwards Setting for the SIP Max-Forwards header (loop prevention).

  • Page 48: Add New Iax2 Endpoint

    SWG-M20X Series Wireless Gateways User Manual time, the call will auto congest. The default is 64*T1. There are three modes for you to choose: originate, request and run session-timers always; Accept or run the session Session Timers timer only when requested by another user agent；Refuse, Do not run session timers in any case.
  • Page 49 SWG-M20X Series Wireless Gateways User Manual Figure 4-1-8 None Registration For convenience, you can choose registration by “Server”, thus your gateway just work as a server. Figure 4-1-9 Server Registration Also you can choose registration by “Client”, it will work as a Client.
  • Page 50 SWG-M20X Series Wireless Gateways User Manual gateway. The endpoint will use password to authenticate with the Password gateway. Whether this endpoint will register to this gateway or this gateway to the endpoint. None --- Not registering; Endpoint registers with this gateway --- When register as this...
  • Page 51 SWG-M20X Series Wireless Gateways User Manual Advanced: Registration Options Figure 4-1-11 Registration Options Table 4-1-7 Definition of Registration Options Options Definition Whether or not to check the endpoint's connection Qualify status. Use the average of the last two connection results to Qualify Smoothing reduce the lag end of the misdetection.
  • Page 52 SWG-M20X Series Wireless Gateways User Manual IAX2 Encryption Figure 4-1-12 IAX2 Encryptions Table 4-8 Definition of Encryption Options Options Definition Encryption Enable IAX2 encryption. The default is no. Force encryption insures no connection is established unless Force both sides support encryption. By switching this option on, Encryption encryption is automatically switch on as well.

  • Page 53: Batch Sip Endpoints

    SWG-M20X Series Wireless Gateways User Manual Trunk MTU Set the maximum transmission unit for IAX2 UDP trunking. How frequently to send trunk messages in msec. This is Trunk Frequency 20ms by default. Trunk Time Ensure that frame timestamps get sent end-to-end Stamps properly.
  • Page 54 SWG-M20X Series Wireless Gateways User Manual Table 4-2-1 Definition of Multiple SIP Endpoints Options Definition The display name is the same as the registered name on the Username SIP server by default. Password Authenticating with the gateway and characters are allowed.

  • Page 55: Advanced Sip Settings

    SWG-M20X Series Wireless Gateways User Manual 4.3 Advanced SIP Settings Networking Figure 4-3-1 Networking General Table 4-3-1 Definition of Networking General Options Options Definition UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no).
  • Page 56 SWG-M20X Series Wireless Gateways User Manual the Internet via domain name. Whether enable the internal SIP calls or not when you select Enable Internal the registration option "Endpoint registers with this SIP Call gateway". Internal SIP Call Specify a prefix before routing the internal calls.
  • Page 57 SWG-M20X Series Wireless Gateways User Manual external network address has changed. When the stun_monitor is installed and configured, chan_sip will renew all outbound registrations when the monitor detects any sort of network change has occurred. By default this option is enabled, but res_stun_monitor only takes effect once.
  • Page 58 SWG-M20X Series Wireless Gateways User Manual Figure 4-3-3 RTP Settings Table 4-3-3 Definition of RTP Settings Options Options Definition Start of RTP Port Range Start of port numbers to be used for RTP. End of RTP port Range End of port numbers to be used for RTP.
  • Page 59 SWG-M20X Series Wireless Gateways User Manual Table 4-3-4 Instruction of Parsing and Compatibility Options Definition Check header tags，character conversion in URIs, and Strict RFC Interpretation multiline headers for strict SIP compatibility (default is yes). Send Compact Headers Send compact SIP headers.
  • Page 60 SWG-M20X Series Wireless Gateways User Manual not provide support for a specific method, then you may provide a list of methods that your endpoint does not implement in the disallowed methods option. Note that if your endpoint is truthful with its Allow header, then there is no need to set this option.
  • Page 61 SWG-M20X Series Wireless Gateways User Manual Expiry How often, in seconds, to retry registration calls. Registration Timeout Default 20 seconds. Number of Registration Number of registration attempts before we give up. Security Figure 4-3-5 Security Settings Table 4-3-5 Instruction of Security...
  • Page 62 SWG-M20X Series Wireless Gateways User Manual requester whether there is this user or peer, which will reduce the possibility of the attacker scanning the SIP account. This parameter is enabled by default. Enabling this option will authenticate OPTIONS requests Authenticate Options just like INVITE requests are.

  • Page 63: Advanced Iax2 Settings

    SWG-M20X Series Wireless Gateways User Manual Codec Settings Select codecs from the list below. Figure 4-3-7 Codec Settings 4.4 Advanced IAX2 Settings General Settings Figure 4-4-1 General Settings Table 4-4-1 Instruction of General Options Definition Bind Port Bind port and bindaddr may be specified.
  • Page 64 SWG-M20X Series Wireless Gateways User Manual IAXCompat some of the latency may occur when performing a lookup in a dial plan, otherwise enabling it will result in a small performance conflict. Disable UDP checksums (if Nochecksums is set, then Enable...
  • Page 65 SWG-M20X Series Wireless Gateways User Manual Music on Hold Figure 4-4-2 Music on Hold Settings Table 4-4-2 Instruction of Music on Hold Options Definition Specifies the type of waiting music that plays while the channel Mohsuggest is on hold. It can specify global settings or be specified by the user or each peer.
  • Page 66 SWG-M20X Series Wireless Gateways User Manual Table 4-4-3 Instruction of Codec Settings Options Definition Specify bandwidth of low, medium, or high to control which Band Width codes are used in general. Disallow Adjust the type of codec to be switched off.
  • Page 67 SWG-M20X Series Wireless Gateways User Manual In the ideal world, when we bridge VoIP channels we don’t want to jitter buffering on the switch, since the endpoints Force Jitter Buffer can each handle this. However, some endpoints may have poor jitter buffers themselves, so this option will force to always jitter buffer, even in this case.
  • Page 68 SWG-M20X Series Wireless Gateways User Manual Misc Settings Figure 4-4-5 Misc Settings Table 4-4-5 Instruction of Misc Settings Options Definition IAX Thread Count Establishes the number of IAX helper threads to handle I/O IAX2 Max Thread Establishes the number of extra dynamic threads that may Count be spawned to handle I/O.

  • Page 69: Sip Account Security

    SWG-M20X Series Wireless Gateways User Manual Quality of Service Figure 4-4-6 Quality of Service Table 4-4-6 Instruction of Quality of Service Options Definition Type of service. Class of service. 4.5 SIP Account Security The SIP account security module greatly enhances the security of the system. The wireless gateway supports TLS encrypted calls (sip), which requires sip phone support.
  • Page 70 SWG-M20X Series Wireless Gateways User Manual Table 4-5-1 Parameters of TLS settings Options Definition TLS Enable Enable or disable DTLS-SRTP support. If set it off, there is no need to verify the server certificate when the client is operating. If you do not have a server...

  • Page 71: Routing

    SWG-M20X Series Wireless Gateways User Manual 5. Routing 5.1 Call Routing Rules Figure 5-1-1 Call Routing Rules You are allowed to set up new call routing rules by , and after setting routing rules, move rules’ order by pulling up and down, click button to edit the routing and to delete it.
  • Page 72 SWG-M20X Series Wireless Gateways User Manual The figure above shows that all the phones in the group ALL are transferred to the IAX2-2133. When the "incoming source" is GSM/LTE port, "prepend", "prefix" and "match pattern" in the "Advanced Routing Rules" are invalid, and only the "CallerID"...
  • Page 73 SWG-M20X Series Wireless Gateways User Manual In the DISA Settings, you can set a Password, Authentication or Secondary Dialing. Figure 5-1-4 Advance Routing Rule Settings In the Advance Routing Rule Settings, you can set the function of the dial Patterns、...
  • Page 74 SWG-M20X Series Wireless Gateways User Manual If the dialed number matches the patterns specified by the subsequent columns, then this will be prepended before sending to the trunks. Prefix: Prefix to remove on a successful match. The dialed number is compared to this and the subsequent columns for a match.

  • Page 75: Groups

    SWG-M20X Series Wireless Gateways User Manual Random Delay Randomly obtain any value within the threshold interval. Failover Call The gateway will attempt to send the call out each of these Through Number in the order you specify. 5.2 Groups Sometimes you want to make a call through one port, but you don’t know if it is available, so you have to check which port is free.
  • Page 76 SWG-M20X Series Wireless Gateways User Manual Figure 5-3-1 Batch Creating rules The SIM number will be sent to the target PBX or SIP server as DID number, and the calling number will be set to the caller ID in the outgoing route.

  • Page 77: Mnp Settings

    SWG-M20X Series Wireless Gateways User Manual 5.4 MNP Settings Mobile Number Portability allows switching between mobile phone operators without changing the mobile number. Figure 5-4-1 MNP Settings The URL is displayed as a password string. So please enter the URL in the format below and check if it is correct.

  • Page 78: Sms

    SWG-M20X Series Wireless Gateways User Manual 6. SMS 6.1 General You can choose enable SMS Received, SMS Local Stored and SMS Status Report or not. Figure 6-1-1 SMS Settings Sender Options You can change sender options here, include resend and the time of resend.
  • Page 79 SWG-M20X Series Wireless Gateways User Manual e SMS to other email boxes. The following settings realize that received SMS through openvpnvoip@gmail.com transmit to openvpnvoip@yahoo.com.cn, open vpnvoip@hotmail.com and support@openvox.cn. Figure 6-1-3 SMS to Email Table 6-1-2 Types of E-mail Box SMTP Security...
  • Page 80 SWG-M20X Series Wireless Gateways User Manual Email Address To set the email address of an available email account. For of Sender example: openvpnvoip@gmail.com. Domain To set outgoing mail server. For example: smtp.gmail.com. SMTP Port To set the port number of outgoing mail server. (Default is 25) The login name of your existing email account.
  • Page 81 SWG-M20X Series Wireless Gateways User Manual Figure 6-1-4 SMS Control For example, SMS control password is 123456 which has nothing to do with the login password, you can send “get info 123456” to the module’s phone number to get your gateway’s IP information.
  • Page 82 SWG-M20X Series Wireless Gateways User Manual New record will be retained. Switch off: SMS record will remain, and the file size will increase gradually. Default on, max size = 20 MB. HTTP to SMS Figure 6-1-5 HTTP to SMS Settings...
  • Page 83 SWG-M20X Series Wireless Gateways User Manual Timeout: how long to wait. SMS to HTTP Figure 6-1-6 SMS to HTTP Settings Table 6-1-6 Definition of SMS to HTTP Options Definition Example host HTTP server IP address or domain. 172.16.6.171 port HTTP server port.

  • Page 84: Sms Sender

    SWG-M20X Series Wireless Gateways User Manual 6.2 SMS Sender Click the box to select the corresponding port number, fill in the target number and SMS content .Then you can send it. Different numbers should be separated by symbols: '\r', '\n', space character, semicolon and comma. After sending a text message, if the SMS status report is enabled, a detailed report of the SMS transmission will be displayed below.

  • Page 85: Sms Outbox

    SWG-M20X Series Wireless Gateways User Manual Figure 6-3-1 SMS Inbox 6.4 SMS Outbox On this page, you are allowed to scan, delete, clean up, and export each port’s received SMS. Also, you are allowed to check messages by port, phone number, time order and message keywords.

  • Page 86: Sms Forwarding

    SWG-M20X Series Wireless Gateways User Manual 6.5 SMS Forwarding Using this function, you can forward incoming SMS to your mobile. You can click button to add new routing. For example： Figure 6-5-1 SMS Forwarding SMS received by lte-1.1 and lte-1.2, will be transferred to phone number 13923704563 through lte-1.3 or lte-1.4.

  • Page 87: Network

    SWG-M20X Series Wireless Gateways User Manual 7. Network 7.1 LAN Settings There are three types of LAN port IP: Factory, Static, and DHCP. The Factory is the default type with an IP of 172.16.98.1. This page is not editable when the LAN IPv4 type is selected as "Factory".

  • Page 88: Wan Settings

    SWG-M20X Series Wireless Gateways User Manual The method to get IP: Factory: Getting IP address by Slot Number (System Type information to check slot number). Static: Manually set up your gateway IP. DHCP: Automatically get IP from your local LAN.

  • Page 89: Vpn Settings

    SWG-M20X Series Wireless Gateways User Manual 7.3 VPN Settings The wireless gateway provides PPTP and N2N VPN connections, which allow users to establish virtual private networks, encrypt communications, and achieve remote access. Figure 7-3-1 PPTP VPN Settings Figure 7-3-2 N2N VPN Settings 7.4 DDNS Settings...

  • Page 90: Toolkit

    SWG-M20X Series Wireless Gateways User Manual Table 7-4-1 Definition of DDNS Settings Options Definition DDNS Enable/Disable DDNS (dynamic domain name server). Type Set the type of DDNS server. Username Your DDNS account’s login name. Password Your DDNS account’s password. Your domain The domain to which your web server will belong.

  • Page 91: Firewall Settings

    SWG-M20X Series Wireless Gateways User Manual 7.6 Firewall Settings Figure 7-6-1 Firewall Settings Table 7-6-1 Definition of Firewall Settings Options Definition If you want to use White/Black List, and security rules, you Firewall Enable must enable this option. Whether to enable the Ping function. If the status is OFF: Ping Enable disable ping, the gateway does not allow ping.

  • Page 92: Security Rules

    SWG-M20X Series Wireless Gateways User Manual 7.7 Security Rules Figure 7-7-1 Security Rules Settings Click "submit" button to submit and apply configuration. If "List IP Settings" has no problem, you will see popup window like below. Please read the warning and tips carefully. And Click "Apply" button in 1 minute. If time runs out, this window will close automatically.

  • Page 93: Sip Capture

    SWG-M20X Series Wireless Gateways User Manual If you see the windows like below. It means your configuration has been applied successfully. Figure 7-7-3 Figure 7-11 Security Rules Apply 7.8 SIP Capture You can capture the SIP packets on this page to facilitate location problems.

  • Page 94: Advances

    SWG-M20X Series Wireless Gateways User Manual 8. Advances 8.1 Asterisk API When you make “Enable” switch to “ON”, this page is available. Figure 8-1-1 Asterisk API Table 8-1-1 Definition of Asterisk API Options Definition Port Network port number. Manager Na Name of the manager without space.
  • Page 95 SWG-M20X Series Wireless Gateways User Manual If you want to deny some hosts or networks, you can use Deny char & as separator. For example: 192.168.1.0/255.255.25 5.0&10.0.0.0/255.0.0.0. If you want to permit some hosts or networks, you can u Permit se char &...

  • Page 96: Asterisk Cli

    SWG-M20X Series Wireless Gateways User Manual Originate Permission to initiate new calls. Write-only. Select all or deselect all. Please refer to the following figure to access the gateway API by telnet. 172.16.179.1 is the gateway’s IP, and 5038 is its API port.

  • Page 97: Asterisk File Editor

    SWG-M20X Series Wireless Gateways User Manual Figure 8-2-1 Asterisk CLI Command: Type your Asterisk CLI commands here to check or debug your gateway. Notice: If you type “help” or “?” and execute it, the page will show you the shell command.

  • Page 98: Cloud Management

    Figure 8-4-1 Asterisk Internet 8.5 Cloud Management SWG and VoxStack series gateways both support OpenVox Cloud Management. Figure 8-5-1 OpenVox Cloud Management If your device is connected to the cloud management, the SSH and the web pages of the gateway can be accessed through the cloud management, and it can be monitored whether the device is connected to the cloud management platform.

  • Page 99: Balance

    SWG-M20X Series Wireless Gateways User Manual Currently supports two servers, one is China and the other is Choose Service the United States. Registered account or email on the cloud management Account platform. The password of the account registered on the cloud Password management platform.

  • Page 100: Phone Number

    SWG-M20X Series Wireless Gateways User Manual Figure 8-6-2 Balance Settings 8.7 Phone Number The wireless gateway also provides a number inquiry function, which can automatically send a short message to the operator to query the number of the SIM card that you use currently.

  • Page 101: Logs

    SWG-M20X Series Wireless Gateways User Manual 9. Logs On the “Log Settings” page, you should set the related logs on to scan the responding logs page. For example, set “System Logs” on like the following, then you can turn to “System”...
  • Page 102 SWG-M20X Series Wireless Gateways User Manual Switch off: logs will remain, and the file size will increase gradually. The default is on, the default maxsize is 100KB. IAX Logs Whether to open the IAX logs or not Switch on: when the size of log file reaches the max size, the Auto clean system will cut a half of the file and the new logs will be retained;...
  • Page 103 SWG-M20X Series Wireless Gateways User Manual Figure 9-3 System Logs You can easily browse your CDRs on the Web GUI, you also can delete, clean or export your CDR information. Figure 9-4 CDR In the new version we have enriched the LOGS display which you can see each port of the call outbound clearly.
