ET 200X(L) Series Digital Gateway User Manual
OpenVox Communication Co., Ltd
ET-200X(L) Series Digital Gateway

User Manual

1/78

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET2001 and is the answer not in the manual?

Questions and answers

Related Manuals for OpenVox ET2001

Summary of Contents for OpenVox ET2001

  • Page 1: User Manual

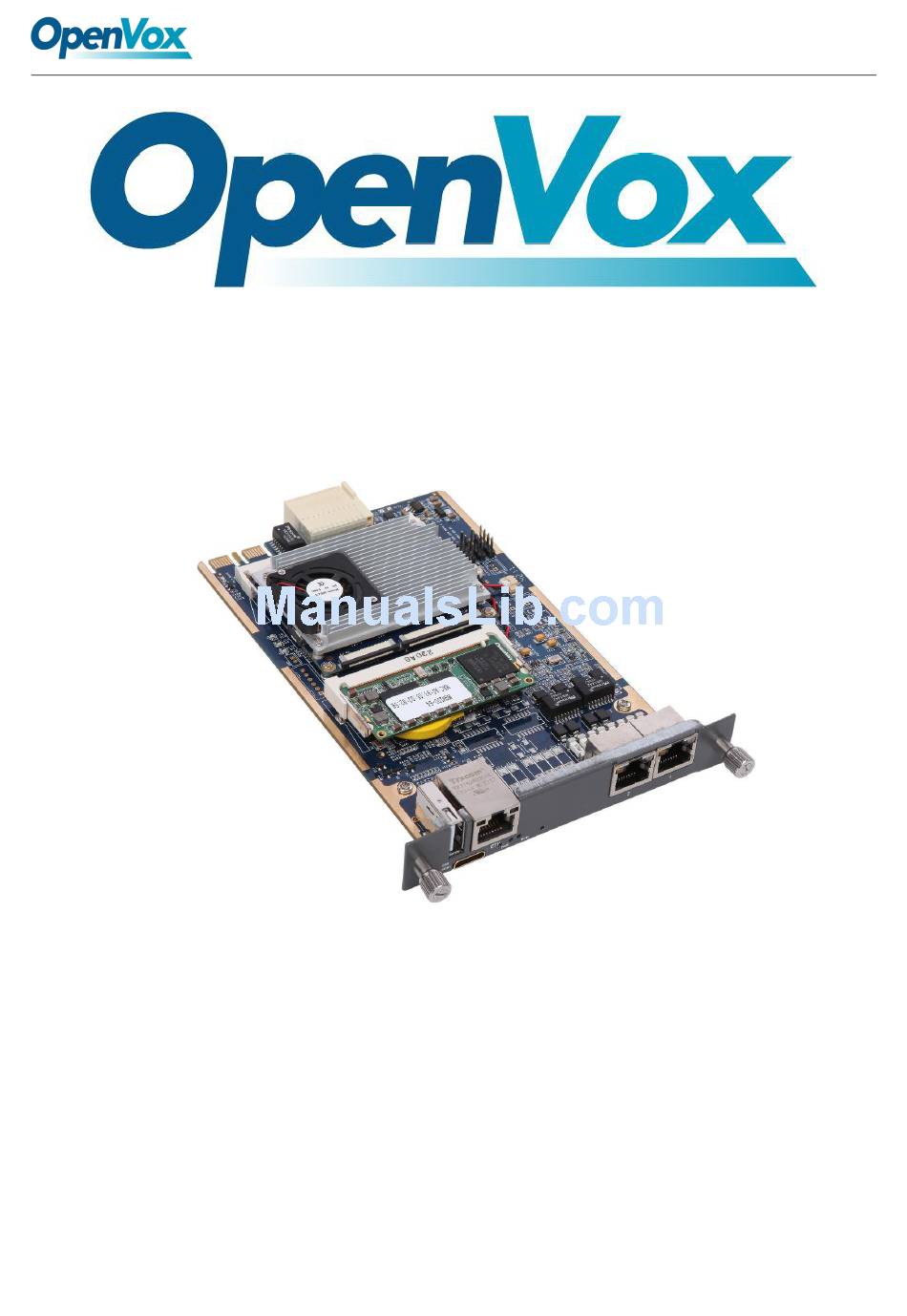

    ET 200X(L) Series Digital Gateway User Manual OpenVox Communication Co., Ltd ET-200X(L) Series Digital Gateway User Manual 1/78...
  • Page 2 Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel: +86-755-66630978, 82535461, 82535362 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn Thank You for Choosing OpenVox Products! 2/78...

  • Page 3: Revision History

    ET 200X(L) Series Digital Gateway User Manual Revision History Document VER Firmware VER Explanation Time V1.0 3/78...

  • Page 4: Legal Information

    Confidentiality Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Communication Co. ,LTD.No part may be distributed, reproduced or disclosed orally or in written form to any party other than the direct recipients without the express written consent of OpenVox Communication Co.

  • Page 5: Table Of Contents

    ET 200X(L) Series Digital Gateway User Manual Table of Contents Revision History................................. 3 Legal Information................................4 Confidentiality.....................................4 Disclaimer....................................4 Trademarks....................................4 1 Overview..................................8 1.1 What is ET-200X(L)................................8 1.2 Sample Application................................8 1.3 Product Appearance................................9 1.4 Main Features.................................. 10 1.5 Physical Information................................ 11 1.6 Software....................................
  • Page 6 ET 200X(L) Series Digital Gateway User Manual 3.1 General....................................18 3.2 PRI..................................... 20 3.3 SS7....................................23 3.3.1 Link Set Settings................................23 3.3.2 Link Settings................................24 3.3.3 SS7 Configuration file backup and restore........................25 3.4 MFC/R2..................................... 25 3.4.1 MFC/R2 Signaling................................ 25 3.4.2 Modify R2 variant................................26 4 VOIP..................................
  • Page 7 ET 200X(L) Series Digital Gateway User Manual 5.1 Call Routing Rule................................49 5.2 Groups....................................52 6 Network................................... 53 6.1 WAN/LAN Settings................................53 6.2 DDNS Settings................................. 54 6.3 Toolkit....................................55 7 Advanced .................................. 55 7.1 Asterisk API..................................55 7.2 Asterisk CLI..................................57 7.3 Asterisk File Editor................................58 7.4 Auto Provisioning................................

  • Page 8: Overview

    ET 200X(L) Series Digital Gateway User Manual 1 Overview 1.1 What is ET-200X(L) ET-200X(L) Digital Gateway is an open source asterisk-based VoIP Gateway solution for operators and call centers. It is a converged media gateway product. This kind of gateway connects traditional telephone system to IP networks and integrates VoIP PBX with the PSTN seamlessly.

  • Page 9: Product Appearance

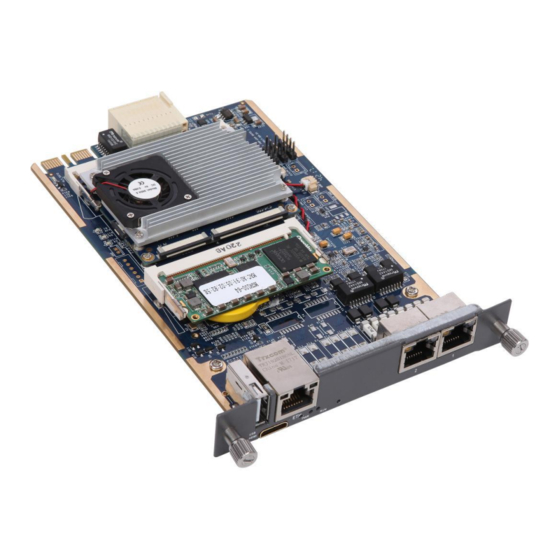

    ET 200X(L) Series Digital Gateway User Manual 1.3 Product Appearance The picture below is appearance of ET-2002. Figure 1-3-1 Product Appearance Figure 1-3-2 Front Panel Table 1-3-1 Description of Front Panel Interface Function Color Work Status 1 USB USB interface 2 Eth Ethernet interface 3 port 1-2...

  • Page 10: Main Features

    ET 200X(L) Series Digital Gateway User Manual On: power is on 6 PWR Power status indicator green Off:power is off Slow blinking(Green 2s and Flash 0.1s):Work normally Fast blinking(Green 0.5s Flash 0.5s): Work abnormally 7 RUN Register indicator green Fast blinking(Green 0.5s Flash 0.5s):...

  • Page 11: Physical Information

    ET 200X(L) Series Digital Gateway User Manual 1.5 Physical Information Table 1-5-1 Description of Physical Information Model ET2001 ET2002 ET2004 ET2001L ET2002L E1/T1 port Codec & EC module dimension 100*162.5mm weight 210g 216g 226g 202g 207g temperature （℃） storage：-40~85 operation：0~70...

  • Page 12: System

    ET 200X(L) Series Digital Gateway User Manual 2 System 2.1 Status On the “System Status” page, you will find all Interface status, channels status, SIP, IAX2, Routing rules, and Network information. Figure 2-1-1 System Status Table 2-1-1 Description of System Status Options Definition Show the status of port, include “OK”...

  • Page 13: Call Status

    ET 200X(L) Series Digital Gateway User Manual Show the Channels status of port, include "Idle". "Busy". "Disable" and “S channel”. "Idle" means it is available; Channels "Busy" means the channel is busy; Status "Disable" means it is unavailable; “S channel” means signaling channel. 2.2 Call Status The verbose of the system call status will be present on the “Call Status”...

  • Page 14: Login Settings

    ET 200X(L) Series Digital Gateway User Manual NTP Server 2 The first reserved NTP server. For example, [time.windows.com]. NTP Server 3 The second reserved NTP server. For example, [time.nist.gov]. Whether enable automatically synchronize from NTP server or not. ON Auto-Sync from NTP is enable, OFF is disable this function.
  • Page 15 ET 200X(L) Series Digital Gateway User Manual Table 2-4-1 Description of Web Login Settings Options Definition Your gateway does not have administration role. All you can do here is defining the user name and password to manage User Name your gateway. And it has all privileges to operate your gateway .User Name: Allowed characters “-_+<>&0-9a-zA-Z”.Length:1-32 characters.

  • Page 16: General

    ET 200X(L) Series Digital Gateway User Manual 2.5 General 2.5.1 Language Settings You can choose different languages for your system. If you want to change language, you can switch “Advanced” on, then “Download” your current language package. After that, you can modify the package with the language you need.

  • Page 17: Reboot Tools

    2.6.1 Reboot Tools ET 200X(L) Series Digital Gateway User Manual You can choose system reboot and Asterisk reboot separately. Figure 2-6-1 Reboot Prompt If you press “OK”, your system will reboot and all current calls will be dropped. Asterisk Reboot is the same.

  • Page 18: Restore Configuration

    2.6.4 Restore Configuration ET 200X(L) Series Digital Gateway User Manual Sometimes there is something wrong with your gateway that you don’t know how to solve it, mostly you will select factory reset. Then you just need to press a button, your gateway will be reset to the factory status.
  • Page 19 ET 200X(L) Series Digital Gateway User Manual Figure 3-1-1 General Settings Table 3-1-1 Definition of General Settings Your locale. This will be used for the tone style. Used when in-call Locale indications need to be generated such as ring back, busy, congestion, and other call-oriented inband tone signals.

  • Page 20: Pri

    ET 200X(L) Series Digital Gateway User Manual priority ) Interface Choose a line type for the interface. Framing Framing method for this interface Coding Coding method for this interface Line Build-out Line build-out represents the length of the cable form the port on this gateway to the next device.
  • Page 21 ET 200X(L) Series Digital Gateway User Manual Table 3-2-2 Definition of Signaling Options Definition Q.SIG Channel Mapping Sets logical or physical channel mapping. In logical channel mapping, channels are mapped to 1-30.In physical channel mapping, channels are mapped to 1-15,17-31,skipping the number used for the data channel, Default is physical.
  • Page 22 ET 200X(L) Series Digital Gateway User Manual name_initial: Use display text in SETUP/CONNECT messages as the party name. name_update: display text other messages (NOTIFY/FACILITY)for COLP name update. name: Combined name_ initial and name_ update options. text: Pass any unused display text data as an arbitrary display message during a call.

  • Page 23: Ss7

    ET 200X(L) Series Digital Gateway User Manual Ignore Remote Hold Indications If you wish to ignore remote hold indications (and use MOH that is supplied over the B channel) enable this option. Block Outbound Caller ID Name Enable if you need to hide just the name and the number for legacy PBX use.

  • Page 24: Link Settings

    ET 200X(L) Series Digital Gateway User Manual Table 3-3-1 Definition of SS7 Link Set Settings options Definition Name The linkset name Type SS7 variant Called NAI SS7 Called Nature of Address Indicator Calling NAI SS7 Calling Nature of Address Indicator Network Indicator What the MTP3 network indicator bits should be set to International Prefix...

  • Page 25: Ss7 Configuration File Backup And Restore

    ET 200X(L) Series Digital Gateway User Manual Figure 3-3-4 SS7 Edit Link Settings Table 3-3-2 Definition of SS7 Edit Link Settings options Definition Link Index The link index Interface Type T1/E1 mode Linkset Index The link member set index Channel The voice channel on the link Port The T1/E1 port in used...

  • Page 26: Modify R2 Variant

    ET 200X(L) Series Digital Gateway User Manual Table 3-4-1 Definition of MFC/R2 Signaling options Definition Enable Caller ID Whether or not to use caller ID Init CAS Bit The initial position of the CAS bits. Variant The standard of MFCR2: ITU, ANSI and China 3.4.2 Modify R2 variant Figure 3-4-2 R2 Variant You can click...
  • Page 27 ET 200X(L) Series Digital Gateway User Manual Figure 3-4-3 General Table 3-4-2 Definition of General Options Definition Variant Name The variant name R2 Category national subscriber works just fine usually Allow Collect Default is to block collect calls Accept On Offer With this set to ‘no’...
  • Page 28 ET 200X(L) Series Digital Gateway User Manual Double Answer This will cause that every answer signal is changed by answer->clear back->answer, sort of flash Skip Category Skip request of calling party category and ANI CASNonR2 Bits Which bits are never used CAS_R2_Bits Which bits will be used Figure 3-4-4 Timer...
  • Page 29 ET 200X(L) Series Digital Gateway User Manual DTMF Detection End Safety time to decide when to stop detecting DTMF DNIS. Figure 3-4-5 Group A Figure 3-4-6 Group B 29/78...
  • Page 30 ET 200X(L) Series Digital Gateway User Manual Figure 3-5-7 Group C Figure 3-4-8 Group 1 Figure 3-4-9 Group 2 30/78...

  • Page 31: Voip

    ET 200X(L) Series Digital Gateway User Manual 4 VOIP 4.1 VOIP Endpoints 4.1.1 SIP Endpoints This page shows everything about your SIP, you can see status of each SIP. Figure 4-1-1 SIP Status 4.1.2 Main Endpoint Settings You can click button to add a new SIP endpoint, and if you want to modify existed endpoints, you can click button.
  • Page 32 ET 200X(L) Series Digital Gateway User Manual Figure 4-1-2 None Registration For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-3 Endpoint Register with Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except name and password.
  • Page 33 ET 200X(L) Series Digital Gateway User Manual Figure 4-1-4 This Gateway Register with the Endpoint Table 4-1-1 Definition of SIP Options Options Definition A name which is able to read by human. And it’s only used for Name user’s reference. Username User name the end point use to authenticate with the gateway Password the endpoint will use to authenticate with the gateway.

  • Page 34: Advanced Registration Options

    4.1.3 Advanced Registration Options ET 200X(L) Series Digital Gateway User Manual Table 4-1-2 Definition of Registration Options Options Definition Authentication User A username to use only for registration. When Gateway registers as a SIP user agent to a SIP proxy Register Extension (provider), calls from this provider connect to this local extension.

  • Page 35: Advanced Signaling Settings

    ET 200X(L) Series Digital Gateway User Manual Table 4-1-4 Definition of Timer Options Options Definition This timer is used primarily in INVITE transactions. The default for Default T1 Timer Timer T1 is 500ms or the measured run-trip time between the gateway and the device if you have qualify=yes for the device.
  • Page 36 ET 200X(L) Series Digital Gateway User Manual Honor SDP Version By default, the gateway will honor the session version number in SDP packets and will only modify the SDP session if the version number changes. Turn This option off to force the SDP session version number and treat all SDP data as new data.

  • Page 37: Iax2 Endpoint

    ET 200X(L) Series Digital Gateway User Manual one or more events being detected. The events that can be detected are an incoming CNG tone or an incoming T.38 re-INVITE request. Fax Activity activate T38 fax gateway with ‘timeout’ seconds Fax Timeout activate T38 fax gateway with ‘timeout’...
  • Page 38 ET 200X(L) Series Digital Gateway User Manual Table 4-2-1 Definition of IAX2 Endpoint Options Definition Name A name which is able to read by human. And it’s only used for user’s reference. User name User name the endpoint will use to authenticate with the gateway Password Password the endpoint will use to authenticate with gateway.

  • Page 39: Advanced Sip Settings

    ET 200X(L) Series Digital Gateway User Manual Port The port number the gateway will connect to at this endpoint. Encryption Enable IAX2 encryption. The default is no. Force Encryption Force encryption insures no connection is established unless both sides support encryption.

  • Page 40: Advanced Nat Settings

    ET 200X(L) Series Digital Gateway User Manual Table 4-3-1 Definition of Networking Options Options Definition UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no). TCP Bind Port Choose a port on which to listen for TCP traffic.
  • Page 41 ET 200X(L) Series Digital Gateway User Manual Through the use of the test_stun_monitor module, the gateway has the ability to detect when the perceived external network address has changed. When the stun_ monitor is installed and configured, chan_sip will renew all outbound Subscribe registrations when the monitor detects any sort of network change has Network Change...

  • Page 42: Advanced Rtp Settings

    4.3.3 Advanced RTP Settings ET 200X(L) Series Digital Gateway User Manual Table 4-3-3 Definition of RTP Settings Options Options Definition Start of RTP Port Range Start of range of port numbers to be used for RTP. End of RTP port Range End of range of port numbers to be used for RTP.

  • Page 43: Security

    ET 200X(L) Series Digital Gateway User Manual The shrinkcallerid function removes '(', ' ', ')', non-trailing '.', and '-' not in square brackets. For example, the caller id value 555.5555 becomes 5555555 when this option is enabled. Disabling this option results in no Shrink Caller ID modification of the caller id value, which is necessary when the caller id represents something that must be preserved.

  • Page 44: Media

    ET 200X(L) Series Digital Gateway User Manual Use the domain from the SIP Domains setting as the realm. In this case, the realm will be based on the request 'to' or 'from' header and should Use Domain as Realm match one of the domain. Otherwise, the configured 'realm' value will be used.

  • Page 45: Advanced Iax2 Settings

    ET 200X(L) Series Digital Gateway User Manual Figure 4-3-1 Codec Settings 4.4 Advanced IAX2 Settings Table 4-4-1 Instruction of General Definition Options Bind port and bindaddr may be specified Bind Port More than once to bind to multiple addresses, but the first will be the default. Enable IAXCompat Set iaxcompat to yes if you plan to use layered switches or some other scenario which Enable...
  • Page 46 ET 200X(L) Series Digital Gateway User Manual You may specify a default account for Call Detail Records (CDRs) in addition Account Code specifying on a per-user basis. Table 4-4-2 Instruction of Music on Hold Options Definition Mohsuggest The ‘Mohsuggest’ option specifies which music on hold class to suggest to the peer channel when this channel place the peer on hold.
  • Page 47 ET 200X(L) Series Digital Gateway User Manual twice the measured jitter plus this resync threshold. Max Jitter Interps The maximum number of interpolation frames the jitter buffer should return in a row. Since some clients do not send CNG/DTX frames to indicate silence, the jitter buffer will assume silence has begun after returning this many interpolations.

  • Page 48: Advanced Fax Setting

    ET 200X(L) Series Digital Gateway User Manual 4.5 Advanced fax setting Table 4-5-1 Instruction of Quality of Fax Settings Options Definition Udptl Start DPTL start configure addresses Udptl End DPTL end configure addresses Udptl Checksums Whether to enable or disable UDP checksums on UDPTL traffic Udptl Fec Entries The number of error correction entries in a UDPTL packet Udptl Fec Span...

  • Page 49: Routing

    The gateway embraces the flexible and friendly routing settings for user. It supports up to 512 routing rules and about 100 pairs of calleeID/callerID manipulations can be set in a rule. It support DID function How to use DID function with OpenVox T1/E1 Gateway (The usage of DID function: ).
  • Page 50 ET 200X(L) Series Digital Gateway User Manual You can click button to set up your routings. Figure 5-1-3 Example of Setup Routing Rule The figure above realizes that calls from “support” SIP endpoint switch you have registered will be transferred to Port-1. When “Call Comes in From” is 1001, “prepend”, “prefix” and “match pattern” in “Advanced Routing Rule”...
  • Page 51 ET 200X(L) Series Digital Gateway User Manual Table 5-1-2 Description of Advanced Routing Rule Options Definition A Dial Pattern is a unique set of digits that will select this route and send the call to the designated trunks. If a dialed pattern matches this route, no subsequent routes will be tried.

  • Page 52: Groups

    ET 200X(L) Series Digital Gateway User Manual of the current number. Caller Name: What caller name would you like to set before sending this call to the endpoint. Native language charset is allowable, e.g. Chinese charset, Latin charset. What destination number will you dial? Forward Number This is very useful when you have a transfer call.

  • Page 53: Network

    ET 200X(L) Series Digital Gateway User Manual about it. You can combine many Ports or SIP to groups. Then if you want to make a call, it will find available port automatically. Figure 5-2-1 Establish Group 6 Network On “Network” page, there are three sub-pages, “WAN Settings”, “DDNS Settings” and “Toolkit”. 6.1 WAN/LAN Settings There are two types of WAN port IP, Static and DHCP.

  • Page 54: Ddns Settings

    ET 200X(L) Series Digital Gateway User Manual Table 6-1-1 Definition of WAN/LAN Settings Options Definition Interface The name of network interface. The method to get IP. Type Static: manually set up your gateway IP. DHCP: automatically get IP from your local LAN. Physical address of your network interface.

  • Page 55: Toolkit

    ET 200X(L) Series Digital Gateway User Manual Table 6-2-1 Definition of DDNS Settings Options Definition DDNS Enable/Disable DDNS(dynamic domain name server) Type Set the type of DDNS server. Username Your DDNS account’s login name. Password Your DDNS account’s password. Your domain The domain to which your web server will belong.
  • Page 56 ET 200X(L) Series Digital Gateway User Manual Figure 7-1-1 API Interface Table 7-1-1 Definition of Asterisk API Options Definition Port Network port number Manager Name Name of the manager without space Password for the manager. Manager secret Characters: Allowed characters “-_+.<>&0-9a-zA-Z”. Length:4-32 characters. If you want to deny many hosts or networks, use char &...

  • Page 57: Asterisk Cli

    ET 200X(L) Series Digital Gateway User Manual Config Ability to read and write configuration files. DTMF Receive DTMF events. Read-only. Reporting Ability to get information about the system. Dialplan Receive NewExten and Var Set events. Read-only. Originate Permission to originate new calls. Write-only. Select all or deselect all.

  • Page 58: Asterisk File Editor

    ET 200X(L) Series Digital Gateway User Manual Table 7-2-1 Definition of Asterisk CLI Options Definition Type your Asterisk CLI commands here to check or debug your Command gateway. If you type “help” or “?” and execute it, the page will show you the executable commands. Table 7-2-2 Definition of Lock/unlock channels Options Definition...

  • Page 59: Auto Provisioning

    ET 200X(L) Series Digital Gateway User Manual reload Asterisk. 7.4 Auto Provisioning Auto provisioning or auto-configuration is an easy, flexible and time-saving way to upgrade firmware and configurations for E1 gateways in mass deployment. With auto provisioning, all user information can be entered via the central ACS (Auto Configuration Server).
  • Page 60 ET 200X(L) Series Digital Gateway User Manual Table 7-4-1 Definition of Auto Provision Options Definition Enabled Whether to enable or disable Auto Provision DHCP Option 66 Get ACS server address from Option 66 via DHCP Protocol Set protocol of connection Auto Config Server URL The config server domain or IP address User Name...

  • Page 61: Configuring Acs

    7.4.3 Configuring ACS ET 200X(L) Series Digital Gateway User Manual The Auto Configuration Server can be the one of TFTP, FTP and HTTP server. The ACS is used to store the firmware release and configurations files of the devices under management. List the primary files in ACS download directory as table 7-4-3: Table 7-4-3 Definition of ACS files Options...
  • Page 62 ET 200X(L) Series Digital Gateway User Manual DNS_SERVER4= [ntp] NTP_SERVER1= 0.cn.pool.ntp.org NTP_SERVER2= time.nist.gov NTP_SERVER3= time.windows.com [eth0] ENABLE=yes TYPE=static DHCP=no IPADDRESS=172.16.100.223 NETMASK=255.255.0.0 GATEWAY=172.16.0.1 [eth1] ENABLE=yes TYPE=static DHCP=no IPADDRESS=192.168.100.223 NETMASK=255.255.0.0 GATEWAY=192.168.0.1 [web_login] username=admin password=admin (3). Defconfig.tar.gz Figure 7-4-2 the overview of defconfig.tar.gz 62/78...

  • Page 63: Provisioning Example

    7.4.4 Provisioning example ET 200X(L) Series Digital Gateway User Manual After auto provisioning is enabled, the gateway will visit the Auto Configuration Server and download the updated files periodically based on the timer Check Interval (LOGS->System notice). By default, the timer is set as every hour.
  • Page 64 ET 200X(L) Series Digital Gateway User Manual Figure 7-4-5 Check interval setting 3. Configuring the ACS(Generate the md5 of firmware and defconfig.tar.gz) Copy the firmware, defconfig.tar.gz, common.conf and EPC-{mac}.conf to the working  directory of TFTP server. Figure 7-4-6 The working directory of TFTP server Notice: The demo of E1 gateway mac address is A0:98:05:01:DB:CA (eth0), therefore the private configuration file is EPC-a0980501dbca.conf.
  • Page 65 ET 200X(L) Series Digital Gateway User Manual Figure 7-4-8 Common.conf Figure 7-4-9 EPC- a0980501dbca.conf Start TFTP service. Tftpd32.exe is a useful TFTP tools in windows7, then make sure TFTP  server is select. 65/78...
  • Page 66 ET 200X(L) Series Digital Gateway User Manual Figure 7-4-10 Demo TFTP server 4. The system will receive an auto provision message in web GUI. Figure 7-4-11 System notice logs Figure 7-4-12 Auto provision upgrade notification 5. Restart the system. It will take about 3 minutes almost to download, upgrade Firmware and update configurations.

  • Page 67: Snmp

    ET 200X(L) Series Digital Gateway User Manual Figure 7-4-14 Applying the firmware and configs 7.5 SNMP Simple Network Management Protocol (SNMP) is an application–layer protocol, which is used to manage and monitor network elements and exchange management information between network devices. By default SNMP uses port 161 for communication.

  • Page 68: Activating Snmp

    ET 200X(L) Series Digital Gateway User Manual Only exist in v3. Add a v3 account to SNMP. Notice that the length of auth User Configuration password and privacy password are more than 8. 7.5.2 Activating SNMP Usually, the feature is disabled by default. To activate the SNMP feature, please follow the Figure 7-5-1.
  • Page 69 ET 200X(L) Series Digital Gateway User Manual (1). Get SNMP parameters via SNMP MIB browser. It’s supposed that Manage Engine MIB browser is installed perfectly. Figure 7-5-2 is the main interface of Manage Engine MIB browser. Figure 7-5-2 Manage Engine MIB browser And the field of Host, Port and Community are filled with 172.16.100.223, 161 and public respectively.

  • Page 70: Tr069

    ET 200X(L) Series Digital Gateway User Manual location and it returns the value which we just set. (2). Set SNMP parameters via SNMP MIB browser. For example, set the system name. system name is “dgw100x” by default, then set it as “VoIP gateway”. See figure 7-5-4. Click Operations->GET to attain the current system name.
  • Page 71 ET 200X(L) Series Digital Gateway User Manual Table 7-6-1 Definition of TR069 configuration interface Options Definition Acs Url Specify the URL of the ACS Acs Username Specify the user name to be used by the device to authenticate with the ACS. Acs Password Specify the password to be used by the device to authenticate with the file server Information of the device vendor, which may be used to indicate the primary service...

  • Page 72: Network Capture

    ET 200X(L) Series Digital Gateway User Manual 7.7 Network Capture The gateway have been supplied a network packets capture in the web for ease of user to analysis, capture and monitor the gateway’s network status, RTP flows, protocol analysis and so on. Table 7-7-1 Definition of Network capture Options Definition...

  • Page 73: Logs

    ET 200X(L) Series Digital Gateway User Manual 8 Logs 8.1 Log Settings On the “Log Settings” page, you should set the related logs on to scan the responding logs page. For example, set “SIP Logs” on like the following, then you can turn to “SIP” page for sip logs, otherwise, sip logs is unavailable.
  • Page 74 ET 200X(L) Series Digital Gateway User Manual Figure 8-1-2 System Logs Output Table 8-1-1 Definition of Logs Options Definition Switch on: when the size of log file reaches the max size, Auto clean The system will cut a half of the file. New logs will be retained. (System Logs) Switch off: logs will remain, and the file size will increase gradually.
  • Page 75 ET 200X(L) Series Digital Gateway User Manual Error Asterisk console error message switch. DTMF Asterisk console DTMF info switch. Switch on: when the size of log file reaches the max size, Auto clean: The system will cut a half of the file. New logs will be retained. (asterisk logs) Switch off: logs will remain, and the file size will increase gradually.

  • Page 76: System Log

    ET 200X(L) Series Digital Gateway User Manual .SS7 Logs Whether enable or disable SS7 log switch on : when the size of log file reaches the max size, The system will cut a half of the file. New logs will be retained. Auto clean Switch off: logs will remain, and the file size will increase gradually.

  • Page 77: Call Statistics

    ET 200X(L) Series Digital Gateway User Manual 8.4 Call Statistics The figure of call statistics, you’ll find “Answered”, “congestion”, “Call busy”, “Call failed”, “No answer”, “Current calls”, “accumulated calls”, “Calls duration” and “ASR”. “ASR” stands for Answer Seizure Ratio. “Calls duration” will count the whole calls in the gateway. The call statistics will be saved before power off.
  • Page 78 ET 200X(L) Series Digital Gateway User Manual Figure 8-5-1 enable system notice function After about an hour, a system message is received in the web like 8-5-2. Figure 8-5-2 enable system notice function Note: Do not forget to enable system notice and check interval in “Log Setting” if you want to receive system messages.
