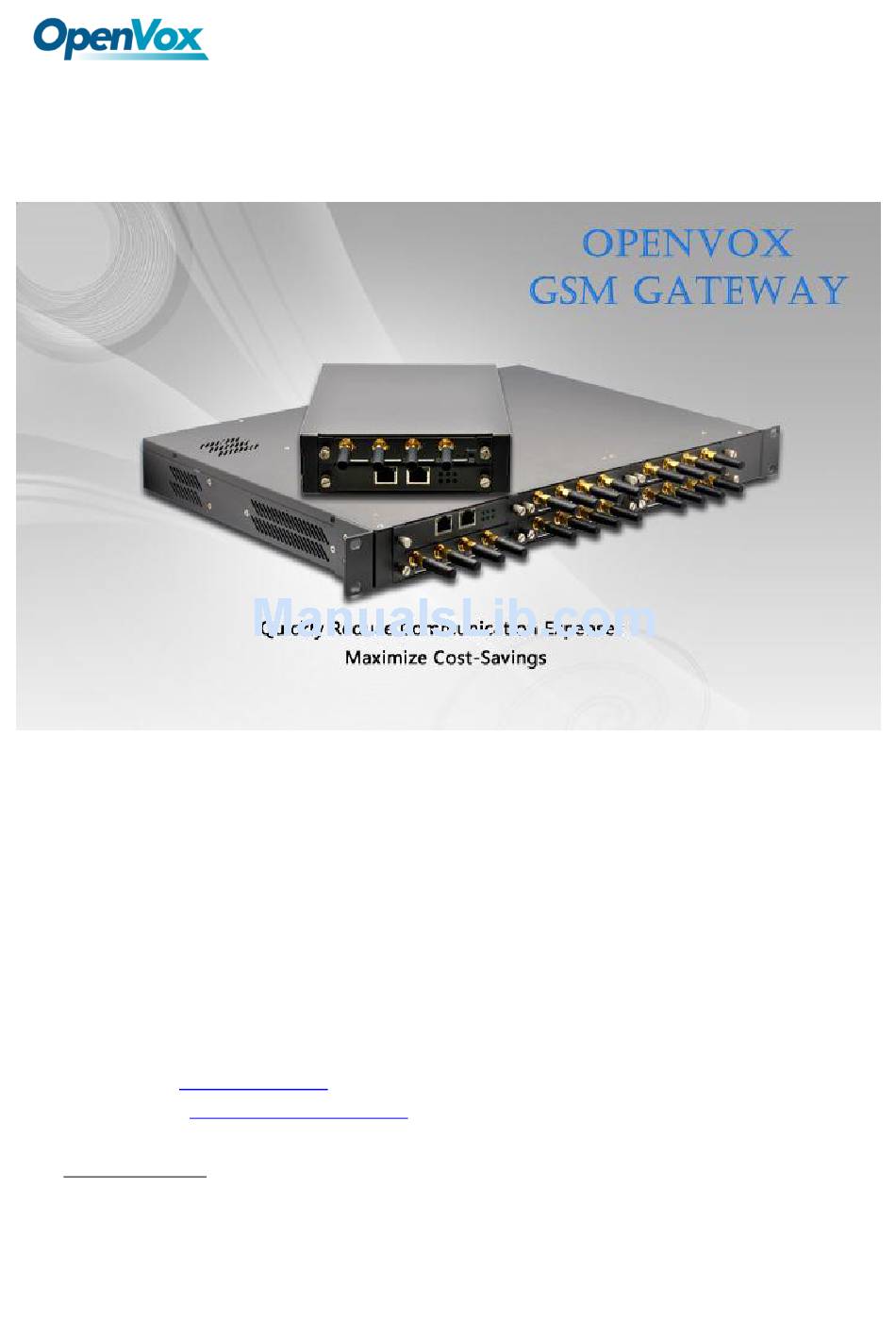

VS-GW1200-4G User Manual
Address: F/3, Building 127, Jindi Industrial Zone, Futian District, Shenzhen, Guangdong, China,
518048
Tel: +86-755-82535461, 82535095, 82535362
Fax: +86-755-83823074
Business Contact:
sales@openvox.cn
Technical Support:
support@openvox.com.cn
Business Hours: 09:00-18:00(GMT+8) from Monday to Friday
URL: www.openvox.cn

Advertisement

Table of Contents
loading

Related Manuals for OpenVox VS-GW1200-4G

Summary of Contents for OpenVox VS-GW1200-4G

  • Page 1 VS-GW1200-4G User Manual Address: F/3, Building 127, Jindi Industrial Zone, Futian District, Shenzhen, Guangdong, China, 518048 Tel: +86-755-82535461, 82535095, 82535362 Fax: +86-755-83823074 Business Contact: sales@openvox.cn Technical Support: support@openvox.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn...
  • Page 2 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.

  • Page 3: Table Of Contents

    VS-GW1200-4G User Manual Table of Contents 1. Overview ..........................1 What is VS-GW1200-4G? Sample Application Product Appearance Main Features Physical Information Software 2. System ........................... 5 Status Time Login Settings General and Cluster Language Settings Scheduled Reboot Working Mode Tools and Information...
  • Page 4 VS-GW1200-4G User Manual DTMF Toolkit 4. SIP and Routing ........................30 SIP Endpoints Main Endpoint Settings Advanced: Registration Options Call Settings Advanced: Signaling Settings Advanced: Timer Settings Advanced SIP Settings Networking Advanced: NAT Settings Parsing and Compatibility Security Media Codec Settings...

  • Page 5: Overview

    There are three models with VoxStack series GSM Gateway, the VS-GW1200-4G, VS-GW1202-8G and VS-GW1600. There are 4 GSM channels in VS-GW1200-4G and 8 GSM channels in VS-GW1202-8G. The Modular Design GSM Gateways are ranging from 4 up to 20 GSM channels, developed for interconnecting the GSM cellular networks with a wide selection of codecs and signaling protocol, including G.711A, G.711U, G.729, G.722, G.723, G.726 and GSM to quickly...

  • Page 6: Sample Application

    VS-GW1200-4G User Manual Sample Application Figure 1-2-1 Topological Graph Product Appearance The picture below is appearance of VS-GW1200-4G. Figure 1-3-1 Product Appearance OpenVox Communication Co.Ltd...

  • Page 7: Led Indicator

    VS-GW1200-4G User Manual Figure 1-3-2 Front Panel SIM Slot Reset SIM Card LAN1 LAN2 Table 1-3-1 LED Indicator LED Indicator Color Status  Network Status LED Green and Flash Network Connected Green and Flash Module Initiating Red and Flash No SIM Card ...

  • Page 8: Main Features

    VS-GW1200-4G User Manual Main Features  Modular and VoxStack design ○  Based on Asterisk ○  Editable Asterisk configuration file  Wide selection of codecs and signaling protocol  Support SMS sending, receiving, group sending  Support transferring SMS to E-mail ...

  • Page 9: Software

    VS-GW1200-4G User Manual Software Default IP: 172.16.99.1 Username: admin Password: admin Please enter the default IP in your browser to scan and configure the module you want. Now we offer you two RJ45 Network ports to access to your gateway on the board, ETH1 and ETH2. You can choose either of them and they are the same.
  • Page 10 VS-GW1200-4G User Manual Figure 2-1-1 System Status Table 2-1-1 Description of System Status Options Definition Port Number of GSM ports. Signal Display the signal strength of in each channels of GSM. Bit Error Rate. Carrier Display the network carrier of current SIM card.

  • Page 11: Time

    VS-GW1200-4G User Manual Answer Seizure Ratio is a measure of network quality. Its calculated by taking the number of successfully answered calls and dividing by the total number of calls attempted. Since busy signals and other rejections by the called number count as call failures, the ASR value can vary depending on user behavior.

  • Page 12: Login Settings

    VS-GW1200-4G User Manual Figure 2-2-1 Time Settings You can set your gateway time Sync from NTP or Sync from Client by pressing different buttons. Login Settings Your gateway doesn't have administration role. All you can do here is to reset what new username and password to manage your gateway.

  • Page 13: General And Cluster

    VS-GW1200-4G User Manual Figure 2-3-1 Login Settings Notice: Whenever you do some changes, do not forget to save your configuration. General and Cluster Language Settings You can choose different languages for your system. If you want to change language, you can switch “Advanced”...

  • Page 14: Working Mode

    VS-GW1200-4G User Manual Figure 2-4-2 Reboot Types If use your system frequently, you can set this enable, it can helps system work more efficient. Working Mode There are only one VS-GWM400G module integrated in one GSM Gateway, so it can work only “Stand-alone”...

  • Page 15: Tools And Information

    VS-GW1200-4G User Manual Master IP(Target IP) The master’s target IP. (master mode) You must set the master’s target IP first. Slave’s target IP. Slave IP(Local IP) Must be set in the same subnet as the master. Original IP means outward IP, and target IP is inward IP Slaves IP List (Up to four slaves.)

  • Page 16: Information

    VS-GW1200-4G User Manual information below. Figure 2-5-2 Prompt Information If you want to update your system and remain your previous configuration, you can first backup configuration, then you can upload configuration directly. That will be very convenient for you. Figure 2-5-3 Upload and Download Sometimes there is something wrong with your gateway that you don’t know how to solve it,...

  • Page 17: Gsm

    VS-GW1200-4G User Manual Figure 2-5-5 System Information 3. GSM You can see much information about your SIM cards on this page. GSM Settings Figure 3-1-1 GSM System On this page, you can see your GSM modules status and click action button to configure the port.
  • Page 18 VS-GW1200-4G User Manual Figure 3-1-2 Port Configure As you see, we have offered “Band” option, you can select different bands easily and you have many options. Figure 3-1-3 Band Binding If you have set your Pin Code, you can check on like this:...

  • Page 19: Imei Modification

    VS-GW1200-4G User Manual Figure 3-1-4 PIN Code Application Then input your password, system will identify numbers of SIM cards. It can help to prevent SIM card from being stolen and improve security. If you want to hide your number when you call out, you can just switch CLIR “ON” (Of course you need your operator’s support).
  • Page 20 VS-GW1200-4G User Manual Figure 3-1-9 IMEI Modification Also you can choose to modify one or more certain ports or all ports. You can set automatic modification interval by filling in the time you want. If you choose “Immediately”, then the ports you have chosen will modify IMEI numbers at once.
  • Page 21 VS-GW1200-4G User Manual Figure 3-1-11 Manual After configuration, you can press “Back Home” to return your gateway interface. Table 3-1-1 Definition of GSM Settings Options Definition The alias of the GSM port. Input name without space here. Name Allowed characters "-_+.<>&0-9a-zA-Z".Length: 1-32 characters.

  • Page 22: Call Duration Limit Settings

    VS-GW1200-4G User Manual Call Duration Limit Settings Now we can offer you two types of call duration limit, you can choose “Single Call Duration Limit” or “Call Duration Limitation” to control your calling time.  Single Call Duration Limit This will limit the time of each call.
  • Page 23 VS-GW1200-4G User Manual Figure 3-1-13 Call Duration Limitation Settings The same algorithm with single time limitation, the total calling time of this port can’t beyond the product of “Step” and “Call Duration Limitation”. If the duration of a call is less than “Minimum Charging Time”, it will be not included in “Call Duration”.
  • Page 24 VS-GW1200-4G User Manual Figure 3-1-15 Save To Other Ports If you have set like this, you will see many on the Web GUI, you can set whether to check. Notice: When you do some changes, you need to save and Apply, then “Remain Time” will show as you set.

  • Page 25: Sms Settings

    VS-GW1200-4G User Manual Enable Single Call Definite maximum call duration for single call. Example: if Time of Duration Limit single call set to 10, the call will be disconnected after talking 10*step seconds. Enable Call Duration This function is to limit the total call duration of GSM channel. The Limitation max call duration is between 1 to 65535 minutes.

  • Page 26: Sms To E-Mail

    VS-GW1200-4G User Manual Figure 3-2-1 Sender Options Table 3-2-1 Description of Sender Options Options Definition Resend Failed The times that you will attempt to resend your failed message. Message Repeat Same The times that you will resend the same message.
  • Page 27 VS-GW1200-4G User Manual Figure 3-2-2 SMS to E-mail Options Table 3-2-2 Types of E-mail Box SMTP Security E-mail Box Type SMTP Server SMTP Port Connectivity Gmail smtp.gmail.com √ HotMail smtp.live.com √ Yahoo! smtp.mail.yahoo.co.in × Other: 163 free × smtp.163.com e-mail...

  • Page 28: Sms Control

    VS-GW1200-4G User Manual When you choose on, the following options are available, otherwise, Enable unavailable. Email Address of To set the email address of an available email account. Sender For example, openvpnvoip@gmail.com. To set outgoing mail server. Domain e.g. smtp.gmail.com SMTP Port To set port number of outgoing mail server.
  • Page 29 VS-GW1200-4G User Manual Figure 3-2-3 SMS Control For example, SMS control password is 123456789 which has nothing to do with the login password, you can send “get info 123456789” to the GSM module’s phone number to get your gateway’s IP information.

  • Page 30: Sms Sender

    VS-GW1200-4G User Manual switch off: SMS record will remain, and the file size will increase gradually. default on, max size = 20 MB SMS Sender You can choose one or more ports to send SMS to the destination number, different numbers should be separated by symbols: '\r', '\n', space character, semicolon and comma.

  • Page 31: Sms Inbox

    VS-GW1200-4G User Manual SMS Inbox On this page, you are allowed to scan, delete, clean up, and export each port’s received SMS. Also you are allowed to check messages by port, phone number, time order and message keywords. Figure 3-4-1 SMS Information DTMF You can do some DTMF Detection Settings if you choose “GSM ->...

  • Page 32: Toolkit

    VS-GW1200-4G User Manual Figure 3-5-1 DTMF Detection Settings Notice: If you don’t have special need, you don’t have to modify these settings. You can just choose “Default”.  DTMF Normal Twist and Reverse Twist is the difference in power between the row and column energies.
  • Page 33 VS-GW1200-4G User Manual Figure 3-6-1 Function Options Table 3-6-1 Definition of Functions Options Definition Enter a known number (like your mobile phone) to check what number it is of the SIM card. Click "Execute", then the gateway will dial to the number Check Number you already input.

  • Page 34: Sip And Routing

    VS-GW1200-4G User Manual 4. SIP and Routing SIP Endpoints This page shows everything about your SIP, you can see status of each SIP. Figure 4-1-1 SIP Status Main Endpoint Settings You can click button to add a new SIP endpoint, and if you want to modify existed endpoints, you can click button.
  • Page 35 VS-GW1200-4G User Manual Figure 4-1-2 Anonymous Registration For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-3 Register to Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except name and password.
  • Page 36 VS-GW1200-4G User Manual Figure 4-1-4 Register to Server Table 4-1-1 Definition of SIP Options Options Definition Name Display name. Username Register name in your SIP server. Password Authenticating with the gateway and characters are allowed. None---Not registering; Endpoint registers with this gateway---When register as this type, it means the GSM gateway acts as a SIP server, and SIP endpoints register to the gateway;...

  • Page 37: Advanced: Registration Options

    VS-GW1200-4G User Manual No---Use Rport if the remote side says to use it. Force Rport on---Force Rport to always be on. Yes---Force Rport to always be on and perform comedia RTP NAT Traversal handling. Rport if requested and comedia---Use Rport if the remote side says to use it and perform comedia RTP handling.

  • Page 38: Advanced: Signaling Settings

    VS-GW1200-4G User Manual Set default DTMF Mode for sending DTMF. Default: rfc2833. DTMF Mode Other options: 'info', SIP INFO message (application/dtmf-relay); 'Inband', Inband audio (require 64kbit codec -alaw, ulaw). Trust Whether or not the Remote-Party-ID header should be trusted. Remote-Party-ID Send Whether or not to send the Remote-Party-ID header.

  • Page 39: Advanced: Timer Settings

    VS-GW1200-4G User Manual Whether or not to allow 302 or REDIR to non-local SIP address. Allow Promiscuous Note that promiscredir when redirects are made to the local system will Redirects cause loops since this gateway is incapable of performing a "hairpin" call.

  • Page 40: Advanced Sip Settings

    VS-GW1200-4G User Manual Advanced SIP Settings Networking Table 4-2-1 Definition of Networking Options Options Definition UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no). TCP Bind Port Choose a port on which to listen for TCP traffic.

  • Page 41: Advanced: Nat Settings

    VS-GW1200-4G User Manual Local Network List Local IP address list that you added. Through the use of the test_stun_monitor module, the gateway has the ability to detect when the perceived external network address has changed. When the stun_monitor is installed and configured, chan_sip will...

  • Page 42: Parsing And Compatibility

    VS-GW1200-4G User Manual Start of RTP Port Start of range of port numbers to be used for RTP. Range End of RTP port End of range of port numbers to be used for RTP. Range Parsing and Compatibility Table 4-2-3 Instruction of Parsing and Compatibility...

  • Page 43: Security

    VS-GW1200-4G User Manual Registration How often, in seconds, to retry registration calls. Default 20 seconds. Timeout Number of Number of registration attempts before we give up. 0 = continue forever, Registration hammering the other server until it accepts the registration. Default is 0 Attempts Enter '0' tries, continue forever.

  • Page 44: Media

    VS-GW1200-4G User Manual Media Table 4-2-5 Instruction of Media Options Definition Some ISDN links send empty media frames before the call is in ringing or progress state. The SIP channel will then send 183 indicating early media which will be empty - thus users get no ring signal. Setting this to "yes" will...

  • Page 45: Routing

    VS-GW1200-4G User Manual Routing Figure 4-3-1 Routing Rules You are allowed to set up new routing rule by , and after setting routing rules, move rules’ order by pulling up and down, click button to edit the routing and to delete it. Finally click the button to save what you set.

  • Page 46: Advanced Routing Rule

    VS-GW1200-4G User Manual Table 4-3-1 Definition of Routing Options Options Definition The name of this route. Should be used to describe what types of calls this Routing Name route matches (for example, 'SIP2GSM' or 'GSM2SIP'). Call Comes in The launching point of incoming calls.
  • Page 47 VS-GW1200-4G User Manual match pattern: The dialed number will be compared against the prefix + this match pattern. Upon a match, the match pattern portion of the dialed number will be sent to the trunks Caller ID: If Caller ID is supplied, the dialed number will only match the prefix + match pattern if the Caller ID has been transmitted matches this.

  • Page 48: Group

    VS-GW1200-4G User Manual You can add one or more “Failover Call Through Numbers”. Figure 4-3-5 Failover Call Through Number Group Sometimes you want to make a call through one port, but you don’t know if it is available, so you have to check which port is free.

  • Page 49: Network, Advanced And Logs

    VS-GW1200-4G User Manual 5. Network, Advanced and Logs Network On “Network” page, there are five sub-pages, “LAN Settings”, “DDNS Settings”, and “Toolkit”. LAN Settings There are three types of LAN port IP, Factory, Static and DHCP. Factory is the default type, and it is 172.16.99.1.
  • Page 50 VS-GW1200-4G User Manual Table 5-1-1 Definition of LAN Settings Options Definition Interface The name of network interface. The method to get IP. Type Factory: Getting IP address by Slot Number (System  information to check slot number). Static: manually set up your gateway IP.

  • Page 51: Ddns Settings

    VS-GW1200-4G User Manual Table 5-1-2 Definition of DNS Settings Options Definition DNS Servers A list of DNS IP address. Basically this info is from your local network service provider. DDNS Settings You can enable or disable DDNS (dynamic domain name server).

  • Page 52: Advanced

    VS-GW1200-4G User Manual Figure 5-1-4 Network Connectivity Checking Advanced Asterisk API When you make ”Enable” switch to “on”, this page is available. Figure 5-2-1 API Interface OpenVox Communication Co.Ltd...
  • Page 53 VS-GW1200-4G User Manual Table 5-2-1 Definition of Asterisk API Options Definition Port Network port number Manager Name Name of the manager without space Manager secret Password for the manager. Characters: Allowed characters “-_+.<>&0-9a-zA-Z”. Length:4-32 characters. Deny If you want to deny many hosts or networks, use char & as separator.

  • Page 54: Asterisk Cli

    VS-GW1200-4G User Manual Figure 5-2-2 Putty Access Asterisk CLI In this page, you are allowed to run Asterisk commands. Figure 5-2-3 Asterisk Command Interface Table 5-2-2 Definition of Asterisk API Options Definition Command Type your Asterisk CLI commands here to check or debug your gateway.

  • Page 55: Asterisk File Editor

    VS-GW1200-4G User Manual Asterisk File Editor On this page, you are allowed to edit and create configuration files. Click the file to edit. Figure 5-2-4 Configuration Files List Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk.
  • Page 56 VS-GW1200-4G User Manual Figure 5-3-2 System Logs Output You can scan your CDR easily on web GUI, and also you can delete or clean up your CDR. Figure 5-3-3 CDR Output Recently we have made our LOGS display richer, you can see your GSM Outbound of every port clearly.
  • Page 57 VS-GW1200-4G User Manual Figure 5-3-4 Time Patterns that will use this Route Table 5-3-1 Definition of Logs Options Definition System Logs: Whether enable or disable system log. Auto clean: switch on : (System Logs) when the size of log file reaches the max size, the system will cut a half of the file.
  • Page 58 VS-GW1200-4G User Manual Auto clean: switch on : (SIP logs) when the size of log file reaches the max size, the system will cut a half of the file. New logs will be retained. switch off : logs will remain, and the file size will increase gradually. <br>...

  • Page 59: Appendix Feature List

    VS-GW1200-4G User Manual Appendix Feature List General Info  Wireless port：GSM 850/900/1800/1900MHz  Storage temperature：-20~70℃  Operating temperature：0~40℃  Operating humidity：10％~90％  Power supply specifications：12V DC/4A  Maximum power：10W  Support Volume adjustment  Support Gain adjustment  Support CLID display & hide (need operators support) ...

  • Page 60: System Features

    VS-GW1200-4G User Manual  Support add, modify & delete routing  Support unlimited routing rules  Flexible routing settings Business Control  Permit and prohibit certain calls  Extensible automatic callback  Extensible speed dial  Support customizable IVR, DISA and other applications System Features ...
  • Page 61 VS-GW1200-4G User Manual Operation Maintenance  Support SMS remotely controlling gateway  Support Echo cancellation, Jitter buffer  Support gateway boards and SIM hot plug  Reboot settings（According to the running time, specific time）  Update Firmware：HTTP  Support multiple detailed LOG output ...

  • Page 62: Application Diagrams

    VS-GW1200-4G User Manual Application Diagrams Thank You for Choosing OpenVox Products! OpenVox Communication Co.Ltd...
