VS-GW1600-8/16/24/32/40S Connect with
QuickStart Guide

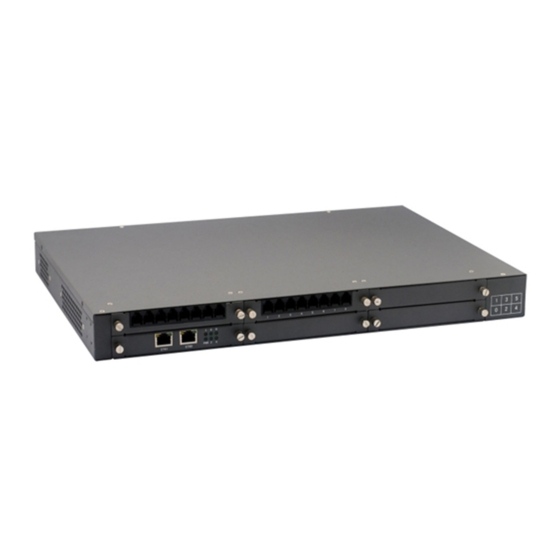

This document applies to OpenVox VS-GW1600-8/16/24/32/40S series analog
gateway. The figure below shows Default IP.
Stack Num IP
1
2
3
4
5
This is an example with 8 FXS ports. The Default IP is 172.16.99.1,
Username is admin and Password is admin too. There are two LAN ports, you
can connect gateway to Internet through either of them and you can see the
connectivity by LED status.
Analog Phone
SIP Phone
Elastix
®
Username
172.16.99.1
admin
172.16.99.2
admin
172.16.99.3
admin
172.16.99.4
admin
172.16.99.5
admin
VS-GW1600
Internet
Soft SIP Phone
Server
Password
admin
admin
admin
admin
admin
Analog Cards
Elastix Server
172.16.1.194
Advertisement
Table of Contents
Related Manuals for OpenVox VS-GW1600-8S
Summary of Contents for OpenVox VS-GW1600-8S
- Page 1 VS-GW1600-8/16/24/32/40S Connect with Elastix Server ® QuickStart Guide This document applies to OpenVox VS-GW1600-8/16/24/32/40S series analog gateway. The figure below shows Default IP. Stack Num IP Username Password 172.16.99.1 admin admin 172.16.99.2 admin admin 172.16.99.3 admin admin 172.16.99.4 admin admin 172.16.99.5...
- Page 2 Step1. Log in your gateway Web GUI. Step2. Network Settings If your system topology like the figure described, please enter the gateway default IP address to login web, and click “NETWORK—>LAN Settings” to set network parameters such as IP. www.openvox.cn...
- Page 3 About other parameters in SIP, please set by your requirements for there is no need to set them in simple calls. Then you should modify your Channel Settings, “ANALOG -> Channel Settings” to set Sip Account. You can press the button www.openvox.cn...
- Page 4 That’s all. Now the board 1-port 1 phone num is 501, and the board 1-port 2 phone num is 502, you can make calls between 501 and 502. ® Step4. Create Extensions in Elastix Server Don’t forget to create Extensions 501 and 502 on your Elastix server. www.openvox.cn...
- Page 5 QuickStart Guide After that, you can register a soft sip phone with the name “1001” on the Elastix Server , the same method as above. Then you can make calls to 501 or 502 from SIP 1001. www.openvox.cn...
