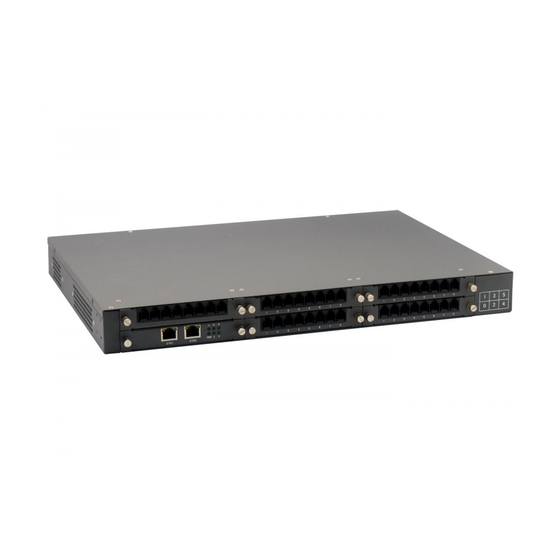

OpenVox VS-GW1600-40S User Manual

Voxstack series analog gateway
Hide thumbs Also See for VS-GW1600-40S:
Table of Contents

Advertisement

Quick Links

Download this manual
VS-GW1600-40S User Manual
Address: F/3, Building 127, Jindi Industrial Zone, Futian District, Shenzhen, Guangdong, China,
518048
Tel: +86-755-82535461, 82535095, 82535362
Fax: +86-755-83823074
Business Contact:
sales@openvox.cn
Technical Support:
support@openvox.com.cn
Business Hours: 09:00-18:00(GMT+8) from Monday to Friday
URL: www.openvox.cn

Advertisement

Table of Contents
loading

Related Manuals for OpenVox VS-GW1600-40S

Summary of Contents for OpenVox VS-GW1600-40S

  • Page 1 VS-GW1600-40S User Manual Address: F/3, Building 127, Jindi Industrial Zone, Futian District, Shenzhen, Guangdong, China, 518048 Tel: +86-755-82535461, 82535095, 82535362 Fax: +86-755-83823074 Business Contact: sales@openvox.cn Technical Support: support@openvox.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn...
  • Page 2 VS-GW1600-40S User Manual Version1.0 (2014-01-22) Full text The overall layout adjustment Version1.1(2014-04-15) Full text OpenVox Communication Co.Ltd...
  • Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.

  • Page 4: Table Of Contents

    VS-GW1600-40S User Manual Table of Contents 1. Overview ..........................1 What is VS-GW1600-40S? Sample Application Product Appearance Main Features Physical Information Software 2. System ........................... 4 Status Time Login Settings General, Tools and Information Language Settings Scheduled Reboot Reboot Tools Information 3.
  • Page 5 VS-GW1600-40S User Manual Batch SIP Endpoint Advanced SIP Settings Networking NAT Settings Advanced: NAT Settings Parsing and Compatibility Security Media 5. Network, Advanced and Logs ....................26 Network Network Settings OpenVPN Settings DDNS Settings Toolkit Advanced Asterisk API Asterisk CLI...

  • Page 6: Overview

    1. Overview What is VS-GW1600-40S? OpenVox VoxStack Series Analog Gateway is an open source asterisk-based Analog VoIP Gateway solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized Gateway. Also secondary development can be completed through AMI (Asterisk Management Interface).

  • Page 7: Sample Application

    VS-GW1600-40S User Manual Sample Application Figure 1-2-1 Topological Graph Analog Cards VS-GW1600-40S Analog Phone Internet SIP Phone Elastix Server 172.16.1.194 Soft SIP Phone Product Appearance The picture below is appearance of Analog Series Gateway. Figure 1-3-1 Product Appearance VS-GW1202-8S VS-GW1600-40S...

  • Page 8: Main Features

    VS-GW1600-40S User Manual Main Features  Modular and VoxStack design ○  Based on Asterisk ○  Editable Asterisk configuration file  Support T.38 fax relay and T.30 fax transparent, can continually fax multiple page  Echo cancellation and Static jitter buffer ...

  • Page 9: System

    VS-GW1600-40S User Manual Please enter the default IP in your browser to scan and configure the module you want. Now we offer you two RJ45 Network ports to access to your gateway on the board, ETH1 and ETH2. You can choose either of them and they are the same.

  • Page 10: Time

    VS-GW1600-40S User Manual Time Table 2-2-1 Description of Time Settings Options Definition System Time Your gateway system time. The world time zone. Please select the one which is the same or Time Zone the closest as your city. POSIX TZ String Posix time zone strings.

  • Page 11: Login Settings

    VS-GW1600-40S User Manual You can set your gateway time Sync from NTP or Sync from Client by pressing different buttons. Login Settings Your gateway doesn't have administration role. All you can do here is to reset what new username and password to manage your gateway. And it has all privileges to operate your gateway. You can modify both your “Web Login Settings”...

  • Page 12: General, Tools And Information

    VS-GW1600-40S User Manual General, Tools and Information Language Settings You can choose different languages for your system. If you want to change language, you can switch “Advanced” on, then “Download” your current language package. After that, you can modify the package with the language you need. Then upload your modified packages, “Choose File”...
  • Page 13 VS-GW1600-40S User Manual Figure 2-4-3 Reboot Prompt If you press “Yes”, your system will reboot and all current calls will be dropped. Asterisk Reboot is the same. Table 2-4-1 Instruction of reboots Options Definition This will turn off your gateway and then turn it back on. This System Reboot will drop all current calls.

  • Page 14: Information

    VS-GW1600-40S User Manual Figure 2-4-6 Factory Reset Information On the “Information” page, there shows some basic information about the analog gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-4-7 System Information 3.

  • Page 15: Dial Matching Table

    VS-GW1600-40S User Manual Figure 3-1-1 Channel System On this page, you can see every port status, and click action button to configure the port. Figure 3-1-2 Port Configure Dial Matching Table Dialing rules is used to effectively judge whether the received number sequence is complete, in...

  • Page 16: Global Settings

    VS-GW1600-40S User Manual order to timely end receiving number and send out number The correct use of dial-up rules, helps to shorten the turn-on time of phone call Figure 3-2-1 Port Configure Global Settings Figure 3-3-1 General Configuration OpenVox Communication Co.Ltd...
  • Page 17 VS-GW1600-40S User Manual Table 3-3-1 Instruction of General Options Definition How long generated tones (DTMF and MF) will be played on the Tone duration channel. (in milliseconds) Dial timeout Specifies the number of seconds we attempt to dial the specified devices.
  • Page 18 VS-GW1600-40S User Manual Waiting time before How long we will waiting before sending the CID on the channel.(in sending CID milliseconds). Sending polarity Send polarity reversal before sending the CID on the channel. reversal(DTMF Only) Start code(DTMF Start code. Only) Stop code(DTMF Stop code.
  • Page 19 VS-GW1600-40S User Manual Enable/disable T.30 ECM (error correction mode) by default. Figure 3-3-5 Country Configuration Table 3-3-5 Definition of Country Options Definition Country Configuration for location specific tone indications. Ring cadence List of durations the physical bell rings. Dial tone Set of tones to be played when one picks up the hook.

  • Page 20: Sip

    VS-GW1600-40S User Manual Set of tones played with special information messages (e.g., number is Info tone out of service.) Stutter tone 4. SIP SIP Endpoints This page shows everything about your SIP, you can see status of each SIP. Figure 4-1-1 SIP Status...
  • Page 21 VS-GW1600-40S User Manual Figure 4-1-2 Anonymous Registration For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-3 Register to Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with...
  • Page 22 VS-GW1600-40S User Manual “None”, except name and password. Figure 4-1-4 Register to Server Table 4-1-1 Definition of SIP Options Options Definition A name which is able to read by human. And it’s only used for user’s Name reference. Username User Name the endpoint will use to authenticate with the gateway.

  • Page 23: Advanced: Registration Options

    VS-GW1600-40S User Manual This sets the possible transport types for outgoing. Order of usage, when the respective transport protocols are enabled, is UDP, TCP, TLS. The first Transport enabled transport type is only used for outbound messages until a Registration takes place. During the peer Registration the transport type may change to another supported type if the peer requests so.

  • Page 24: Call Settings

    VS-GW1600-40S User Manual Call Settings Table 4-1-3 Definition of Call Options Options Definition Set default DTMF Mode for sending DTMF. Default: rfc2833. DTMF Mode Other options: 'info', SIP INFO message (application/dtmf-relay); 'Inband', Inband audio (require 64kbit codec -alaw, ulaw). Call Limit Setting a call-limit will cause calls above the limit not to be accepted.

  • Page 25: Advanced: Timer Settings

    VS-GW1600-40S User Manual By default, the gateway will honor the session version number in SDP packets and will only modify the SDP session if the version number change. Turn this option off to force the gateway to ignore the SDP session Honor SDP Version version number and treat all SDP data as new data.

  • Page 26: Media Settings

    VS-GW1600-40S User Manual Minimum Session Minimum session refresh interval in seconds. Default is 90secs. Refresh Interval Maximum Session Maximum session refresh interval in seconds. Defaults to 1800secs. Refresh Interval Session Refresher The session refresher, uac or uas. Defaults to uas.

  • Page 27: Advanced Sip Settings

    VS-GW1600-40S User Manual Advanced SIP Settings Networking Table 4-3-1 Definition of Networking Options Options Definition UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no). TCP Bind Port Choose a port on which to listen for TCP traffic.

  • Page 28: Advanced: Nat Settings

    VS-GW1600-40S User Manual Format:192.168.0.0/255.255.0.0 or 172.16.0.0./12. A list of IP address or IP ranges which are located inside a NATed network. Local Network This gateway will replace the internal IP address in SIP and SDP messages with the external IP address when a NAT exists between the gateway and other endpoints.

  • Page 29: Security

    VS-GW1600-40S User Manual Table 4-3-4 Instruction of Parsing and Compatibility Options Definition Check header tags, character conversion in URIs, and multiline headers Strict RFC for strict SIP compatibility(default is yes) Interpretation Send Compact Send compact SIP headers Headers Allows you to change the username filed in the SDP owner string.

  • Page 30: Media

    VS-GW1600-40S User Manual Table 4-3-5 Instruction of Security Options Definition Match Auth If available, match user entry using the 'username' field from the Username authentication line instead of the 'from' field. Realm for digest authentication. Realms MUST be globally unique Realm according to RFC 3261.

  • Page 31: Network, Advanced And Logs

    VS-GW1600-40S User Manual Some ISDN links send empty media frames before the call is in ringing or progress state. The SIP channel will then send 183 indicating early media which will be empty - thus users get no ring signal. Setting this to "yes" will...
  • Page 32 VS-GW1600-40S User Manual Figure 5-1-1 LAN Settings Interface Table 5-1-1 Definition of Network Settings Options Definition Interface The name of network interface. OpenVox Communication Co.Ltd...
  • Page 33 VS-GW1600-40S User Manual The method to get IP. Type Factory: Getting IP address by Slot Number (System  information to check slot number). Static: manually set up your gateway IP. DHCP: automatically get IP from your local LAN. Physical address of your network interface.

  • Page 34: Openvpn Settings

    VS-GW1600-40S User Manual OpenVPN Settings You can upload the OpenVPN client configuration, if success, you can see a VPN virtual network card on SYSTEM status page. About the configure format you can refer to the Notice and Sample configuration. Figure 5-1-3 OpenVPN Interface DDNS Settings You can enable or disable DDNS (dynamic domain name server).

  • Page 35: Toolkit

    VS-GW1600-40S User Manual Username Your DDNS account’s login name. Password Your DDNS account’s password. Your domain The domain to which your web server will belong. Toolkit It is used to check network connectivity. Support Ping command on web GUI. Figure 5-1-5 Network Connectivity Checking...
  • Page 36 VS-GW1600-40S User Manual Figure 5-2-1 API Interface Table 5-2-1 Definition of Asterisk API Options Definition Port Network port number Manager Name Name of the manager without space Manager secret Password for the manager. Characters: Allowed characters “-_+.<>&0-9a-zA-Z”. Length:4-32 characters. Deny If you want to deny many hosts or networks, use char &...

  • Page 37: Asterisk Cli

    VS-GW1600-40S User Manual Verbose Verbose information. Read-only. (Defined but not yet used.) Command Permission to run CLI commands. Write-only. Agent Information about queues and agents and ability to add queue members to a queue. User Permission to send and receive UserEvent.

  • Page 38: Asterisk File Editor

    VS-GW1600-40S User Manual Figure 5-2-3 Asterisk Command Interface Table 5-2-2 Definition of Asterisk API Options Definition Command Type your Asterisk CLI commands here to check or debug your gateway. If you type “help” or “?” and execute it, the page will show you the executable commands.

  • Page 39: Logs

    VS-GW1600-40S User Manual Figure 5-2-4 Configuration Files List Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk. Logs On the “Log Settings” page, you should set the related logs on to scan the responding logs page.
  • Page 40 VS-GW1600-40S User Manual Figure 5-3-2 System Logs Output Notice: The same to Asterisk Logs and SIP Logs. Table 5-3-1 Definition of LOG Options Definition System Logs Whether enable or disable system log. Auto clean switch on : (System Logs) when the size of log file reaches the max size, the system will cut a half of the file.
  • Page 41 New logs will be retained. switch off : logs will remain, and the file size will increase gradually. default on, default size=100KB. Thank You for Choosing OpenVox Products! OpenVox Communication Co.Ltd...
