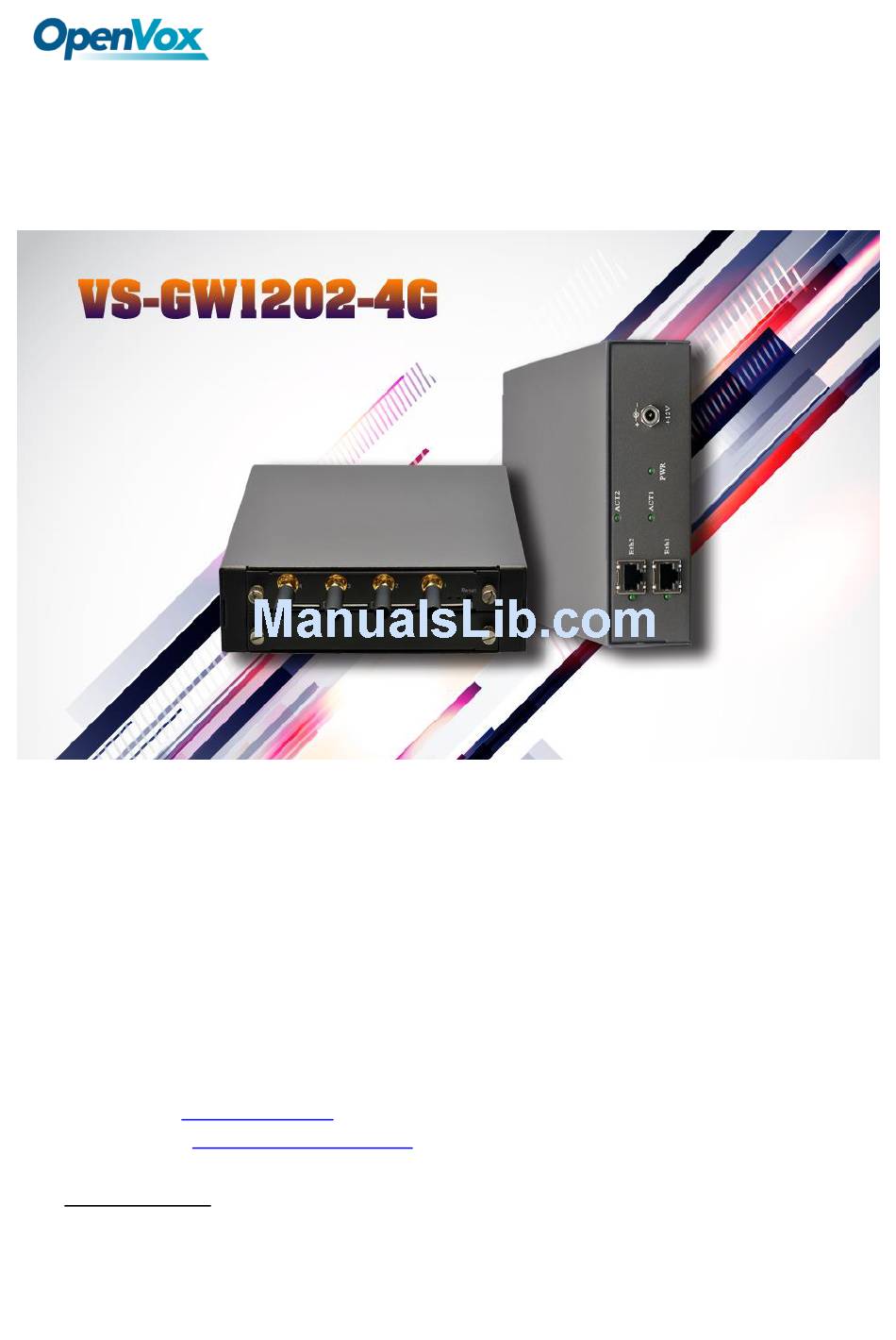

VS-GW1202-4G User Manual
Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District,
Shenzhen, Guangdong,China
518109
Tel: +86-755-82535461, 82535095, 82535362
Fax: +86-755-83823074
Business Contact:
sales@openvox.cn
Technical Support:
support@openvox.com.cn
Business Hours: 09:00-18:00(GMT+8) from Monday to Friday
URL: www.openvox.cn

Advertisement

Table of Contents
loading

Related Manuals for OpenVox VS-GW1202-4G

Summary of Contents for OpenVox VS-GW1202-4G

  • Page 1 VS-GW1202-4G User Manual Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel: +86-755-82535461, 82535095, 82535362 Fax: +86-755-83823074 Business Contact: sales@openvox.cn Technical Support: support@openvox.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn...
  • Page 2 VS-GW1202-4G User Manual Version1.0 (2014-02-08) Full text The overall layout adjustment Version1.1 (2016-04-28) Full text OpenVox Communication Co.Ltd...
  • Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.

  • Page 4: Table Of Contents

    VS-GW1202-4G User Manual Table of Contents 1. Overview............................1 What is VS-GW1202-4G? Sample Application Product Appearance Main Features Physical Information Software 2. System .............................. 7 Status Time Login Settings General and Cluster Language Settings Scheduled Reboot Working Mode Tools and Information...
  • Page 5 VS-GW1202-4G User Manual Advanced: Signaling Settings Advanced: Timer Settings Advanced SIP Settings Networking Advanced: NAT Settings Parsing and Compatibility Security Media Codec Settings 5. Routing............................38 Call Routing Rule Groups 错误!未定义书签。 MNP Settings 6. SMS ..............................43 SMS Settings General...

  • Page 6: Overview

    1. Overview What is VS-GW1202-4G? OpenVox VoxStack Series GSM Gateway is an open source asterisk-based GSM VoIP Gateway solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized Gateway. Also secondary development can be completed through AMI (Asterisk Management Interface).

  • Page 7: Sample Application

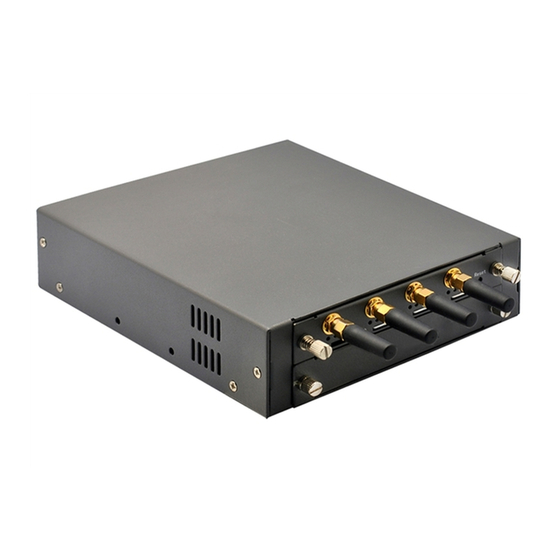

    VS-GW1202-4G User Manual Sample Application Figure 1-2-1 Topological Graph Product Appearance The picture below is appearance of VS-GW1202-4G. Figure 1-3-1 Product Appearance OpenVox Communication Co.Ltd...

  • Page 8: Led Indicator

    VS-GW1202-4G User Manual SIM Slot Reset Reset SIM Card Figure 1-3-2 Front Panel ACT2 ACT1 ETH1 +12V ETH2 Figure 1-3-3 Back Panel ~Network Data Switch Board: ETH1, ETH2. ETH1: Access Board 1 only, provide proxy access to other boards with different port numbers which can avoid IP conflict.

  • Page 9: Main Features

    VS-GW1202-4G User Manual Flash (0.25s) Communicating  Call Status LED Blind Normal  Running Status LED Green and Flash(0.5s) Work Normally  Power Indicator Always Green Supply Power During reset, all LED indicators flash. VoxStack provides 2 working modes: Stand-alone and Cluster.

  • Page 10: Physical Information

    VS-GW1202-4G User Manual  SIM cards and modules are all hot-swap  Stable performance, flexible dialing, friendly GUI Physical Information Table 1-5-1 Description of Physical Information Weight 1300g Size 15cm*19cm*4.5cm Frequency GSM 850/900/1800/1900MHz Temperature -20~70°C (Storage) 0~40°C (Operation) Operation humidity...
  • Page 11 VS-GW1202-4G User Manual Figure 1-6-1 LOG IN Interface OpenVox Communication Co.Ltd...

  • Page 12: System

    VS-GW1202-4G User Manual 2. System Status On the “Status” page, you will find all GSM, SIP, Routing, Network information and status. Figure 2-1-1 System Status Table 2-1-1 Description of System Status Options Definition Port Number of GSM ports. Signal Display the signal strength of in each channels of GSM.

  • Page 13: Time

    VS-GW1202-4G User Manual Post Dial Delay (PDD) is experienced by the originating customer as the time from the sending of the final dialed digit to the point at which they hear ring tone or other in-band information. Where the originating network is required to play an announcement before completing the call then this definition of PDD excludes the duration of such announcements.

  • Page 14: Login Settings

    VS-GW1202-4G User Manual Sync from NTP Sync time from NTP server. Sync from Client Sync time from local machine. For example, you can configure like this: Figure 2-2-1 Time Settings You can set your gateway time Sync from NTP or Sync from Client by pressing different buttons.

  • Page 15: General And Cluster

    VS-GW1202-4G User Manual Allowed characters "-_+. < >&0-9a-zA-Z". Password Length: 4-32 characters. Confirm Please input the same password as 'Password' above. Password Port Specify the web server port number. Figure 2-3-1 Login Settings Notice: Whenever you do some changes, do not forget to save your configuration.

  • Page 16: Scheduled Reboot

    If use your system frequently, you can set this enable, it can helps system work more efficient. Working Mode OpenVox GSM Gateway offers you two ways to cluster your gateway: Automatic Cluster or Manual Cluster. When you first time log in your gateway, you will only see 4 ports of one module. Then you can...
  • Page 17 VS-GW1202-4G User Manual If you want to choose Manual Cluster, you should switch Detail on first. There are five VS-GWM400G modules which are independent with each other integrated in one GSM Gateway, so we offer 3 kinds of Working Modes.

  • Page 18: Tools And Information

    VS-GW1202-4G User Manual Master’s target IP. Master IP(Local IP) Must be set in the subnet different from external subnet, (master mode) so that the external subnet couldn’t access internal subnet. Set the slaves’s original and target IP. The original IP is outward IP, and the Slaves IP List target IP is inward IP.

  • Page 19: Information

    VS-GW1202-4G User Manual Figure 2-5-2 Prompt Information If you want to update your system and remain your previous configuration, you can first backup configuration, then you can upload configuration directly. That will be very convenient for you. Figure 2-5-3 Upload and Download Sometimes there is something wrong with your gateway that you don’t know how to solve it,...
  • Page 20 VS-GW1202-4G User Manual Figure 2-5-5 System Information OpenVox Communication Co.Ltd...

  • Page 21: Gsm

    VS-GW1202-4G User Manual 3. GSM You can see much information about your SIM cards on this page. GSM Settings Figure 3-1-1 GSM System On this page, you can see your GSM module status and click action button to configure the port.
  • Page 22 VS-GW1202-4G User Manual As you see, we have offered “Band” option, you can select different bands easily and you have many options. Figure 3-1-3 Band Binding If you have set your Pin Code, you can check on like this: Figure 3-1-4 PIN Code Application Then input your password, system will identify numbers of SIM cards.

  • Page 23: Imei Modification

    VS-GW1202-4G User Manual IMEI Modification One more feature, we offer you IMEI automatically modification. Figure 3-1-8 Automatically IMEI Modify We have offered you IMEI modification function. If you want to modify your IMEI number, please do as follows. You can log in your gateway and modify IP address as follows. Input web site below on your browser.
  • Page 24 VS-GW1202-4G User Manual Figure 3-1-10 Advanced Settings As you can see, you can set any number you wan for every port. “X” means any digits from 0 to 9. You just need to fill in “Set to All ”, then press “Set to All”, you can see the interface as above. Don’t forget to press “Save”.

  • Page 25: Call Duration Limit Settings

    VS-GW1202-4G User Manual DAC Gain The range is: -42 to +20 ADC Gain The range is: -42 to +20 Dial Prefix The prefix number of outgoing calls from this GSM channel Personal identification numbers of SIM card. PIN code can be modified to PIN Code prevent SIM card from being stolen.
  • Page 26 VS-GW1202-4G User Manual Figure 3-1-13 Call Duration Limitation Settings The same algorithm with single time limitation, the total calling time of this port can’t beyond the product of “Step” and “Call Duration Limitation”. If the duration of a call is less than “Minimum Charging Time”, it will be not included in “Call Duration”.
  • Page 27 VS-GW1202-4G User Manual Figure 3-1-15 Save To Other Ports If you have set like this, you will see many on the Web GUI, you can set whether to check. Notice: When you do some changes, you need to Save and Apply, then “Remain Time” will show as you set.

  • Page 28: Call Forwarding

    VS-GW1202-4G User Manual Table 3-1-2 Description of Call Duration Limit Settings Options Definition Step Step length value range is 1-120 s, step length multiplied by time of single call just said a single call duration time allowed. Enable Single Call Definite maximum call duration for single call.

  • Page 29: Dtmf

    VS-GW1202-4G User Manual Figure 3-2-1 Call Forwarding Notice: Don’t forget to save your settings. Please first press button, then press button.. DTMF You can do some DTMF Detection Settings if you choose “GSM -> DTMF”. Figure 3-3-1 DTMF Detection Settings Notice: If you don’t have special need, you don’t have to modify these settings.

  • Page 30: Toolkit

    VS-GW1202-4G User Manual Twist is where the Row energy is greater.  DTMF Relative Peak Row: The value is the smaller and the detection is easier. If you los t some numbers, you can try to put the value down. The adjustment range is 0.02 at a time.
  • Page 31 VS-GW1202-4G User Manual Enter a known number (like your mobile phone) to check what number it is of the SIM card. Click "Execute", then the gateway will dial to the number Check Number you already input. It only rings for one time and hangs up at once. Not generating telephone charge during this procedure.

  • Page 32: Sip And Routing

    VS-GW1202-4G User Manual 4. SIP and Routing SIP Endpoints This page shows everything about your SIP, you can see status of each SIP. Figure 4-1-1 SIP Status Main Endpoint Settings You can click button to add a new SIP endpoint, and if you want to modify existed endpoints, you can click button.
  • Page 33 VS-GW1202-4G User Manual Figure 4-1-2 Anonymous Registration For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-3 Register to Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except name and password.
  • Page 34 VS-GW1202-4G User Manual Figure 4-1-4 Register to Server Table 4-1-1 Definition of SIP Options Options Definition Name Display name. Username Register name in your SIP server. Password Authenticating with the gateway and characters are allowed. None---Not registering; Endpoint registers with this gateway---When register as this type, it...

  • Page 35: Advanced: Registration Options

    VS-GW1202-4G User Manual No---Use Rport if the remote side says to use it. Force Rport on---Force Rport to always be on. Yes---Force Rport to always be on and perform comedia RTP NAT Traversal handling. Rport if requested and comedia---Use Rport if the remote side says to use it and perform comedia RTP handling.

  • Page 36: Advanced: Signaling Settings

    VS-GW1202-4G User Manual Set default DTMF Mode for sending DTMF. Default: rfc2833. DTMF Mode Other options: 'info', SIP INFO message (application/dtmf-relay); 'Inband', Inband audio (require 64kbit codec -alaw, ulaw). Trust Whether or not the Remote-Party-ID header should be trusted. Remote-Party-ID Send Whether or not to send the Remote-Party-ID header.

  • Page 37: Advanced: Timer Settings

    VS-GW1202-4G User Manual Whether or not to allow 302 or REDIR to non-local SIP address. Allow Promiscuous Note that promiscredir when redirects are made to the local system will Redirects cause loops since this gateway is incapable of performing a "hairpin" call.

  • Page 38: Advanced Sip Settings

    VS-GW1202-4G User Manual Advanced SIP Settings Networking Table 4-2-1 Definition of Networking Options Options Definition UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no). TCP Bind Port Choose a port on which to listen for TCP traffic.

  • Page 39: Advanced: Nat Settings

    VS-GW1202-4G User Manual Local Network List Local IP address list that you added. Through the use of the test_stun_monitor module, the gateway has the ability to detect when the perceived external network address has changed. When the stun_monitor is installed and configured, chan_sip will...

  • Page 40: Parsing And Compatibility

    VS-GW1202-4G User Manual Start of RTP Port Start of range of port numbers to be used for RTP. Range End of RTP port End of range of port numbers to be used for RTP. Range Parsing and Compatibility Table 4-2-3 Instruction of Parsing and Compatibility...

  • Page 41: Security

    VS-GW1202-4G User Manual Registration How often, in seconds, to retry registration calls. Default 20 seconds. Timeout Number of Number of registration attempts before we give up. 0 = continue forever, Registration hammering the other server until it accepts the registration. Default is 0 Attempts Enter '0' tries, continue forever.

  • Page 42: Media

    VS-GW1202-4G User Manual Media Table 4-2-5 Instruction of Media Options Definition Some ISDN links send empty media frames before the call is in ringing or progress state. The SIP channel will then send 183 indicating early media which will be empty - thus users get no ring signal. Setting this to "yes" will...

  • Page 43: Routing

    VS-GW1202-4G User Manual 5. Routing Figure 5-1-1 Routing Rules You are allowed to set up new routing rule by , and after setting routing rules, move rules’ order by pulling up and down, click button to edit the routing and to delete it.
  • Page 44 VS-GW1202-4G User Manual Table 5-1-1 Definition of Routing Options Options Definition The name of this route. Should be used to describe what types of calls this Routing Name route matches (for example, 'SIP2GSM' or 'GSM2SIP'). Call Comes in The launching point of incoming calls.
  • Page 45 VS-GW1202-4G User Manual match pattern: The dialed number will be compared against the prefix + this match pattern. Upon a match, the match pattern portion of the dialed number will be sent to the trunks Caller ID: If Caller ID is supplied, the dialed number will only match the prefix + match pattern if the Caller ID has been transmitted matches this.

  • Page 46: Groups

    VS-GW1202-4G User Manual You set your caller ID name and caller number as you like before sending the call to the endpoint. You can also configure forward number when you have a transfer call. Figure 5-1-5 Change Rules You can add one or more “Failover Call Through Numbers”.

  • Page 47: Mnp Settings 错误!未定义书签

    VS-GW1202-4G User Manual MNP Settings Mobile Number Portability allows switching between mobile phone operators without changing the mobile number. Sounds simple, but there are loads of tasks performed behind the scene at the operator end. The URL is shown in the password string way. So please type the url in other place such a txt file, check it, then copy it to the gateway.

  • Page 48: Sms

    VS-GW1202-4G User Manual 6. SMS SMS Settings General You can choose enable SMS stored and SMS status report or not. But if you want to see your SMS outbox, you should switch SMS Status Report ON. Figure 6-1-1 SMS Settings Sender Options You can change sender options here, include resend, times of resend.

  • Page 49: Sms To E-Mail

    VS-GW1202-4G User Manual SMS to E-mail This is a tool that makes it available for you to email account to transmit the SMS to other email boxes. The following settings realize that received SMS through openvpnvoip@gmail.com transmit to openvpnvoip@yahoo.com.cn, openvpnvoip@hotmail.com support@openvox.cn...

  • Page 50: Sms Control

    VS-GW1202-4G User Manual Other: 163 free × smtp.163.com e-mail Table 6-1-3 Definition of SMS to E-mail Options Definition When you choose on, the following options are available, otherwise, Enable unavailable. Email Address of To set the email address of an available email account.
  • Page 51 VS-GW1202-4G User Manual the gateway and message is case-sensitive. In default, this function is disabled. Figure 6-1-4 SMS Control For example, SMS control password is 123456789 which has nothing to do with the login password, you can send “get info 123456789” to the GSM module’s phone number to get your gateway’s IP information.

  • Page 52: Sms Sender

    VS-GW1202-4G User Manual SMS inbox Auto switch on: clean When the size of the SMS inbox record file reaches the max size, the system will cut a half of the file. New record will be retained. switch off: SMS record will remain, and the file size will increase gradually.

  • Page 53: Sms Inbox

    VS-GW1202-4G User Manual SMS Inbox On this page, you are allowed to scan, delete, clean up, and export each port’s received SMS. Also you are allowed to check messages by port, phone number, time order and message keywords. Figure 6-3-1 SMS Information SMS Outbox You will see your SMS recorder if you have enabled SMS Status Report on this page.

  • Page 54: Network

    VS-GW1202-4G User Manual 7. Network On “Network” page, there are five sub-pages, “LAN Settings”, “DDNS Settings”, and “Toolkit”. LAN Settings There are three types of LAN port IP, Factory, Static and DHCP. Factory is the default type, and it is 172.16.99.1.
  • Page 55 VS-GW1202-4G User Manual Table 7-1-1 Definition of LAN Settings Options Definition Interface The name of network interface. The method to get IP. Type Factory: Getting IP address by Slot Number (System  information to check slot number). Static: manually set up your gateway IP.

  • Page 56: Ddns Settings

    VS-GW1202-4G User Manual Table 7-1-2 Definition of DNS Settings Options Definition DNS Servers A list of DNS IP address. Basically this info is from your local network service provider. DDNS Settings You can enable or disable DDNS (dynamic domain name server).
  • Page 57 VS-GW1202-4G User Manual Figure 7-3-1 Network Connectivity Checking OpenVox Communication Co.Ltd...

  • Page 58: Advanced

    VS-GW1202-4G User Manual 8. Advanced Asterisk API When you make “Enable” switch to “ON”, this page is available. Figure 8-1-1 API Interface Table 8-1-1 Definition of Asterisk API Options Definition Port Network port number Manager Name Name of the manager without space Manager secret Password for the manager.
  • Page 59 VS-GW1202-4G User Manual System General information about the system and ability to run system management commands, <br/>such as Shutdown, Restart, and Reload. Call Information about channels and ability to set information in a running channel. Logging information. Read-only. (Defined but not yet used.) Verbose Verbose information.

  • Page 60: Asterisk Cli

    VS-GW1202-4G User Manual Asterisk CLI In this page, you are allowed to run Asterisk commands. Figure 8-2-1 Asterisk Command Interface Table 8-2-1 Definition of Asterisk API Options Definition Command Type your Asterisk CLI commands here to check or debug your gateway.
  • Page 61 VS-GW1202-4G User Manual Figure 8-3-1 Configuration Files List Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk. OpenVox Communication Co.Ltd...

  • Page 62: Logs

    VS-GW1202-4G User Manual 9. Logs On the “Log Settings” page, you should set the related logs on to scan the responding logs page. For example, set “System Logs” on like the following, then you can turn to “System” page for system logs, otherwise, system logs is unavailable.
  • Page 63 VS-GW1202-4G User Manual Figure 9-1-2 System Logs Output You can choose one specific board to see it related logs. Figure 9-1-3 Choose One Board You can scan your CDR easily on web GUI, and also you can delete, clean up or export your CDR information.
  • Page 64 VS-GW1202-4G User Manual Figure 9-1-4 CDR Output Recently we have made our LOGS display richer, you can see your GSM Outbound of every port clearly. Figure 9-1-5 Time Patterns that will use this Route Table 9-1-1 Definition of Logs Options...
  • Page 65 VS-GW1202-4G User Manual Auto clean: switch on : (System Logs) when the size of log file reaches the max size, the system will cut a half of the file. New logs will be retained.<br> switch off : logs will remain, and the file size will increase gradually.
  • Page 66 VS-GW1202-4G User Manual Auto clean: switch on : (CDR logs) when the size of log file reaches the max size, the system will cut a half of the file. New logs will be retained.<br> switch off : logs will remain, and the file size will increase gradually.

  • Page 67: Appendix Feature List

    VS-GW1202-4G User Manual Appendix Feature List General Info  Wireless port：GSM 850/900/1800/1900MHz  Storage temperature：-20~70℃  Operating temperature：0~40℃  Operating humidity：10％~90％  Power supply specifications：12V DC/2.33A  Maximum power：10W  Support Volume adjustment  Support Gain adjustment  Support CLID display & hide (need operators support) ...

  • Page 68: System Features

    VS-GW1202-4G User Manual  Support add, modify & delete routing  Support unlimited routing rules  Flexible routing settings Business Control  Permit and prohibit certain calls  Extensible automatic callback  Extensible speed dial  Support customizable IVR, DISA and other applications System Features ...
  • Page 69 VS-GW1202-4G User Manual Operation Maintenance  Support SMS remotely controlling gateway  Support Echo cancellation, Jitter buffer  Support gateway boards and SIM hot plug  Reboot settings（According to the running time, specific time）  Update Firmware：HTTP  Support multiple detailed LOG output ...

  • Page 70: Application Diagrams

    VS-GW1202-4G User Manual Application diagrams Thank You for Choosing OpenVox Products! OpenVox Communication Co.Ltd...
