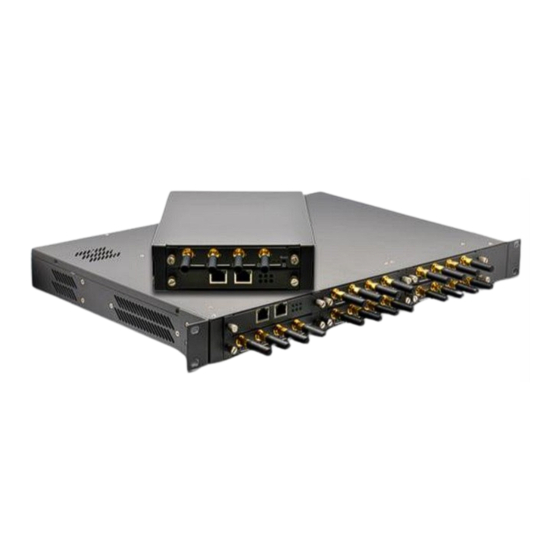

OpenVox VS-GW1600-8G User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VS-GW1600 User Manual
Address: F/3, Building 127, Jindi Industrial Zone, Futian District, Shenzhen, Guangdong, China,
518048
Tel: +86-755-82535461, 82535095, 82535362
Fax: +86-755-83823074
Business Contact:
sales@openvox.cn
Technical Support:
support@openvox.com.cn
Business Hours: 09:00-18:00(GMT+8) from Monday to Friday
URL: www.openvox.cn
http://ArtTel.ru

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-GW1600-8G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OpenVox VS-GW1600-8G

Summary of Contents for OpenVox VS-GW1600-8G

  • Page 1 VS-GW1600 User Manual Address: F/3, Building 127, Jindi Industrial Zone, Futian District, Shenzhen, Guangdong, China, 518048 Tel: +86-755-82535461, 82535095, 82535362 Fax: +86-755-83823074 Business Contact: sales@openvox.cn Technical Support: support@openvox.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn http://ArtTel.ru...
  • Page 2 VS-GW1600 User Manual Version1.0 (2014-02-08) Full text The overall layout adjustment OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.

  • Page 4: Table Of Contents

    Language Settings Scheduled Reboot Working Mode Tools and Information Reboot Tools Information 3. GSM ............................. 15 GSM Settings IMEI Modification Call Duration Limit Settings Call Forwarding DTMF Toolkit 4. SIP ............................26 SIP Endpoints Main Endpoint Settings OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 5 SMS Control SMS Sender SMS Inbox SMS Outbox 7. Network ..........................49 LAN Settings DDNS Settings Toolkit 8. Advanced ..........................52 Asterisk API Asterisk CLI Asterisk File Editor 9. Logs ............................55 Appendix Feature List ....................... 61 OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 6 VS-GW1600 User Manual Application Diagrams ....................... 64 OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 7: Overview

    1. Overview What is VS-GW1600? OpenVox VoxStack Series GSM Gateway is an open source asterisk-based GSM VoIP Gateway solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized Gateway. Also secondary development can be completed through AMI (Asterisk Management Interface).

  • Page 8: Sample Application

    SIPTrunk Internet Soft SIP Elastix Phone Server Telephone SIP Phone SIP Phone Product Appearance The picture below is appearance of VS-GW1600. Figure 1-3-1 Product Appearance Figure 1-3-2 Front Panel Reset Reset Reset ETH1 ETH2 Reset Reset OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 9 Table 1-3-2 LED Indicator LED Indicator Color Status Green and Flash Module Initiating Red and Flash No SIM Card ○ 6 Signal Status LED Red and No-flash Worst Signal Quality Yellow and No-flash Medium Signal Quality OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 10: Main Features

    Support unlimited routing rules and flexible routing settings  SIM cards and modules are all hot-swap  Stable performance, flexible dialing, friendly GUI Physical Information Table 1-5-1 Description of Physical Information Weight 4301g(VS-GW1600-20G) Size 44cm*30cm*4.5cm Frequency GSM 850/900/1800/1900MHz OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 11: Software

    IP conflict. If you choose ETH2, you can access different Boards with different IP addresses. Notice: Log in Figure 1-6-1 LOG IN Interface 2. System Status On the “Status” page, you will find all GSM, SIP, Routing, Network information and status. OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 12 VS-GW1600 User Manual Figure 2-1-1 System Status OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 13 ASR value can vary depending on user behavior. Show the status of port, include blank space and “READY”. Black space GSM Status means it is unavailable here and “Ready” means the port is available. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 14: Time

    Whether enable automatically synchronize from NTP server or not. ON is Auto-Sync from NTP enable, OFF is disable this function. Sync from NTP Sync time from NTP server. Sync from Client Sync time from local machine. For example, you can configure like this: OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 15: Login Settings

    Allowed characters User Name "-_+. < >&0-9a-zA-Z". Length: 1-32 characters. Allowed characters "-_+. < >&0-9a-zA-Z". Password Length: 4-32 characters. Confirm Please input the same password as 'Password' above. Password Port Specify the web server port number. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 16: General And Cluster

    You can choose different languages for your system. If you want to change language, you can switch “Advanced” on, then “Download” your current language package. After that, you can modify the package with the language you need. Then upload your modified packages, “Choose File” and “Add”. Figure 2-4-1 Language Settings OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 17: Scheduled Reboot

    If use your system frequently, you can set this enable, it can helps system work more efficient. Working Mode OpenVox GSM Gateway offers you two ways to cluster your gateway: Automatic Cluster or Manual Cluster. When you first time log in your gateway, you will only see 4 ports of one module. Then you can...
  • Page 18 Set the slaves’s original and target IP. The original IP is outward IP, and the Slaves IP List target IP is inward IP. Up to four slaves. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 19: Tools And Information

    We offer 2 kinds of update types for you, you can choose System Update or System Online Update. System Online Update is an easier way to update your system, if you choose it, you will see some information below. Figure 2-5-2 Prompt Information OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 20: Information

    Figure 2-5-4 Factory Reset Information On the “Information” page, there shows some basic information about the GSM gateway. You can see software and hardware version, storage usage, memory usage and some help information. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 21: Gsm

    VS-GW1600 User Manual Figure 2-5-5 System Information 3. GSM You can see much information about your SIM cards on this page. GSM Settings Figure 3-1-1 GSM Settings OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 22 As you see, we have offered “Band” option, you can select different bands easily and you have many options. Figure 3-1-3 Band Binding If you have set your Pin Code, you can check on like this: OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 23: Imei Modification

    We have offered you IMEI modification function. If you want to modify your IMEI number, please do as follows. You can log in your gateway and modify IP address as follows. Input web site below on your OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 24 We offer you two ways to modify your IMEI. You can choose Autogeneration or Manual. Figure 3-1-10 Advanced Settings As you can see, you can set any number you wan for every port. “X” means any digits from 0 to 9. OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 25 Caller ID restriction, this function is used to hidden caller ID of SIM card CLIR number. The gateway will add ‘#31#’ in front of mobile number. This function must support by Operator. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 26: Call Duration Limit Settings

    Step * Single Call Duration Limitation And if your calling time overtops the value above, the system will hang up this call.  Call Duration Limitation This will limit your total calling time of this port. OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 27 You can set a digit for “Alarm Threshold”, when the call minutes less than this value, the gateway will send alarm info to designated phone. You can enable your Auto Reset, then choose by day, by week, or by month. Figure 3-1-14 Auto Reset Settings You can save your configuration to other ports. OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 28 Notice: When you do some changes, you need to Save and Apply, then “Remain Time” will show as you set. Your calling status will show on the main interface. Figure 3-1-16 GSM Information Table 3-1-2 Description of Call Duration Limit Settings Options Definition OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 29: Call Forwarding

    Call Forwarding. You can choose Call Forwarding Unconditional, Call Forwarding No Reply, Call Forwarding Busy or Call Forwarding on Not Reachable. If want to cancel your call forwarding settings, you can choose Cancel All. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 30: Dtmf

     DTMF Normal Twist and Reverse Twist is the difference in power between the row and column energies. Normal Twist is where the Column energy is greater than the Row energy. Reverse Twist is where the Row energy is greater. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 31: Toolkit

    SIM card. Click "Execute", then the gateway will dial to the number Check Number you already input. It only rings for one time and hangs up at once. Not generating telephone charge during this procedure. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 32: Sip

    If you want to send AT command, first you should input your command, then select certain ports and choose “Copy to Selected”, finally choose “Execute”. Figure 3-4-2 AT Command Example 4. SIP SIP Endpoints This page shows everything about your SIP, you can see status of each SIP. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 33: Main Endpoint Settings

    If you set up a SIP endpoint by registration “None” to a server, then you can’t register other SIP endpoints to this server. (If you add other SIP endpoints, this will cause Out-band Routes and Trunks confused.) OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 34 For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-3 Register to Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except name and password. OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 35 UDP, TCP, TLS. The first Transport enabled transport type is only used for outbound messages until a Registration takes place. During the peer Registration the transport type may change to another supported type if the peer requests so. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 36: Advanced: Registration Options

    The port number the gateway will connect to at this endpoint. Quality Whether or not to check the endpoint's connection status. Qualify Frequency How often, in seconds, to check the endpoint's connection status. Call Settings Table 4-1-3 Definition of Call Options Options Definition OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 37: Advanced: Signaling Settings

    Headers P-Asserted-Identity. Honor SDP Version Whether or not to display Caller ID. Whether or not to globally enable transfers. Choosing 'no' will disable all Allow Transfers transfers (unless enabled in peers or users). Default is enabled. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 38: Advanced: Timer Settings

    Minimum Session Minimum session refresh interval in seconds. Default is 90secs. Refresh Interval Maximum Session Maximum session refresh interval in seconds. Defaults to 1800secs. Refresh Interval Session Refresher The session refresher, uac or uas. Defaults to uas. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 39: Advanced Sip Settings

    IP ranges which are located inside a NATed network. Local Network This gateway will replace the internal IP address in SIP and SDP messages with the external IP address when a NAT exists between the gateway and other endpoints. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 40: Advanced: Nat Settings

    How often to perform a hostname lookup. This can be useful when your Hostname Refresh NAT device lets you choose the port mapping, but the IP address is Interval dynamic. Beware, you might suffer from service disruption when the name server resolution fails. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 41: Parsing And Compatibility

    By default this option is Maximum Maximum allowed time of incoming registrations and subscriptions Registration Expiry (seconds). Minimum Minimum length of registrations/subscriptions (default 60). Registration Expiry Default Default length of incoming/outgoing registration. Registration Expiry OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 42: Security

    Allow or reject guest calls (default is yes, to allow). If your gateway is connected to the Internet and you allow guest calls, you want to check Allow Guest Calling which services you offer everyone out there, by enabling them in the default context. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 43: Media

    TOS for SIP Sets type of service for SIP packets Packets TOS for RTP Sets type of service for RTP packets Packets Codec Settings Select codecs from the list below. Figure 4-2-1 Codec Settings OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 44: Routing

    The figure above realizes that calls from “support” SIP endpoints which you have registered will be transferred to gsm-1. When “Call Comes in From” is gsm, “prepend”, “prefix” and “match pattern” in “Advanced Routing Rule” are ineffective, and just “CallerID” option is available. OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 45 Prefix to remove on a successful match. The dialed number is compared to this and the subsequent columns for a match. Upon a match, this prefix is removed from the dialed number before sending it to the trunks. OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 46 If you configure like this, then from January to March, from the first day to the last day of these months, from Monday to Thursday, from 00:00 to 02:00, during this time(meet all above time conditions), all calls will follow this route. And the time will synchronize with your Sever time. Figure 5-1-4 Time Reference OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 47: Groups

    That would be troublesome. But with our product, you don’t need to worry about it. You can combine many GSM or SIP to groups. Then if you want to make a call, it will find available port automatically. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 48: Mnp Settings

    Sounds simple, but there are loads of tasks performed behind the scene at the operator end. If you have MNP server username and password, you can input it to the corresponding field. Figure 5-3-1 MNP Settings OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 49: Sms

    Table 6-1-1 Description of Sender Options Options Definition Resend Failed The times that you will attempt to resend your failed message. Message Repeat Same The times that you will resend the same message. Message Verbose Verbose level of sending message OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 50: Sms To E-Mail

    Figure 6-1-3 SMS to E-mail Options Table 6-1-2 Types of E-mail Box SMTP Security E-mail Box Type SMTP Server SMTP Port Connectivity Gmail smtp.gmail.com √ HotMail smtp.live.com √ Yahoo! smtp.mail.yahoo.co.in × OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 51 Destination The first email address to receive the inbox message. Email Address1 Destination The second email address to receive the inbox message. Email Address2 Destination The third email address to receive the inbox message. Email Address3 OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 52: Sms Control

    The PASSWORD is referring to the PASSWORD you set up from option “PASSWORD” above. Reboot asterisk PASSWORD: To restart your gateway core. Restore configs PASSWORD: To reset the configuration files back to the default factory settings. Get info PASSWORD: To get your gateway IP address. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 53: Sms Sender

    You can choose one or more ports to send SMS to the destination number, different numbers should be separated by symbols: '\r', '\n', space character, semicolon and comma. Then you can see much feedback information. Figure 6-2-1 SMS Sender Status OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 54: Sms Inbox

    Figure 6-3-1 SMS Information SMS Outbox You will see your SMS recorder if you have enabled SMS Status Report on this page. Figure 6-4-1 SMS Outbox OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 55: Network

    A reserved IP address to access in case your gateway IP is not available. Remember to set a similar network segment with the following address of your local PC. Figure 7-1-1 LAN Settings Interface Table 7-1-1 Definition of LAN Settings Options Definition OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 56 The reserved IP address for this gateway. Reserved Netmask The subnet mask of the reserved IP address. Basically this info is from your local network service provider, and you can fill in four DNS servers. Figure 7-1-2 DNS Interface OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 57: Ddns Settings

    Username Your DDNS account’s login name. Password Your DDNS account’s password. Your domain The domain to which your web server will belong. Toolkit It is used to check network connectivity. Support Ping command on web GUI. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 58: Advanced

    VS-GW1600 User Manual Figure 7-3-1 Network Connectivity Checking 8. Advanced Asterisk API When you make “Enable” switch to “ON”, this page is available. Figure 8-1-1 API Interface OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 59 Permission to originate new calls. Write-only. Select all or deselect all. Once you set like the above figure, the host 172.16.123.123/255.255.0.0 is allowed to access the gateway API. Please refer to the following figure to access the gateway API by putty. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 60: Asterisk Cli

    In this page, you are allowed to run Asterisk commands. Figure 8-2-1 Asterisk Command Interface Table 8-2-1 Definition of Asterisk API Options Definition Command Type your Asterisk CLI commands here to check or debug your gateway. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 61: Asterisk File Editor

    On the “Log Settings” page, you should set the related logs on to scan the responding logs page. For example, set “System Logs” on like the following, then you can turn to “System” page for system logs, otherwise, system logs is unavailable. And the same with other log pages. OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 62 VS-GW1600 User Manual Figure 9-1-1 System Logs Control OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 63 You can choose one specific board to see it related logs. Figure 9-1-3 Choose One Board You can scan your CDR easily on web GUI, and also you can delete, clean up or export your CDR information. OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 64 VS-GW1600 User Manual Figure 9-1-4 CDR Output Recently we have made our LOGS display richer, you can see your GSM Outbound of every port clearly. Figure 9-1-5 Time Patterns that will use this Route OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 65 New logs will be retained. switch off : logs will remain, and the file size will increase gradually. <br> default on, maxsize=100KB. Debug Displaying GSM module AT messages. Commands Logs: OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 66 New logs will be retained.<br> switch off : logs will remain, and the file size will increase gradually. default on, max size=20MB. OpenVox Communication Co.Ltd http://ArtTel.ru...

  • Page 67: Appendix Feature List

     Support protocols：SIP, IAX（easily expand other protocols that Asterisk supports）, TCP, UDP, RTP, TELNET, HTTP, SMTP, POP3 Routing and Number Conversion  Support routing before number changed  Support routing after number changed  Support GSM—>IP routing  Support IP—>GSM routing OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 68 IP conflict ② ETH2: access different Boards with different IP addresses  Network type：Static IP, Dynamic, PPPoE  Support modify username and password for web login  Support ping & traceroute command on the web OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 69  Support gateway boards and SIM hot plug  Reboot settings（According to the running time, specific time）  Update Firmware：HTTP  Support multiple detailed LOG output  Support Restore the factory settings  One Year Warranty OpenVox Communication Co.Ltd http://ArtTel.ru...
  • Page 70 VS-GW1600 User Manual Application Diagrams Thank You for Choosing OpenVox Products! OpenVox Communication Co.Ltd http://ArtTel.ru...
