OpenVox WGW1002 User Manual

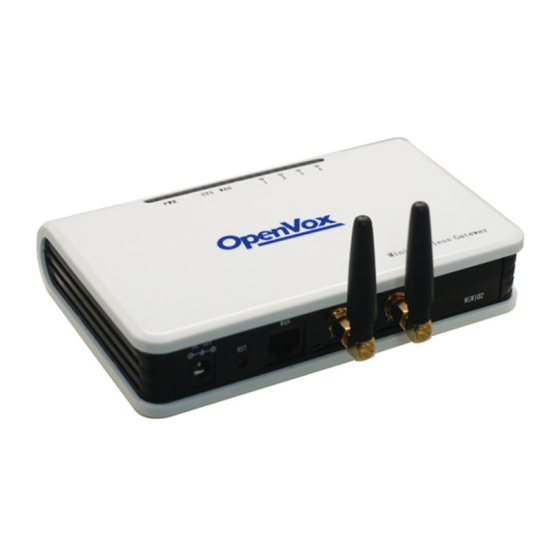

2-channel gsm gateway
Hide thumbs Also See for WGW1002:
Table of Contents

Advertisement

Quick Links

Download this manual

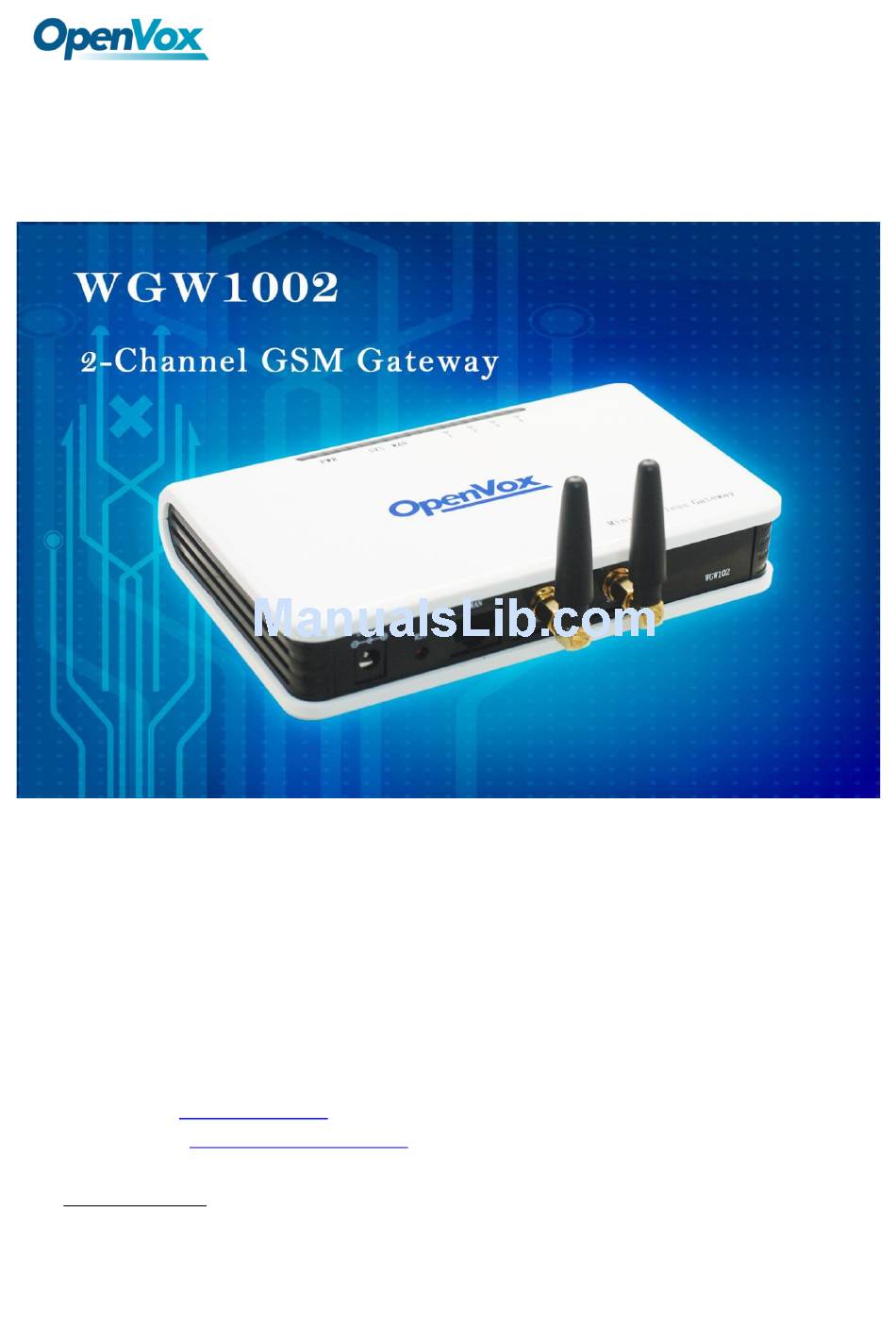

WGW1002 User Manual
Address: F/3, Building 127, Jindi Industrial Zone, Futian District, Shenzhen, Guangdong, China,
518048
Tel: +86-755-82535461, 82535095, 82535362
Fax: +86-755-83823074
Business Contact:
sales@openvox.cn
Technical Support:
support@openvox.com.cn
Business Hours: 09:00-18:00(GMT+8) from Monday to Friday
URL: www.openvox.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WGW1002 and is the answer not in the manual?

Questions and answers

Related Manuals for OpenVox WGW1002

Summary of Contents for OpenVox WGW1002

  • Page 1 WGW1002 User Manual Address: F/3, Building 127, Jindi Industrial Zone, Futian District, Shenzhen, Guangdong, China, 518048 Tel: +86-755-82535461, 82535095, 82535362 Fax: +86-755-83823074 Business Contact: sales@openvox.cn Technical Support: support@openvox.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn...
  • Page 2 WGW1002 User Manual Version1.0 (2014-07-02) Full text The overall layout adjustment OpenVox Communication Co.Ltd...
  • Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.

  • Page 4: Table Of Contents

    WGW1002 User Manual Table of Contents 1. Overview ..........................1 What is WGW1002? Sample Application Product Appearance Main Features Physical Information Software 2. System ........................... 4 Status Time Login Settings General Language Settings Scheduled Reboot Tools and Information Reboot Tools Information 3.
  • Page 5 WGW1002 User Manual Advanced: Registration Options Call Settings Advanced: Signaling Settings Advanced: Timer Settings Advanced SIP Settings Networking Parsing and Compatibility Security Media Codec Settings 5. Routing ..........................33 Call Routing Rule Groups 错误!未定义书签。 MNP Settings 6. SMS ............................36...
  • Page 6 WGW1002 User Manual Log Settings System AT Commands Appendix Feature List ....................... 55 Application diagrams ........................ 57 OpenVox Communication Co.Ltd...

  • Page 7: Overview

    There are three models with VoxStack series GSM Gateway WGW1002, VS-GW1202-8G and VS-GW1600-20G. There are 2 channels in WGW1002 and 4/8 GSM channels in VS-GW1202-8G. The Modular Design GSM Gateways are ranging from 4 up to 20 GSM channels on the VS-GW1600 series gateways, developed for interconnecting the GSM cellular networks with a wide selection of codecs and signaling protocol, including G.711A, G.711U, G.729, G.722, G.723, G.726 and GSM to...

  • Page 8: Sample Application

    WGW1002 User Manual Sample Application Figure 1-2-1 Topological Graph Product Appearance The picture below is appearance of VS-GW1202-8G. Figure 1-3-1 Product Appearance OpenVox Communication Co.Ltd...

  • Page 9: Main Features

    WGW1002 User Manual Main Features ○  Based on Asterisk ○  Editable Asterisk configuration file  Wide selection of codecs and signaling protocol  Support SMS sending, receiving, group sending  Support transferring SMS to E-mail  Support SMS automatically resent ...

  • Page 10: System

    WGW1002 User Manual Password: admin Please enter the default IP in your browser to scan and configure the module. Log in: Figure 1-6-1 LOG IN Interface 2. System Status On the “Status” page, you will find all GSM, SIP, Routing, Network information and status.
  • Page 11 WGW1002 User Manual Figure 2-1-1 System Status Table 2-1-1 Description of System Status Options Definition Port Number of GSM ports. Signal Display the signal strength of in each channels of GSM. Bit Error Rate. Carrier Display the network carrier of current SIM card.

  • Page 12: Time

    WGW1002 User Manual Show the status of port, include blank space and “READY”. Black space GSM Status means it is unavailable here and “Ready” means the port is available. Remain Time This value is multiplied by to step length is a rest call time.

  • Page 13: Login Settings

    WGW1002 User Manual Figure 2-2-1 Time Settings You can set your gateway time Sync from NTP or Sync from Client by pressing different buttons. Login Settings Your gateway doesn't have administration role. All you can do here is to reset what new username and password to manage your gateway.

  • Page 14: General

    WGW1002 User Manual Figure 2-3-1 Login Settings Notice: Whenever you do some changes, do not forget to save your configuration. General Language Settings You can choose different languages for your system. If you want to change language, you can switch “Advanced” on, then “Download” your current language package. After that, you can modify the package with the language you need.

  • Page 15: Scheduled Reboot

    WGW1002 User Manual Scheduled Reboot If switch it on, you can manage your gateway to reboot automatically as you like. There are four reboot types for you to choose, “By Day, By Week, By Month and By Running Time”. Figure 2-4-2 Reboot Types If use your system frequently, you can set this enable, it can helps system work more efficient.
  • Page 16 WGW1002 User Manual This will turn off your gateway and then turn it back on. This System Reboot will drop all current calls. Asterisk Reboot This will restart Asterisk and drop all current calls. We offer 2 kinds of update types to you, so you can choose System Update or System Online Update.

  • Page 17: Information

    WGW1002 User Manual Information On the “Information” page, there shows some basic information about the GSM gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-5-5 System Information 3. GSM You can see much information about your SIM cards on this page.
  • Page 18 WGW1002 User Manual On this page, you can see your GSM module status and click action button to configure the port. Figure 3-1-2 Port Configure As you can see, we have offered “Band” option, you can select different bands easily and you have many options.
  • Page 19 WGW1002 User Manual Figure 3-1-3 Band Binding If you have set your Pin Code, you can check on like this: Figure 3-1-4 PIN Code Application Then input your password, system will identify numbers of SIM cards. It can help to prevent SIM card from being stolen and improve security.

  • Page 20: Imei Modification

    WGW1002 User Manual IMEI Modification One more feature, we offer you IMEI automatically modification. Figure 3-1-8 Automatically IMEI Modify We have offered you IMEI modification function. If you want to modify your IMEI number, please do as follows. You can log in your gateway and modify IP address as follows. Input web site below on your browser: http://172.16.158.1/cgi-bin/php/gsm-autoimei.php.
  • Page 21 WGW1002 User Manual Figure 3-1-10 Advanced Settings As you can see, you can set any number you wan for every port. “X” means any digits from 0 to 9. You just need to fill in “Set to All ”, then press “Set to All”, you can see the interface as above. Don’t forget to press “Save”.

  • Page 22: Call Duration Limit Settings

    WGW1002 User Manual Dial Prefix The prefix number of outgoing calls from this GSM channel Personal identification numbers of SIM card. PIN code can be modified to PIN Code prevent SIM card from being stolen. Custom AT User custom AT commands when start system, use “|” to split AT commads when command.
  • Page 23 WGW1002 User Manual  Call Duration Limitation This will limit your total calling time of this port. Figure 3-1-13 Call Duration Limitation Settings The same algorithm with single time limitation, the total calling time of this port can’t beyond the product of “Step”...
  • Page 24 WGW1002 User Manual Figure 3-1-15 Save To Other Ports If you have set like this, you will see many on the Web GUI, you can set whether to check. Notice: When you do some changes, you need to press “Save” and “Apply”, then “Remain Time”...

  • Page 25: Advanced

    WGW1002 User Manual Call Duration The value of limitation single call, this value range is 1-65535. Step Limitation length multiplied by time of single call just said a single call duration time allowed. Minimum Charging A single call over this time, GSM side of the operators began to Time collect fees, unit for seconds.

  • Page 26: Call Forwarding

    WGW1002 User Manual Call Forwarding Sometimes it’s not convenient for you to answer a call, if you don’t want to lose some important calls, you can choose Call Forwarding. You can choose Call Forwarding Unconditional, Call Forwarding No Reply, Call Forwarding Busy or Call Forwarding on Not Reachable.

  • Page 27: Toolkit

    WGW1002 User Manual Notice: If you don’t have special need, you don’t have to modify these settings. You can just choose “Default”.  DTMF Normal Twist and Reverse Twist is the difference in power between the row and column energies. Normal Twist is where the Column energy is greater than the Row energy. Reverse Twist is where the Row energy is greater.

  • Page 28: Sip And Routing

    WGW1002 User Manual Enter a specific USSD number (For example,*142# to check your SIM card's balance. This USSD number is might be different from different carriers) to Get USSD get the USSD information. The gateway will try to get by AT commands.

  • Page 29: Main Endpoint Settings

    WGW1002 User Manual Main Endpoint Settings You can click button to add a new SIP endpoint, and if you want to modify existed endpoints, you can click button. There are 3 kinds of registration types for choose. You can choose Anonymous, Endpoint registers with this gateway or This gateway registers with the endpoint.
  • Page 30 WGW1002 User Manual Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except name and password. Figure 4-1-4 Register to Server Table 4-1-1 Definition of SIP Options Options Definition Name Display name.

  • Page 31: Advanced: Registration Options

    WGW1002 User Manual No---Use Rport if the remote side says to use it. Force Rport on---Force Rport to always be on. Yes---Force Rport to always be on and perform comedia RTP NAT Traversal handling. Rport if requested and comedia---Use Rport if the remote side says to use it and perform comedia RTP handling.

  • Page 32: Advanced: Signaling Settings

    WGW1002 User Manual Set default DTMF Mode for sending DTMF. Default: rfc2833. DTMF Mode Other options: 'info', SIP INFO message (application/dtmf-relay); 'Inband', Inband audio (require 64kbit codec -alaw, ulaw). Trust Whether or not the Remote-Party-ID header should be trusted. Remote-Party-ID Send Whether or not to send the Remote-Party-ID header.

  • Page 33: Advanced: Timer Settings

    WGW1002 User Manual Whether or not to allow 302 or REDIR to non-local SIP address. Allow Promiscuous Note that promiscredir when redirects are made to the local system will Redirects cause loops since this gateway is incapable of performing a "hairpin" call.

  • Page 34: Advanced Sip Settings

    WGW1002 User Manual Advanced SIP Settings Networking General Table 4-2-1 Definition of Networking General Options Options Definition UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no).

  • Page 35: Nat Settings

    WGW1002 User Manual NAT Settings Table 4-2-2 Definition of NAT Settings Options Options Definition Format:192.168.0.0/255.255.0.0 or 172.16.0.0./12. A list of IP address or IP ranges which are located inside a NATed network. Local Network This gateway will replace the internal IP address in SIP and SDP messages with the external IP address when a NAT exists between the gateway and other endpoints.

  • Page 36: Parsing And Compatibility

    WGW1002 User Manual How often to perform a hostname lookup. This can be useful when your Hostname Refresh NAT device lets you choose the port mapping, but the IP address is Interval dynamic. Beware, you might suffer from service disruption when the name server resolution fails.

  • Page 37: Security

    WGW1002 User Manual Default Default length of incoming/outgoing registration. Registration Expiry Registration How often, in seconds, to retry registration calls. Default 20 seconds. Timeout Number of Number of registration attempts before we give up. 0 = continue forever, Registration hammering the other server until it accepts the registration. Default is 0 Attempts Enter '0' tries, continue forever.

  • Page 38: Media

    WGW1002 User Manual Media Table 4-2-5 Instruction of Media Options Definition Some ISDN links send empty media frames before the call is in ringing or progress state. The SIP channel will then send 183 indicating early media which will be empty - thus users get no ring signal. Setting this to "yes" will...

  • Page 39: Routing

    WGW1002 User Manual 5. Routing Figure 5-1-1 Routing Rules You are allowed to set up new routing rule by , and after setting routing rules, move rules’ order by pulling up and down, click button to edit the routing and to delete it.
  • Page 40 WGW1002 User Manual Table 5-1-1 Definition of Routing Options Options Definition The name of this route. Should be used to describe what types of calls this Routing Name route matches (for example, 'SIP2GSM' or 'GSM2SIP'). Call Comes in The launching point of incoming calls.
  • Page 41 WGW1002 User Manual Set the Caller ID What caller ID name would you like to set before sending this call to the Name to endpoint. Set the Caller ID What caller number would you like to set before sending this call to the Number to endpoint.

  • Page 42: Groups

    WGW1002 User Manual You can add one or more “Failover Call Through Numbers”. Figure 5-1-6 Failover Call Through Number Groups Sometimes you want to make a call through one port, but you don’t know if it is available, so you have to check which port is free.

  • Page 43: Sms

    WGW1002 User Manual https://s1.bichara.com.br:8181/chkporta.php?user=832700&pwd=sdsfdg&tn=${num }. Figure 5-3-1 MNP Settings 6. SMS SMS Settings General You can choose enable SMS stored and SMS status report or not. But if you want to see your SMS outbox, you should switch SMS Status Report ON.

  • Page 44: Sms To E-Mail

    WGW1002 User Manual Table 6-1-1 Description of Sender Options Options Definition Resend Failed The times that you will attempt to resend your failed message. Message Repeat Same The times that you will resend the same message. Message Verbose Verbose level of sending message...
  • Page 45 WGW1002 User Manual Table 6-1-2 Types of E-mail Box SMTP Security E-mail Box Type SMTP Server SMTP Port Connectivity Gmail smtp.gmail.com √ HotMail smtp.live.com √ Yahoo! smtp.mail.yahoo.co.in × Other: 163 free × smtp.163.com e-mail Table 6-1-3 Definition of SMS to E-mail...

  • Page 46: Sms Control

    WGW1002 User Manual Destination The third email address to receive the inbox message. Email Address3 SMS Control Allowing endpoints to send some specific KEY WORDS and corresponding PASSWORD to operate the gateway and message is case-sensitive. In default, this function is disabled.

  • Page 47: Http To Sms

    WGW1002 User Manual SMS Format For example, the message formats: reboot system PASSWORD: To reboot your whole gateway. The PASSWORD is referring to the PASSWORD you set up from option “PASSWORD” above. Reboot asterisk PASSWORD: To restart your gateway core.

  • Page 48: Sms Sender

    WGW1002 User Manual SMS Sender You can choose one or more ports to send SMS to the destination number, different numbers should be separated by symbols: '\r', '\n', space character, semicolon and comma. Then you can see much feedback information.

  • Page 49: Sms Outbox

    WGW1002 User Manual Figure 6-3-1 SMS Information SMS Outbox You will see your SMS recorder if you have enabled SMS Status Report on this page. Figure 6-4-1 SMS Outbox 7. Network On “Network” page, there are five sub-pages, “LAN Settings”, “DDNS Settings”, and “Toolkit”.
  • Page 50 WGW1002 User Manual Figure 7-1-1 LAN Settings Interface Table 7-1-1 Definition of LAN Settings Options Definition Interface The name of network interface. The method to get IP. Type Factory: Getting IP address by Slot Number (System  information to check slot number).

  • Page 51: Ddns Settings

    WGW1002 User Manual Network The subnet mask of your gateway. Default Gateway Default getaway IP address. Reserved Access IP A reserved IP address to access in case your gateway IP is not available. Remember to set a similar network segment with the following address of your local PC.

  • Page 52: Toolkit

    WGW1002 User Manual Figure 7-2-1 DDNS Interface Table 7-2-1 Definition of DDNS Settings Options Definition DDNS Enable/Disable DDNS(dynamic domain name server) Type Set the type of DDNS server. Username Your DDNS account’s login name. Password Your DDNS account’s password. Your domain The domain to which your web server will belong.

  • Page 53: Advanced

    WGW1002 User Manual 8. Advanced Asterisk API When you make “Enable” switch to “ON”, this page is available. Figure 8-1-1 API Interface Table 8-1-1 Definition of Asterisk API Options Definition Port Network port number Manager Name Name of the manager without space Manager secret Password for the manager.
  • Page 54 WGW1002 User Manual System General information about the system and ability to run system management commands, <br/>such as Shutdown, Restart, and Reload. Call Information about channels and ability to set information in a running channel. Logging information. Read-only. (Defined but not yet used.) Verbose Verbose information.

  • Page 55: Asterisk Cli

    WGW1002 User Manual Asterisk CLI In this page, you are allowed to run Asterisk commands. Figure 8-2-1 Asterisk Command Interface Table 8-2-1 Definition of Asterisk API Options Definition Command Type your Asterisk CLI commands here to check or debug your gateway.

  • Page 56: Logs

    WGW1002 User Manual Figure 8-3-1 Configuration Files List Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk. 9. Logs On the “Log Settings” page, you should set the related logs on to scan the responding logs page.
  • Page 57 WGW1002 User Manual Figure 9-1-1 System Logs Control System OpenVox Communication Co.Ltd...
  • Page 58 WGW1002 User Manual Figure 9-1-2 System Logs AT Commands Figure 9-1-2 System Logs You can scan your CDR easily on web GUI, and also you can delete, clean up or export your CDR information. OpenVox Communication Co.Ltd...
  • Page 59 WGW1002 User Manual Figure 9-1-4 CDR Output Recently we have made our LOGS display richer, you can see your GSM Outbound of every port clearly on the Statistics page. Figure 9-1-5 Time Patterns that will use this Route Table 9-1-1 Definition of Logs...
  • Page 60 WGW1002 User Manual Warning: Asterisk console warning message switch. Debug: Asterisk console debug message switch. Error: Asterisk console error message switch. DTMF: Asterisk console DTMF info switch. Auto clean: switch on : (asterisk logs) when the size of log file reaches the max size, the system will cut a half of the file.

  • Page 61: Sip Features

    WGW1002 User Manual Appendix Feature List General Info  Wireless port：GSM 850/900/1800/1900MHz  Storage temperature：-20~70℃  Operating temperature：0~40℃  Operating humidity：10％~90％  Power supply specifications：12V DC/2.33A  Maximum power：6W  Support Volume adjustment  Support Gain adjustment  Support CLID display & hide (need operators support) ...

  • Page 62: System Features

    WGW1002 User Manual  Support unlimited routing rules  Flexible routing settings Business Control  Permit and prohibit certain calls  Extensible automatic callback  Extensible speed dial  Support customizable IVR, DISA and other applications System Features  Simple and convenient configuration via Web GUI ...
  • Page 63 WGW1002 User Manual Application diagrams Thank You for Choosing OpenVox Products! OpenVox Communication Co.Ltd...
