Summary of Contents for Wenglor OPT2145

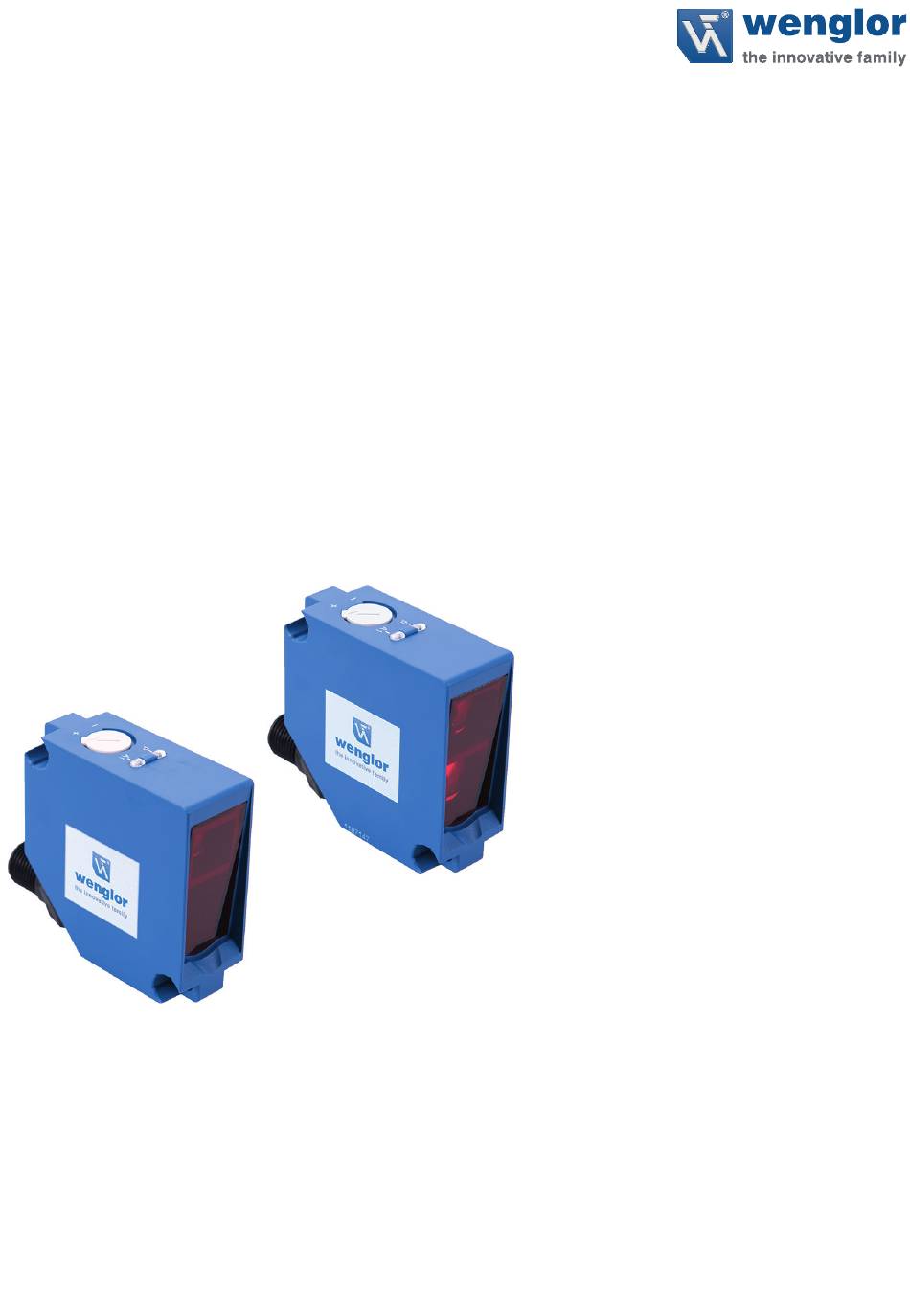

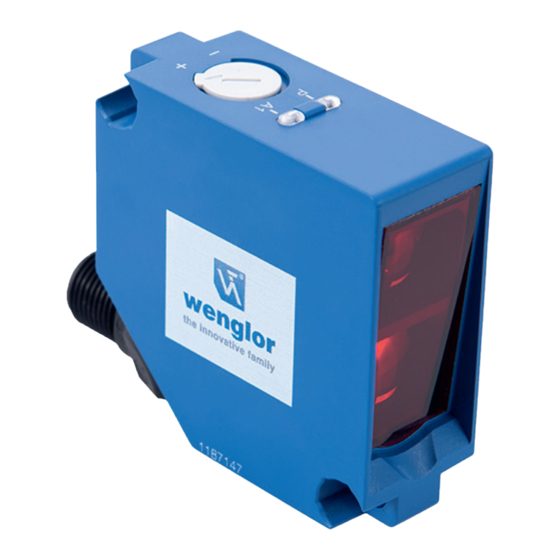

- Page 1 OPT2145 – OPT2158 Reflex Sensors with Background Suppression Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.0.0 Status: 19.09.2019 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ...........................3 1.1 Information Concerning these Instructions ..................... 3 1.2 Explanations of Symbols ......................... 3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose .................... -
Page 3: General
1. General 1.1 Information Concerning these Instructions • These instructions apply to the products with ID code OPT21xx. • They make it possible to use the product safely and efficiently. • These instructions are an integral part of the product and must be kept on hand for the entire duration of its service life. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
2.3 Personnel Qualifications • Suitable technical training is a prerequisite. • In-house electronics training is required. • Trained personnel must have uninterrupted access to the operating instructions. DANGER! Risk of personal injury or property damage in case of incorrect initial start-up and maintenance! Personal injury and damage to equipment may occur. -
Page 7: Technical Data
3. Technical Data Optical Data Service life (ambient temp. = +25 °C) 100000 h Max. permissible ambient light 10000 Lux Electrical Data Supply power 15…30 V DC IO-Link supply voltage 18…30 V DC Temperature range −40…60 °C Switching output voltage drop <... -
Page 8: Spot Diameter
3.1 Spot Diameter Range 50 mm 100 mm 200 mm Spot diameter 7 mm 7 mm 5 mm Table 1 Range 60 mm 250 mm 500 mm Spot diameter 11 mm 13 mm 15 mm Table 2 Range 100 mm 600 mm 1200 mm Spot diameter... -
Page 9: Layout
3.3 Layout OPT2147, OPT2148, OPT2149, OPT2150, OPT2157, OPT2158 OPT2153, OPT2154 = Emitter diode = Receiving diode Screw M4 = 0,5 Nm Potentiometer = 40 Nmm Dimensions specified in mm (1 mm = 0,03937 Inch) Reflex Sensors with Background Suppression... -
Page 10: Control Panel
3.4 Control Panel 05 = switching distance adjuster 30 = switching status indicator / contamination warning 68 = supply power indicator 3.5 Scope of Delivery • Sensor • Safety precautions • BEF-SET-14 • Spacer sleeves Z1PE002 Technical Data... -
Page 11: Transport And Storage
4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. Then return the device, making reference to damage in transit. -
Page 12: Electrical Connection
5.2 Electrical Connection Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Encoder A Supply Voltage 0 V Test Input Encoder B Supply Voltage (AC Voltage) Test Input inverted Digital output MIN Switching Output (NO) Trigger Input Switching Output... -
Page 13: Diagnostics
5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination Contamination Carefully clean the optic cover with a cloth. Continuous blinking Aged emitter diode Replace the sensor. at approx. 2.5 Hz • Increase the sensor’s switching distance. Unreliable working range •... -
Page 14: Settings
Required action in case of fault: NOTE! • Shut down the machine. • Analyze and eliminate the cause of error with the help of the diagnostics information. • If the error cannot be eliminated, please contact AutomationDirect’s support department. • Do not operate in case of indeterminate malfunctioning. •... -
Page 15: Maintenance Instructions
• Do not clean the sensor with solvents or cleansers which could damage the product. • The product must be protected against contamination during initial start-up. 9. Proper Disposal wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. 10. Appendix 10.1 List of Abbreviations...
