Summary of Contents for Wenglor OPT2168

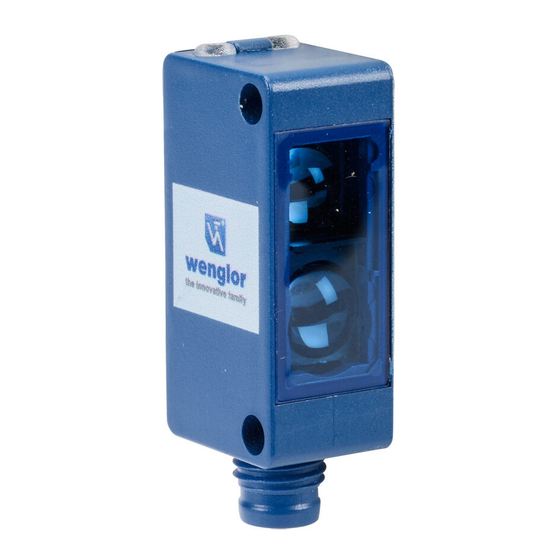

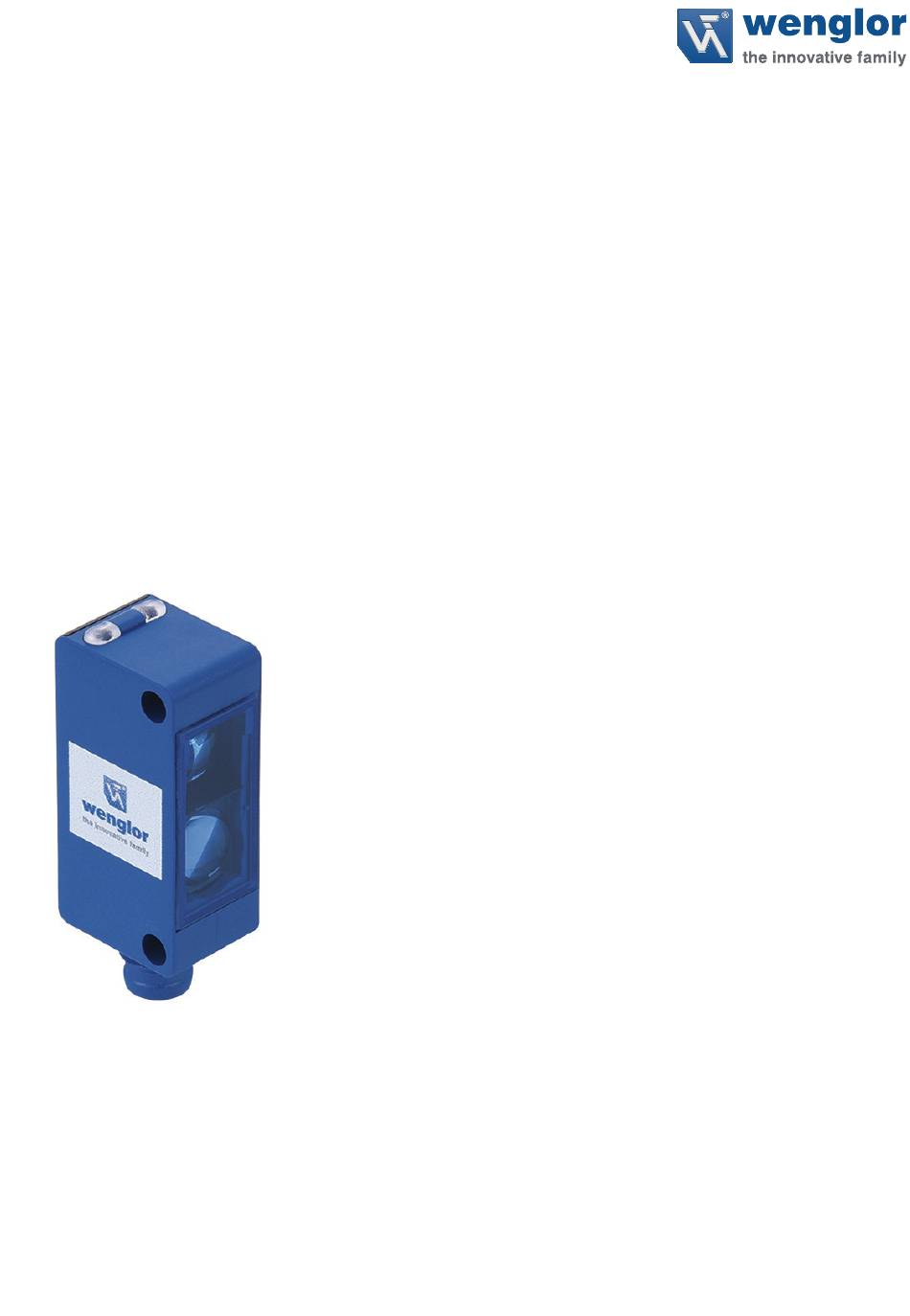

- Page 1 OPT2168 OPT2169 Reflex Sensors with Background Suppression Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.0.0 Status: 16.11.2020 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ...........................3 1.1 Information Concerning these Instructions ..................... 3 1.2 Explanations of Symbols ......................... 3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose .................... -
Page 3: General
1. General 1.1 Information Concerning these Instructions • These instructions apply to the products with ID codes OPT2168 and OPT2169. • They make it possible to use the product safely and efficiently. • These instructions are an integral part of the product and must be kept on hand for the entire duration of its service life. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.automationdirect.com on the product detail page. -
Page 6: Personnel Qualifications
2.3 Personnel Qualifications • Suitable technical training is a prerequisite. • In-house electronics training is required. • Trained personnel must have uninterrupted access to the operating instructions. DANGER! Risk of personal injury or property damage in case of incorrect initial start-up and maintenance! Personal injury and damage to equipment may occur. -
Page 7: Approvals And Protection Class
2.7 Approvals and protection class RoHS 3. Technical Data 3.1 Technical Data Optical Data Service life (ambient temp. = +25 °C) 100000 h Max. permissible ambient light 10000 Lux Electrical Data Supply power 10…30 V DC IO-Link supply voltage 18…30 V DC −40…60 °C Switching output voltage drop <... -
Page 8: Spot Diameter
Order Number Technical Data OPT2168 OPT2169 Range 150 mm Adjustable Range 30...150 mm Switching Hysteresis <10 % Light Source Blue Light Laser Class (EN 60825-1) — Spot Diameter see Table 1 Current consumption < 20 mA Switching frequency Response time... -
Page 9: Switching Distance Deviation
P1KH BLUE Sr/mm Sr = Switching Distance dSr = Switching Distance Change Black 6 % remission Grey 18 % remission 3.2 Layout OPT2168, OPT2169 = Emitter diode = Receiving diode Screw M3 = 0,5 Nm Potentiometer = 40 Nmm... -
Page 10: Control Panel
3.3 Control Panel 05 = switching distance adjuster 30 = switching status indicator / contamination warning 68 = supply power indicator 3.4 Scope of Delivery • Sensor • Safety precautions • Laser warning label (for Class 2) • Mounting-Set 01 Technical Data... -
Page 11: Transport And Storage
4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. Then return the device, making reference to damage in transit. -
Page 12: Installation And Electrical Connection
5. Installation and Electrical Connection 5.1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •... -
Page 13: Electrical Connection
5.2 Electrical Connection Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Encoder A Supply Voltage 0 V Test Input Encoder B Supply Voltage (AC Voltage) Test Input inverted Digital output MIN Switching Output (NO) Trigger Input Switching Output... -
Page 14: Diagnostics
5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination Contamination Carefully clean the optic cover with a cloth. Continuous blinking Aged emitter diode Replace the sensor. at approx. 2.5 Hz • Increase the sensor’s switching distance. Unreliable working range •... -
Page 15: Settings
Required action in case of fault: NOTE! • Shut down the machine. • Analyze and eliminate the cause of error with the help of the diagnostics information. • If the error cannot be eliminated, please contact AutomationDirect’s support department. • Do not operate in case of indeterminate malfunctioning. •... -
Page 16: Maintenance Instructions
• Do not clean the sensor with solvents or cleansers which could damage the product. • The product must be protected against contamination during initial start-up. 9. Proper Disposal wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. 10. Appendix 10.1 List of Abbreviations...
