Summary of Contents for Wenglor OPT2170

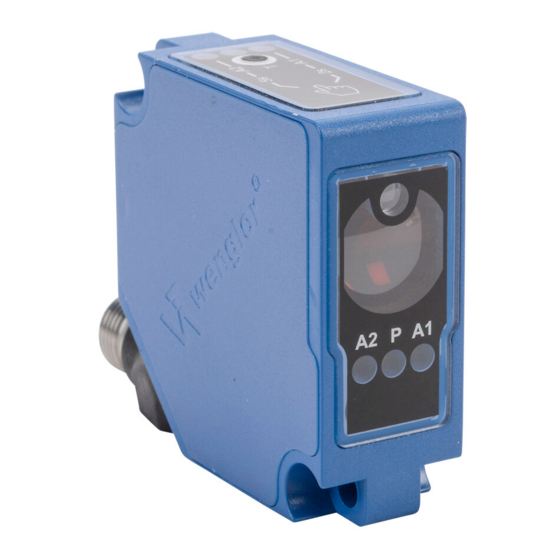

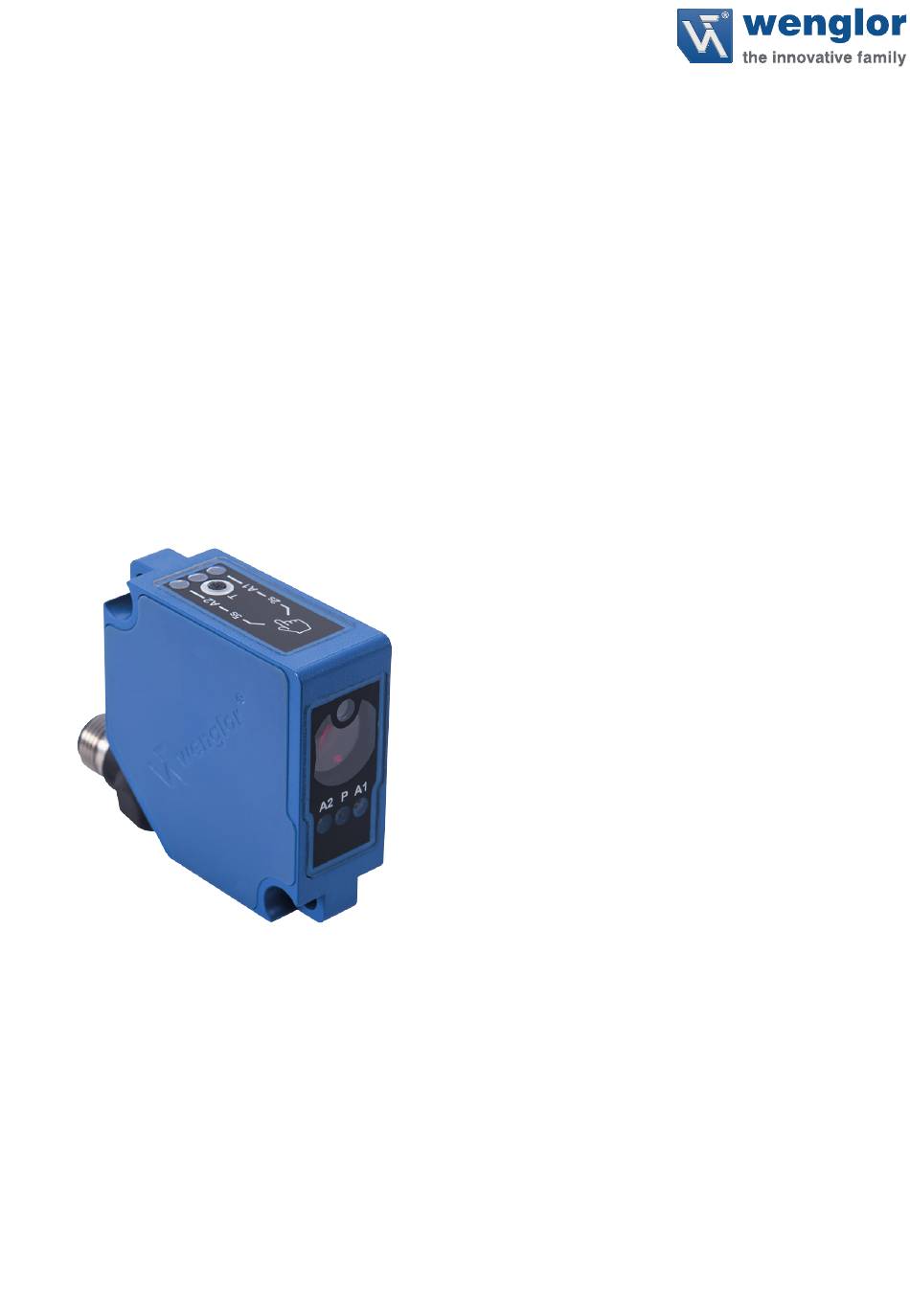

  • Page 1 OPT2170 OPT2171 High-Performance Distance Sensors Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.0.0 Status: 16.11.2020 www.wenglor.com...
  • Page 2: Table Of Contents

    Table of Contents 1. General ...........................3 1.1 Information Concerning these Instructions ..................... 3 1.2 Explanations of Symbols ......................... 3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose ....................
  • Page 3: General

    1. General 1.1 Information Concerning these Instructions • These instructions apply to the product with ID codes OPT2170 and OPT2171. • They make it possible to use the product safely and efficiently. • These instructions are an integral part of the product and must be kept on hand for the entire duration of its service life.
  • Page 4: Limitation Of Liability

    • wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instruc- tions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instruc- tions were prepared.
  • Page 5: For Your Safety

    • The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.automationdirect.com on the product detail page.
  • Page 6: Personnel Qualifications

    2.3 Personnel Qualifications • Suitable technical training is a prerequisite. • In-house electronics training is required. • Trained personnel must have uninterrupted access to the operating instructions. DANGER! Risk of personal injury or property damage in case of incorrect initial start-up and maintenance! Personal injury and damage to equipment may occur.
  • Page 7: Technical Data

    Housing material Plastic Lens cover PMMA Degree of protection IP68 Technical Safety Data MTTFd (EN ISO 13849-1) 949,92 a Order No. Technical Data OPT2170 OPT2171 Mounting technology no. Connection M12×1; 5-pin M12×1; 5-pin PNP NC, PNP NO × — Output function NPN NC, NPN NO —...
  • Page 8: Spot Diameter

    3.1 Spot diameter Working distance Spot diameter 5 mm 9 mm Table 1 3.2 Switching Distance Deviation Typical characteristic curve based on Kodak white (90% remission). P1PY 10,0 -2,5 -5,0 -7,5 1000 1500 2000 2500 3000 Sr/mm Sr = switching distance dSr = change in switching distance Black, 6 % remission Gray, 18 % remission...
  • Page 9: Layout

    3.3 Layout OPT2170, OPT2171 1 = receiver diode 2 = emitter diode M4 screw = 0,5 Nm Dimensions specified in mm (1 mm = 0.03937”) 3.4 Control Panel 06 = teach-in key 5a = switching status display, A1 6a = switching status display, A2...
  • Page 10: Scope Of Delivery

    3.5 Scope of Delivery • Sensor • Commissioning Instructions • Mounting-Set 14 • Mounting-Set 44 4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage.
  • Page 11: Installation And Electrical Connection

    5. Installation and Electrical Connection 5.1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •...
  • Page 12: Diagnostics

    Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Encoder A Supply Voltage 0 V Test Input Encoder B Supply Voltage (AC Voltage) Test Input inverted Digital output MIN Switching Output (NO) Trigger Input Switching Output (NC) Digital output MAX...
  • Page 13 Contamination Warning Flowcharts Transmit Time Sensor no contamination Object Object Object Object not detected detected not detected Switching Status Indicator beginning contamination Object Object Object Object not detected detected not detected Switching Status blinking Indicator advanced contamination Object Object Object not detected not detected not detected...
  • Page 14: Settings

    6. Settings The switching distance to the object can be taught in for both outputs by pressing the teach-in key on the sensor (foreground teach-in). Sensor Teach-in distance Object Switching point Foreground Teach-In for Switching Output 1 1. Mount the sensor in accordance with the mounting instructions. 2.
  • Page 15: Settings Via Io-Link

    7. Settings via IO-Link Further settings can be entered to the sensor via the IO-Link interface. In addition to foreground teach-in (default setting), there’s also a background teach-in option for both outputs. Additionally, there’s also a window teach-in option for both outputs. Process and parameters data, as well as the interface protocol and the IODD, can be found at www.automationdirect.com in the product’s separate download area.
  • Page 16: Locking

    7.3 Locking If 18 to 30 V DC is continuously applied to the teach-in input, the teach-in key is locked and protected against inadvertent changes. 1. Change the A1/A2/E3 pin function to external teach-in. 2. Permanently connect pin A1/A2/E3 to voltage within a range of 18 to 30 V DC. 3.
  • Page 17: Test Mode

    • Do not clean the sensor with solvents or cleansers which could damage the product. • The product must be protected against contamination during initial start-up. 9. Proper Disposal wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. 10. Appendix 10.1 List of Abbreviations...

This manual is also suitable for:

Opt2171
