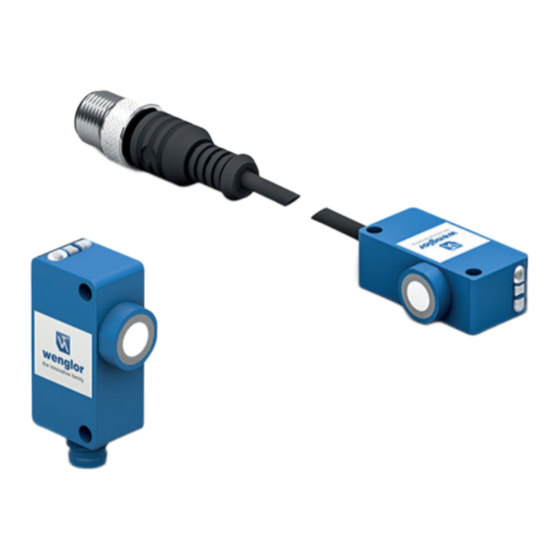

- Page 1 OPT2200/OPT2201/ OPT2202 Ultrasonic Reflex Sensor IO-Link Operating instructions Translation of the Original Operating Instruction Right of modifications reserved Available as PDF version only Version 1.0.0 Status: 03.11.2022 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents General .............................3 1.1 General Information Concerning these Instructions ................3 1.2 Explanations of Symbols ........................3 1.3 Limitation of Liability ..........................4 1.4 Copyrights .............................. 4 For Your Safety........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose ....................5 2.3 Personnel Qualifications ........................ -
Page 3: General
1. General 1.1 General Information Concerning these Instructions • These instructions are valid for the products OPT2200, OPT2201 and OPT2202. • They make it possible to use the product safely and efficiently. • These instructions are an integral part of the product and must be kept on hand for the entire duration of its service life. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.automationdirect.com on the product detail page. -
Page 6: Personnel Qualifications
2.3 Personnel Qualifications • Suitable technical training is a prerequisite. • In-house electronics training is required. • Trained personnel who use the product must have uninterrupted access to the operating instructions. DANGER! Risk of personal injury or property damage in case of incorrect initial start-up and maintenance! Personal injury and damage to equipment may occur. -
Page 7: Technical Data
3. Technical Data Order No. OPT2200 OPT2202 OPT2201 Technical Data Ultrasound Data Working Range, Reflex Sensor 30…400 mm Working Range, Through-Beam Sensor 1…800 mm Setting Range Reflex Sensor 30…400 mm Reproducibility 4 mm Linearity Deviation 4 mm Resolution 0,5 mm... - Page 8 Order No. OPT2200 OPT2202 OPT2201 Technical Data Output functions PNP NO yes (Default Settings) NPN NO (Default Settings) IO-Link Technical Data...
- Page 9 Reflex Mode Filter value Switching Frequency (Hz) Response Time (ms) 20,4 23,8 27,2 30,6 37,4 40,8 44,2 47,6 54,4 57,8 57,8 57,8 57,8 1.000 2.000 0,15 3.000 Through-Beam Mode Filter value Switching Frequency (Hz) Response Time (ms) 10,7 13,3 18,7 21,3 26,7 29,3...
-
Page 10: Sonic Cone Diagrams
3.1 Sonic Cone Diagrams Measurement of the sonic cone on a 100 x 100 mm plate Measurement of the sonic cone on a rod with a diameter of 25 mm Technical Data... -
Page 11: Housing Dimensions
3.2 Housing Dimensions OPT2200/OPT2201 OPT2202 All dimensions in mm Screw M3 = 0,5 Nm Ultrasonic Reflex Sensor... -
Page 12: Connection Diagram
3.3 Connection Diagram OPT2200/OPT2202 OPT2201 Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Encoder A Supply Voltage 0 V Test Input Encoder B Supply Voltage (AC Voltage) Test Input inverted Digital output MIN... -
Page 13: Layout
3.4 Layout OPT2200/OPT2201 = Sensing Face = Plug Connector = Mounting Holes = Teach-In Key = Indicator LEDs Ultrasonic Reflex Sensor... - Page 14 OPT2202 = Sensing Face = Cable Connector = Mounting Holes = Teach-In Key = Indicator LEDs Technical Data...
-
Page 15: Control Panel
3.5 Control panel 06 = Teach Button 5a = Switching Status Display, O1 68 = Supply Voltage Indicator 6a = Switching Status Display, O2 3.6 Scope of Delivery • Product • Quickstart • Mounting-Set 01 Ultrasonic Reflex Sensor... -
Page 16: Transport And Storage
4. Transport and Storage 4.1 Transport Upon receipt of shipment, inspect the goods for damage in transit. In the case of damage, conditionally accept the package and notify the manufacturer of the damage. Then return the device making reference to damage in transit. -
Page 17: Installation And Electrical Connection
5. Installation and Electrical Connection 5.1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •... -
Page 18: Delivery Status
6. Delivery status Technical Data OPT2200 OPT2202 OPT2201 Sensor Mode Normal Filter Sonic Cone Standard Processdatatype Outputs and Measured Value Temperature Mode Intern A2 Pin Function Switching Output A1 Teach Mode Foreground A1, A2 PNP/NPN A1 NO/NC A1 Switch Point... -
Page 19: Setup Via The Teach-In Key
7. Setup via the Teach-In Key The switching distance to the object can be taught in for both outputs by pressing the teach-in key on the sensor (foreground teach-in). Sensor Teach-In Distance Object Switching Point Foreground Teach-In for Switching Output 1 1. -
Page 20: Settings Via Io-Link
8. Settings via IO-Link Further settings can be entered to the sensor via the IO-Link interface. 8.1 Window Teach-In In addition to foreground teach-in (default setting), there’s also a window teach-in option for both outputs: 1. Enter or teach in far switching point. 2. -
Page 21: Synchronous Operating Mode
NOTE! The sonic cone of the receiver determines the sensitivity of the through-beam mode. • With the standard sonic cone the maximum working range is possible. • Set the sonic cone to narrow at the receiver, in order to detect even small objects between the emitter and the receiver. -
Page 22: Mute" Operating Mode
NOTE! • Sensors in synchronous mode must have the same sonic cone settings. • The response time of the sensors in synchronous mode is longer by 1.9 × the response time in normal mode (e.g. filter 0: response time in normal mode = 17 ms; response time in synchronous mode = 32 ms). -
Page 23: Error Output
8.8 Error Output The error output is switched in the following cases: • Very small or poorly reflective (sound-absorbing) objects are located within the working range. • Incorrect assembly. • The object is located outside of the working range. • Strong air turbulence. •... -
Page 24: Io-Link
• Do not clean the sensor with solvents or cleansers which could damage the product. • The product must be protected against contamination during initial start-up. 11. Proper Disposal wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. 12. Appendix 12.1 Change Index, Operating Instructions...
