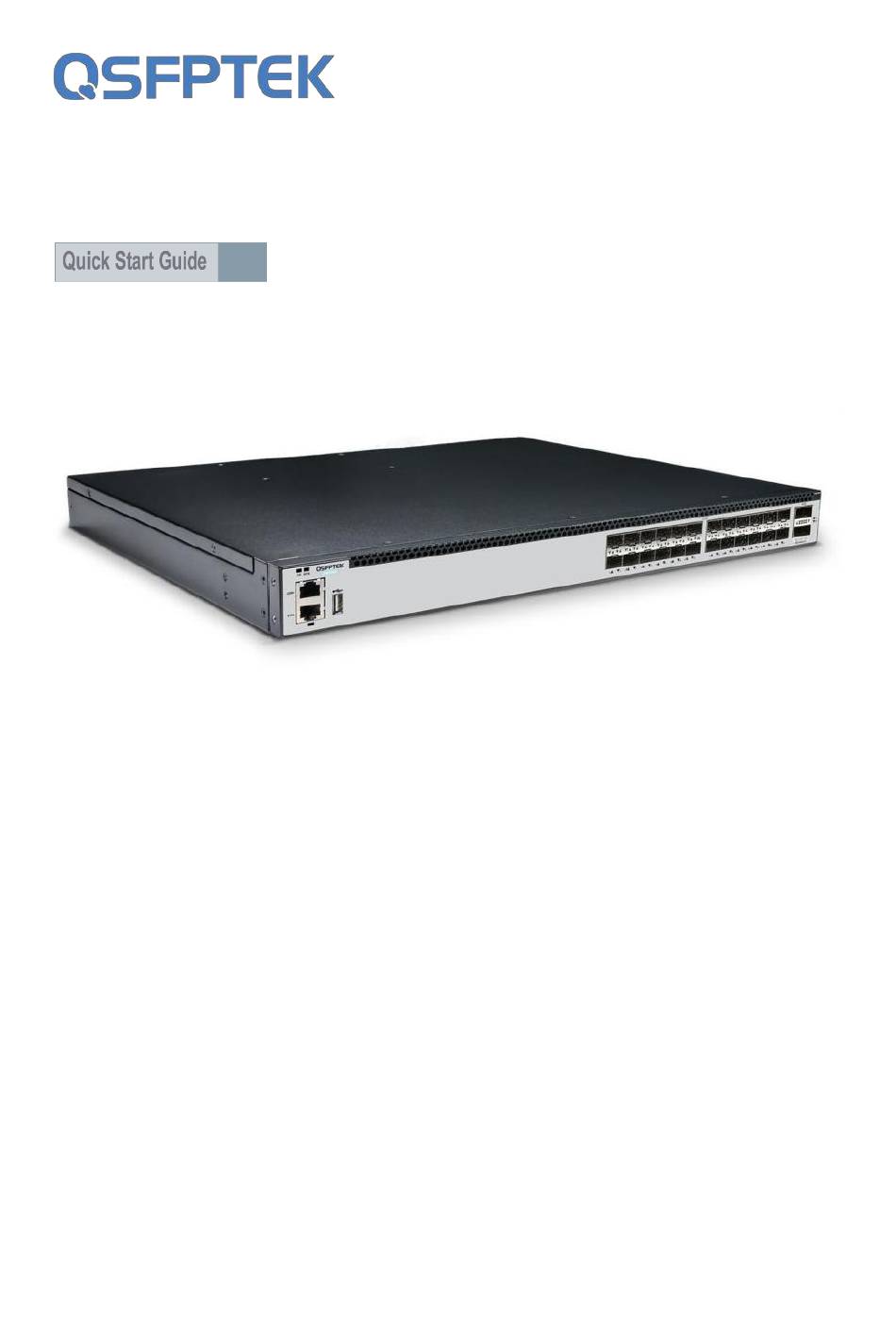

- Page 1 S7600-24X2C Quick Start Guide V2.0 24-Port 10G Ethernet L3+ Switch 24x 10G SFP+ Ports, with 2x 100G QSFP28 Uplinks, Support MLAG, VXLAN www.qsfptek.com V2.0 1 / 12...

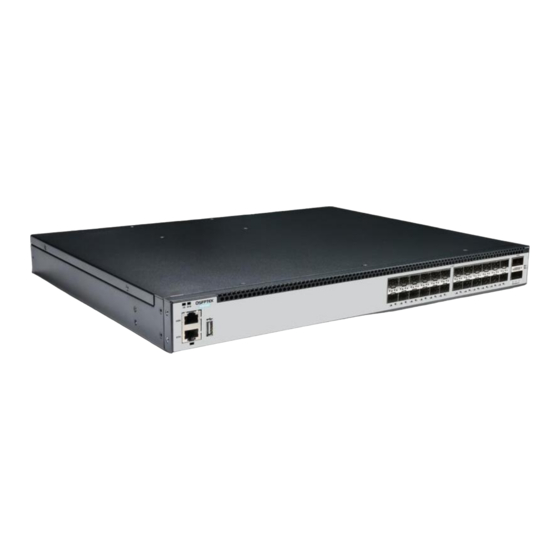

- Page 2 Introduction QSFPTEK S7600-24X2C L3+ aggregation switch is designed with 24x 10G SFP+ ports and 2x 40/100G QSFP28 uplinks. Each QSFP28 port can be split into 4x 10G ports or 4x 25G ports, providing converged 10G, 25G, 40G, and 100G fiber links. This 24-port switch delivers an 880 Gbps switching capacity and 540 Mpps forwarding rate to meet high-performance aggregation layer requirements.
-
Page 3: Hardware Overview
The system occur alarm or Amber error No power or system is not run or abnormality Port link. Port is receiving or Green Blinking transmitting packets. Port not link. SFP+ Green 10G port link. www.qsfptek.com V2.0 3 / 12... -
Page 4: Installation Requirements
100G/40G port link. (Port 25-26) 100G/40G packets receiving Amber Blinking or transmitting. Port not link Back Panel Installation Requirements Tools Preparation Flathead screwdrivers Phillips screwdrivers ESD-preventive wrist strap Temperature/Humidity Requirements Temperature Humidity 0~45°C 10%～95% www.qsfptek.com V2.0 4 / 12... - Page 5 Mounting the Switch Connecting the Power Plug the AC power cord to the switch power port on the back rear. Connect the other end of the power cord to an AC power source equipment. www.qsfptek.com V2.0 5 / 12...
- Page 6 Connect the other end of the fiber to the device that you want to realize data communication. Connecting the QSFP28 Port Insert the QSFP28 module into the QSFP28 port. Plug a fiber patch cable to the QSFP28 transceiver. www.qsfptek.com V2.0 6 / 12...
-
Page 7: Connecting The Management Ports
Connect the D89 female connector on the other end of the console cable to the serial port on the computer host. Connecting the ETH Port Prepare a standard RJ45 Ethernet patch cable. www.qsfptek.com V2.0 7 / 12... -
Page 8: Configuring The Switch
Step 1: Connect your computer to the switch using an Ethernet cable and open a web browser. Step 2: Set the IP address of the computer to 192.168.1.x (where "x" is any number from 2 to 254) and the subnet mask to 255.255.255.0. www.qsfptek.com V2.0 8 / 12... - Page 9 Step 2: Launch the terminal simulation software such as Hyper Terminal on the computer. Step 3: Configure the parameters of the terminal emulation software as follows: 115200 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control. www.qsfptek.com V2.0 9 / 12...
-
Page 10: Troubleshooting
1. Enter uBoot operation mode; see Chapter 5 for how to enter; 2. Input the boot_flash_nopass command to start the system in uBoot mode; Note: After using the boot_flash_nopass command, the system will clear up the startup-config www.qsfptek.com V2.0 10 / 12... -
Page 11: Support And Other Resources
Product Warranty S7600 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com... - Page 12 5 Year Warranty 14-day Return Window www.qsfptek.com V2.0 12 / 12...
