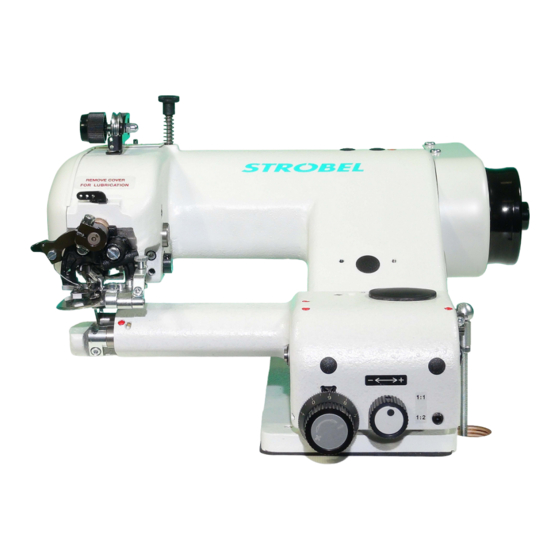

Strobel VEB100-2 Manual

Hide thumbs Also See for VEB100-2:
Table of Contents

Advertisement

Quick Links

For the professional user
Für den professionellen Anwender
Mechanic's Instructions
Mechanikeranleitung
Class:
Klasse:
Model:
Ausführung:
Dated:
Stand:
VEB100-2
VEB100-4
VEB100-5
S p e z i a l m a s c h i n e n G m b H
Ausf. 5
Ausf. 3
Ausf. 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEB100-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Strobel VEB100-2

Summary of Contents for Strobel VEB100-2

  • Page 1 For the professional user Mechanic‘s Instructions Für den professionellen Anwender Mechanikeranleitung Class: VEB100-2 Ausf. 5 Klasse: VEB100-4 Ausf. 3 VEB100-5 Ausf. 3 Model: Ausführung: Dated: Stand: S p e z i a l m a s c h i n e n G m b H...
  • Page 2 The sign of quality ou find the Strobel trademark on every Strobel machine leaving our works. And with good reason. This symbol is a guarantee of the high quality of our products. Quality which creates trust – trust in our technology, our service and, not least of all, in our good name.
  • Page 3 We wish you lots of success in your work with your new Strobel machine. S p e z i a l m a s c h i n e n G m b H...

  • Page 5: Table Of Contents

    Function sequence, machine class and operating concept ..........11 2.7.1 General function sequence ................11 Technical data of machines ..................... 12 2.8.1 Class VEB100-2 ....................12 2.8.2 Class VEB100-4 ....................14 2.8.3 Class VEB100-5 ....................16 Brief setting instruction....................18 2.9.1...
  • Page 6 Electric connection diagram VEB100-2, -4, -5 ..............50 Electric connection diagram– Thread trimmer VEB100-2, -4, -5 ........51 Pneumatic circuit diagram – Pneumatic lifting VEB100-2, -4, -5 ........52 Pneumatic construction circuit diagram– Pneumatic lifting VEB100-2, -4, -5 ....53 We reserve the right to make design changes MA_VEB100-2-4-5_A5-3_230123_en.doc...

  • Page 7: General Notes On Safety

    General notes on safety Manuals and additional information can be found on the STROBEL website at: http://www.strobel.biz Every person in charge of setting up, operating, servicing and repairing the machine must first read and understand the operating instructions and particularly the safety instructions before starting up the machine.
  • Page 8 It is essential that you observe and follow these instructions as well as the generally valid safety regulations. Warning instructions given in the operating instructions that pertain to especially dangerous parts of the machine must be indicated at these positions using a safety symbol.

  • Page 9: General Notes

    Range of application and intended use Class VEB100-2 are universal hemming machines for thin and medium weight material with cross seams. Class VEB100-4 serves specifically for uniform, delicate rolling and sewing of the edges on silk scarves, pochettes, etc.

  • Page 10: Power Supply

    Power supply 2.4.1 General notes CAUTION! Work on the sewing machine's electrical equipment or sewing drive may only be done by electricians! DANGER There is the of a fatal electrical shock. When working on the electrical equipment, the machine with the S1 power switch has to be switched off and the power plug pulled out! The operating instructions (including safety instructions) of the...

  • Page 11: Mains Voltage And Frequency

    2.5.2 Mains voltage and frequency CAUTION! The range of the rated voltage and frequency for the sewing drive is 190–240 V 50/60 Hz single-phase. The mains voltage and frequency have to lie within this range! 2.5.3 Mains connection CAUTION! The sewing machine must be connected to the mains power supply with a plug connection (power plug)! A permanent connection is not permitted! CAUTION!

  • Page 12: Control Sockets

    2.5.4 Control sockets Fig. 1 2.5.5 Motor connection cables Fig. 2 MA_VEB100-2-4-5_A5-3_230123_en.doc...

  • Page 13: Sewing Lamp

    Sewing lamp 2.6.1 General notes C A U T I O N ! Switch off the machine electrically! Fig. 3 MA_VEB100-2-4-5_A5-3_230123_en.doc...
  • Page 14 For self-assembly with stand see Fig. 4 Fig. 4 MA_VEB100-2-4-5_A5-3_230123_en.doc...

  • Page 15: Function Sequence, Machine Class And Operating Concept

    Function sequence, machine class and operating concept 2.7.1 General function sequence The DAC Classic control contains the suitable function sequence for almost all VEB machine classes. The exact function sequence for a machine class is determined at the control by the function sequence (basic function sequence and machine selection), the function parameters and the switchable functions.

  • Page 16: Technical Data Of Machines

    Technical data of machines 2.8.1 Class VEB100-2 Empfohlene Nennstichzahl / 1800 min-1 Recommended rated speed Stichlänge / stitch length 3,0 - 7,0 mm (abhängig vom Nähmaterial / depend on fabric) Auslieferzustand / delivery condition 7,0 mm Obertransport / top feed Pyramidenverzahnung / pyramid thoothing Sägeverzahnung / saw thoothing optional...
  • Page 17 Technischer Auslieferzustand / delivery condition: Riemenscheibendurchmesser Maschine/ dw 80 mm machine pulley diameter Motor-Leistung min. / min. motor power 500 W Keilriemen-Profil / V-belt profile 10 x 6 mm Zahnriemenscheibe Maschine / Z = 38 toothed belt pulley/machine Zahnriemenprofil / toothed belt profile HTD 5M-9 Stichart / stitch type Einfaden-Kettenstich-Blindstich Typ 103 /...

  • Page 18: Class Veb100-4

    2.8.2 Class VEB100-4 Empfohlene Nennstichzahl / 1800 min-1 Recommended rated speed Stichlänge / stitch length 3,0 - 7,0 mm (abhängig vom Nähmaterial / depend on fabric) Auslieferzustand / delivery condition 3,0 mm Obertransport / top feed Sägeverzahnung / saw thoothing optional starrer Drücker / fixed plunger Stichplattenöffnung / stitch plate opening 4,5 mm...
  • Page 19 Technischer Auslieferzustand / delivery condition: Riemenscheibendurchmesser Maschine/ dw 80 mm machine pulley diameter Motor-Leistung min. / min. motor power 500 W Keilriemen-Profil / V-belt profile 10 x 6 mm Zahnriemenscheibe Maschine / Z = 38 toothed belt pulley/machine Zahnriemenprofil / toothed belt profile HTD 5M-9 Stichart / stitch type Einfaden-Kettenstich-Blindstich Typ 103 /...

  • Page 20: Class Veb100-5

    2.8.3 Class VEB100-5 Empfohlene Nennstichzahl / 1800 min-1 Recommended rated speed Stichlänge / stitch length 3,0 - 7,0 mm (abhängig vom Nähmaterial / depend on fabric) Auslieferzustand / delivery condition 6,0 mm Obertransport / top feed Pyramidenverzahnung / pyramid thoothing starrer Drücker / fixed plunger Stichplattenöffnung / stitch plate opening 7,0 mm...
  • Page 21 Technischer Auslieferzustand / delivery condition: Riemenscheibendurchmesser Maschine/ dw 80 mm machine pulley diameter Motor-Leistung min. / min. motor power 500 W Keilriemen-Profil / V-belt profile 10 x 6 mm Zahnriemenscheibe Maschine / Z = 38 toothed belt pulley/machine Zahnriemenprofil / toothed belt profile HTD 5M-9 Stichart / stitch type Einfaden-Kettenstich-Blindstich Typ 103 /...

  • Page 22: Brief Setting Instruction

    Brief setting instruction 2.9.1 Class VEB100-2 Theoretic needle radius 41.3 mm Left needle guide 41.33 +0.02 mm Needle glide plate 41.30 ±0.01 mm Right needle guide 41.40 +0.05 mm Needle stroke, needle eye to looper finger 1.5 +0.5 mm Looper stroke 18 +0.5 mm...

  • Page 23: Class Veb100-5

    2.9.3 Class VEB100-5 Theoretic needle radius 41.3 mm Left needle guide 41.33 +0.02 mm Needle glide plate 41.30 ±0.01 mm Right needle guide 41.40 +0.05 mm Needle stroke, needle eye to looper finger 1.5 +0.5 mm Looper stroke 18 +0.5 mm Feed length approx.

  • Page 24: Notes On Repair And Adjustments

    Notes on repair and adjustments C A U T I O N ! Danger of Injury! Read the safety and operating instructions before performing maintenance and/or repair work. Failure to comply with them can lead to severe bodily injury. Stitch plate assembly (Fig. 5) A T T E N T I O N ! Switch off the machine electrically! Stitch plates are adjusted at the factory and can be easily exchanged in their entirety.

  • Page 25: Removing The Stitch Plate (Fig. 6)

    (Fig. 22)” or pull the plug only. Release stitch plate fastening screws (1) and (2) and remove the complete stitch plate unit to the front. Fig. 6 Cl. VEB100-2 Cl. VEB100-5 Cl. VEB100-4 MA_VEB100-2-4-5_A5-3_230123_en.doc...

  • Page 26: Installing The Stitch Plate (Fig. 6)

    3.1.2 Installing the stitch plate (Fig. 6) Remount the stitch plate in reversed order but make sure that the stitch plate opening is mounted centrically to the presser foot and that the stitch plate is mounted horizontally. Push the stitch plate bow completely upwards until threaded pin (3) fits closely to the needle shaft bush.

  • Page 27: Adjusting The Cloth Retainer (Fig. 9)

    Fig. 8 3.1.5 Adjusting the cloth retainer (Fig. 9) After replacing the stitch plate, check whether the cloth retainer (7) Fig. 8 lies centrally on the plunger. This is particularly important for roof-shaped plungers/cloth retainers to ensure that the material is optimally held during sewing. Fig.

  • Page 28: Setting The Folder

    3.1.6 Setting the folder Roll hemmer(Cl.VEB100-4) Using the knurled screw (4) (Fig. 6 and Fig. 9), the tilt angle of the roll hemmer towards the plunger can be set. This influences the seam diagram (zigzag stitch). The needle can pierce the roll more or less deeply.

  • Page 29: Replacing The Folder

    Fig. 10 Kl. VEB100-5 Kl. VEB100-4 3.1.7 Replacing the folder Loosen screw (1) (Fig. 9), mount and tighten the new folder. Realize settings as described in “3.1.6 Setting the folder”. MA_VEB100-2-4-5_A5-3_230123_en.doc...

  • Page 30: Needle Lever

    Needle lever 3.2.1 Assembly A T T E N T I O N ! Switch off the machine electrically! Remove screw (1), move the Thread take-up lever and remove the needle lever. During installation, please ensure that the needle runs through the centre of the needle groove and the needle tip is flush with the left needle guide (Fig.

  • Page 31: Adjusting The Needle Stroke (Fig. 12, Fig. 13 And Fig. 15)

    3.2.2 Adjusting the needle stroke (Fig. 12, Fig. 13 and Fig. 15) For a loop stroke of 2.3–3.0 mm, the needle stroke must be set to that the left side of the needle’s eye is approx. 1.0 +0.5 mm away from the large gripping finger when the tip of the large gripping finger is above the centre of the needle (Fig.
  • Page 32 Fig. 13 MA_VEB100-2-4-5_A5-3_230123_en.doc...

  • Page 33: Loop Stroke

    A T T E N T I O N ! Switch off the machine electrically! In the factory setting, the loop stroke is 2.1 +3.0 mm for VEB100-4 and 2.8 +0.3 mm for VEB100-2/-5. (Fig. 15) Adjustment: Unscrew the head of the connecting rod...

  • Page 34: Looper

    Looper Removing and installing the looper (Fig. 12) A T T E N T I O N ! Switch off the machine electrically! After removing the fillister head screw (9), the looper can be removed from the front. When installing, ensure that the fastening surface of the looper lies within the chuck and is fully inserted.

  • Page 35: Adjusting The Looper (Fig. 15)

    3.4.3 Adjusting the looper (Fig. 15) At the moment when the loop is picked up, the gripping finger must lie 0.1–0.2 mm above the needle. This must also be observed when changing the needle thickness. It is essential to prevent needle contact from occurring! The horizontal distance from the large gripping finger to the eye of the needle should be 1.5 +0.5 mm (Fig.

  • Page 36: Feed Dogs

    Feed dogs The machine is equipped ex works with the pyramid-toothed feed dog. After loosening the two screws, its motion towards the stitch plate can be adjusted. 3.5.1 Adjusting the feed dog (Fig. 16) A T T E N T I O N ! Switch off the machine electrically! Set the stitch length to 7 mm (for Cl.

  • Page 37: Pressure Foot

    Pressure foot 3.6.1 Adjusting the pressure foot A T T E N T I O N ! Switch off the machine electrically! The position of the pressure foot is given by the position of the angle lever symmetrical to the presser. It should tip lightly and lie evenly against the stitch plate. The pressure foot pressure can be adjusted using separate screws for each stand on the upper side of the material support arm.

  • Page 38: Presser

    Presser A T T E N T I O N ! Switch off the machine electrically! There are different plunger shapes - round and roof-shaped - available for the 103 series to guarantee the best quality for each sewing process. Exception: Cl.

  • Page 39: Adjusting The Presser (Fig. 18)

    1 mm to the left of the needle shaft’s centre. Just before the needle stitch is inserted, it must be at a standstill when the tip of the needle is approx. 2.5 mm away. Fig. 18 VEB100-2 VEB100-4 VEB100-5 Fig. 19...

  • Page 40: Adjusting The Material Support Arm

    3.7.3 Adjusting the material support arm Turn the main shaft until the needle tip stands 1–2 mm behind the centre of the presser. Adjust the control knob (1) Fig. 20 so that the needle is lifted by 0.2 mm, then screw in the threaded pin (2) Fig.

  • Page 41: Setting The Pre-Tension Of The Spring In Spring-Loaded Plungers

    3.7.4 Setting the pre-tension of the spring in spring-loaded plungers The spring-loaded plunger is hold under tension by means of a tension spring in the plunger lever. For adjustments use the screw drive supplied with the machine. (Fig. 21) Fig. 21 Pneumatic lifting C A U T I O N ! Danger of Injury! Danger of finger bruises in the area of pneumatically operated...

  • Page 42: Thread Trimmer (Fig. 22)

    Thread trimmer (Fig. 22) The blade of the thread trimmer is activated by a rotary magnet, to which an electric release control system (microswitch) is connected. This prevents the machine from starting when the blade is no longer in its inital position. Thus the release control system prevents a possible collision between blade and looper.

  • Page 43: Removing And Remounting Of The Thread Trimmer Drive (Fig. 22)

    3.9.1 Removing and remounting of the thread trimmer drive (Fig. 22) A T T E N T I O N ! Switch off machine electrically! Remove plug (1). Loosen the screw (2) and remove from blade (3), spring (4) and disc (5). Loosen the screw (6) on the stitch plate clamp (7) and remove the thread trimmer drive.

  • Page 44: Replacing The Knife (Fig. 22 Und Fig. 23)

    3.9.3 Replacing the knife (Fig. 22 und Fig. 23) A T T E N T I O N ! Switch off machine electrically! To replace cylinder head screw (2), unscrew it (hold shaft (14) with open- end wrench 5 mm). CAUTION: Do not hold onto the rotary knob (15) since the gearwheels can be damaged!

  • Page 45: Operation And Settings Of The Control Unit

    Operation and settings of the control unit Operating and display elements Fig. 24 MA_VEB100-2-4-5_A5-3_230123_en.doc...
  • Page 46 Fig. 25 MA_VEB100-2-4-5_A5-3_230123_en.doc...

  • Page 47: Dac Classic Control For Strobel Machines

    DAC Classic control for Strobel machines Legend: E = level / t= technician level; K= category of parameters; P= subcategory Default Unit Description Sewing foot lifting (FL) Switch-on delay of the sewing foot lift during machine standstill Switch-on delay of the sewing...

  • Page 48: Setting The Parameters

    Setting the parameters 4.3.1 General Legend: E = level / t= technician level; K= category of parameters; P= subcategory Default Unit Description Fig. 26 The following explains how to change the parameters with the DAC control unit. Press and hold the "P" key and the "Reset" key simultaneously and switch on the control unit.

  • Page 49: Speed

    4.3.2 Speed Select parameter t 08 00 with keys "B and D" and confirm with "OK". Use the keys A - D to enter the desired speed. VEB100-2 = 1800 rpm. Confirm with "OK". 4.3.3 Direction of motor rotation 1 = clockwise rotation 2 = counterclockwise rotation Select parameter t 08 05 with keys "B and D"...

  • Page 50: Sewing Foot Lifting

    4.3.5 Sewing foot lifting Select parameter t 03 12 with keys "B and D" and confirm with "OK". Enter the value 0.190ms and confirm with "OK". Parameter t 03 12 = Time after cutting the thread until the lifting of the fabric support arm closes again after the pedal has returned from -1 to 0 position.

  • Page 51: Thread Trimmer

    4.3.6 Thread trimmer Fig. 29 For the STROBEL thread trimmer we use PINS 19 and 33 in the 37-pole motor connector. In the DAC Classic control the chain cutter function is responsible for the thread trimmer. The running lock t 50 00 is set to 1.

  • Page 52: Set The Reference Position

    4.3.7 Set the reference position Select parameter t 08 10 with keys "B and D" and confirm with "OK". The display shows Syn? Turn the hand wheel in the direction of machine rotation until the symbol in the display goes out and Ref. Pos? appears in the display. The reference position is when the needle is in downward motion and the needle tip is at the end of the needle guide.

  • Page 53: Cutting Position (Fig. 23)

    For the VEB machines we set t 08 12 to the same value as t 08 13/cutting position. This allows us to disregard the key "Needle position after sewing stop"! For Strobel, the key "needle position after sewing stop" must be switched on as soon as t 08 12 has a different value than t 08 13!

  • Page 54: Circuit Diagrams

    Circuit diagrams Electric connection diagram VEB100-2, -4, -5 MA_VEB100-2-4-5_A5-3_230123_en.doc...

  • Page 55: Electric Connection Diagram- Thread Trimmer Veb100-2, -4, -5

    Electric connection diagram– Thread trimmer VEB100-2, -4, -5 MA_VEB100-2-4-5_A5-3_230123_en.doc...

  • Page 56: Pneumatic Circuit Diagram - Pneumatic Lifting Veb100-2, -4, -5

    Pneumatic circuit diagram – Pneumatic lifting VEB100-2, -4, -5 MA_VEB100-2-4-5_A5-3_230123_en.doc...

  • Page 57: Pneumatic Construction Circuit Diagram- Pneumatic Lifting Veb100-2, -4, -5

    Pneumatic construction circuit diagram– Pneumatic lifting VEB100-2, -4, -5 MA_VEB100-2-4-5_A5-3_230123_en.doc...
  • Page 59 Und wir können noch mehr für Sie tun! Unser Lieferprogramm bietet für jede Branche und jegliche Anforderung genau die richtige Problemlösung. And we can do a lot more for you! Our range offers the correct problem solution for every branch and for all requirements. Für die Polster- Für die Bekleidungs- Für die Schuh-...
  • Page 60 Then phone, write or simply come and see us. You can have further information about our products at any time, or experience the Strobel machines live in our show room. We’re looking forward to meeting you! S p e z i a l m a s c h i n e n G m b H...
