For the professional user
Für den professionellen Anwender
Mechanic's Instructions
Mechanikeranleitung
Class:
Klasse:
Model:
Ausführung:
Dated:
Stand:
VEB200-2
3
S p e z i a l m a s c h i n e n G m b H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEB200-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Strobel VEB200-2

Summary of Contents for Strobel VEB200-2

  • Page 1 For the professional user Mechanic‘s Instructions Für den professionellen Anwender Mechanikeranleitung Class: VEB200-2 Klasse: Model: Ausführung: Dated: Stand: S p e z i a l m a s c h i n e n G m b H...
  • Page 2 The sign of quality ou find the Strobel trademark on every Strobel machine leaving our works. And with good reason. This symbol is a guarantee of the high quality of our products. Quality which creates trust – trust in our technology, our service and, not least of all, in our good name.
  • Page 3 We wish you lots of success in your work with your new Strobel machine. S p e z i a l m a s c h i n e n G m b H...

  • Page 5: Table Of Contents

    Mechanic’s instructions STROBEL Class VEB200-2 C o n t e n t s General notes on safety ......................3 General ............................5 Operating instructions ...................... 5 Class description, serial number and initial basis for description ........5 Range of application and intended use ................5 Technical data ........................
  • Page 6 Pneumatic construction circuit diagram with seam lock (Efka DC1210) ...... 42 Electric connection diagram – Thread trimmer .............. 43 Switchable Functions ........................ 44 DC1210-AB611A Cl. VEB200-2 ..................44 Parameter list ........................... 45 DC1210-AB611A Cl. VEB200-2 ..................45 We reserve the right to make design changes.

  • Page 7: General Notes On Safety

    General notes on safety Manuals and additional information can be found on the STROBEL website at: http://www.strobel.biz Every person in charge of setting up, operating, servicing and repairing the machine must first read and understand the operating instructions and particularly the safety instructions before starting up the machine.
  • Page 8 It is essential that you observe and follow these instructions as well as the generally valid safety regulations. Warning instructions given in the operating instructions that pertain to especially dangerous parts of the machine must be indicated at these positions using a safety symbol.

  • Page 9: General

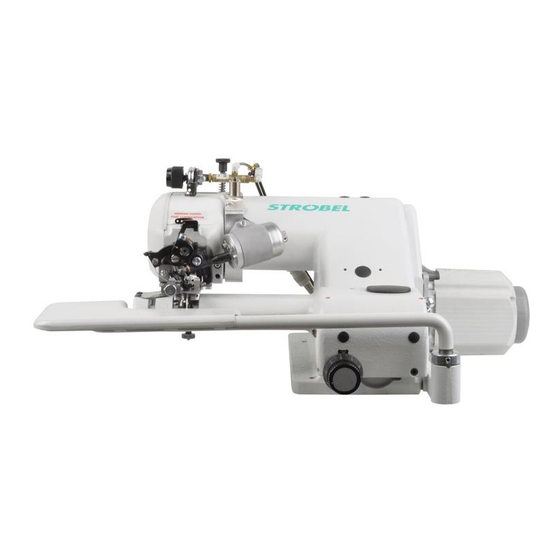

    Class VEB200-2 is suitable for bluff edging thin fabrics up to approx. 400 grammes. The Kl.VEB200-2 has a spring-loaded plunger on the left and right. It is also delivered with a 9.5 mm stitch plate. Both cloth retainers are spring-loaded here and combined with a knurled screw which limits the cloth retainer lift-off upwards.

  • Page 10: Technical Data

    Technical data Empfohlene Nennstichzahl / 1800 min-1 Recommended rated speed Stichlänge / stitch length 3,0 - 7,0 mm (abhängig vom Nähmaterial / depend on fabric) Auslieferzustand / delivery condition 7,0 mm Obertransport / top feed Pyramidenverzahnung / pyramid thoothing Sägeverzahnung / saw thoothing optional gefederter Drücker links, gefederter Drücker rechts / spring loaded plunger left, spring loaded plunger right...
  • Page 11 Technischer Auslieferzustand / delivery condition: Riemenscheibendurchmesser Maschine/ dw 71 mm machine pulley diameter Motor-Leistung min. / min. motor power 550 W Keilriemen-Profil / V-belt profile 10 x 6 mm Zahnriemenscheibe Maschine / Z = 38 toothed belt pulley/machine Zahnriemenprofil / toothed belt profile HTD 5M-9 Stichart / stitch type Einfaden-Kettenstich-Doppelblindstich Typ 105 /...

  • Page 12: Brief Setting Instruction

    Brief setting instruction theoretic needle radius 41.3 mm left needle guide 41.33 +0.02 mm needle glide plate 41.30 ±0.01 mm right needle guide 41.36 +0.02 mm needle stroke, needle eye to looper finger 1 +0.5 mm ball pin to needle shaft 2 ±0.5 mm Slot ball pin approx.

  • Page 13: Hints For Repair And Settings

    Hints for repair and settings C A U T I O N ! Danger of injury! Observe safety and operating instructions before realizing any maintenance and repair works. Failure to do so may result in heavy bodily injuries. Mounting the stitch plate A T T E N T I O N ! Switch off machine electrically! Stitch plates are set at works and can be replaced easily as complete kit.

  • Page 14: Removing The Stitch Plate (Fig. 2)

    3.1.1 Removing the stitch plate (Fig. 2) Switch off machine electrically, cloth support arm is lifted. Remove needle and needle lever. Remove the thread trimmer’s drive unit as described under “3.8.1 Removing and remounting of the thread trimmer drive (Fig. 15)” or pull the plug only. Release stitch plate fastening screws (1) and (2) and remove the complete stitch plate unit to the front.

  • Page 15: Setting The Stitch Plate (Fig. 1)

    3.1.3 Setting the stitch plate (Fig. 1) The theoretic needle radius of 41,3 mm should be 0,03 mm to 0,05 mm larger at the left needle guide, 0,01 mm smaller to 0,01 mm larger at the needle glide plate and 0,10 mm to 0,12 mm larger at the right needle guide.

  • Page 16: Setting The Cloth Retainers (Fig. 4)

    3.1.5 Setting the cloth retainers (Fig. 4) After replacing the stitch plate (1) check if the cloth retainers (2) are placed centrically on the plungers (3). If necessary, displace the cloth support arm axially. Fig. 4 Both cloth retainers are spring loaded and combined with a setting screw (4) (Fig. 4) that limits the cloth retainer to lift up to high.

  • Page 17: Needle Lever

    Needle lever 3.2.1 Mounting (Fig. 5) A T T E N T I O N ! Switch off machine electrically! Release screw (1), swivel the thread take-up (2) and remove the needle lever (3). When mounting the needle lever make sure that the needle is mounted centrically to the needle channel and that the needle point is flush with the right hand edge of the left hand needle guide.

  • Page 18: Setting The Needle Stroke (Fig. 7)

    3.2.2 Setting the needle stroke (Fig. 7) Set the needle stroke in a way that at a loop stroke of 2.8 +0.3 mm the left side of the needle eye has a distance of approx. 1 mm to the right hand edge of the large looper finger, the point of the large looper finger being above the needle center (Fig.
  • Page 19 Fig. 7 MA_VEB200-2_A3_210511_en.doc...

  • Page 20: Loop Stroke (Fig. 6)

    Loop stroke (Fig. 6) The loop stroke is the needle’s way from its right cusp point to the point where the point of the large looper finger is placed above needle center. 3.3.1 Setting the loop stroke (Fig. 7) A T T E N T I O N ! Switch off machine electrically! At factory the loop stroke is set to 2.8 mm (Fig.

  • Page 21: Looper

    Looper 3.4.1 Removing and remounting the looper (Fig. 7) A T T E N T I O N ! Switch off machine electrically! Release cap screw (3) and pull the looper (10) towards the front. When remounting the looper (10) make sure that it is completely pushed in and that it’s positioning surface fits exactly to the looper take-up.
  • Page 22 Fig. 8 Fig. 9 MA_VEB200-2_A3_210511_en.doc...

  • Page 23: Feed Dog (Upper Feed) (Fig. 10)

    Feed dog (upper feed) (Fig. 10) The machine is equipped with a pyramid-teethed feed dog (4). Its movement in relation to the stitch plate can be adjusted after releasing screws (5). Or it can be replaced by saw-teethed feed dog. 3.5.1 Setting the feed dog A T T E N T I O N !

  • Page 24: Feed Plates

    Feed plates 3.6.1 Setting the feed plates A T T E N T I O N ! Switch off machine electrically! The feed plates should tilt easily and should sit close to the stitch plate. To guarantee a material feed free of twist, the pressure should be set to 12N on the left and to 6N on the right side, measured at the pivot of the feed plates.

  • Page 25: Plunger

    Plunger A T T E N T I O N ! Switch off machine electrically! 3.7.1 Replacing the plunger shafts (Fig. 11) Remove cloth support arm extension. Remove the rubber cover on the cloth support arm. Loosen the screw (7) and the attachment screw (1) at lever (2) and pull out the left plunger shaft (3).

  • Page 26: Setting The Plunger (Fig. 12)

    3.7.2 Setting the plunger (Fig. 12) Blind stitch settings for thick fabrics as shown in Fig. 12a and for thin fabrics as shown in Fig. 12b. The plungers are placed centrically in the stitch plate opening and 0.2 mm left from the needle shaft center (Fig.

  • Page 27: Setting The Cloth Support Arm (Fig. 11)

    3.7.3 Setting the cloth support arm (Fig. 11) Set the cloth support arm upwards by means of the stitch depth regulation until the needle is lifted by 0.2 mm by means of the left plunger in its upper cusp point. Use threaded pin (8) to limit the maximum height of the plunger and fixate with threaded pin (9).

  • Page 28: Thread Trimmer (Fig. 15)

    Thread trimmer (Fig. 15) The blade of the thread trimmer is activated by a rotary magnet, to which an electric release control system (microswitch) is connected. This prevents the machine from starting when the blade is no longer in its inital position. Thus the release control system prevents a possible collision between blade and looper.
  • Page 29 Fig. 15 MA_VEB200-2_A3_210511_en.doc...

  • Page 30: Adjustment (Fig. 15)

    3.8.2 Adjustment (Fig. 15) The thread trimmer drive must be inserted as far as it will go into the stitch plate clamp. Swivel the drive backwards so that there is a gap of about 1 mm between the drive and the sewing head. The blade of the knife has until about 2 - 3 mm from needle lever, stand forward, readjust if necessary.

  • Page 31: Replacing The Knife (Fig. 15)

    The machine should be positioned in such a way as the pedal is stepped back that the distance between looper and blade in cutting position is approx. 1 mm. For Strobel and EFKA controls, this corresponds to parameter 171, position P2E. MA_VEB200-2_A3_210511_en.doc...

  • Page 32: Positions

    3.11 Positions Function Parameter Setting the reference position F-170 This function sets the reference position. Function Parameter Setting positions 1 and 2 F-171 This function sets the two positions. The AB611A control has two positions. The positions are set exclusively by programming the control.
  • Page 33 Machine with or without thread trimmer: Reference position: Turn hand wheel in the direction of the machine until the tip of the needle lines up with the right (inner) edge of the needle glide washers in the stitch-in direction. For that the right plunger needs to be up (Fig. 17). Fig.
  • Page 34 Notes for sewing drives which have two needle positions (i.e. sewing drive DC1210- AB611A (Fig. 19)): The above mentioned needle position is position 2 at the sewing drive. Position 1 must be set at the sewing drive in such a way, that the point of the needle (1) in the direction of stitch exit closes with the right (inner) edge of the needle slide plate.

  • Page 35: Setting The Positions

    3.12 Setting the positions 3.12.1 General notes The individual positions of the machine (machine positions) can be found in the operating manual of the sewing machine. N O T E ! For sewing machines that actually need only one position, both positions always need to be programmed anyway for the control programming.

  • Page 36: Setting Positions 1 And 2

    3.12.3 Setting positions 1 and 2 After entering the code number “1907” and button “E” for the technician level: Select parameter F-171. Display shows: .1.7.1. Press “E” button. Sr2_ Press “>>” button. Turn the handwheel in the machine's direction of rotation until “P1E”...

  • Page 37: Display Of The Needle Positions

    At least one cycle needs to be sewn so that the setting is saved before the machine is switched off. For class VEB200-1, -1F, -2, -2F: Position 1 Position 2 For class VEB200-1RF, -2RF: Position 1 Position 2 Depending on the looper and needle setting, the values could variate slightly. 3.13 Display of the needle positions Function...

  • Page 38: Pneumatic Lifting

    3.14 Pneumatic lifting A T T E N T I O N ! Switch off machine electrically! 3.14.1 Setting the lifting Reduce the lifting speed of the cloth support arm at the one-way restrictor so that there is no hard noise when the arm is lowered. The piston in the pneumatic cylinder should move up to the limit stop.

  • Page 39: Seam Lock (Fig. 20)

    3.16 Seam lock (Fig. 20) The seam lock is made at the seam end by lifting the feed dog. Therefore the feed dog is lifted, the plunger is lowered and a second thread tension is activated. Fig. 20 MA_VEB200-2_A3_210511_en.doc...

  • Page 40: Setting The Feed Dog At The Seam Lock (Fig. 20)

    3.16.1 Setting the feed dog at the seam lock (Fig. 20) The feed dog height is set by means of pneumatic cylinder (1) through lever (2) and eccentric bush (3). The feed movement remains the same as before but the feed dog does not catch the material.

  • Page 41: Circuit Diagrams

    Circuit diagrams Mains connection plan (AB611A with/without sewing light gen.) MA_VEB200-2_A3_210511_en.doc...

  • Page 42: Electric Connection Plan With Seam Lock (Dc1210-Ab611A)

    Electric connection plan with seam lock (DC1210-AB611A) Control box Efka drive (1) Nominal voltage 24V, idle voltage max. 30V Designation Designation Colour code 37 pin Strobel operating manual Efka operating manual connection cable Sub-D Thread trimmer (FA) Output 1 (M1)

  • Page 43: Pneumatic Circuit Diagram With Pneum. Lifting (Efka Dc1210)

    Pneumatic circuit diagram with pneum. Lifting (Efka DC1210) MA_VEB200-2_A3_210511_en.doc...

  • Page 44: Pneumatic Construction Circuit Diagram With Pneum. Lifting (Efka Dc1210)

    Pneumatic construction circuit diagram with pneum. Lifting (Efka DC1210) MA_VEB200-2_A3_210511_en.doc...

  • Page 45: Pneumatic Circuit Diagram With Seam Lock (Efka Dc1210)

    Pneumatic circuit diagram with seam lock (Efka DC1210) MA_VEB200-2_A3_210511_en.doc...

  • Page 46: Pneumatic Construction Circuit Diagram With Seam Lock (Efka Dc1210)

    Pneumatic construction circuit diagram with seam lock (Efka DC1210) MA_VEB200-2_A3_210511_en.doc...

  • Page 47: Electric Connection Diagram - Thread Trimmer

    Electric connection diagram – Thread trimmer MA_VEB200-2_A3_210511_en.doc...

  • Page 48: Switchable Functions

    Switchable Functions DC1210-AB611A Cl. VEB200-2 Machine class Explanation: 0 = Off 1 = On F-290 Mode Button "E" Seg1 Softstart ON/OFF Button "E" Seg2 Not assigned Button "+" Seg3 Thread trimmer ON/OFF Button "+" Seg4 Output M3 ON/OFF Button ">>" Seg5 Basic position "Needle position 1"...

  • Page 49: Parameter List

    Parameter list DC1210-AB611A Cl. VEB200-2 Machine class F-467 Motor selection F-290 Mode F-365 Machine classes selection Stitch number F-001 Beginning backtack “simple“ Stitch number F-002 End backtack ”simple“ Stitch number F-003 End backtack “double“ Backtack stitches F-010 OFF/SIMPLE/DOUBLE Thread trimmer...
  • Page 50 Machine class 0200 F-112 Beginning backtack-speed n4 min-1 0600 9900 0200 F-113 End backtack-speed n4 min-1 0600 0300 0300 0300 9900 0070 F-115 Softstart-speed n6 min-1 0500 0250 0250 0250 1500 Lower limit of the n-max 0200 F-121 min-1 0200 0200 0200 0200...
  • Page 51 Machine class F-203 Full drive time of the lifting Holding force (continuous duty) F-254 F-204 of the ifting Braking effect when changing the set-point <= 4 steps F-207 (indicated values only with transmission ratio 1:1) Braking effect when changing the set-point >= 5 steps F-208 (indicated values only with transmission ratio 1:1)
  • Page 52 Machine class Selection of the F-270 position sensors Transmission motor shaft to 0150 F-272 1000 1000 1000 1000 machine shaft 9999 Delay time 0000 F-280 0100 0100 0100 0100 thread trimmer (M1) 5000 On-time 0000 F-281 0180 0180 0180 0180 thread trimmer (M1) 5000 Delay time...
  • Page 53 Und wir können noch mehr für Sie tun! Unser Lieferprogramm bietet für jede Branche und jegliche Anforderung genau die richtige Problemlösung. And we can do a lot more for you! Our range offers the correct problem solution for every branch and for all requirements. Für die Bekleidungs- Für die Schuh- Für die Polster-...
  • Page 54 Then phone, write or simply come and see us. You can have further information about our products at any time, or experience the Strobel machines live in our show room. We’re looking forward to meeting you! S p e z i a l m a s c h i n e n G m b H...
