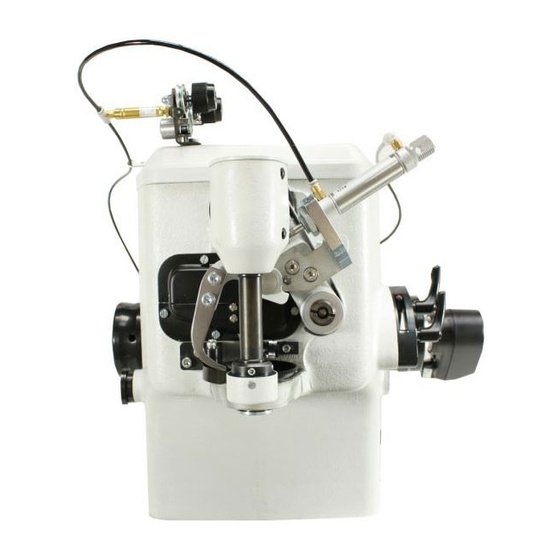

For the professional user
Für den professionellen Anwender
Mechanic's Instructions
Mechanikeranleitung
Class:
Klasse:
Model:
Ausführung:
Dated:
Stand:
VTD410EV
2
S p e z i a l m a s c h i n e n G m b H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTD410EV and is the answer not in the manual?

Questions and answers

Related Manuals for Strobel VTD410EV

Summary of Contents for Strobel VTD410EV

  • Page 1 For the professional user Mechanic‘s Instructions Für den professionellen Anwender Mechanikeranleitung Class: VTD410EV Klasse: Model: Ausführung: Dated: Stand: S p e z i a l m a s c h i n e n G m b H...
  • Page 2 The sign of quality ou find the Strobel trademark on every Strobel machine leaving our works. And with good reason. This symbol is a guarantee of the high quality of our products. Quality which creates trust – trust in our technology, our service and, not least of all, in our good name.
  • Page 3 Justify your trust. If you wish to profit from the performance and efficiency of your Strobel machine as long as possible, exact handling and thorough care is necessary. For this reason we kindly request that you read the operating instructions closely.

  • Page 5: Table Of Contents

    Mechanics instruction STROBEL-Class VTD410EV Contents General notes on safety .................... 5 General ........................7 Operating instructions ..................7 Class identification, serial number and orientation of the machine ....7 Range of application and intended use ............7 Technical data ....................8 Brief setting instructions .................
  • Page 6 Pneumatic lifting ................... 38 3.9.1 One-way restrictor ................38 3.10 Thread lifting mechanism at needle bar head ..........38 3.11 How to adjust stitch regulating bolt (Fig. 28) ..........39 3.12 Setting and mounting instructions for STROBEL gathering device (Fig. 29) 40 MA_VTD410EV_A2_181015_en...
  • Page 7 258.00.27 Mains facility connection plan cl. gen. (DC1500/DC1550 with/without sewing machine lamp gen.) Connecting the sewing machine: 258.21.58 Electrical connection plan cl. VTD410EV from version 1 (DC1550-AB321A) 259.00.55 Pneumatic circuit diagram Cl. VTD410EV 259.10.55 Pneumatic construction circuit diagram Cl. VTD410EV...
  • Page 8 MA_VTD410EV_A2_181015_en...

  • Page 9: General Notes On Safety

    General notes on safety Every person in charge of setting up, operating, servicing and repairing the machine must first read and understand the operating instructions and particularly the safety instructions before starting up the machine. Failure to comply with the following safety instructions can lead to bodily injury or damage to the machine.
  • Page 10 14. Warning instructions given in the operating instructions that pertain to especially dangerous parts of the machine must be indicated at these positions using a safety symbol. Warning instructions given in the operating instructions that pertain to special injury hazards for operating personnel or technicians must be indicated at these positions using a safety symbol.

  • Page 11: General

    General In addition to the operating instructions distributed with each machine, this manual is intended to be some help for dismantling, assembling, setting, converting and repairing the single and two thread overseam machines. Operating instructions Any person involved in the installation, operation, maintenance and repair of the machine must have read and understood the operating instructions and mainly the safety instructions before starting the machine.

  • Page 12: Technical Data

    Technical data Recommended rated speed 1500 min Motor power 600 W Toothed belt pulley/machine Z = 38 Toothed belt profile HTD 5M-9 Stitch length 3 – 8 mm Kind of stitch single thread overseam Stitch type Needle system GROZ-BECKERT 134 Needle size Thread polyester continuous filament...

  • Page 13: Brief Setting Instructions

    Brief setting instructions Cl. 410-1EVK Needle type Needle size 120 – 180 Stitch length 3 - 8 Stroke of loop Needle point front measured from cup 25,6 edge Needle stop at needle bar until cup edge 13,8 Stroke of needle bar eccentric Looper movement to the right from needle center to looper point Looper movement to the left...

  • Page 14: Hints For Repair And Settings

    Hints for repair and settings V O R S I C H T ! Verletzungsgefahr! Vor Wartungs- und Reparaturarbeiten Sicherheitshinweise unter Punkt 1 und die Betriebsanleitung beachten. Bei deren Nichtbeachtung können schwerwiegende körperliche Schädigungen hervorgerufen werden. Pre-assembly Press in bearing bolt (1) so that it’s stopping face projects still 2 ±0.1 ( Fig.

  • Page 15: Main Shaft Assembly

    Main shaft assembly 3.2.1 Removing the main shaft Before dismantling the main shaft we recommend to mark all parts on the shaft in a straight line by means of a ruler, respectively to note down all screw positions. If necessary, the measures of front and rear bearing block should be taken by means of a slide gauge from the edge of the machine column and should be noted down (measure a + b).

  • Page 16: Remounting The Main Shaft

    (Only) then loosen the screws of the parts on the shaft, remove the right hand wheel and push the shaft towards the left side by means of a pulling-off device without displacing the ball bearings. Before dismantling the main shaft it is useful to pull the cup support arm towards the front to obtain better access to the set collar at the main shaft and to the toothed wheel at the oil pump.

  • Page 17: Assembly Of Stitch Regulating Eccentric

    3.2.3 Assembly of stitch regulating eccentric The left hand wheel with the stitch regulation eccentric need not be removed. However, it is very important to ensure that the located on both sides of the adjustment cam bolts (A) (1) (2) away. ( Fig.
  • Page 18 Fig. 4 MA_VTD410EV_A2_181015_en...

  • Page 19: Needle Bar

    Needle bar 3.3.1 Needle adjustment A T T E N T I O N ! Switch off Machine electrically! Setting values for the needle bar please see chart “setting values”, point “2.5 Brief setting instructions/C”. 3.3.2 Needle height adjustment (Fig. 5) A T T E N T I O N ! Switch off Machine electrically! The special design allows that the needle can be adjusted in height which is...

  • Page 20: How To Adjust Needle And Feed Motion

    3.3.3 How to adjust needle and feed motion If the machine is set to produce the longest stitch (see chart), the feed motion stops when the point of the needle is placed ca. 4 mm within the cup edge before penetrating the fabric. Transportation is beginning when the needle leaves the material and the needle tip with the nose is in line.

  • Page 21: Looper

    Looper The looper motion is determined by the stroke of the looper eccentric (F) Fig. 2) and by the crank distance. The looper motion must start and end at the same time as the needle bar motion. The lateral looper movement is determined by the shape of the control cam and must be in accordance with the needle motion.

  • Page 22: How To Set The Looper Shaft

    3.5.2 How to set the looper shaft The looper shaft can be pre-assembled outside the machine. Measure 82 from looper centre (1) to centre of lever (2) and 158 to centre of bearing (3) ( Fig. 7) are determined. Fig. 7 3.5.3 How to set looper connecting rod (Fig.

  • Page 23: How To Mount Front Bearing Block (Fig. 9)

    3.5.4 How to mount front bearing block (Fig. 9) Two bushes (5) are pressed into front bearing block (1) for the rear shaft (2), whereby the right bush must be flush and the left bush (gearwheel side) should project by 1.5 mm. Both gearwheels are running on a level. Turn the eccentric front bush (6) so that the eccentricity is going upwards.
  • Page 24 Fig. 9 MA_VTD410EV_A2_181015_en...

  • Page 25: How To Mount Rear Bearing Block

    Fig. 10 3.5.5 How to mount rear bearing block The height dimensions of the rear bearing block are as follows: Single-thread machines with distance piece 14 mm Length of rear bearing block can only be adjusted according to fastening drill holes.

  • Page 26: How To Set The Looper Motion (Fig. 10)

    3.5.6 How to set the looper motion (Fig. 10) The completely assembled looper shaft (see “ 3.5.4 How to mount front bearing block (Fig. 9)”) together with bearing block (see “3.5.5 How to mount rear bearing block”) can now be mounted to the machine. Needle motion has already been set.

  • Page 27: How To Set The Looper In Its Front Position To The Rear Feed Cup

    3.5.7 How to set the looper in its front position to the rear feed cup The looper reaches its utmost front position on turning the cam by 180 degrees. To be set as per measure H - see chart. It is important that the looper height L, incl. shaft, is properly adjusted (see chart).
  • Page 28 Fig. 13 MA_VTD410EV_A2_181015_en...

  • Page 29: Feed Cup

    Feed cup 3.6.1 Removing the feed cup (Fig. 14, Fig. 15 and Fig. 16) If the standard feed cups have to be replaced by differently toothed ones, proceed as follows: Remove material guide (1) - 2x screw (2) (Fig. 16). Needle, cylinder screw (1), needle clamp plate (2), pressure plate adjusting needle (4) and spring (3) pull out.

  • Page 30: Remounting The Feed Cup (Fig. 17)

    Fig. 16 3.6.2 Remounting the feed cup (Fig. 17) After the clutches were installed, the transport plate bearing can be mounted with the drive chain. It is important to ensure that a dimension transport plate top edge to center of needle bar is 9 ± 0.1 mm. After the assembly of the sprocket (1) the lid (2) can be inserted and fixed by silastic coated.

  • Page 31: Chain Tension

    Fig. 17 3.6.2.1 Chain tension The chain for the feed cup drive can be tensed by means of set screw (1) at the left front side ( Fig. 2). MA_VTD410EV_A2_181015_en...

  • Page 32: Mounting Of Pneumatically Controlled Shaft

    3.6.2.2 Mounting of pneumatically controlled shaft Mount freewheel with shaft (1). Put lower coupling part (3) on thrust bearing (2) close to freewheel by means of screws (4). Mount upper shaft (5) closely, upper coupling (6), set collar (7) and conical gearwheel (8) closely.

  • Page 33: Front Cup Assembly

    3.6.2.3 Front cup assembly The conical gear wheels ((2) Fig. 2) should be set so that they can rotate easily but have little play between the teeth. The height can be compensated by adjusting bush (see “3.1 Pre-assembly”) or by means of shims. When properly adjusted, you can easily turn the regulating knob from the fixed stop „long stitch“...

  • Page 34: Front Cup

    Front cup Fig. 20 MA_VTD410EV_A2_181015_en...

  • Page 35: Front Cup Assembly (Fig. 20)

    3.7.1 Front cup assembly (Fig. 20) After removing cover (1) (three screws (2)), screw (3) can be unscrewed and the big toothed wheel (4) can be pulled off. Then remove locking ring (5) from bearing bolt of the small front cup (6) and replace front cup.

  • Page 36: Tension Of Front Cup Support Arm (Fig. 22)

    Fig. 21 3.7.2.1 Tension of front cup support arm (Fig. 22) The necessary tension of the support arm can be adjusted with the pressure regulator (1). The pressure depends on the material which has to be stitched and it is between 1.5 and 2.0 bar. 3.7.2.2 Feed cup opening (Fig.

  • Page 37: Adjusting The Arm Plate (Fig. 22)

    3.7.3 Adjusting the arm plate (Fig. 22) A T T E N T I O N ! Switch off Machine electrically! Depend of the stiffness of the material, the pressure of the front cup support arm can be adjusted with the pressure regulator (1) which is mounted on the right side underneath the table top.
  • Page 38 Fig. 23 MA_VTD410EV_A2_181015_en...

  • Page 39: Feed Dog

    Feed dog 3.8.1 Differential adjustment Because of easier handling start with differential adjustment when assembling the machine. Lever (1) with set collar (2) and lever (3) has to be sticked to shaft (4) with O-ring (5). Shaft should be more or less flush with outer edge of machine column.
  • Page 40 Before assembling, joint rod ((9) Fig. 26) should be adjusted to measure 121.5. It has to be observed, that, when bolt ((8) Fig. 26) is in zero position, bar (1) stands exactly within the centre of rotation of bearing flange (2) to guarantee synchronous running of the feed cups (control from the bottom side: centre may not move at zero position) Possible tolerances are to be corrected by adjusting threaded rod ((2) Fig.
  • Page 41 Fig. 26 After mounting gear shifting gate (10) with all belonging parts, trip dog (11) may be adjusted provisionally. It should sit close to bolt (8) when lever (6) is in zero position. (Fig. 26) The synchronous adjustment can be corrected by loosening both screws (12) in connecting piece (4) and displacing rod (2) (Fig.

  • Page 42: Pneumatic Lifting

    Pneumatic lifting 3.9.1 One-way restrictor A T T E N T I O N ! Switch off Machine electrically! The one-way restrictor lets the air current pass in one way and throttles it in the other direction. The throttling effect can be adjusted by means of a setting screw.

  • Page 43: How To Adjust Stitch Regulating Bolt (Fig. 28)

    3.11 How to adjust stitch regulating bolt (Fig. 28) Eccentric (1) and bolt (2) have to be adjusted to the specific stitch length required. Make sure that wing (3) and rod (4) are correctly set. Bolt (2) must be mounted with the dotting mark facing upwards because this mark indicates the stitch length, i.e.

  • Page 44: Setting And Mounting Instructions For Strobel Gathering Device (Fig. 29)

    3.12 Setting and mounting instructions for STROBEL gathering device (Fig. 29) The gathering device is fixed to the cup support arm by means of 2 screws (1). After swiveling the guide (2) down between the feed cups, this should be placed approx.
  • Page 45 258.00.27 Netz-Anschlussplan Kl. allg. (DC1500/DC1550 mit/ohne Nähleuchte allg.) Mains connection plan cl. gen. (DC1500/DC1550 with/without sewing light gen.) Kabelbefestigung mit Kabelbinder cable mounting with cable strap Nähleuchte (allg.) 3x 293.0290 sewing light (gen.) Rechtes Gehäuseteil right casing Netzanschluss power connection Linkes Gehäuseteil left casing Steuerkasten...
  • Page 46 258.00.32 Netz-Bauanschlussplan Kl. allg. (DC1500/DC1550 mit/ohne Nähleuchte allg.) Mains facility connection plan cl. gen. (DC1500/DC1550 with/without sewing light gen.) Netzanschluss power connection Nähleuchte (allg.) sewing light (gen.) Linkes Gehäuseteil left casing 293.0290 2x 293.0290 blau / blue Steuerkasten control box braun / brown Efka-AB221A, -AB222A, -AB321A, -AB322A...
  • Page 47 258.21.58en Electrical connection plan cl. VTD410EV as of version 1 (DC1550-AB321A) POS1Q T-TLÜ +5V / 0,2A POS2Q 0,5A 0,5A 0,5A +24V(1) EINH ( 1V3 ) 0,5A 0,5A 0,5A 0,5A +24V(1) 6,5A +15V / 0,3A LÜ ( 1V1 ) +24V(1) 6,5A +24V(1) TLÜ...
  • Page 48 259.00.55 Pneumatischer Schaltplan Kl. VTD410EV ab Ausf. 2 Pneumatic circuit diagram cl. VTD410EV2 as of version 2 1 A 31 1 A 1 1 A 3 1 A 4 1 V 12 1 V 10 1 V 11 1 V 4...
  • Page 49 259.10.55 Pneumatischer Bauschaltplan Kl. VTD410EV ab Ausf. 2 Pneumatic construction circuit diagram cl. VTD410EV as of version 2...
