WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in
material or workmanship. All SSV Works Electronics are covered by a limited 1 year
warranty against defects in material or workmanship. Labor for replacement of defective
components is not covered. All SSV Works Speakers are covered by a limited 1 year
warranty against defects in material or workmanship. Contact SSV Works for further
warranty information.
TOOLS NEEDED FOR INSTALLATION
- T30 Torx Driver - 1/8" Drill Bit
PARTS LIST IMAGES
1. DF-F65 Enclosures (1 pair)
A. Remove the (2) bolts in the driver/pass footwell (circled in
pink) with a 10mm wrench and T30 torx driver.
(View from front fender wheel well)
- 1/4" Drill Bit - 10mm Wrench
2. M6 x 16mm Screws and
Washers x 2
A

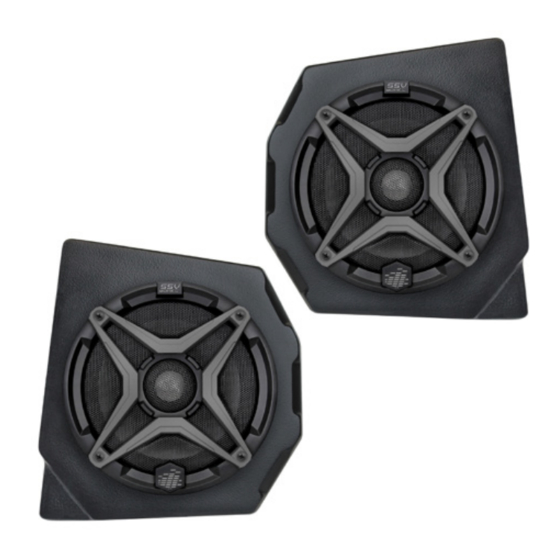

6.5" Front Kick Panel Speaker Enclosures
!
- Scribe Tool
3. Driver Side Drill Template
DEFENDER F65 DRIVER SIDE
DRILL TEMPLATE
B. Cut out the (Driver/Passenger) template along the cut line.
Position the template on the inside footwell and reinstall the
(2) factory bolts previously removed through the template.
Using a scribe tool, mark the center of the 3rd drill point
illustrated on the template as shown in photo.
DF-F65
Can-Am Defender
Please read and understand these
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
4. Passenger Side Drill
E D S I R V E R I D 5 F 6 E R D N E E F D
T E A P L M T E L L R I D
Template
B
