SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects
in material or workmanship. All SSV Works Electronics are covered by a limited 1 year
warranty against defects in material or workmanship. All SSV Works Speakers are
covered by a limited 1 year warranty against defects in material or workmanship. Labor
for replacement of defective components is not covered. Contact SSV Works for further
warranty information.
TOOLS NEEDED FOR INSTALLATION
-Wire Crimpers
- Wire Strippers
- 5/32 Allen Wrench
- 7/16" Open End Wrench
PARTS LIST IMAGES
1. CM2-FKP65-U Enclosures
(1 pair)
INSTALLATION NOTES
The use of a thread locker is recommended on all screws to prevent loosening due to vibration. Sealing all wiring holes with a silicone sealer will
prevent moisture from entering the enclosure. The glove box does not need to be removed for Kick panel installation; ours was removed for photo
purposes only.
- Drill with 1/8" and ¼" Drill bit
- #2 Phillips Screwdriver
- T-30 Torx wrench
- Scribe or Marker
2. 1/4 x 20 Allen Bolt x 6
Commander and Maverick
6.5" Speaker Front Kick Panels
Please read and understand these
!
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
PARTS LIST

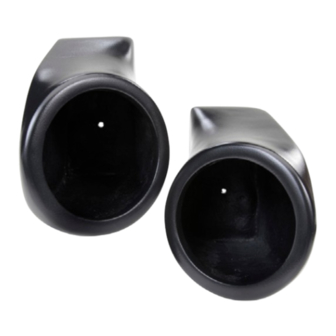

1. CM2-FKP65-U Enclosures (1 pair)
2. 1/4" x 20 Allen Bolt x 6
3. 1/4" Washers x 6
CM-FKP65
3. 1/4" Washers x 6
4. 1/4" Nut x 6
4. 1/4" Nut x 6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SSV Works CM-FKP65
Summary of Contents for SSV Works CM-FKP65
- Page 1 All SSV Works enclosures are covered by a limited lifetime warranty against defects instructions completely before in material or workmanship. All SSV Works Electronics are covered by a limited 1 year installation to avoid possible injury, or warranty against defects in material or workmanship. All SSV Works Speakers are damage to the accessory or vehicle.
- Page 2 Removing the 4 - T-30 Torx along the side of the vehicle will make this step easier. E. Place the speaker into the enclosure and mark the 4 mounting holes with a scribe or marker, Pre-drill the marked mounting locations using a 1/8” drill bit. CM-FKP65...
- Page 3 For proper sound, ensure the speaker polarity is correct connect the “+” to the “+” and the “-“to the “-“from the speaker wire to the amplifier. If using with an SSV Works complete system refer to the amplifier wiring instructions for more detailed wiring information.
