MULTISPAN MVC-72N Operating Manual page 2

Working
1). Do all the wiring connections according to connection diagram &
Power on the instrument
2). When instrument is turn ON output arises according to indication of the display &
RUN (Green LED) will glow.
3). Output remains OFF until proxy pulse arises, STOP (Yellow LED) will glow & as soon
as the pulse goes OFF, output turns ON.
i.e
(Proxy Pulse ON = Output remains OFF) & indication of display actual Value
(Proxy Pulse OFF = Output remains ON) & indication of display will show actual
Product improvement and upgrade is a constant procedure. So for more updated operating information and support,
Please contact our Helpline : +91-9978991474/76/82 or Email at service@multispanindia.com

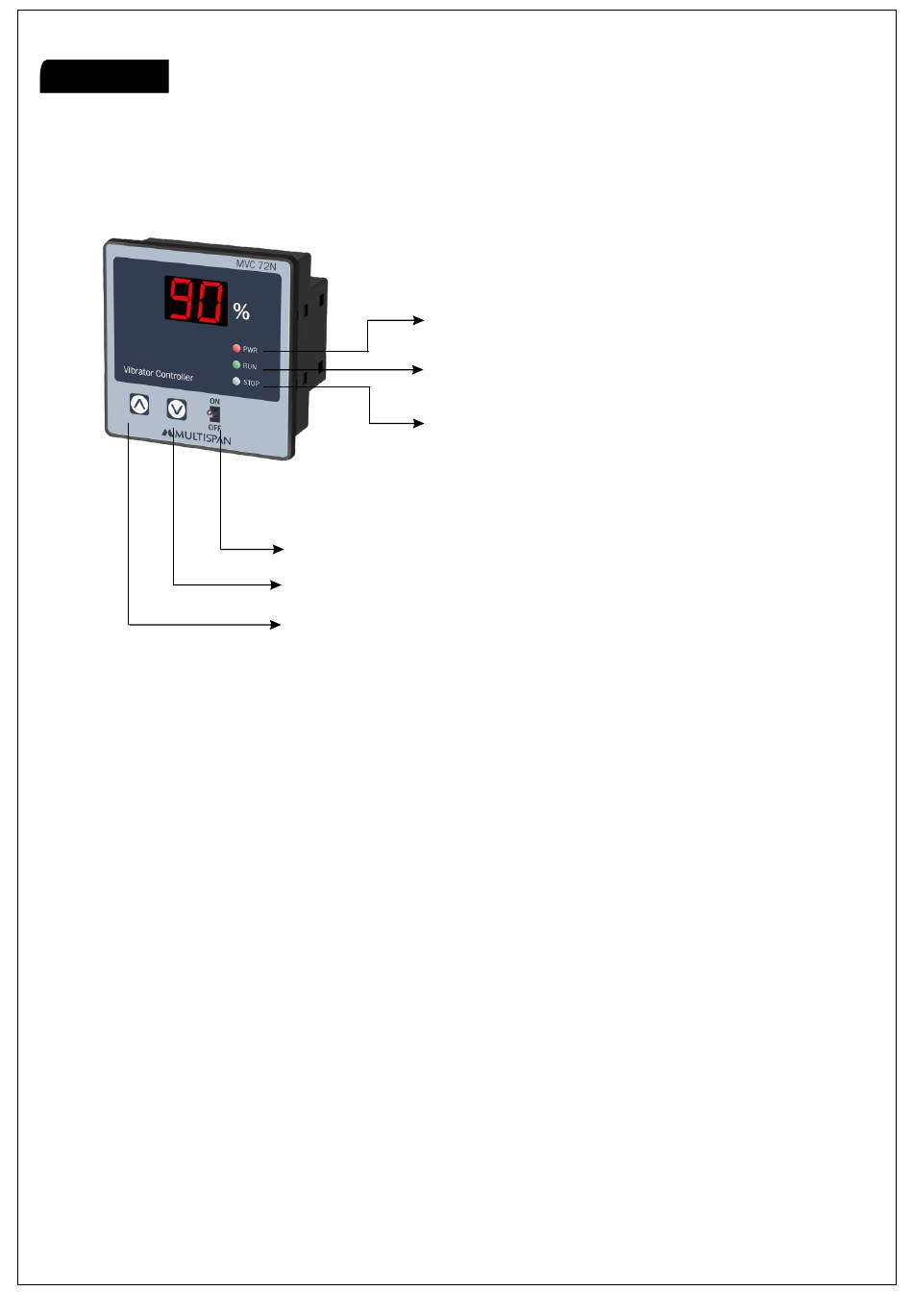

MVC-72N
PWR (Red LED) - Power ON
RUN (Green LED) - Vibrator ON
STOP (Yellow LED) - Vibrator OFF
* Switch ON/OFF the instrument
* Decrease vibration output
* Increase vibration output
reading
Page - 2
