MULTISPAN DC-14 Manual

TECHNICAL SPECIFICATION
INPUT SPECIFICATION :
Input Current Through external shunt
(-75mV To+75mV DC)
Shunt Selectable -999 to 9999 Amp
Direct voltage DC 0 to 1000V DC
CALCULATED PARAMETERS :
Parameter
0.00 - 49.99 V DC
50.0 - 199.9 V DC
DC Voltage
200.0 - 399.9 V DC
400.0 - 1000 V DC
DC Current -999 - 9999 A DC
WATT 0000 - 9999 KW
DISPLAY & KEYS :
4 Digit, 1 Line 7 seg. 0.8" RED
Display
4 Digit, 1 Line 7 seg. 0.8" White
Key Set, INC, DEC
DIMENSION :
Size (mm) 96 (H) x 96 (W) x 54 (D) mm
Panel Cutout 92 (H) x 92 (W) mm
AUXILIARY POWER SUPPLY :
Power Supply 100V to 270V AC,50/60Hz
Burden
Approx 3VA @ 230V AC
ACCURACY
Class 1.0 (Standard)

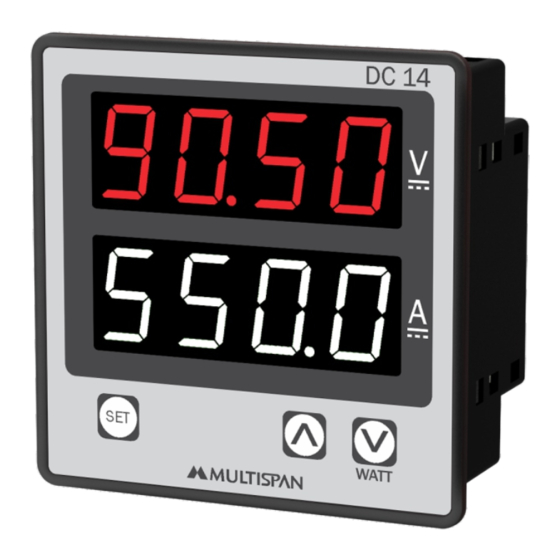

DC MULTIFUNCTION METER
Current
Voltage
Range Accuracy
1 % OF 49.99V
1 % OF 199.9V
1 % OF 399.9V
1 % OF 1000 V
1 % OF FSD
ENVIRONMENTAL CONDITION
DC-14
Working Temperature
Storage Temperature
Relative Humidity
Protection Level
( As per Request )
Outline Dimension (mm)
96
SET
20
www.multispanindia.com
Made in India
100
270V AC
50/60 Hz
3VA
L
1
When an error has occurred the display indicates error codes
as given below.
ERROR
sHER
OVER
1) Amp & Voltage Page
1 9 5.5
V
1 5 0 0
A
If watt value is greater than 999 watt ,
then display will shown in KW (Kilo Watt) as below.
1. 0 0 1
V
A
Note :- Press
0 to 55°C
0 to 55°C
95 % RH Non-
Condensing
IP-65 (Front side As per
IS/IEC 60529 : 2001)
MECHANICAL INSTALLATION
DC 14
WATT
3
96 54
TERMINAL CONNECTION
19 18 17 16 15
+1000V DC
GND
Voltage: 0 To 1000V DC
~
Current: -999 To 9999 Amp DC
(Through Shunt)
Input: -75 To 75mV
Accuracy: Class 1.0
N
5 6
2 3 4
ERROR DISPLAY
Shunt error or shunt connection
is open
Shunt input signal is excess
more then 75mV DC
DISPLAY INDICATION
2) Watt Page
(Kilo Watt)
Key for change page.
WATT
Panel Cutout
Dimension (mm)
92
92
14 13 12 11
7 8 9 10
MEANING
9 9 9
V
a t t
A
Page 1
